On the chart table you will find sea charts, tide tables, navigational triangles and dividers. On deck, binoculars, compass, sounding lead and log are used to determine position - traditional navigation requires genuine tools of the trade. If a sextant is part of the equipment, the art of astronautical navigation can also be used to determine the position on the high seas. If, however, things have to happen very quickly and the ship's position and course have to be transmitted to surrounding ships, it is possible to make use of the electronic navigation system AIS. The Automatic Identification System enables ships to identify each other and to exchange data on course, speed, position and other information. Toplicht offers an extensive selection of navigational instruments. These include steering compasses, hand bearing compasses, build-in compasses and sextants. In case of boredom in the cabin during bad weather or out of season, we also offer a hand-picked selection of international book titles from ship history to boatbuilding. In addition to beautiful, rare illustrated books, you will find a number of manuals and handbooks with invaluable information, tips and background knowledge for practical work on and around boats and ships.

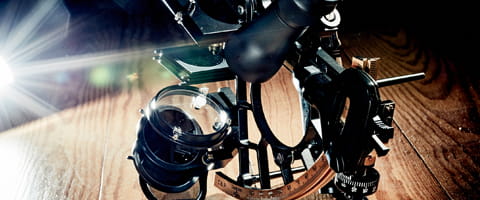

Navigation & books
Handy yacht extant with half-view mirror. Made of seawater-resistant cast aluminium, anodized and stove-enamelled, with plastic handle. Available in two colors: black or ivory.ZEISS lens with 3.2x magnification and 30mm aperture, distortion-free image thanks to high-quality, adjustable mirrors with tested flatness, five pivoting shadow glasses.The yacht sextant is used for finding and calculating the position by measuring the elevation angle between the sighting lines ship-chimney and ship-star or by measuring the horizontal angle near the coast.Technical featuresspecially manufactured for yachts and smaller shipsFilter frame made of cast aluminumhardly susceptible to interference, unaffected by electromagnetismPlastic handleDegree bend with graduation radius 142 mm, graduation length -2° to +123°, scale value 1°Drum with scale value 1'ZEISS objective 3.2 x 30 mmHigh-quality, adjustable mirrors (half-view)5 swing-in shadow glasses (3 index filters, 2 horizon filters)Supplied in a wooden case for safe storageTest certificate with individual correction valuesComprehensive operating and adjustment instructionsAdjustment keyDimensionsSextant 240 x 210 x 110 mm, weight 0.86 kg.Wooden case 265 x 240 x 150 mm, weight 2.8 kg.An lighting unit is optionally available (see "Accessories & spare parts").
Full-view drum sextant with certified correction values under 40".A precision instrument developed for professional maritime navigation, made of seawater-resistant aluminum. The sturdy strut body is cast without internal stress, fully anodized, and baked-on painted.The drum sextant enables position determination and calculation by measuring the elevation angle between the sight lines from the ship’s gunwale to a celestial body, or by measuring the horizontal angle near the coast.This traditional navigation method is virtually immune to interference, unaffected by electromagnetism, and independent of onboard electrical power.FeaturesOptimal adjustment accuracydistortion-free imaging thanks to high-quality mirrors with verified flatness, corrosion-resistant sealing, and fine-tuning capabilityBrightness compensation of the two partial images via swiveling filter glasses (3+4) with matched transmittanceEasy bearing determination thanks to a wide telescope field of view and a protective eyecupLightweight, heavily ribbed, and corrosion-resistant light-metal segmentOptimal protection of the sensitive alhidade between the segment and the handleTechnical SpecificationsProfessional full-view sextant with full horizon mirrorProtractor with a division radius of 170 mm, division range from -5° to 125°, scale value 1°Encapsulated, high-precision measuring drum with scale value 1´, estimation 0.1´JENA optics 4x40 (40 mm, 4x magnification)7 swiveling shadow glasses made of plane-parallel neutral glassPlastic handleColor: grayDimensions: 26 x 24 x 13 cm. Weight: 1.4 kgWooden case dimensions: 34 x 322 x 17 cm. Weight (with sextant): 4.5 kgWhat’s IncludedDrum sextant in wooden caseCertificate of CalibrationOperating and Adjustment InstructionsKey for mirror adjustmentThe Freiberger drum sextant is also available as a semi-visible sextant with certified correction values of less than 40" or less than 20" (see "Similar Products").
Sextant made from fibreglass-reinforced plastic with adequate precision for learning and practise. Good precision from a micrometer barrel, mirror with 7 shaded glasses. Object lens with triangular magnification. Comes in a plastic box: 255 x 230 x 120mm with German language manual.Colour: black.
Simple sextant for practicing and learning. Grey plastic. Arc 178 mm, working range -10° to 100°. Prismatic reading with wide expanded nonius range (30 part dashes) allows measurements of up to 2' precision, the index mirror is moveable in two directions. Two pivoting shadow glasses as well as two shadow discs are in front of the viewer "telescope" (no lenses, no enlargement).
The artificial training horizon allows for the measurement of celestial body altitude using a sextant when there is no view of the horizon—for example, at night, in ground fog, during voyages close to land, or for land navigation.The CELESTAIRE artificial practice horizon can be attached in place of the normal telescope. This works with sextants manufactured by Cassens & Plath. The practice horizon is not suitable for Davis plastic sextants.On the right side, the user looks over the sextant mirrors toward the celestial body and a horizontal line. To make an observation, the user holds the sextant vertically as usual. A bubble in the spirit level must align with the horizontal line. The celestial body is also centered on the horizontal line. When observing the Sun, its lower edge is used.The artificial training horizon is intended solely for training purposes and isNOT suitablefor navigation.You can find an artificial navigation horizon with BSH certification for commercial shipping (Item No. 3716-103) further down the page under “Related Items.”
Template for celestial navigation created by RYA Yachtmaster Ocean Instructor Leon Schulz in cooperation with the German sextant manufacturer Cassens & Plath.The clearly laid out DIN A4 sheet has proven itself in theory and practice and has helped hundreds of sailors to quickly understand, with helpful designations, information and notes, where in the sight reduction tables and Almanacs which values must be taken step by step.These are not only helpful for understanding celestial navigation, for example during an RYA Yachtmaster Ocean course, but above all as a later memory aid. The templates are clearly structured and provide step-by-step instructions on how to determine your own position.There is a template for observing the sun and one for determining the noon latitude.Each pad has 25 sheets (printed on one side). Texts in English.The free instructional videos on how to use the templates on Leon Schulz's homepage help you to familiarise yourself with the working method.www.reginasailing.com/celestial_videos/
The artificial horizon is a device for taking sun or moon shots without observing the natural horizon.Excellent help for practicing sextant observations at home.The plastic body is to be filled with water or equivalent liquid and must be positioned unmoved.May not be used on sea.Plastic body with glass windows and plastic shades.May not be used for noon shots (only for angles up to 45 degrees). Comes collapsable in a plastic box.
Lutz Böhme has been working for over 15 years for various sailing and sports boat schools in the training of sailing licences for the German certificates of competency Sportseeschifferschein (SSS) and Sporthochseeschifferschein (SHS).His special "hobbyhorse" is astronomical navigation. He has therefore compiled his various explanations, instructions and exercises on 75 pages for easy-to-understand, well-founded exam preparation.The very helpful, detailed script in ring binder form introduces astronavigation in easy-to-follow steps. It also deals with the great circle, cutlery and coupling calculations with information on using a pocket calculator for the current SHS navigation examinations.Currently the best source of information for SHS exam preparation in the field of astronavigation.The reading sample - see further down on this page under "Downloads & Information" - gives a good first impression (even if it is not from the latest edition).75 pages, numerous photos and illustrations, DIN A4 format, edition: June 2023. German edition.
Lutz Böhme has been working for over 15 years for various sailing and sports boat schools in the training of sailing licences for the German certificates of competency Sportseeschifferschein (SSS) and Sporthochseeschifferschein (SHS).He has therefore compiled his various explanations, instructions and exercises on 135 pages for easy-to-understand, well-founded exam preparation.In the terrestrial navigation section, he goes into particular depth on the content above the Sportküstenschifferschein (SKS), for example by describing current triangles lasting several hours.The topics of tidal science and calculations with the Admiralty Tide Tables (ATT) and electronic navigation are also covered. The chapter on shipping law also includes radar plotting and the evasive manoeuvres required for the SHS.A very helpful script in ring binder form.The reading sample - see further down on this page under "Downloads & Information" - gives a good first impression (even if it is not from the latest edition).135 pages, numerous photos and illustrations, DIN A4 format, edition: February 2024. German edition.
Semi-transparent drum sextant with certified correction values under 40".A precision instrument developed for commercial shipping, made of seawater-resistant aluminum. The sturdy strut body is cast without internal stress, fully anodized, and baked-on painted.The drum sextant enables position determination and calculation by measuring the elevation angle between the sight lines from the ship’s gunwale to a celestial body, or by measuring the horizontal angle near the coast.This traditional navigation method is virtually immune to interference, unaffected by electromagnetism, and independent of onboard electrical power.FeaturesOptimal adjustment accuracydistortion-free imaging thanks to high-quality mirrors with verified flatness, corrosion-resistant sealing, and fine-tuning capabilityBrightness compensation of the two partial images via swiveling filter glasses (3+4) with matched transmittanceEasy bearing determination thanks to a wide telescope field of view and a protective eyecupLightweight, heavily ribbed, and corrosion-resistant light-alloy segmentOptimal protection for the sensitive alhidade between the segment and the handleTechnical SpecificationsProfessional split-view sextant with half-horizon mirrorProtractor with a scale radius of 170 mm, scale range from -5° to 125°, scale division of 1°Encapsulated, high-precision measuring drum with scale value 1', accuracy 0.1'JENA optics 4x40 (40 mm, 4x magnification)7 swiveling shadow glasses made of plane-parallel neutral glassPlastic handleColor: grayDimensions: 26 x 24 x 13 cm. Weight: 1.4 kgWooden case dimensions: 34 x 322 x 17 cm. Weight (with sextant): 4.5 kgWhat’s IncludedDrum sextant in wooden caseCertificate of CalibrationOperating and Adjustment InstructionsKey for mirror adjustmentThe Freiberger drum sextant is also available as a full-view sextant with certified correction values below 40" and as a half-view sextant with certified correction values below 20" (see "Similar Products").
SIRIUS semi-transparent drum sextant with certified correction values under 20".A precision instrument developed for commercial shipping, made of seawater-resistant aluminum. The sturdy strut body is cast without internal stress, fully anodized, and baked-on painted.The drum sextant enables position determination and calculation by measuring the elevation angle between the sight lines from the ship’s gunwale to a celestial body, or by measuring the horizontal angle near the coast.This traditional navigation method is virtually immune to interference, unaffected by electromagnetism, and independent of onboard electrical power.FeaturesOptimal adjustment accuracydistortion-free imaging thanks to high-quality mirrors with verified flatness, corrosion-resistant sealing, and fine-tuning capabilityBrightness compensation of the two partial images via swiveling filter glasses (3+4) with matched transmittanceEasy bearing determination thanks to a wide telescope field of view and a protective eyecupLightweight, heavily ribbed, and corrosion-resistant light-alloy segmentOptimal protection of the sensitive alhidade between the segment and the handleTechnical SpecificationsProfessional split-view sextant with half-horizon mirrorProtractor with a scale radius of 170 mm, scale range from -5° to 125°, scale division of 1°Encapsulated, high-precision measuring drum with scale value 1', accuracy 0.1'JENA optics 4x40 (40 mm, 4x magnification)7 swiveling shadow glasses made of plane-parallel neutral glassPlastic handleColor: grayDimensions: 26 x 24 x 13 cm. Weight: 1.4 kgWooden case dimensions: 34 x 322 x 17 cm. Weight (with sextant): 4.5 kgWhat’s IncludedDrum sextant in wooden caseCertificate of CalibrationOperating and Adjustment InstructionsKey for mirror adjustmentThe Freiberger drum sextant is also available with certified correction values below 40" as a full-view sextant and as a half-view sextant (see "Similar Products").
The following sextant accessories are available.
The BOBBY SCHENK model incorporates the design ideas of this experienced offshore sailor.On this sextant, which features a full-view mirror for easy handling, the index correction can be adjusted directly via the drum screw. Telescope: 4 x 40 mm; 7 shadow glasses; indirect, glare-free illumination.The white body ensures that the sextant does not heat up as much, even in direct sunlight.What’s IncludedYellow rough case—shock-resistant caseThe sextant can be engraved upon requestOptional accessory: Small chronograph (quartz watch) for determining the reading time (see “Accessories & Replacement Parts”).
The Horizon Ultra is Cassens & Plath’s top-of-the-line sextant. This precision angle-measuring instrument for astronomical positioning has a certified instrument error of < +/- 5".Manufactured in Germany, this sextant with a 4x40 mm telescope is available with either a full-view mirror or a clear-view mirror. You can find an explanation of the differences in our resource center. The sextant is easy to handle and offers perfect readability. The indirect, glare-free illumination contributes to this. This high-quality navigation instrument features special polarized shade glasses that are exclusively installed in the Horizon Ultra. One glass each for the horizontal and vertical directions simplifies the handling of the sextant during observation.By rotating the lens, the brightness of the celestial body can be adjusted continuously. This has the advantage that no polarizing lenses need to be removed or added during observation, making it easier to keep the celestial body in the field of view.In addition, the sextant is equipped with a double prism (Schüler type). It directs the horizontal line of sight to the right and left of the sun’s reflection on the water, thereby preventing measurement errors caused by lighting conditions. Furthermore, any vertical tilt of the sextant can be immediately detected in the horizon line.Polarizing filters and the Schüler double prism make the Horizon Ultra the go-to instrument for solar observations.The drum screw features scales for combined horizon depth and index adjustment.As with all Cassens & Plath sextants, the radius of the arc complies with international standards and meets accuracy tolerances.The sextant frame is milled from a 5.5-kilogram brass plate and ultimately weighs 600 grams. After milling, the frame is heated in a furnace, straightened, ground, and engraved. Any distortions that may result from milling and heating are corrected with light, precise hammer blows. Finally, the stress-free strut assembly is stove-enameled, and then the individual components are mounted on the frame.The Horizon Ultra is available in two colors:With a white body to prevent excessive heating from sunlightWith a classic black bodyThe telescope has 4x magnification and a 40 mm objective aperture. The seven swiveling eyepieces are made of plane-parallel neutral glass. The adjustable, high-quality mirrors are certified for flatness.It is shipped either in a wooden case or a plastic “Rough Case”—both included in the price. Information on the two case types can be found under “Accessories & Spare Parts.”When placing your order, please specify your choice of “Full View / Open View” and “Wooden Case / Rough Case” in the comments section. If you would like an engraving (also included in the price), please also specify the desired text here (e.g., the name of the owner or the ship).The items in stock are unengraved clear-view sextants in wooden cases. Technical SpecificationsMeasuring range: -5° to +125°Instrument error: < ±5"Reading accuracy: >10" or 0.17'Number of AA or R6 batteries (1.5 V): 2Horizon mirror: choice of full-view or clear-viewHorizon mirror diameter: 56 mmIndex mirror dimensions: 56x42 mmFrame material: brassMirror cap material: seawater-resistant magnesium-aluminum alloyWeight: 1.8 kgPrinciple of the 4x40 telescope: Galilean, erect imageMagnification: 4xObjective diameter: 40 mmAngle of view: 8°Field of view: 131 m / 1,000 mExit pupil: 5 mmGeometric luminous intensity: 100Twilight factor: 12.7Focusing: rotatable eyepiece mountScope of deliverySextant (full-view or open-view—please specify in the comments section of your order)Selected case (wooden case or rough case—please specify in the “Comments” section of your order)Mirror adjustment keyCloth for cleaning optical componentsBrushUser manualCertificate of Quality
An optional accessory to the CASSENS & PLATH sextants:a small chronograph (quarz watch with stop function) to register the reading time.With bracket which fits on the sextant.
The German edition of the book is being discontinued by the publisher.David Barrie (born 1953) is a butterfly researcher, chairman of various foundations, passionate sailor and great author with great enthusiasm for navigation topics.With his first book "SEXTANT - A voyage guided by the stars and the men who mapped the world's oceans" he succeeded in creating a successful mixture of adventure, science, mathematics and heroic deeds. Above all, however, the book is also a declaration of love for the sea. "Barrie ties everything together in a light, airy way, surprises with historical detail, pays tribute to the courage of the first seafarers setting out into the unknown and brings tragic fates out of the mist of the past," a review said.Barrie describes how unknown the outlines of entire continents were just 250 years ago. Orientation by the stars was considered imperfect. Only a new observation instrument gave the modern world its shape: the sextant. David Barrie tells the story of how and why it was invented, how vital it was for seafarers and what a central role it played in the history of exploration and discovery.He artfully combines the experiences of intrepid seafarers such as James Cook, La Pérouse and Joshua Slocum with memories of his own Atlantic crossing, which he undertook as a young man.352 pages, 12.2 x 18 cm, paperback. German edition. English edition.
The PROFESSIONAL sextant from Cassens & Plath is a precision angularfor astronomical navigation. It has been type-approved by the Federal Maritime and Hydrographic Agency (BSH) (see “Downloads”) and has an instrument error of < +/- 5”.It MUST be delivered in a case. Please select the desired case option under “Accessories & Replacement Parts.”The sextant, manufactured in Germany with a 4x40 mm telescope, is available with either a traditional half-view mirror, a full-view mirror, or a clear-view mirror. You can find an explanation of the differences in our Information Hub. Furthermore, the half-view and full-view sextants do not require illumination.As with all Cassens & Plath sextants, the radius of the arc complies with international standards and meets accuracy tolerances.The sextant frame is milled from a 5.5-kilogram brass plate and ultimately weighs 600 grams. After milling, the frame is heated in a furnace, straightened, ground, and engraved. Any distortions that may result from milling and heating are corrected with light, precise hammer blows. Finally, the stress-free strut assembly is given a black baked-on finish, and then the individual components are mounted on the frame.The telescope has 4x magnification and a 40-mm objective aperture. The seven swiveling eyepieces are made of plane-parallel neutral glass. The adjustable, high-quality mirrors have been tested for flatness.Technical SpecificationsMeasuring range: -5° to +125°Instrument error: < ±5″Reading accuracy: >10" or 0.17'Number of AA or R6 (1.5 V) batteries (for optional illumination): 2Horizon mirror: choice of half-view, full-view, or clear-viewHorizon mirror diameter: 56 mmIndex mirror dimensions: 56x42 mmFrame material: brassWeight: 1.8 kgPrinciple of the 4x40 telescope: Galilean, upright imageMagnification: 4xObjective lens diameter: 40 mmAngle of view: 8°Field of view: 131 m / 1,000 mExit pupil: 5 mmGeometric light intensity: 100Twilight factor: 12.7Focusing: rotatable eyepiece mountPackage ContentsSextantSelected carrying case (see “Accessories & Replacement Parts”—must be ordered separately)Mirror adjustment keyCloth for cleaning optical componentsBrushUser manualCertificate of Quality
The artificial navigation horizon is required for measuring the celestial altitude with the sextant when there is no horizon visibility, for example at night, in ground fog, when traveling under land or for land navigation.The artificial horizon can be used on all CASSENS & PLATH sextants that are equipped with illumination, as it requires a power supply. These are the sextant models Horizon Ultra, Polaris, Bobby Schenk and Professional (with illumination).The artificial horizon can easily be exchanged for the normal sextant telescope thanks to its clamping screw. No adjustment is necessary.The device is used as a normal sextant telescope (3 x 25 mm) with a bubble level inserted into the optical path. A crosshair and the dragonfly bubble appear in front of a red illuminated background. A dimmer allows the brightness to be optimally adjusted to the external lighting conditions. An additional shade glass can be attached to the lens for solar observations.The artificial horizon is suitable for navigation and approved for commercial shipping under BSH/047/01/78.For purely training purposes, the artificial training horizon (article no. 3716-113) is an inexpensive alternative. You can find it under "Similar products".A suitable case is available as an accessory to provide optimum protection when storing the artificial navigation horizon.
Astronavigation has the status of a secret science from the last millennium - interesting, demanding, completely outdated and far too strenuous. Most water sports enthusiasts only study it - if at all - in preparation for an exam, such as the German Sporthochseeschifferschein (SHS) or the British RYA Yachtmaster Ocean.In the event of a total power failure on board or interference with satellite signals, astronavigation is still regarded as THE backup for GPS & Co. But who can really switch to the navigation system of our ancestors on an ad hoc basis or even has the necessary nautical documents on board?Helmut Hoffrichter has developed a completely computerised method of determining location using the sun and a sextant, which he calls ‘postmodern astronavigation’. The revised, expanded 2025 edition of his book "Postmodern Astronavigation. Travelling with the sun" has been published.The book begins with an easy-to-understand review of the history of astronomical navigation. Hoffrichter then introduces his self-developed app ‘Circle of position navigation’ (Apple) and ‘Sun Navigation’ (Android).A sextant is used to measure the distance to the unmistakable sun. For the sake of simplicity, planets and fixed stars are left out as natural celestial bodies. After measuring the elevation angle, astronavigation traditionally begins with an extensive mathematical calculation and then a graphical approximation method. This was devised in 1875 by the French naval officer Marcq Saint-Hilaire (1832-1889) as an ‘emergency solution’ that was solely due to its time.Although mathematically exact navigation methods have been known since the mid-18th century, the calculation could not be automated without a computer. In Hoffmeister's app, the elevation angle measurements can simply be entered on a mobile device. Of course, the tablet or smartphone would have to run independently of the on-board power supply failure.The long-displaced methods of mathematicians Johannes Keppler (1571-1630) and Leonhard Euler (1707-1783) as well as the ephemeris are stored in the software, which performs the location calculation at lightning speed. After using the sextant, ‘postmodern astronavigation’ is as easy to use as the familiar satellite navigation on the chart plotter. Extensive nautical documentation is not required, nor do you have to do any calculations or drawings yourself.With ‘postmodern astronavigation’, a location can be determined more precisely with the help of the sun than with the Saint Hilaire altitude difference method. Since this does not even require a gissort, the art of earlier navigators is simplified to such an extent that a genuine, easy-to-use, practical navigation backup is now available.The chapters in detailHistory of astronavigationThe Sun Navigation appA little sextant loreAnalytical position determinationDead reckoningGreat circle calculationThe equation of timeAppendix, including an extract from the 1809 publication by Carl Friedrich Gauss (1777-1855) in which he solves the two-height problem188 pages, 70 illustrations and 15 tables, format 14.8 x 21 cm, hardback. German edition.
There is still one copy of the 2026 Nautical Yearbook available. If you would like this copy, please indicate so in the "Comments" section of your order.With this new edition of the Nautical Yearbook, Mainz-based physicist Prof. Dr. Harald Merkel provides the ephemerides and tables for astronavigation at sea—in the tried-and-true print format and classic layout.With this printed collection of data, you can ensure you remain independent of potential failures of electronic navigation systems.The Nautical Yearbook consists ofdaily pages of ephemerides for the Sun, Moon, planets, and fixed starsComprehensive data sets and conversion tablesStar charts and planetary orbits for orientation in the skyInformation on determining latitude from the altitude of the North StarSunrise and sunset times for the Sun and MoonFixed stars, seasons, equation of time, lunar phases, visibility of the planetsSemiversus tablesYou can find a sample excerpt under “Downloads.”443 pages, size 21.6 x 28 cm, paperback.
Compact marine binoculars with a rugged Makrolon® housing. The open bridge, combined with a special, water-repellent, wave-patterned rubber armoring, improves handling even under challenging conditions.Once adjusted, the STEINER Auto-Focus consistently delivers razor-sharp images with 3D brilliance from 20 meters to infinity—without the need for refocusing. The 7x magnification ensures steady images, allowing you to identify buoys, beacons, and bridge numbers even in rough seas. The expanded field of view simplifies safe navigation when entering the harbor or in similarly confined environments, such as when passing under bridges.The nitrogen-pressurized filling prevents fogging on the inside. The binoculars are very robust: they can withstand impacts of up to 11G. The prisms are mounted on floating bearings to absorb shocks. The binoculars are pressure-waterproof up to 5 m and can be used in a temperature range from -20 to +70 °C.Available with objective lens diameters of 30 or 50 mm and, optionally, with a liquid-damped, illuminated compass.Ten-year manufacturer’s warranty.Package ContentsSTEINER Navigator BinocularsComfortable neoprene carrying strapRain coverLens caps (with locking mechanism)Practical storage pouch with tabs on the back for attachmentCleaning cloth
High quality branded binoculars with integrated graticule for distance and height measurement of objects. The coated optics allow sharp images with high contrast. The binoculars have an easy-grip, robust black and yellow rubber armoring and are also well-suited for eyeglass wearers thanks to the reversible eyecups.Other features:7x magnification, lens diameter 50 mm,multi-coated optics with BAK-4 Porro prisms,field of view 132 m at 1000 m,nitrogen filling prevents fogging,waterproof IPX7,floatable,single eyepiece adjustmentwith nylon carrying case and strap.Also available with precision analog compass with red light illumination.
Robust all-purpose binoculars, optionally with or without integrated bearing compass.The multi-coated optics with Bak4 Porro prisms deliver sharp, bright images with high contrast at a field of view of 115 m (at 1000 m).Full rubber armouring provides grip and good shock absorption. Fold-down eyecups prevent incident stray light and ensure optimal viewing even for wearers of glasses. Waterproof to IPX7.3701-011 has a compass with red light illumination and reticles for height and distance measurement.Supplied with carrying strap and nylon pouch.
A high-quality flotation strap is available as an accessory for every pair of STEINER marine binoculars. This protects your binoculars from sinking should they ever go overboard.In addition to the flotation straps for the current Steiner binoculars Article-No. 3700-683: ClicLoc 2.0 for Commander 7x50 and 7x50C (model from 2023).Article-No. 3700-684: without ClicLoc (with loop) for Navigator 7x50 and 7x50C as well as Navigator 7x30 and 7x30C and Navigator Autobright 7x50 and 7x50C.There are also straps for older binocular models.Article-No. 3700-681: ClicLoc for Commander 7x50 and 7x50C (model until 2022) as well as Navigator Pro 7x50 und 7x50C. NOT for Navigator Pro 7x30 und 7x30C.
Binocular case made from black nylon with shoulder strap. Article-No. 3700-836 fits for all 7 x 50 STEINER binoculars, Article-No. 3700-915 fits for all 7 x 30 STEINER binoculars.
COMMANDER 7x50, the professional marine binoculars from STEINER, the global market leader and inventor of the compass binoculars.These top-of-the-line binoculars feature the world’s largest HD compass in a binocular, bright images even in the dark, and autofocus. Their ruggedness and water resistance (up to 10 meters) are so legendary that they come with a 30-year manufacturer’s warranty.The sealed Makrolon housing with fiber-reinforced polycarbonate is extremely durable yet ultra-lightweight. Thanks to the non-slip, shock-absorbing NBR Longlife rubber armoring, the binoculars are resistant to oil, acids, and saltwater. The unique floating prism mount ensures permanently elastic mounting of the optical components and the best possible protection against impacts. As a result, the alignment remains precisely calibrated for decades. The binoculars are also pressure-waterproof to 10 m, feature a nitrogen-filled anti-fog system, and can be used in temperatures ranging from -40 to +80 °C. The protective, hydrophobic STEINER Nano-Protection causes water, dirt, dust, and snow to bead up and roll off, ensuring that the binoculars are easy to clean.Once set, the STEINER Sports Auto-Focus consistently delivers razor-sharp images with 3D brilliance from 20 m to infinity—without the need for refocusing. The 7x magnification provides blur-free, brilliant images even in rough seas. XL field of view of 140 m / 1,000 m.Thanks to the new Open-Bridge design , the binoculars can be easily gripped with just one hand. The eyecups provide a comfortable viewing experience, and the improved strap attachment makes the binoculars comfortable to carry.Optionally available with an HD-stabilized compass featuring illumination and an integrated precision reticle. With a diameter of 40 mm, this compass is currently the largest ever incorporated into a pair of binoculars. Thanks to the compass’s size and optimized liquid damping, bearing measurements are fast, accurate, and reliable—even under challenging conditions.All in all, a top-of-the-line product, made in Germany, by the only manufacturer worldwide that specializes exclusively in binoculars.What’s IncludedSTEINER Commander BinocularsComfortable ClicLoc neoprene carrying strap3M ClicLoc floating strapRain coverLens caps (with locking mechanism)Practical storage pouch with tabs on the back for attachment and a carrying strapCleaning cloth
Hand-held anemometer made of black plastic.Four display ranges (Bft., knots, m/s, km/h). With the pointer lock, the current measured value can be "frozen" for better reading.The protective cap supplied (also available as a replacement) ensures that the shell cross is not damaged during storage.

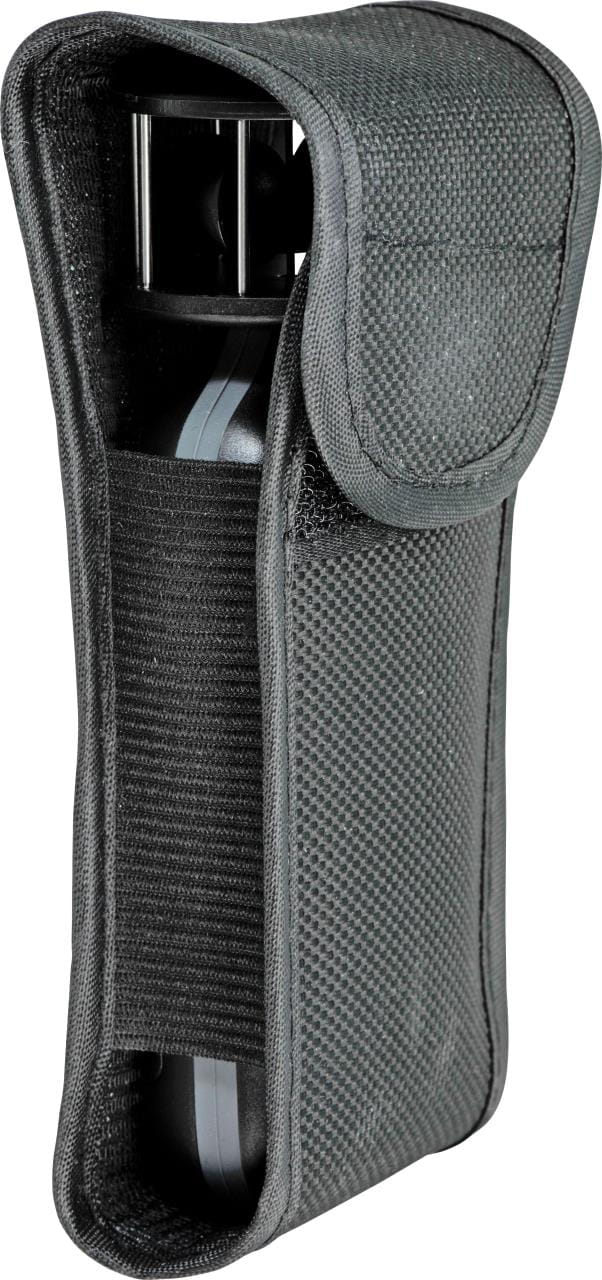

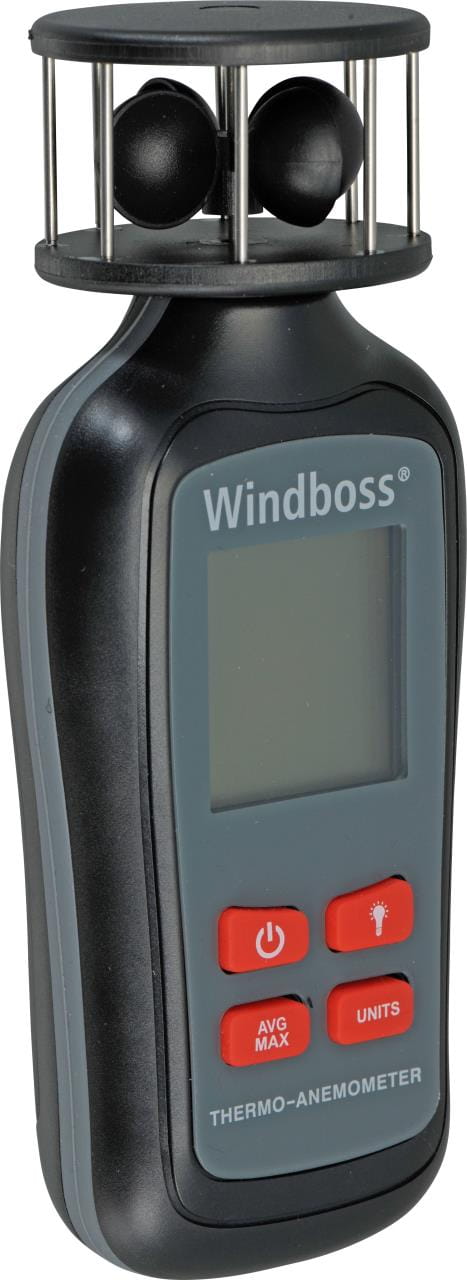

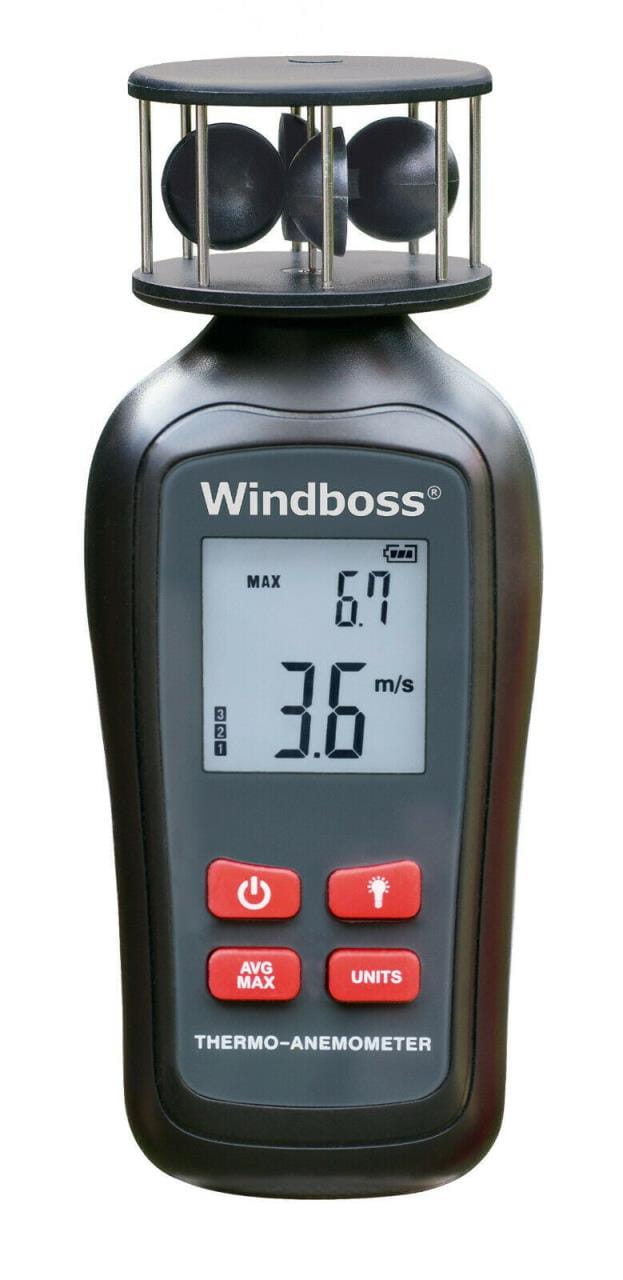

Handheld anemometer WINDBOSS 2 Precise, electronic hand-held anemometer for determining current, average and maximum wind speed. The anemometer provides precise wind and temperature data that is easy to read on the large display. Equipped with horizontally rotating cups. Windspeed is accurately sensed and not influenced by wind flow direction. Turning to the wind is not necessary. Recessed screw thread on the bottom for tripod use.Splash-proof according to IP54. Automatic switch-off after 15 minutes.Wind speed rangeUnits: Beaufort, knots, m/s, km/h, Mph Wind range: 0,7 - 30 m/sAccuracy: ± (4% + 2 digits)Temperature gauge Temperature units: °C/ °F Temperature range: -20°C - +70°C (-4°F - +158°F) Accuracy: ± 1,5 °C (± 2,7°F) Display: 3 digits LCD displayIncluding nylon bag, 3x 1.5 V AAA batteries
TARGET V2 anemometer with large, easy-to-read 38 mm high digits. The anemometer displays both the wind direction and the wind speed in MPH, knots or m/s as required. The leading line of the masthead unit can be set via a zero point adjustment. Wind sensor with improved hardware and signal processing with an NMEA0183 output (MWV data set) for connection to NMEA0183 compatible display devices.The proven instruments of the NASA TARGET-2 series are characterized by easy-to-use devices with a large, easy-to-read display with backlight, the displays are waterproof. The navigation instruments are easy to install. They have a low power consumption (10 mA + 10 mA for lighting) and are designed for 12 volt voltage.Display unit: 132 x 98 x 30 mm.Transmitter cable length: 20 m.Supplied complete with display unit, wind sensor V2 and PVC protective cap.
The handy wind meter WIND BEE by TFA is the ideal tool for all sailors, kitesurfers and outdoor enthusiasts. WIND BEE is also a useful companion at the workplace or for various leisure activities.The handheld anemometer displays the current wind speed as well as maximum and minimum values in kilometres or miles per hour, in metres per second or in knots. In addition, the temperature is determined. For measurements over a longer period of time, WIND BEE has a tripod thread.FunctionsEasy measurement of wind speedHighest and lowest valuesDisplay of temperatureBacklightAccuracy ±3Tripod threadTechnical dataScope of deliveryWind meter, battery, operating instructions Measuring range wind0,4 -30 m/s (0,9 - 67 Mph; 0,8 - 58,0 knots)Measuring range temperature-30 - +60°C (-22 - +140°F)MaterialPlasticPower supply1x 9V battery (included)Measurements(L) 52 x (B) 35 x (H) 175 mmWeight115 g
CHARTCOVER is a very practical tool made of plastic, in which the nautical charts are clamped under the transparent cover foil, protected from wind and water. This makes working with sports boat charts in the cockpit much easier.The cover foil is magnetically connected to the base plate, inserting or changing charts is very easy: open, close, done.With the waterproof STAEDTLER special pens (4 colours, not included), courses or notes can be written waterproof on the foil. The special eraser, which is also available as an accessory, can be used to remove the entries.The large CHARTCOVER is suitable for cards up to DIN A2 format (maximum 595 x 425 mm). Weight: 1.29 kg.
Classic, straight map compass / navigation compass in first-class quality, made of brass.The surface is either polished or matt nickel-plated. The polished brass compass is supplied in a brown plastic case. The matt nickel-plated compass comes in a simple plastic case.The points of the compass are cleanly ground. The screw in the head can be used to adjust the compass.
High quality course triangle, made in Germany.Plexiglass with plastic grip, hole for hanging, and support knobs.Navigation triangle with embossed two-color scale and middle zero point.Clear triangle without scale.Available in two sizes.
Navigation compasses / map compasses in first-class quality, with adjustment option in the head. Made in Germany.Made of brass, polished or chrome-plated surface. Cleanly ground and polished tips.The classic English one-handed compass shape.Supplied in a plastic pocket.
This complete navigation set contains everything you need for traditional chart work:two course triangles (270 mm hypotenuse) with internal zero pointClassic straight dividers made of brassPencilEraserThe set is stored in a practical blue plastic bag that provides good protection for the triangles.Also very suitable as a complete training set.
This carpenter's square is a professional tool, with legs of painted beech wood with fillet, hardened steel tongue with millimeter graduation, strongly riveted.
Traditional navigation aid. At a glance: - lenght: 18" / 457 mm, - made of 5 mm clear acrylic glass, - with nautical graduation 360 ° - 1°and vize versa, facet all-around, - connection bars aluminium, metal handles, - cork layer to protect the sea charts. Made in Germany Dimensions: 457 x 66 x 5 mm
Large nautical triangles, hight quality made in Germany. At a glance: - acrylic glass 3 mm, - screwed handle, - graduation 360 ° to 1°, - dichromatic digits on white base, - suspension hole, - naps to protect the chart, - hypotenuse divided 1/1 mm with zero-mark in center. - Length of hypotenuse: 325 mm - Length of cathetus: 230 mm Dimensions: 325 x 165 x 3mm. Advertising price - set of two protractor triangles.
Inexpensive navigation set in a practical zipper bag. The set consits of two protractor triangles (hypotenuse: 270 mm) and a devider.The navigation set is ideal for license courses and sail training.
This practical tray helps keep order on a chart table (and at home).Made of solid teak, cleanly milled and sanded. Untreated.Size MINI for a dividers and 4 pens.
This practical tray helps keep order on a chart table (and a home).Made from solid teak, cleanly milled and sanded. Unfinished
Proven, highly versatile multifunctional display that can show almost all data from the SeaTalkNG or NMEA2000 on-board network. Speed, course, wind data, depth, tank gauges, engine data, AIS - there is hardly any information that the i70s cannot display in a clear and structured way. Analog transducers from log/sounder, wind, etc. can also be integrated via an ITC-5 converter. Older RAYMARINE devices can also be connected via a converter.The RAYMARINE "Lighthouse 4" user interface allows easy installation and display of the ship's data via 7 preconfigured, intuitive visual screens in an analog instrument look. These include heading and speed, wind data such as AWA, TWA, navigation data, depth and heading. Engine measurement data such as rpm, water temperature etc. can also be displayed. Alternatively, split screens with up to six info blocks can be freely configured. Alarms can also be set, for example for depth, AIS and cooling water temperature.Four buttons allow easy operation by clicking through the screens, so there are no problems with usability even when wearing gloves and in the rain or splash water. Menu control and display brightness control are operated via the on/off button. This also switches to the dimmable night mode. The 4'1" TFT display is very easy to read in the sun.For connection to existing NMEA networks, a Seatalk-NMEA2000 converter plug from Raymarine or a Seatalk starter kit for multiple connections is required.Scope of delivery: i70s display with key pad and black cover frame, sun cover, SeaTalkNG track cable 40 cm (15.7 inch), seal, four M3x16 flat head pozi fastening screws, documentation.Technical data4.1-inch TFT LCD displayWaterproof to IPX6Mains voltage: 12 VVoltage: 9 to 16 V DC (protected up to 32 V DC)Power consumption: 1.7 WInterface: 1 x SeaTalkng (NMEA 2000 compatible)
The set contains all the necessary components to set up a small SeaTalkNG network on board. The 5-way connector acts as a short backbone to connect your new SeaTalkNG device via a trace cable (white-black). The supplied power cable supplies the backbone with power from the battery, and the two blue end resistors close the circuit.This allows a new Raymarine device to be put into operation or connected to other devices in an existing network. To connect to an existing NMEA 2000 network on board, a converter from SeaTalkNG to NMEA 2000 standard is also required.Scope of delivery1 x 5-way connector2 x end resistors1 x 3m SeaTalk track cable1 x SeaTalk power cable
Komplettes Instrument/Geber-Paket für die Anzeige von Winddaten, Tiefe- und Geschwindigkeit, basierend auf einem RAYMARINE i70s Display. Zum Set gehört der Geber DST 800 der Logge, Lot und Temperaturmesser in einem ist. Weiterhin die Wind-Masteinheit samt 30 m Kabel dabei, der ITC-5 Konverter für die analogen Geber-Eingäng, sowie die für das SeatalkNG-Netzwerk nötigen 5-Wege Connector mit 3 Metern-Backbone-Kabel und Endwiederständen. Alternativ gibt es für Eigner, die Logge und Lot in eigenen, getrennten Gebern haben möchte ein Bundle mit zwei Gebern gegen Aufpreis.Das Set ist damit eine komplett in sich geschlossene Lösung, das auch mit einem an Bord schon vorhandenen NMEA2000 oder älteren Seatalk Komponnennten (z.B. Autopiloten, Plotter u.ä.) verbunden werden kann. Dafür ist ein SeaTalkNG auf NMEA-2000 Konverter-Kabel nötig.Das Instrument i70s ist ein bewährtes, sehr vielseitiges Multifunktionsdisplay das fast alle Daten aus dem SeaTalkNG oder NMEA2000 Bord-Netzwerk anzeigen kann. Speed, Kurs, Winddaten, Tiefe, Tankanzeigen, Motordaten, AIS - es gibt kaum Informationen, die es nicht optisch klar und strukturiert darstellen kann. Die RAYMARINE-Bedienoberfläche "Lighthouse 4" erlaubt eine einfache Installation und Darstellung der Schiffsdaten über 7 vorkonfigurierte, intuitive optische Screens in Analog-Instrumenten-Optik. Darunter solche zu Kurs und Geschwindigkeit, Winddaten wie AWA, TWA, Navigationsdaten, Tiefe , Heading. Auch Motor-Messdaten wie Umdrehungen, Wassertemperatur usw. sind darstellbar. Alternativ können Split-Screens mit bis zu sechs Info-Blöcken selbst völlig frei konfiguriert werden. Zudem können Alarme eingestellt werden, etwa für Tiefe, AIS, Kühlwassertemperatur. Vier Tasten erlauben die einfache Bedienung, indem durch die Screens geklickt wird. Auch mit Handschuhen und bei Regen oder Spritzwasser gibt es so keinerlei Probleme in der Bedienbarkeit. Menü-Steuerung und Display-Helligkeitsregelung werden über den An/Aus- Knopf bedient. Dort wird auch auf den dimmbaren Nachtmodus umgeschaltet. Sehr gut in der Sonne ablesbares 4'1 Zoll-TFT-Display. Lieferumfang1x i70s Multifunktionsdisplay1x Wind-Masteinheit mit kurzem Arm mit 30m Kabel1x Logge/Lot/Temp-Geber DST 8001x iTC-5 Konverter2x SeaTalk NG Endwiderstand1x SeaTalk NG 5-Wege-Verbinder1x SeaTalk NG Backbone-Kabel / 3 m1x SeaTalk NG Stromkabel / 2 m2x SeaTalk NG Spur-Blindstecker
This genuine Raymarine adapter cable connects a Raymarine SeaTalkng network and a standard NMEA 2000 network (DeviceNet Micro-C) into a single, continuous backbone.Since genuine Raymarine backbone cables are always identified by the blue color-coding on the connectors, this cable seamlessly transmits both data signals and network power in both directions.Important Installation and Power Note:Proper termination (terminating resistors): If you are using a SeaTalkng Starter Kit with a 5-way splitter, first remove one of the two blue terminators. Instead, plug the blue end of the adapter cable into this empty blue port. Connect the other end to the front end of your NMEA 2000 T-connectors. Attach a standard NMEA 2000 terminator to the very last open end of the NMEA 2000 chain. A network must always have exactly two terminators in total!Simple Power Supply: The cable carries the 12V line within the backbone. The combined network is therefore powered exclusively by a single source (e.g., via the red SeaTalkng power cable on the 5-way splitter).High-Power Devices / Device-Specific Power: High-power devices (such as the Raymarine Axiom chartplotter series) transmit only signals over this data network. They consume too much power for the bus system and must be powered via their own separate power cable.⚠️ Beware of dual power supply!Do not connect an additional NMEA 2000 power cable to the T-connectors if the network is already powered via SeaTalkng. A dual power supply in the same backbone can lead to dangerous equalizing currents, system crashes, or permanent damage to the device circuit boards.Technical Specifications & Features:Cable length: 40 cmConnectors: SeaTalkng (blue, male) to NMEA 2000 (standard DeviceNet Micro-C)Cable type: Genuine backbone adapter cable (fully populated with data and power wires)Compatibility: Suitable for all modern LightHouse systems (Axiom series, i70s, Evolution autopilots, etc.) and NMEA 2000-certified third-party devices.
The 9-inch plotter from Raymarine's AXIOM+ series is a powerful GPS chart plotter that is operated via a touch display. The latter is also very easy to read in sunlight and is around 25 percent brighter than the previous model series. It is ideal for navigation on sailing or motor boats that also want to network additional data from sensors in the on-board network. Whether wind display, echo sounder, AIS, radar, engine or tank displays, the plotter can integrate particularly important data such as course, speed, depth and more into the plotter image or display it on split screens and its own dashboard pages. This makes it easy for the crew to maintain an overview at all times.The AXIOM+ has an integrated GPS module for location and course data, but can also be optionally connected to an external GPS antenna. The display is water-repellent thanks to the HydroTech nano-coating and can therefore be operated even when wet. If required, the external RMK-10 control panel with rotary control and buttons can also be fitted. The AXIOM+ series offers plotters in 7, 9 and 12 inch sizes.The AXIOM runs the Raymarine Lighthouse 4 operating system and can display either the Lighthouse chart sets developed by Raymarine or Navionics charts. The software scope also includes autorouting, which makes route suggestions for a selected destination with ease. The laylines function is also very interesting for sailors, allowing them to determine the right time to tack or jibe towards their destination. The polar data of your own ship can be stored in the plotter for this purpose. This allows maneuvers to be ideally planned and also adapted to wind shifts.The AXIOM+9 is available as a bundle with the pre-installed Lighthouse chart sets for Northern Europe, Western Europe or the Mediterranean for an additional 100 euros. The map set sections can be found in the images below.Quad-core processor-AIS possible-Navionics chartsRadarScope of delivery: Plotter, bracket holder, knurled screws, sun cover. Documentation, mounting gasket, rear mounting bracket, 4 threaded bolts, 4 wing nuts, NMEA/power supply cable 1.5 m, DeviceNet to SeaTalkng adapter cable 1.2 mTechnical specificationsDisplay: IPS widescreen - HD 1280 x 720, 1500Waterproof class IPX-7Power consumption: 8.95 WVoltage: 8-16 V DCBracket mounting dimensions: Width: 265.03 mm (10.43 inches), height: 187.81 mm (7.39 inches), depth including cable: 178 mm (7.01 inches)Flush mounting dimensions: width: 244.08 mm (9.64 inches), height: 157.78 mm (6.21 inches), depth including cable: 178 mm (7.01 inches)GPS: GPS, GLONASS, BeidouAccessories connection: USB micro BEthernet: RayNet (10/100 MBit/s)NMEA2000: DeviceNet (connector integrated in power cable) InternalAntenna: Ceramic chip is mounted near the top of the deviceBluetooth: V4.0, WLAN: 802.11/b/g/nInternal memory: 16 GB solid-state (14 GB usable)Encoder connections: 25-pin RealVision connector Requires adapter cable A80490 for CPT-S encoder
The 12-inch plotter from Raymarine's AXIOM+ series is a powerful, tried-and-tested GPS chart plotter that is easily operated via a touch display. The latter is very easy to read even in sunlight and around 25 percent brighter than the previous model series. It is ideal for navigation on sailing or motorboats and can display many other boat data. Whether wind information, echo sounder, AIS, radar, engine data or tank levels, they can either be integrated into the plotter image or displayed on split screens or separate dashboard pages. Particularly important data such as course, speed, depth or nearby vessels are always clearly displayed and the crew can easily keep track of everything. Fish finders from the RV 300 series can also be integrated.The AXIOM+ 12 is either flush-mounted in the equipment carrier on the helm or in the bulkhead, or mounted externally on the bracket supplied. It has an integrated GPS module for location and course data, but can also be optionally connected to an external GPS antenna. The display is water-repellent thanks to the HydroTech nano-coating and can therefore be operated even when wet. Alternatively, the additionally available RMK-10 external control panel with rotary control and buttons can also be fitted. With this combination, the plotter is still cheaper than the AXIOM PRO series, which has an integrated control panel. The AXIOM+ series offers plotters in 7, 9 and 12 inch sizes.The AXIOM+ runs the Lighthouse 4 operating system and can display either the Lighthouse chart sets developed by Raymarine or Navionics charts. The software scope also includes autorouting, which easily creates route suggestions for a selected destination. The laylines function is also very interesting for sailors, allowing them to determine the right time for tacking or jibing at the cross towards the destination. The polar data of your own ship can be stored in the plotter for this purpose, and many yacht models are already pre-installed. This means that maneuvers can be ideally planned and adapted to wind shifts.The AXIOM+12 is available as a bundle with the pre-installed Lighthouse chart sets for Northern Europe, Western Europe or the Mediterranean for a small surcharge. The sets are then significantly cheaper than buying them separately. The map set sections are shown in the pictures.Scope of delivery: Plotter, bracket holder, knurled screws, sun cover. Documentation, mounting gasket, rear mounting bracket, 4 threaded bolts, 4 wing nuts, NMEA/power supply cable 1.5 m, DeviceNet to SeaTalkng adapter cable 1.2 mTechnical specificationsDisplay: IPS widescreen - WXGA 1280 x 800Waterproof class IPX-7Power consumption: 18.96 WVoltage: 8-16 V DCDimensions bracket mounting: width: 314 mm (12.36 inches), height: 217 mm (8.54 inches), depth including cable: 178 mm (7.01 inches)Recessed mounting dimensions: width: 314 mm (12.36 inches), height: 226.72 mm (8.93 inches), depth including cable: 178 mm (7.01 inches)GPS: GPS, GLONASS, BeidouAccessories connection: USB micro BEthernet: RayNet (10/100 MBit/s)NMEA2000: DeviceNet (connector integrated in power cable) InternalAntenna: Ceramic chip is mounted near the top of the deviceBluetooth: V4.0, WLAN: 802.11/b/g/nInternal memory: 16 GB solid-state (14 GB usable)Encoder connections: 25-pin RealVision connector. Requires the A80490 adapter cable for CPT-S encodersExternal memory: MicroSDXC card slot x 1
The 7-inch plotter from Raymarine's AXIOM+ series is a powerful, tried-and-tested GPS chart plotter that is easily operated via a touch display. The latter is very easy to read even in sunlight and around 25 percent brighter than the previous model series. It is ideal for navigation on sailing or motorboats and can display many other boat data. Whether wind information, echo sounder, AIS, radar, engine data or tank levels, they can either be integrated into the plotter image or displayed on split screens or separate dashboard pages. Particularly important data such as course, speed, depth or nearby vessels are always clearly displayed and the crew can easily keep track of everything. Fish finders from the RV 300 series can also be integrated.The AXIOM+ 7 is either flush-mounted in a device carrier on the helm or recessed in the bulkhead, or mounted externally on the bracket supplied. It has an integrated GPS module for location and course data, but can also be optionally connected to an external GPS antenna. The display is water-repellent thanks to the HydroTech nano-coating and can therefore be operated even when wet. Alternatively, the additionally available RMK-10 external control panel with rotary control and buttons can also be fitted. With this combination, the plotter is still cheaper than the AXIOM PRO series, which has an integrated control panel. The AXIOM+ series offers plotters in 7, 9 and 12 inch sizes.The AXIOM+ runs the Lighthouse 4 operating system and can display either the Lighthouse chart sets developed by Raymarine or Navionics charts. The software scope also includes autorouting, which easily creates route suggestions for a selected destination. The laylines function is also very interesting for sailors, allowing them to determine the right time for tacking or jibing at the cross towards the destination. The polar data of your own ship can be stored in the plotter for this purpose, and many yacht models are already pre-installed. This means that maneuvers can be ideally planned and adapted to wind shifts.The AXIOM+7 is available as a bundle with the pre-installed Lighthouse chart sets for Northern Europe, Western Europe or the Mediterranean for a small surcharge. The sets are then significantly cheaper than buying them separately. The map set sections are shown in the pictures.Scope of delivery: Plotter, bracket holder, knurled screws, sun cover. Documentation, mounting gasket, rear mounting bracket, 4 threaded bolts, 4 wing nuts, NMEA/power supply cable 1.5 m, DeviceNet to SeaTalkng adapter cable 1.2 mTechnical specificationsDisplay: IPS widescreen - WSVGA 1024 x 600Waterproof class IPX-7Power consumption: 7.34 WVoltage: 8-16 V DCDimensions bracket mounting: width: 25.4 mm (9.86 inches), height: 162.5 mm (6.4 inches), depth including cable: 218 mm (8.58 inches)Dimensions recessed mounting: width: 201.1 mm (7.92 inches), height: 133 mm (5.24 inches), depth including cable: 218 mm (8.58 inches)GPS: GPS, GLONASS, BeidouAccessories connection: USB micro BEthernet: RayNet (10/100 MBit/s)NMEA2000: DeviceNet (connector integrated in power cable) InternalAntenna: Ceramic chip is mounted near the top of the deviceBluetooth: V4.0, WLAN: 802.11/b/g/nInternal memory: 16 GB solid-state (14 GB usable)Encoder connections: 25-pin RealVision connector. Requires the A80490 adapter cable for CPT-S encodersExternal memory: MicroSDXC card slot x 1
Das Bedienpanel RMK-10 kann als Fernbedienung für Raymarine Plotter/Multifunktions-Displays benutzt werden und kann so entweder als Ergänzung für die ausschließlich per Touch bedienten Geräte, wie die der Axiom+ oder Axiom2- Serie benutzt werden oder als Zweit- oder Fernbedienung. Die Montage kann direkt neben dem Display oder weiter entfernt erfolgen, etwa am Steuerstand, Niedergang oder Flybridge erfolgen.Durch das RMK-10 kann ein reines Touch-Display vor allem im Cockpit auch bei starkem Regen, Gischt oder wenn die Crew Handschuhe trägt, jederzeit benutzt werden. Das RMK-10 kann senkrecht oder waagerecht montiert werden, zum Lieferumfang gehören entsprechend zwei unterschiedliche Abdeckungen für die Tasten. Ebenfalls enthalten sind ein 2-Meter-Kabel für die Stromzufuhr und ein weiteres zur Datenverbindung zum Raymarine-Gerät. Lieferumfang: RMK-10, Tastaturabdeckung im Hochformat (vormontiert), Tastaturabdeckung im Querformat, Dichtung, Rechtwinkliges Stromkabel, 2 m, Raynet Netzwerkkabel 2m, 4x Befestigungsschrauben, Anleitung.Technische DatenStromversorgung: 12 oder 24 V, alternativ PoE: 48 V GleichstromStromverbrauch: Max. 4 W bei aktiver TastaturbeleuchtungSchutzklasse: IPX 6/ IPX 7Anschlüsse: 1y Raynet 10/100 MB/s, 1x Stromanschluss (SeatalkNG)
AXIOM2 is the next generation of RAYMARINE's tried-and-tested, robust chartplotter series. Thanks to their good readability in the sun, intuitive touch operation and robustness, they are rightly popular with many skippers and owners. The plotters can be easily networked with transducers for depth, wind, speed and displays such as the i70 and are enormously expandable with connections for autopilots, AIS, radar, engine data cameras or on-board sensors. The data can either be integrated into the plotter image or displayed on split screens or separate dashboard pages. This makes it easy for the crew to maintain an overview. Chart sets from Raymarine's own Lighthouse standard can be displayed, as well as alternatives from Navionics or C-Map.The technical upgrade of the AXIOM2 to the previous Axiom+ version scores points with a faster 6-core processor, which makes starting, zooming and switching even smoother. The RAM has also been increased from 16 to 64 gigabytes. The robust HydroTough™ touch display also offers extended app and motor data integration. Important: The new plotters have the same installation dimensions as the previous Axiom+ series, so they fit into the existing cut-outs on board!In addition, the plotter will run with the new Lighthouse 5 operating system from Raymarine from mid-2025; the old plotters in the AXIOM+ series will not be updated and will continue to run on the older version 4. Raymarine offers a 3-year warranty!The AXIOM2 is available as a bundle with Lighthouse chart sets for Northern Europe, Western Europe or the Mediterranean for a small surcharge. The sets are then significantly cheaper than if they are purchased separately at a later date. The map set sections are shown in the pictures.Scope of delivery: Chart plotter, swivel bracket, knobs for bracket, gasket for surface mounting, sunshade, M3x5 screw, M3 spring washer and M3 crimp connector, 4 x M5 x 58 grub screws, 4x M5 wing nuts, instructions, DeviceNet to SeaTalk NG adapter cable, 120 mm (4.7 in), power/NMEA 2000 cable (with 1.5 m (4.92 ft) power connection and 0.5 m (1.64 ft) NMEA 2000 connection).Technical dataDisplay: IPS widescreen - WSVGA 1024 x 600Waterproof class IPX-7Power consumption (max): 16.56 WVoltage: 8-16 V DCBracket mounting dimensions: Width: 250.4 mm (9.86 inches), height: 162.5 mm (6.4 inches), depth including cable: 218 mm (8.58 inches)Dimensions recessed mounting: width: 201.1 mm (7.92 inches), height: 133 mm (5.24 inches), depth including cable: 218 mm (8.58 inches)GPS: GPS, GLONASS, Beidou, 10HzEthernet: RayNet (10/100/1000 MBit/s)NMEA2000: DeviceNet (connector integrated in power cable) InternalBluetooth: V4.0, WLAN: 802.11/b/g/nInternal memory: 64 GBEncoder connections: (RV models only!) 25-pin RealVision connector. Requires adapter cable A80490 for CPT-S encodersExternal memory: MicroSDXC card slot x 1compatible sensors: Radar, autopilot, sonar module, AIS transceiver, thermal imaging cameras and visible light cameras,VHF radios, engine integration, digital switching, assisted docking, augmented reality,Instruments, ship monitoring
AXIOM2 is the next generation of RAYMARINE's tried-and-tested, robust chartplotter series. Thanks to their good readability in the sun, intuitive touch operation and robustness, they are rightly popular with many skippers and owners. The plotters can be easily networked with transducers for depth, wind, speed and displays such as the i70 and are enormously expandable with connections for autopilots, AIS, radar, engine data cameras or on-board sensors. The data can either be integrated into the plotter image or displayed on split screens or separate dashboard pages. This makes it easy for the crew to maintain an overview. Chart sets from Raymarine's own Lighthouse standard can be displayed, as well as alternatives from Navionics or C-Map.The technical upgrade of the AXIOM2 to the previous Axiom+ version scores points with a faster 6-core processor, which makes starting, zooming and switching even smoother. The RAM has also been increased from 16 to 64 gigabytes. The robust HydroTough™ touch display also offers enhanced app and motor data integration. Important: The new plotters have the same installation dimensions as the previous Axiom+ series, so they fit into the existing cut-outs on board!In addition, the plotter will run with the new Lighthouse 5 operating system from Raymarine from mid-2025; the old plotters in the AXIOM+ series will not be updated and will continue to run on the older version 4. Raymarine offers a 3-year warranty!The AXIOM2 is available as a bundle with Lighthouse chart sets for Northern Europe, Western Europe or the Mediterranean for a small surcharge. The sets are then significantly cheaper than if they are purchased separately at a later date. The map set sections are shown in the pictures.Scope of delivery: Chart plotter, swivel bracket, knobs for bracket, gasket for surface mounting, sunshade, M3x5 screw, M3 spring washer and M3 crimp connector, 4 x M5 x 58 grub screws, 4x M5 wing nuts, instructions, DeviceNet-to-SeaTalk-NG adapter cable, 120 mm (4.7 in), power/NMEA-2000 cable (with 1.5 m (4.92 ft) power connection and 0.5 m (1.64 ft) NMEA-2000 connection).Technical dataDisplay: IPS widescreen - HD 1280 X 720Waterproof class IPX-7Power consumption (max): 17.64 WVoltage: 8-16 V DCBracket mounting dimensions: Width: 265.03 mm (10.43 inches), height: 187.81 mm (7.39 inches), depth including cable: 178 mm (7.01 inches)Recessed mounting dimensions: width: 244.08 mm (9.64 inches), height: 157.78 mm (6.21 inches), depth including cable: 178 mm (7.01 inches)GPS: GPS, GLONASS, Beidou, 10HzEthernet: RayNet (10/100/1000 MBit/s)NMEA2000: DeviceNet (connector integrated in power cable) InternalBluetooth: V4.0, WLAN: 802.11/b/g/nInternal memory: 64 GBEncoder connections: (RV models only!) 25-pin RealVision connector. Requires adapter cable A80490 for CPT-S encodersExternal memory: MicroSDXC card slot x 1compatible sensors: Radar, autopilot, sonar module, AIS transceiver, thermal imaging cameras and visible light cameras,VHF radios, engine integration, digital switching, assisted docking, augmented reality,Instruments, ship monitoring
AXIOM2 is the next generation of RAYMARINE's tried-and-tested, robust chartplotter series. Thanks to their good readability in the sun, intuitive touch operation and robustness, they are rightly popular with many skippers and owners. The plotters can be easily networked with transducers for depth, wind, speed and displays such as the i70 and are enormously expandable with connections for autopilots, AIS, radar, engine data cameras or on-board sensors. The data can either be integrated into the plotter image or displayed on split screens or separate dashboard pages. This makes it easy for the crew to maintain an overview. Chart sets from Raymarine's own Lighthouse standard can be displayed, as well as alternatives from Navionics or C-Map.The technical upgrade of the AXIOM2 to the previous Axiom+ version scores points with a faster 6-core processor, which makes starting, zooming and switching even smoother. The RAM has also been increased from 16 to 64 gigabytes. The robust HydroTough™ touch display also offers extended app and motor data integration. Important: The new plotters have the same installation dimensions as the previous Axiom+ series, so they fit into the existing cut-outs on board!In addition, the plotter will run with the new Lighthouse 5 operating system from Raymarine from mid-2025; the old plotters in the AXIOM+ series will not be updated and will continue to run on the older version 4. Raymarine offers a 3-year warranty!The AXIOM2 is available as a bundle with Lighthouse chart sets for Northern Europe, Western Europe or the Mediterranean for a small surcharge. The sets are then significantly cheaper than if they are purchased separately at a later date. The map set sections are shown in the pictures.Scope of delivery: Chart plotter, swivel bracket, knobs for bracket, gasket for surface mounting, sunshade, M3x5 screw, M3 spring washer and M3 crimp connector, 4 x M5 x 58 grub screws, 4x M5 wing nuts, instructions, DeviceNet-to-SeaTalk-NG adapter cable, 120 mm (4.7 in), power/NMEA-2000 cable (with 1.5 m (4.92 ft) power connection and 0.5 m (1.64 ft) NMEA-2000 connection).Technical dataDisplay: IPS widescreen - WXGA 1280 X 800Waterproof class IPX-7Power consumption (max): 20.64 WVoltage: 8-16 V DCBracket mounting dimensions: Width: 314.0 mm (12.36 inches), height: 226.72 mm (8.93 inches), depth including cable: 178 mm (7.01 inches)Dimensions recessed mounting: width: 314.08 mm (12.36 inches), height: 217.0 mm (8.54 inches), depth including cable: 178 mm (7.01 inches)GPS: GPS, GLONASS, Beidou, 10HzEthernet: RayNet (10/100/1000 MBit/s)NMEA2000: DeviceNet (connector integrated in power cable) InternalBluetooth: V4.0, WLAN: 802.11/b/g/nInternal memory: 64 GBEncoder connections: (RV models only!) 25-pin RealVision connector. Requires adapter cable A80490 for CPT-S encodersExternal memory: MicroSDXC card slot x 1compatible sensors: Radar, autopilot, sonar module, AIS transceiver, thermal imaging cameras and visible light cameras,VHF radios, engine integration, digital switching, assisted docking, augmented reality,Instruments, ship monitoring
The EV-100 autopilot is a complete and tried-and-tested solution for tiller-steered yachts up to a maximum weight of 6 tons (approx. 11 meters). Its electric push rod is mounted in the cockpit in a supplied socket in the GRP or wooden deck, a small axle is attached to the tiller and a socket is fitted for the power supply to the motor. The EV-1 and ACU-100 control and computer unit is mounted below deck and is quick and easy to install. With the package, the autopilot can also turn at the push of a button (auto-tack), steer according to wind angle if a corresponding wind unit is networked on board, or turn at waypoints.The S1 push rod with motor can be fitted for use in a few simple steps or removed again and stowed below deck. The package comes with a p70 display control unit, the EV-1 9-axis position sensor and the ACU 100 drive control operating unit. All in all, a system that sensitively adjusts the course to the sea state and boat behavior.The control center is the EV-1, which ensures dynamic steering accuracy within approx. 2 degrees under all conditions. It automatically compensates for on-board magnetic fields and provides fast and reliable heading data for MARPA (Mini Automatic Radar Plotting Aid), radar overlay and bow heading modes on Raymarine multifunction displays. It can be mounted on or below deck.The P70 control display is a 3.5 inch LCD with classic button operation that allows 1 and 10 degree course corrections, has the usual auto and standby buttons and menu functions.Note: When selecting the autopilot according to the weight of the yacht, please take into account the total weight in the equipped cruising condition, not just the shipyard specification of the ship's weight.Technical dataPush rod drive S1Dimensions: L: 620 mm, diameter 44 mmStroke length: 304 mmWeight: 1.7 kgMax. Current 9AEV-1Water resistance: IPX6Dimensions: Diameter: 140 mm, depth (including mounting housing): 35 mm, depth (including wall bracket): 95 mmOperating voltage range: 10.8-15.6 V DCPower consumption: 30mAACU-100Drive current output: Max 7 A continuous currentCurrent consumption (standby) 300mA.Width: 180 mm, height: 140 mm, depth: 52 mmP 70Watertightness IPx6, IPx7Voltage range: 9-16 V DC (protected up to 32 V DC)Current 131 mAMains voltage 12 VPower consumption 1.75 WDisplay: 3.45 TFT LCD, 16 bitResolution 320x240 pixelsDimensions: 115 x 110 mm (HxW)Scope of deliveryDrive S1Control panel p70Control unit ACU-100Position sensor EV-11 x SeaTalkng power cable1 x SeaTalkng backbone cable (5 m)1 x SeaTalkng track cable (1.0 m)1 x SeaTalkng 5-way connector2 x SeaTalkng T-piece2 x SeaTalkng Terminator
The Bluetooth-based RCU-1 remote control allows you to operate all Raymarine EV-generation autopilots from anywhere on board. Ideal for maneuvers or sail changes on deck and for solo sailors. Just as you’re used to on the cockpit display, you can easily change course in 1- or 10-degree increments. The Point and Go feature is brand new: simply point the control unit in a direction or at a target and steer in that direction with the push of a button. You can preset via software how long this course should be steered.A brand-new safety feature is the available Solo Sailor mode: If the skipper (or a crew member) goes overboard with the remote control, causing the connection between the base station and the RCU to be lost, the RCU steers the boat into the wind. This requires a system with a wind sensor installed. Note: The Point and Go and Solo Sailor functions only work in conjunction with an Axiom chartplotter on board running at least Lighthouse version 4.11 or higher.The RCU is operated in conjunction with the WG-1 base station, which feeds the remote control’s Bluetooth signals into the onboard network via an NMEA2000/Device Net connection and can be installed below deck. The system’s range corresponds to the range of the Bluetooth network established between the base station and the RCU-1.The remote control runs on 2 AA batteries, which, according to the manufacturer, should last about 30 days depending on usage. In addition to autopilot data, the display can also show course, speed, depth, wind, or waypoint information if compatible Raymarine hardware such as an Axiom chartplotter or wind sensor is on board. The RCU-1 features a built-in compass, 3-axis accelerometer, 3-axis magnetometer, and 3-axis gyroscope.Note: The RCU-1 is not compatible with older autopilots from the SPX and X-Series, or older Seatalk1 devices.RCU-1 Technical SpecificationsDimensions: 150.87 mm x 59.83 mm x 31.51 mmWeight: 190 gWater resistance rating: IP 67Battery: AA alkaline, lithium, or rechargeable batteriesBluetooth range: 30 m with clear line of sight. WG-1Dimensions: 26.61 x 108.48 mm xWeight: 129 gProtection class: IPX6, IPX7IncludedRCU-1WG1 gateway6m NMEA2000 cable1m Seatalk NG to DeviceNet cable2 batteriesWall mountCarrying strap
An autopilot from Raymarine’s latest Evolution generation, which steers with even greater precision thanks to advanced compass, position, and acceleration sensors, and compensates for sea state and boat movements at all times. The EV-200 is ideal for yachts weighing up to 11 metric tons (approx. 15 meters) and equipped with mechanical wheel steering.The electromechanical drive with a push rod is optimized for below-deck installation and is mounted directly on the quadrant or a rudder arm. A suitable foundation must be in place or constructed to mount the unit to the hull. The package includes a p70 display control unit, the EV-1 attitude sensor, and the ACU 200 drive control unit. Together, they form a complete system that sensitively adjusts the course in response to sea conditions and boat behavior at all times.The control center is the EV-1 course sensor, which ensures dynamic steering accuracy within approximately 2 degrees under all conditions. It automatically compensates for onboard magnetic fields and provides fast and reliable course data for MARPA (Mini Automatic Radar Plotting Aid), radar overlay, and bow-up modes on Raymarine multifunction displays. It can be mounted on or below deck.The P70 control display is a 3.5-inch LCD with classic button controls that allow for 1- and 10-degree course corrections and feature the standard Auto and Standby buttons as well as menu functions.The ACU-200 is the unit that controls the linear-mechanical drive. It contains the main power and drive electronics for direct connection to your boat’s steering system and to the 12-volt DC power source.Note: When selecting an autopilot based on the yacht’s weight, please consider the total weight when the boat is fully equipped and ready to sail, not just the manufacturer’s stated weight of the vessel. If you already have a drive unit that is still in working order, the package is also available without a drive unit; simply contact us or send us an email.Technical SpecificationsType 1 Linear Drive UnitThrust: 295 kgStroke length: 300 mmHard-to-hard steering time: 11 sec.Operating voltage: 12 VEV-1Water resistance: IPX6Dimensions: Diameter: 140 mm, Depth (including mounting housing): 35 mm, Depth (including wall mount): 95 mmOperating voltage range: 10.8–15.6 V DCCurrent consumption: 30 mAACU-200Drive current capacity: Max 15 A continuous currentMains voltage: 12/24 VCurrent consumption (standby): 300 mA.Width: 285 mm, Height: 211.5 mm, Depth: 64.5 mmWeight: 2.2 kgP 70Water resistance: IPx6, IPx7Voltage range: 9–16 V DC (protected up to 32 V DC)Current: 131 mAMains voltage: 12 VPower consumption: 1.75 WDisplay: 3.45 TFT LCD, 16-bitResolution: 320x240 pixelsDimensions: 115 x 110 mm (HxW)Package ContentsType 1 linear actuatorControl panel p70Control unit ACU-200Position sensor EV-11 x SeaTalkNG power cable1 x SeaTalkNG backbone cable (5 m)1 x SeaTalkNG Branch Cable (1 m)1 x SeaTalkNG 5-way connector2 x SeaTalkNG T-connectors2 x SeaTalkNG terminators
The entry-level class of autopilots for tiller-steered yachts and daysailers weighing up to 4.5 metric tons or measuring up to 11 meters in length. Both models are standalone, complete autopilot systems that can be quickly installed or removed in just a few simple steps and stowed below deck. They feature their own fluxgate compass and GPS, as well as an electric linear drive. This robust, simple system has proven itself over many years and is one of the world’s best-selling systems, offering excellent value for the money. The unit is operated via a small LCD display and 6 buttons (Auto/Standby, +1/-1, and +10/-10).The ST series also features an Auto-Tack function that can control tacking at the push of a button, as well as an audible alarm that sounds if the boat strays off course due to rough seas or vessel movement overwhelming the autopilot. The Auto Seastate function allows the unit to compensate for the boat’s motion caused by sea state. However, the more modern EV-100 series (see related articles) performs better in this regard due to its additional sensors. The manufacturer recommends the ST series primarily for coastal waters.The ST models are affordable but not as network-compatible as the newer EV models from Raymarine: The ST series offers connectivity only via Seatalk1 or NMEA0183. Through this connection, wind angle or route navigation is also possible if a wind sensor is installed.Note: When selecting an autopilot based on the yacht’s weight, you should factor in the yacht’s operating condition—that is, with equipment, full tanks, luggage, and crew on board. The autopilot should be selected based on this total weight, not the yacht’s empty weight as specified by the manufacturer. Also: The more modern—that is, the more agile—the boat is, the more you should factor in a bit of extra margin.For installation, a locking pin is screwed into the tiller, into which the push rod is hooked. It can be mounted above the tiller or, using a mounting bracket (accessory), below the tiller. A mounting socket must be installed on the boat, into which the other end of the drive arm is inserted. The 12 V power supply is provided via a included power outlet.Scope of DeliveryTiller PilotTiller pinPush-rod sleevePower outletCables/Plugs/ScrewsTechnical SpecificationsDimensions: 45 x 7.3 x 9.5 cmDisplay: 45 mm LCDPower consumption: 40 mA in standbyPush-rod stroke: 236 mmHard-to-hard time: 8 S
Raymarine SeaTalkNG T-connector for connecting a daisy-chain cable to the backbone. This makes it easy to expand the backbone to include a slot for another Raymarine device.
Die AXIOM2 Pro S-Serie ist das Flaggschiff der neusten Axiom-Plotter-Generation. Sie sind in der Praxis bewährte Kartenplotter, die wegen guter Ablesbarkeit in der Sonne, kombinierter Touch- und Regler/Tasten-Bedienung und ihrer Robustheit bei vielen Skippern zu Recht beliebt sind. Die Plotter lassen sich leicht vernetzen mit Gebern für Tiefe, Wind, Speed und Displays wie dem i70 und sind mit Anbindung für Autopiloten, AIS, Radar, Motordaten, Kameras oder Bord-Sensoren/Schaltern enorm erweiterbar. Die Daten können entweder ins Plotterbild integriert oder auf Split-Screens, beziehungsweise eigenen Dashboard-Seiten angezeigt werden. So behält die Crew leicht den Überblick. Dargestellt werden können Kartensätze von Raymarines eigenen Lighthouse-Standard, sowie Alternativen von Navionics oder C-Map.Die Pro S-Serie bietet im Vergleich zur Axiom2-Serie das Tastenfeld rechts, dass besonders bei Seegang und Nässe die Bedienung stark vereinfacht. Das Standard-Tastenfeld unter dem Drehregler ist austauschbar gegen ein Evolution-Autopilot-Bedienung. So können Kurskorrekturen auch am Plotter ausgeführt werden.Außerdem können an die Pro S-Modelle Ein-Kanal Sonargeräte angeschlossen werden. Der Plotter kann so hochaufgelöste CHIRP-Daten (Compressed High Intensity Radiated Pulse) darstellen. Hinzu kommen noch zwei SD-Karten Steckplätze, die von vorne zugänglich sind, was für den Wechsel von Kartenmodulen besonders beim Einbau in Schott oder Steuersäule vorteilhaft ist. Die Axiom2-Serie hat nur einen Steckplatz an der Rückseite. Das technische Upgrade des AXIOM2 Pro S zur Vor-Version Axiom+ punktet mit schnellerem 6-Core-Prozessor, der Start, Zoomen und Umschalten noch flüssiger macht. Dazu trägt auch der von 16 auf 64 Gigabyte angewachsene Arbeitsspeicher bei. Das robuste Hybrid Touch 2-Display bietet zudem erweiterte App‑ und Motordatenintegration.Wichtig: Die neuen Plotter haben dieselben Einbaumaße wie die Vorgänger-Serie Axiom+, passen also in die an Bord vorhandenen Ausschnitte! Für Segler sind die einstellbaren Polardaten fürs Schiff, dynamische Kurslinien, sowie taktische Segelanzeigen und ein Regatta-Timer willkommene Features. Zudem bietet der Axiom2 Pro S jetzt die Integration von Routen, die Skipper mit der ORCA-App auf dem Tablett oder Smartphone oder über Navionics angelegt haben. Sie werden über Wifi hochgeladen. Zudem läuft der Plotter mit dem angekündigten neuen Betriebssystem Lighthouse 5 von Raymarine, die alten Plotter der AXIOM+-Serien werden nicht geupdatet und laufen auf der älteren Version 4 weiter. Nur für die neuen Modelle ist dann auch Auto-Routing für die Lighthouse-Kartensätze verfügbar, derzeit funktioniert dies nur mit Navionics-Kartensätzen! Als Bundle ist der AXIOM2 gegen einen kleinen Aufpreis mit Lighthouse-Kartensätzen für Nordeuropa, Westeuropa oder das Mittelmeer erhältlich. Die Sätze sind dann deutlich günstiger als wenn sie später einzeln gekauft werden. Die Kartensatz-Schnitte finden sie in den Bildern dargestellt.Lieferumfang Kartenplotter, Sonnenabdeckung, Bügelmontage, Dichtung, DeviceNet zu SeaTalkng-Adapter-Kabel 1 m, Optionale Erdungs-Verbindung (Schraube (M3x5), Federscheibe (M3), Crimp-Anschluss (M3)), RayNet (weiblich) zu RayNet (weiblich) Netzwerk-Kabel 2 m, Befestigungschrauben 4x, Power/Video/Audio Kabel 1,5 m.Technische DatenDisplay: IPS-Breitbild HD 1280 X 720Wasserdichtigkeits-Klasse IPX 6 und IPX-7Stromverbrauch (max): 33,12 WSpannung: 8-32 V DCMaße Bügelmontage: Höhe: 186,2 mm, Breite: 329,5 mm, Tiefe (einschließlich Kabel): 234,9 mmMaße eingelassene Montage: Höhe: 173,79 mm, Breite: 299,32 mm, Tiefe (einschließlich Kabel): 234,9 mmGPS: GPS, GLONASS, Beidou, 10 Hz AktualisierungsrateSteck-Anschlüsse: 2x RayNet, NMEA2000: DeviceNet, 25-poliger RealVision-Steckverbinder. Erfordert das Adapterkabel A80490 für CPT-S-Geber, 2x Micro-SDXC Kartenschlitze Vorderseite, HDMI-Ausgang, BNC Analgo-Videoeingang, RCA-Anschluss, GPS-Antennenanschluss CHIRP-Sonar-KanalBluetooth: V4.0, WLAN: 802.11/b/g/nInterner Speicher: 64 GBkompatible Sensoren: Radar, Autopilot, Sonarmodul, AIS-Transceiver, Wärmebildkameras und Kameras für sichtbares Licht,UKW-Funkgeräte, Motorintegration, Digital Switching, assistiertes Anlegen, Augmented Reality,Instrumente, Schiffsüberwachung
Das FLIR Ocean Scout Pro II ist ein Wärmebild-Monokular mit über einer Kilometer Reichweite und wurde speziell für den Einsatz von Behörden sowie Such- und Rettungsteams entwickelt. Es ist handlich, kompakt, und erlaubt dank Ein-Finger-Bedienung Ersthelfern auf See eine schnelle und zuverlässige Möglichkeit, bei Nachteinsätzen und schlechten Sichtverhältnissen die Lage im Blick zu behalten.Verwenden Sie es zur Unterstützung von Patrouillen, zur Identifizierung von Navigationshilfen und zur schnellen Lokalisierung von Personen im Wasser während aktiver Einsatzsituationen. Das fortschrittliche FLIR-Wärmebildsystem hilft der Besatzung, Personen, Schiffe und Gefahren zu erkennen, wenn die Sicht durch Dunkelheit, Wetter, Rauch oder Blendung beeinträchtigt ist. Die Akku-Laufzeit beträgt sechs Stunden, eine Ladestation ist optional erhältlich. Bilder und Videos können im internen Speicher gespeichert werden.Der Ocean Scout Pro II wurde für Einsätze unter hoher Belastung entwickelt und verfügt über eine optimierte Benutzeroberfläche und ergonomische Bedienelemente, die es den Einsatzkräften ermöglichen, ständigen Sichtkontakt mit den Zielen zu halten, ohne durch komplexe Menüs navigieren zu müssen. Die fortschrittliche Bildverarbeitung verbessert den Kontrast und die Sichtbarkeit des Ziels und stellt sicher, dass bei zeitkritischen Durchsetzungs- und Rettungsaktionen keine Person, kein Schiff und keine Gefahr für die Schifffahrt übersehen wird.Technische DatenMaße: 21,2 × 6,4 × 6,4 cmGewicht: 660 gSichtfeld (FoV): 18°Brennweite: 35 mmF-Zahl: F/ 1,0Fokus: Manueller FokusErkennungsbereich: 1000 m (1100 Yards)Mindestfokusabstand: 2 m (6 Fuß 7 Zoll)Bildwiederholfrequenz: 30 HzDisplay-Bildfrequenz: 60 HzSpektralbereich: 7,5 μm bis 13,5 μmPixelabstand: 17 μmThermische Empfindlichkeit, NETD: <38 mK bei 30 °C (86 °F)Detektorauflösung: 640 × 480, VOx-MikrobolometerBildverarbeitung: FLIR-eigenes Digital Detail Enhancement™Farbe (Gehäuse): Silber/SchwarzBatterielaufzeit: 6 Stunden, Li-Ionen AkkuSpeicher: 16 GB
The AXIOM2 Pro S Series is the flagship of the latest generation of Axiom chartplotters. These are tried-and-true chartplotters that are rightly popular among many skippers thanks to their excellent readability in sunlight, combined touchscreen and knob/button controls, and their rugged durability. The chartplotters can be easily networked with transducers for depth, wind, and speed, as well as displays like the i70, and are highly expandable with connections for autopilots, AIS, radar, engine data, cameras, or onboard sensors and switches. The data can either be integrated into the chart display or shown on split screens or dedicated dashboard pages. This makes it easy for the crew to stay on top of everything. Chart sets from Raymarine’s own Lighthouse standard, as well as alternatives from Navionics or C-Map, can be displayed.Compared to the Axiom 2 series, the Pro S series features a keypad on the right, which greatly simplifies operation—especially in rough seas and wet conditions. The standard keypad below the rotary control can be replaced with an Evolution autopilot control panel. This allows course corrections to be made directly on the chartplotter.In addition, single-channel sonar units can be connected to the Pro S models. The chartplotter can thus display high-resolution CHIRP (Compressed High Intensity Radiated Pulse) data. There are also two SD card slots accessible from the front, which is particularly convenient for swapping out card modules, especially when the unit is installed in a bulkhead or on the steering column. The Axiom2 series has only one slot on the back.The technical upgrade of the AXIOM2 Pro S over its predecessor, the Axiom+, features a faster 6-core processor that makes startup, zooming, and switching between screens even smoother. The RAM, which has been increased from 16 to 64 gigabytes, also contributes to this. The rugged Hybrid Touch 2 display also offers enhanced app and engine data integration.Important: The new chartplotters have the same mounting dimensions as the previous Axiom+ series, so they fit into existing cutouts on board!For sailors, the adjustable polar data for the boat, dynamic course lines, tactical sailing displays, and a regatta timer are welcome features. In addition, the Axiom2 Pro S now offers integration of auto-routing functions that skippers have created using the ORCA app on a tablet or smartphone or via Navionics. These are uploaded via Wi-Fi. Furthermore, starting in mid-2025, the chartplotter will run on Raymarine’s new Lighthouse 5 operating system; the older chartplotters in the AXIOM+ series will not be updated and will continue to run on the older Version 4. Raymarine offers a 3-year warranty!As a bundle, the AXIOM2 Pro S is available for a small additional charge with Lighthouse chart sets for Northern Europe, Western Europe, or the Mediterranean. The sets are significantly cheaper this way than if purchased individually later. The chart set coverage areas are shown in the images.Package ContentsChartplotter, sunshade, bracket mount, gasket,DeviceNet to SeaTalkng adapter cable (1 m), optional ground connection (screw (M3x5), spring washer (M3), crimp connector (M3)), RayNet (female) to RayNet (female) network cable (2 m), mounting screws (4x), power/video/audio cable (1.5 m).Technical SpecificationsDisplay: IPS widescreen 1,280 x 800 WXGA (12 inches)Water resistance rating: IPX 6 and IPX-7Power consumption (max): 29.88 WVoltage: 8–32 V DC, 12 or 24 V DCDimensions (bracket mount): Height: 246.13 mm, Width: 388.5 mm, Depth (including cable): 233.4 mmDimensions for flush mounting: Height: 222.8 mm, Width: 358.03 mm, Depth (including cable): 233.4 mmGPS: GPS, GLONASS, Beidou, 10 Hz update rateConnectors: 2x RayNet, NMEA2000: DeviceNet, 25-pin RealVision connector. Requires the A80490 adapter cable for CPT-S transducers, 2x front-panel Micro-SDXC card slots, HDMI output, BNC analog video input, RCA connector, GPS antenna connectorCHIRP sonar channelBluetooth: V4.0, Wi-Fi: 802.11b/g/nInternal memory: 64 GBCompatible sensors: Radar, autopilot, sonar module, AIS transceiver, thermal imaging cameras, and visible-light cameras,VHF radios, engine integration, digital switching, assisted docking, augmented reality,instruments, vessel monitoring
Die AXIOM2 Pro S-Serie ist das Flaggschiff der neusten Axiom-Plotter-Generation. Sie sind in der Praxis bewährte Kartenplotter, die wegen guter Ablesbarkeit in der Sonne, kombinierter Touch- und Regler/Tasten-Bedienung und ihrer Robustheit bei vielen Skippern zu Recht beliebt sind. Die Plotter lassen sich leicht vernetzen mit Gebern für Tiefe, Wind, Speed und Displays wie dem i70 und sind mit Anbindung für Autopiloten, AIS, Radar, Motordaten, Kameras oder Bord-Sensoren/Schaltern enorm erweiterbar. Die Daten können entweder ins Plotterbild integriert oder auf Split-Screens, beziehungsweise eigenen Dashboard-Seiten angezeigt werden. So behält die Crew leicht den Überblick. Dargestellt werden können Kartensätze von Raymarines eigenen Lighthouse-Standard, sowie Alternativen von Navionics oder C-Map.Die Pro S-Serie bietet im Vergleich zur Axiom2-Serie das Tastenfeld rechts, dass besonders bei Seegang und Nässe die Bedienung stark vereinfacht. Das Standard-Tastenfeld unter dem Drehregler ist austauschbar gegen ein Evolution-Autopilot-Bedienung. So können Kurskorrekturen auch am Plotter ausgeführt werden.Außerdem können an die Pro S-Modelle Ein-Kanal Sonargeräte angeschlossen werden. Der Plotter kann so hochaufgelöste CHIRP-Daten (Compressed High Intensity Radiated Pulse) darstellen. Hinzu kommen noch zwei SD-Karten Steckplätze, die von vorne zugänglich sind, was für den Wechsel von Kartenmodulen besonders beim Einbau in Schott oder Steuersäule vorteilhaft ist. Die Axiom2-Serie hat nur einen Steckplatz an der Rückseite. Das technische Upgrade des AXIOM2 Pro S zur Vor-Version Axiom+ punktet mit schnellerem 6-Core-Prozessor, der Start, Zoomen und Umschalten noch flüssiger macht. Dazu trägt auch der von 16 auf 64 Gigabyte angewachsene Arbeitsspeicher bei. Das robuste Hybrid Touch 2-Display bietet zudem erweiterte App‑ und Motordatenintegration.Wichtig: Die neuen Plotter haben dieselben Einbaumaße wie die Vorgänger-Serie Axiom+, passen also in die an Bord vorhandenen Ausschnitte! Für Segler sind die einstellbaren Polardaten fürs Schiff, dynamische Kurslinien, sowie taktische Segelanzeigen und ein Regatta-Timer willkommene Features. Zudem bietet der Axiom2 Pro S jetzt die Integration von Routen, die Skipper mit der ORCA-App auf dem Tablett oder Smartphone oder über Navionics angelegt haben. Sie werden über Wifi hochgeladen. Zudem läuft der Plotter mit dem angekündigten neuen Betriebssystem Lighthouse 5 von Raymarine, die alten Plotter der AXIOM+-Serien werden nicht geupdatet und laufen auf der älteren Version 4 weiter. Nur für die neuen Modelle ist dann auch Auto-Routing für die Lighthouse-Kartensätze verfügbar, derzeit funktioniert dies nur mit Navionics-Kartensätzen! Als Bundle ist der AXIOM2 Pro S gegen einen kleinen Aufpreis mit Lighthouse-Kartensätzen für Nordeuropa, Westeuropa oder das Mittelmeer erhältlich. Die Sätze sind dann deutlich günstiger als wenn sie später einzeln gekauft werden. Die Kartensatz-Schnitte finden Sie in den Bildern dargestellt.Lieferumfang Kartenplotter, Sonnenabdeckung, Bügelmontage, Dichtung, DeviceNet zu SeaTalkng-Adapter-Kabel 1 m, Optionale Erdungs-Verbindung (Schraube (M3x5), Federscheibe (M3), Crimp-Anschluss (M3)), RayNet (weiblich) zu RayNet (weiblich) Netzwerk-Kabel 2 m, Befestigungschrauben 4x, Power/Video/Audio Kabel 1,5 m.Technische DatenDisplay: IPS-Breitbild 1.280 x 800 WXGA (12 Zoll)Wasserdichtigkeits-Klasse IPX 6 und IPX-7Stromverbrauch (max): 29,88 WSpannung: 8-32 V DC, Netzspannung 12 oder 24 VMaße Bügelmontage: Höhe: 246,13 mm, Breite: 388,5 mm, Tiefe (einschließlich Kabel): 233,4 mmMaße eingelassene Montage: Höhe: 222,8 mm, Breite: 358,03 mm, Tiefe (einschließlich Kabel): 233,4 mmGPS: GPS, GLONASS, Beidou, 10 Hz AktualisierungsrateSteck-Anschlüsse: 2x RayNet, NMEA2000: DeviceNet, 25-poliger RealVision-Steckverbinder. Erfordert das Adapterkabel A80490 für CPT-S-Geber, 2x Micro-SDXC Kartenschlitze Vorderseite, HDMI-Ausgang, BNC Analgo-Videoeingang, RCA-Anschluss, GPS-Antennenanschluss CHIRP-Sonar-KanalBluetooth: V4.0, WLAN: 802.11/b/g/nInterner Speicher: 64 GBkompatible Sensoren: Radar, Autopilot, Sonarmodul, AIS-Transceiver, Wärmebildkameras und Kameras für sichtbares Licht,UKW-Funkgeräte, Motorintegration, Digital Switching, assistiertes Anlegen, Augmented Reality,Instrumente, Schiffsüberwachung
