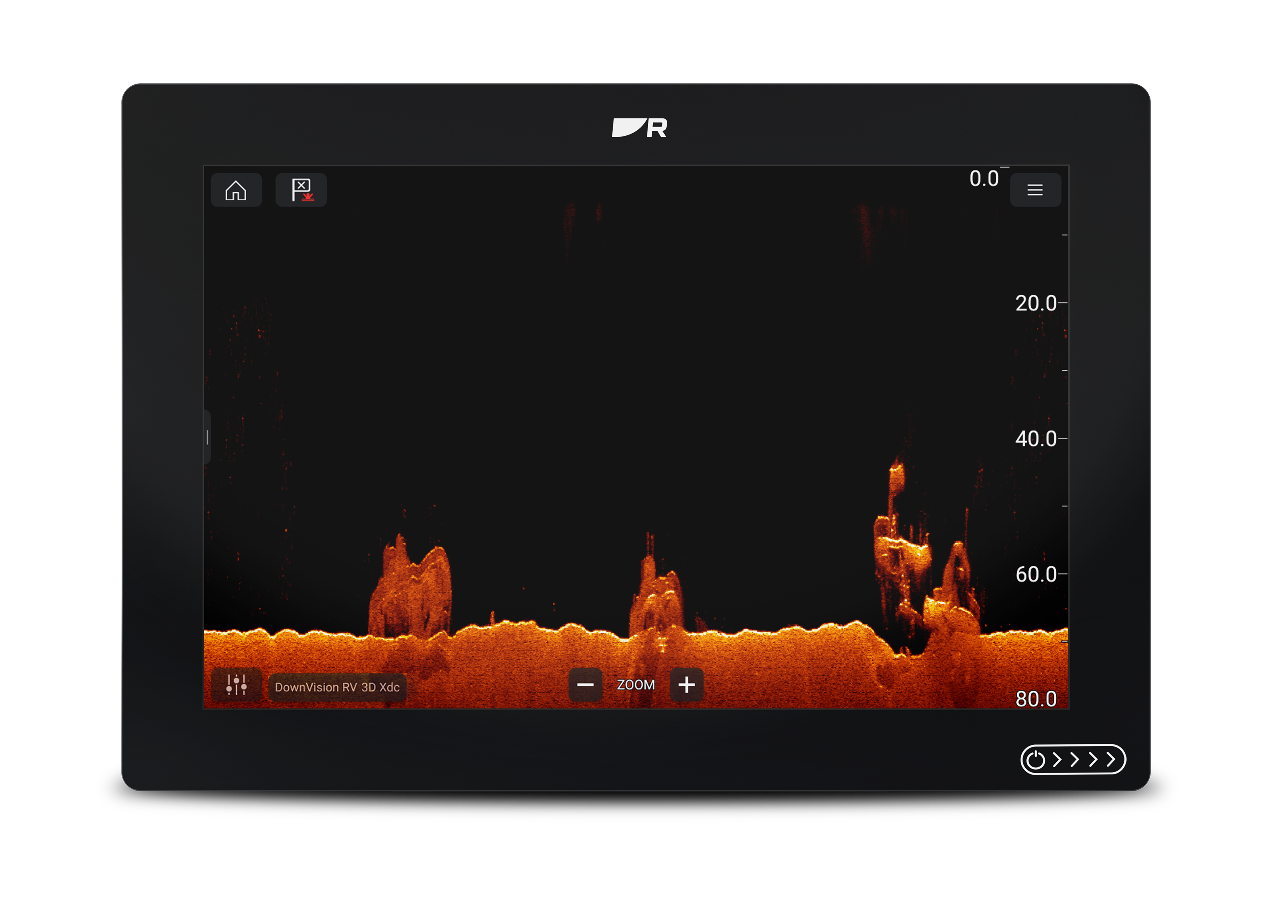

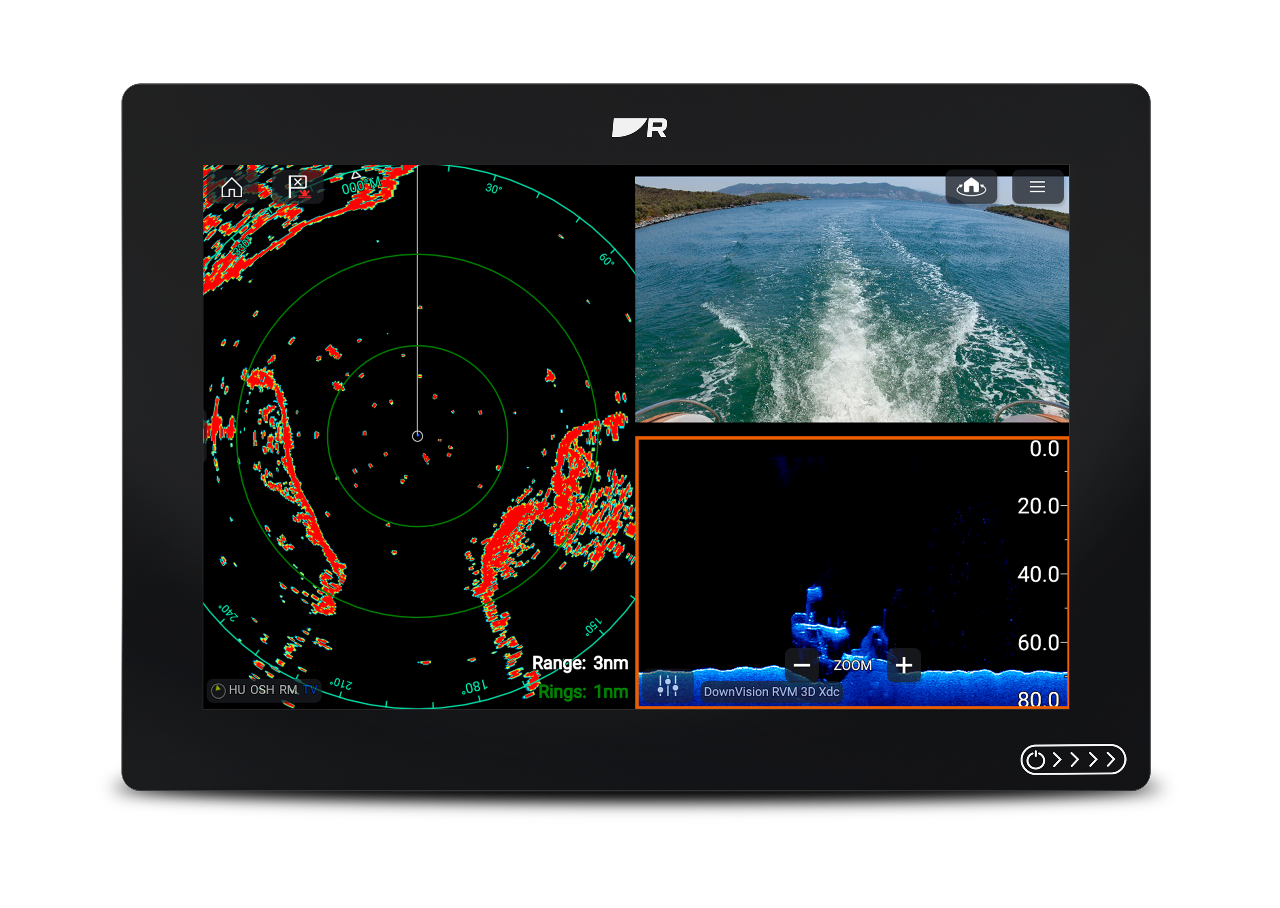

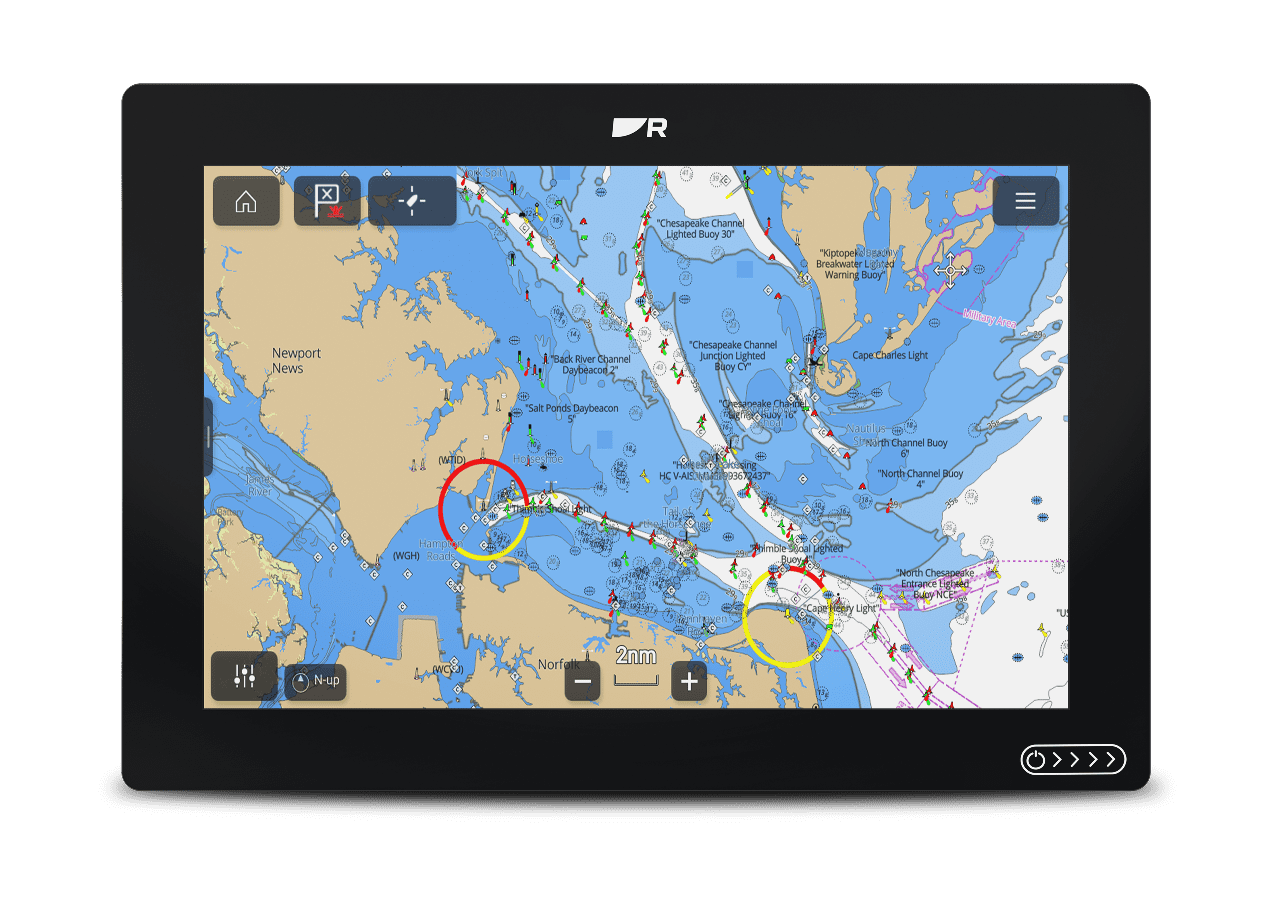

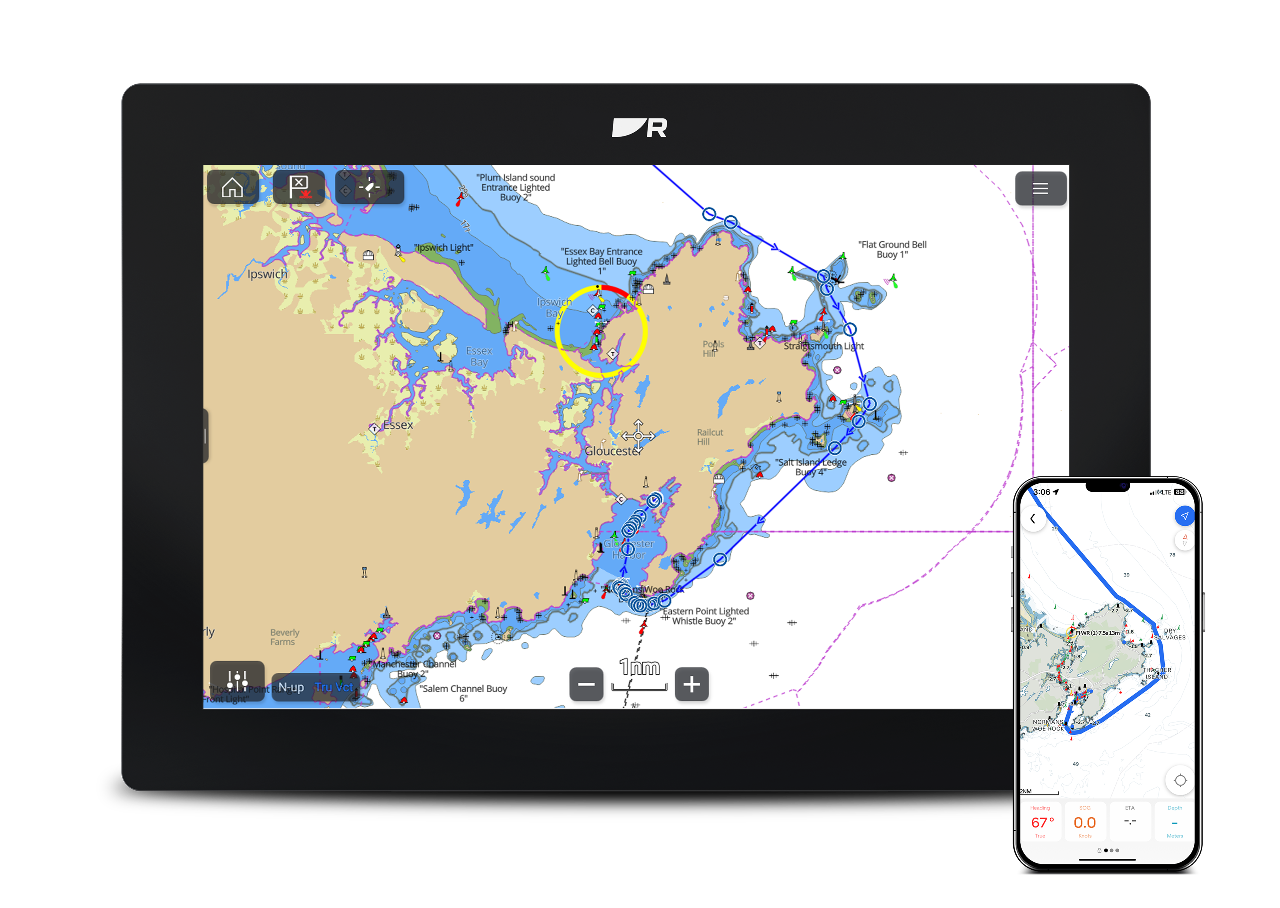

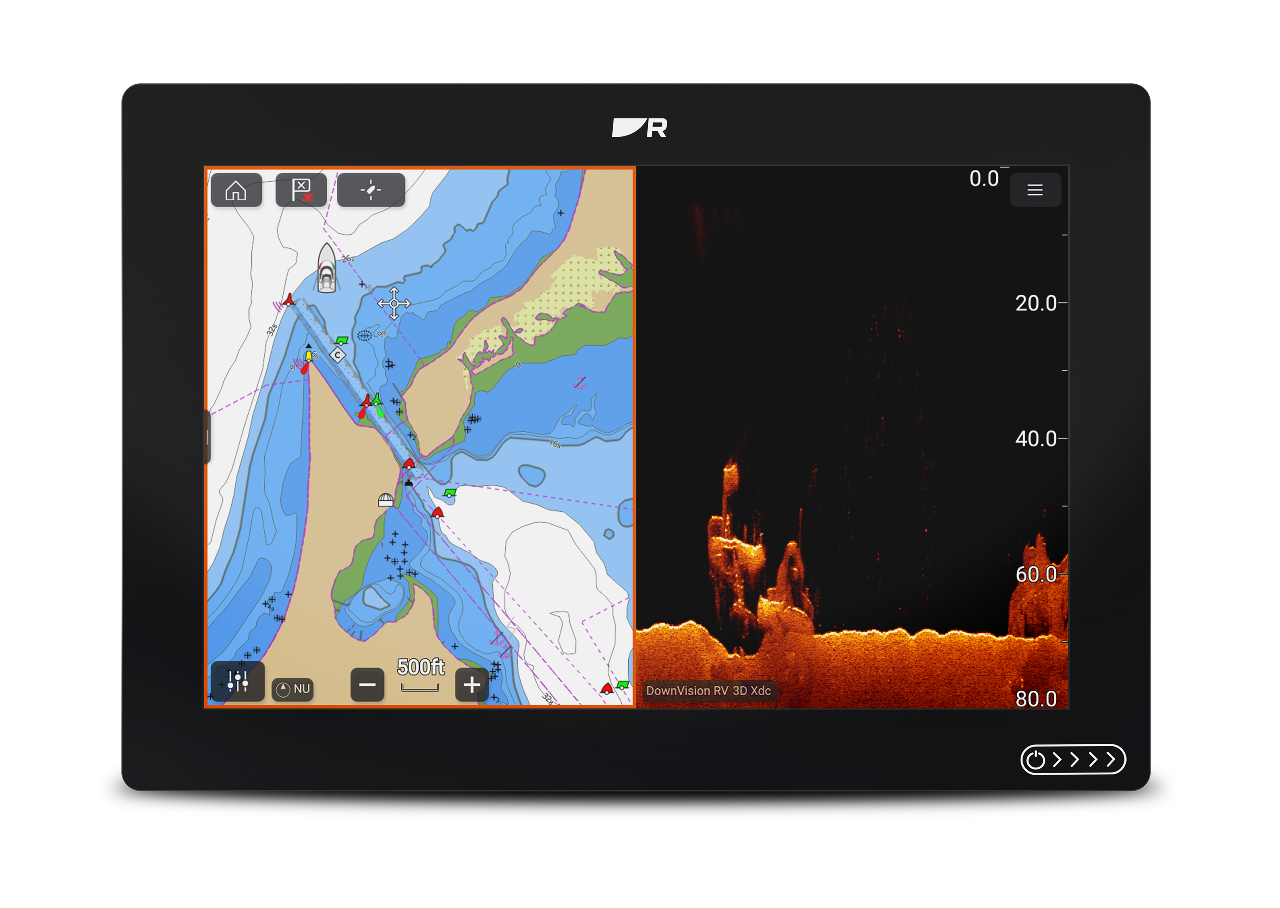

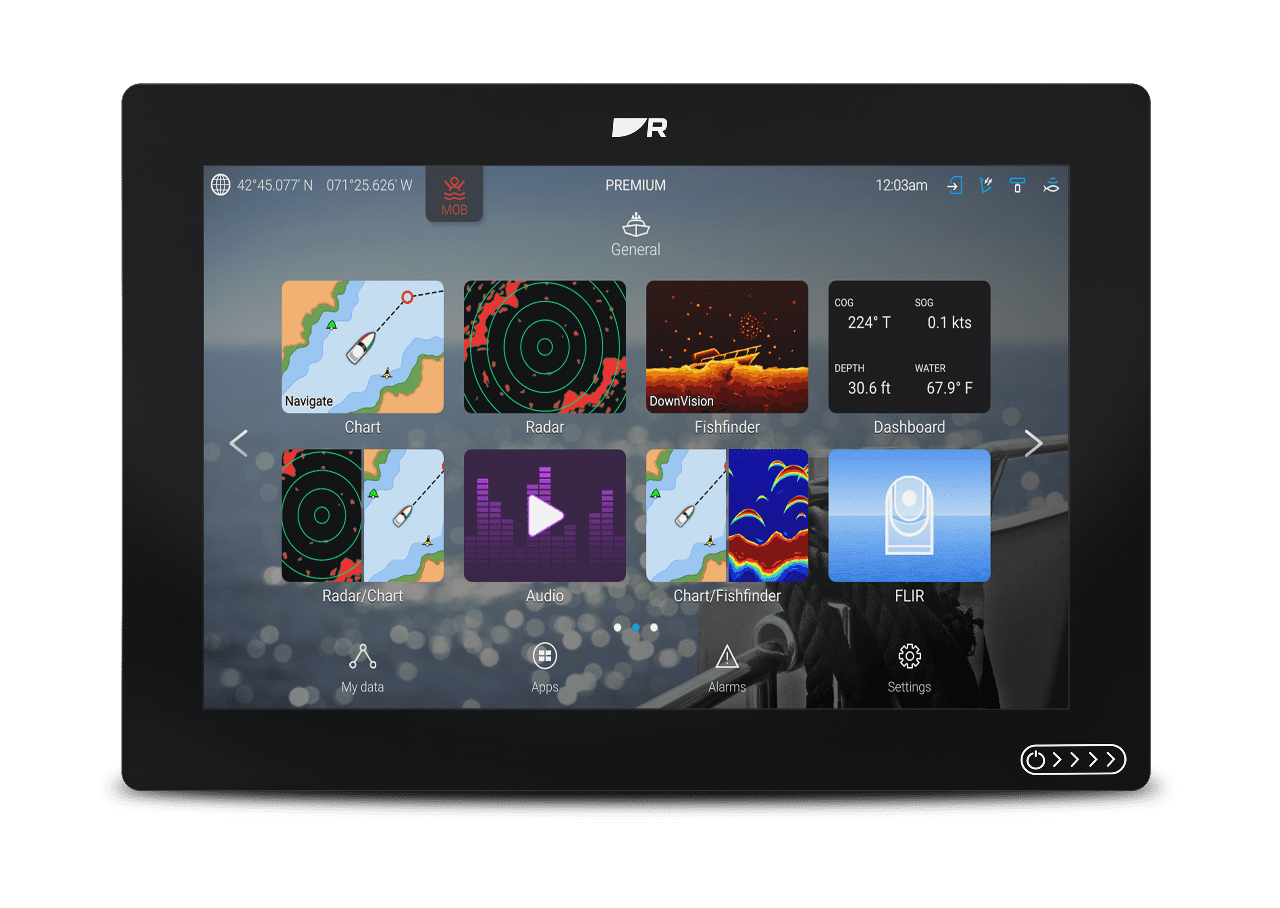

Raymartine AXIOM2 -12
AXIOM2 is the next generation of RAYMARINE's tried-and-tested, robust chartplotter series. Thanks to their good readability in the sun, intuitive touch operation and robustness, they are rightly popular with many skippers and owners. The plotters can be easily networked with transducers for depth, wind, speed and displays such as the i70 and are enormously expandable with connections for autopilots, AIS, radar, engine data cameras or on-board sensors. The data can either be integrated into the plotter image or displayed on split screens or separate dashboard pages. This makes it easy for the crew to maintain an overview. Chart sets from Raymarine's own Lighthouse standard can be displayed, as well as alternatives from Navionics or C-Map.
The technical upgrade of the AXIOM2 to the previous Axiom+ version scores points with a faster 6-core processor, which makes starting, zooming and switching even smoother. The RAM has also been increased from 16 to 64 gigabytes. The robust HydroToughâ„¢ touch display also offers extended app and motor data integration. Important: The new plotters have the same installation dimensions as the previous Axiom+ series, so they fit into the existing cut-outs on board!
In addition, the plotter will run with the new Lighthouse 5 operating system from Raymarine from mid-2025; the old plotters in the AXIOM+ series will not be updated and will continue to run on the older version 4. Raymarine offers a 3-year warranty!
The AXIOM2 is available as a bundle with Lighthouse chart sets for Northern Europe, Western Europe or the Mediterranean for a small surcharge. The sets are then significantly cheaper than if they are purchased separately at a later date. The map set sections are shown in the pictures.
Scope of delivery: Chart plotter, swivel bracket, knobs for bracket, gasket for surface mounting, sunshade, M3x5 screw, M3 spring washer and M3 crimp connector, 4 x M5 x 58 grub screws, 4x M5 wing nuts, instructions, DeviceNet-to-SeaTalk-NG adapter cable, 120 mm (4.7 in), power/NMEA-2000 cable (with 1.5 m (4.92 ft) power connection and 0.5 m (1.64 ft) NMEA-2000 connection).
Technical data
- Display: IPS widescreen - WXGA 1280 X 800
- Waterproof class IPX-7
- Power consumption (max): 20.64 W
- Voltage: 8-16 V DC
- Bracket mounting dimensions: Width: 314.0 mm (12.36 inches), height: 226.72 mm (8.93 inches), depth including cable: 178 mm (7.01 inches)
- Dimensions recessed mounting: width: 314.08 mm (12.36 inches), height: 217.0 mm (8.54 inches), depth including cable: 178 mm (7.01 inches)
- GPS: GPS, GLONASS, Beidou, 10Hz
- Ethernet: RayNet (10/100/1000 MBit/s)
- NMEA2000: DeviceNet (connector integrated in power cable) Internal
- Bluetooth: V4.0, WLAN: 802.11/b/g/n
- Internal memory: 64 GB
- Encoder connections: (RV models only!) 25-pin RealVision connector. Requires adapter cable A80490 for CPT-S encoders
- External memory: MicroSDXC card slot x 1
- compatible sensors: Radar, autopilot, sonar module, AIS transceiver, thermal imaging cameras and visible light cameras,
VHF radios, engine integration, digital switching, assisted docking, augmented reality,
Instruments, ship monitoring
from €3,195.00*
€3,195.00*
Prices incl. VAT plus shipping costs
Description
AXIOM2 is the next generation of RAYMARINE's tried-and-tested, robust chartplotter series. Thanks to their good readability in the sun, intuitive touch operation and robustness, they are rightly popular with many skippers and owners. The plotters can be easily networked with transducers for depth, wind, speed and displays such as the i70 and are enormously expandable with connections for autopilots, AIS, radar, engine data cameras or on-board sensors. The data can either be integrated into the plotter image or displayed on split screens or separate dashboard pages. This makes it easy for the crew to maintain an overview. Chart sets from Raymarine's own Lighthouse standard can be displayed, as well as alternatives from Navionics or C-Map.
The technical upgrade of the AXIOM2 to the previous Axiom+ version scores points with a faster 6-core processor, which makes starting, zooming and switching even smoother. The RAM has also been increased from 16 to 64 gigabytes. The robust HydroToughâ„¢ touch display also offers extended app and motor data integration. Important: The new plotters have the same installation dimensions as the previous Axiom+ series, so they fit into the existing cut-outs on board!
In addition, the plotter will run with the new Lighthouse 5 operating system from Raymarine from mid-2025; the old plotters in the AXIOM+ series will not be updated and will continue to run on the older version 4. Raymarine offers a 3-year warranty!
The AXIOM2 is available as a bundle with Lighthouse chart sets for Northern Europe, Western Europe or the Mediterranean for a small surcharge. The sets are then significantly cheaper than if they are purchased separately at a later date. The map set sections are shown in the pictures.
Scope of delivery: Chart plotter, swivel bracket, knobs for bracket, gasket for surface mounting, sunshade, M3x5 screw, M3 spring washer and M3 crimp connector, 4 x M5 x 58 grub screws, 4x M5 wing nuts, instructions, DeviceNet-to-SeaTalk-NG adapter cable, 120 mm (4.7 in), power/NMEA-2000 cable (with 1.5 m (4.92 ft) power connection and 0.5 m (1.64 ft) NMEA-2000 connection).
Technical data
- Display: IPS widescreen - WXGA 1280 X 800
- Waterproof class IPX-7
- Power consumption (max): 20.64 W
- Voltage: 8-16 V DC
- Bracket mounting dimensions: Width: 314.0 mm (12.36 inches), height: 226.72 mm (8.93 inches), depth including cable: 178 mm (7.01 inches)
- Dimensions recessed mounting: width: 314.08 mm (12.36 inches), height: 217.0 mm (8.54 inches), depth including cable: 178 mm (7.01 inches)
- GPS: GPS, GLONASS, Beidou, 10Hz
- Ethernet: RayNet (10/100/1000 MBit/s)
- NMEA2000: DeviceNet (connector integrated in power cable) Internal
- Bluetooth: V4.0, WLAN: 802.11/b/g/n
- Internal memory: 64 GB
- Encoder connections: (RV models only!) 25-pin RealVision connector. Requires adapter cable A80490 for CPT-S encoders
- External memory: MicroSDXC card slot x 1
- compatible sensors: Radar, autopilot, sonar module, AIS transceiver, thermal imaging cameras and visible light cameras,
VHF radios, engine integration, digital switching, assisted docking, augmented reality,
Instruments, ship monitoring
