Engine cooling & exhaust system
Original Vetus exhaust hose in very flexible exhaust hose with Lloyds approval.The special type of rubber and the tightly wound inner spiral enable installation even in confined spaces. The possible bending radius is one and a half times the diameter.Temperature-resistant from -30° C to +100° C with a short-term peak load of +115° C.Only sections in whole 1 meter increments are available. Customized goods cannot be returned.Other hose diameters on request.
Anti syphon for motor cooling water outlet or for toilet outlet. Can be connected to hoses with internal diameters of 13, 19, 25 and 32 mm. AIRVENT H without valve, comes with 4,0 m plastic hose diameter 8 mm. AIRVENT V with spring loaded valve.
Gooseneck for exhaust hose. Raises the exhaust hose above the waterline so that water cannot backfill the exhaust system.
Very thick-walled and heavy through-hull made from seawater-proof marine bronze (CuSn5Zn5Pb5).Attached to the hull using countersunk fastener holes, drilled through the strong flange.Molded from bronze in a single piece, tumbled matte finish.Intended for exhaust and cooling water.
Connectors specially made for water cooled exhaust pipes made from PVC.Also well suited to connect already existing and sound hoses with new exhaust components.Available straight and 60° angular.
Tried and tested waterlock for engine installations with water cooled exhaust systems.Robust PVC silencer in a z design of the type WLOCK for standing or hanging mounting, with twistable inlet for many installation situations.Good to very good noise absorption. With drainage nozzle.We have three of the most common designs on offer (see the Suitable Items further down below). Various additional designs are available upon request.
Tried and tested waterlock for engine installations with water cooled exhaust systems.Robust PVC silencer in a double decker design of the type NLP.With standing, twistable muffler with twistable connectors for standing or hanging mounting in many installation situations.Good to very good noise absorption. With drainage nozzle.We have three of the most common designs on offer (see the Suitable Items further down below).Various additional designs are available upon request.
Tried and tested waterlock for engine installations with water cooled exhaust systems.Robust PVC silencer of the horizontal type NLPH with slim and twistable muffler with twistable connectors for many installation situations.Good to very good noise absorption. With drainage nozzle.We have three of the most common designs on offer (see the Suitable Items further down below). Various additional designs are available upon request.
Exhaust connection in EDPM rubber with high gloss polished stainless steel trim ring (AISI 316) Type TRCR. Mounting on the counter or the tailboard. The flanges are fitted from the outside and do not need a lock bush from the inside. For connection of the exhaust hose, a hose connector will be required.
Transom exhaust connection, with integrated check valve TYP TRCSV. High quality stainless steel AISI 316 with high gloss polished cover to conceal fixings. The flanges are fitted from the outside and do not need a lock bush from the inside. The exhaust hose can be fitted directly to this transom connection.
Very flexible exhaust hose for water-cooled (wet) exhaust systems on board yachts. It has R.I.N.A. (DIP 075110CS) and Lloyds (No. 96/00127) approval for diesel and also petrol engines with very high exhaust temperatures. Approved from -30 to +100° Celsius, short-term loads also up to 115° Celsius. The hose is available in various inner diameters from 40 to 90 millimeters.This hose has a very small bending radius due to the integrated steel spiral, the values for which can be found in the table. It also complies with the US standard SAE J 2006:2003 R1/R2 and the ISO standard 13363:2006 Tipo 2 Classe BAvailable to measure in whole 1-meter increments. Customized goods cannot be returned.
The sensor with bi-metal thermal switch is screwed into a small hole in the cooling water hose directly behind the exhaust manifold and warns of a lack of cooling water before the engine heats up too much. The sensor is wired to a free slot on the engine control panel or a separate VETUS alarm indicator (see accessories). At 71 °C, the sensor reacts and closes the circuit; a warning light and acoustic alarm are triggered on the panel or the external control. This allows the crew to switch off the engine before the exhaust gases, which are over 300 degrees hot, melt hoses, water collectors or silencers. Suitable for 12 and 24 V on-board power supplies.
Exhaust temperature alarm display for engines with cooling water injection into the exhaust gas. Gives a visual and audible alarm if the temperature of the exhaust gas/water mixture in the exhaust hose becomes too high (over 75 °C). Otherwise, if there are problems with the engine cooling system, the hot exhaust gases from the engine can melt hoses, water collectors or silencers before the engine overheating alarm is triggered.Ideally, the indicator is installed in combination with the exhaust gas temperature sensor from VETUS, which is not included in the scope of delivery. The indicator is available in a 12 and 24 volt version and comes with two plastic covers, one black and one silver.
Combined gooseneck and silencer for exhaust systems with cooling water injection. The upper and lower sections can be rotated through 360 degrees, making installation and connection of the exhaust hoses much easier. The NLPG has significantly improved silencing and lower back pressure in the exhaust system than the WLOCKLT system, also from Vetus. The gooseneck prevents water from flowing back into the exhaust in rough seas and the silencer also creates water turbulence inside, which leads to a significant reduction in noise.Various hose connection diameters from 40 to 90 mm available. Installation At least 45 centimeters above the waterline (measured from the top of the NLPG) and as close as possible to the middle of the boat.
Belüfter zur Verhinderung des Saugheber-Effekts in Kühlwasser- und Abwasserleitungen. Zum Einbau in der Auslassleitung.Notwendig für alle Installationen unterhalb der Wasserlinie.Lieferbar als- ASD38V mit federbelastetem Ventil.- ASD38H mit Außenbord-Luftschlauch Länge 4,0 m (inklusive Borddurchlass)Für Schlauchdurchmesser 38 mm.
An exceptionally practical tool for removing impellers without damaging the pump housing.Body and jaws of aluminum, shaft of stainless steel.Dimensions, approx. 140 x 165 mm (W x H). Weight, 450 g.
Original JABSCO impeller for installation on most cooling water bilge pumps and universal pumps.To keep motors and pumps running smoothly, choosing the right impeller is critical. In addition to the hub mount and size, the material of the impeller should match its application:Neoprene is the most commonly used material for impellers and is suitable wherever only small amounts of oil or diesel fuel are present. Neoprene impellers are therefore suitable for engine cooling and for salt or fresh water pumping.Nitrile is oil resistant and can also be used for heavily polluted water. Impellers made of nitrile are therefore suitable for bilge and bilge pumps.The impellers are usually supplied with a matching paper cover gasket.Other JABSCO impellers and spare parts are also available at short notice on request.To see the matching image for the impeller, simply click on the part number in the table below.
Original SPX/JOHNSON brand impeller no. 09-1028B-9 made of neoprene and nitrile rubber in OEM quality for a long service life. The impellers are usually supplied with a suitable paper or rubber cover seal and a small tube of lubricant for installation. The impeller of the water pump on the engine should be replaced annually.
Original SPX/JOHNSON brand impeller no. 09-819B made of neoprene and nitrile rubber in OEM quality for long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.Suitable for: VOLVO: MD 100/100BK, MD 100A, MD 120, MD 120A, MD 71, TAMD 120, TAMD 120A, TAMD 61, TAMD 61/A, TAMD 71A/B, TMD 100/100AK, TMD100A, TMD 100C, TMD 102A, TMD 120, TMD 120 A, TMD 121 C, TMD 122A, TMD 71Nanni: 1300, 1600Mercedes: OM 403, OM 404
The Italian FINNORD group produces impellers in OEM quality for different manufacturers of pumps and offers a wide assortment of replacement impellers under the name CEF at reasonable prices.Here we present a selection of popular impellers made from neoprene and nitrile rubber.Usualy shipping complete with matching paper cover gaskets. To see the matching image for the impeller, simply click on the part number in the table below.Other sizes are available.
Original SPX/JOHNSON brand impeller no. 09-810B-9 made of neoprene and nitrile rubber in OEM quality for long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.
Original SPX/JOHNSON brand impeller no. 09-819B-9 (nitrile) made of neoprene and nitrile rubber in OEM quality for a long service life. The impellers are usually supplied with a suitable paper or rubber cover seal and a small tube of lubricant for installation. The impeller of the water pump on the engine should be replaced annually.
Original SPX/JOHNSON brand impeller no. 09-1027B-9 made of neoprene and nitrile rubber in OEM quality for long service life. The impellers are usually supplied with a suitable paper or rubber cover seal and a small tube of lubricant for installation. The impeller of the water pump on the engine should be replaced annually.
Original SPX/JOHNSON brand impeller no. 09-812B-1 made of neoprene and nitrile rubber in OEM quality for long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.Suitable for: VOLVO: 4.3 GL-G, 4.3 GL-GF, 4.3GXi-F, 4.3GXi-FF, 4.3OSi-F, 4.3OSi-FF, 4.3GXi-G, 4.3GXi-GF, 4.3OSi-G, 4.3OSi-GF, 0GL-H, 5.0GL-HF, 5.0GXi-F, 5.0GXi-FF, 5.0OSi-F, 5.0OSi-FF, 5.7Gi-F/FF, 5.7GXi-G/GF, 5.7OSi-E/EF, 5.7OSXi-E/EF, 5.7Gi-G, 5.7Gi-GF, 5.7GXi-H, 5.7GXi-HF, 5.7OSi-G, 5.7OSi-GF, 5.7OSXi-G, 5.7OSXi-GF, 5.7GiI-F, 5.7GXiI-G, 5.7GiI-G, 5.7GXiI-H,YANMAR: 6LP
Original SPX/JOHNSON brand impeller no. 09-1027B-1 made of neoprene and nitrile rubber in OEM quality for a long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.VOLVO: MD 21A, MD 22, AQ 180, AQ 200, AQ 200B/C/D/F, AQ 205A, AQ 211A, AQ 21A, AQ 225, AQ 231A/B, AQ 260, AQ 260a, AQ 271/A/B/C, AQ 280a, AQ 290, AQ 290a, AQ 311A,YANMAR: 3 JH 3, JH TBE, 4JH UTE, 4JH/JH, TE/JH, THE/JH DTE, 3JH, 3JH4, 3JH4, 4JHSOLE: SM 615, SM m616, SM 636PERKINS: 4.107MLL, 4.108 4 cyl, 4.108MLL, 4.236 4 cyl, 4.236/4.236T, 4.236LL, 4.99M, 4.99M, M200/240/275, T/H/HT 6.354MNanni: 3.110 HE, 4.110 HE, 4.110 L, 4.150 HE, 4.190 HE, 4.180, MB 180, MB 220, MB 300Mercedes: OM 636, OM 314BUKH: 1G/2G/3G, DV 36 ME/SME (10-24131-2), DV 48 ME/SME (10-24131-2)BETA: Beta 43-43bhp, Beta 50-50bhp, Beta 60-58bhp, XLD 418
Accessory for JABSCO impellers: JABSCO impeller grease, 2,5 ml tube.
Original SPX/JOHNSON brand impeller no. 09-1028B-1 made of neoprene and nitrile rubber in OEM quality for a long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.Suitable for: Beta: BSD 333, BSD 678, Dover 2722
Original SPX/JOHNSON brand impeller no. 09-806B-1 made of neoprene and nitrile rubber in OEM quality for a long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.Suitable for: VOLVO: AQ B2BYANMAR: 2 GM/GM20, 3 GM, SB 812, YSB 8/12, YSE 8/12, YSM 8/12FARYMANN: DS/ES/GS, K 30 MBUKH: DV 20M
Original SPX/JOHNSON brand impeller no. 09-1026B-1 made of neoprene and nitrile rubber in OEM quality for a long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.Suitable for:VOLVO: MB 18, MB 18F, MB 20, MB20A/B/C, MD 17C, MD 17D, MD 2030, MD 2040, MD 20 B, BB30, D1-20 A/B, D1-30 A/B, D2-40 A/B, D2-55 A/B/C/D/E, D2-75 A/B/CYANMAR: 2GM20F, 2 QM 15/20, 3 GM 30F, 3 HM/HM 35/HM 35F, 3 QM 30,PERKINS: 3HD46, M25/M30/3HD20, M35/40, M50/60/80T Prima, M90/4HD76/6HD, MC42LOMBARDINI: LDW 602 M, LDW 702 M, LDW 903 MFARYMANN: CSBUKH: DV 20 ME/SME (10-35241-1), DV 24 ME/SME (10-35241-1),

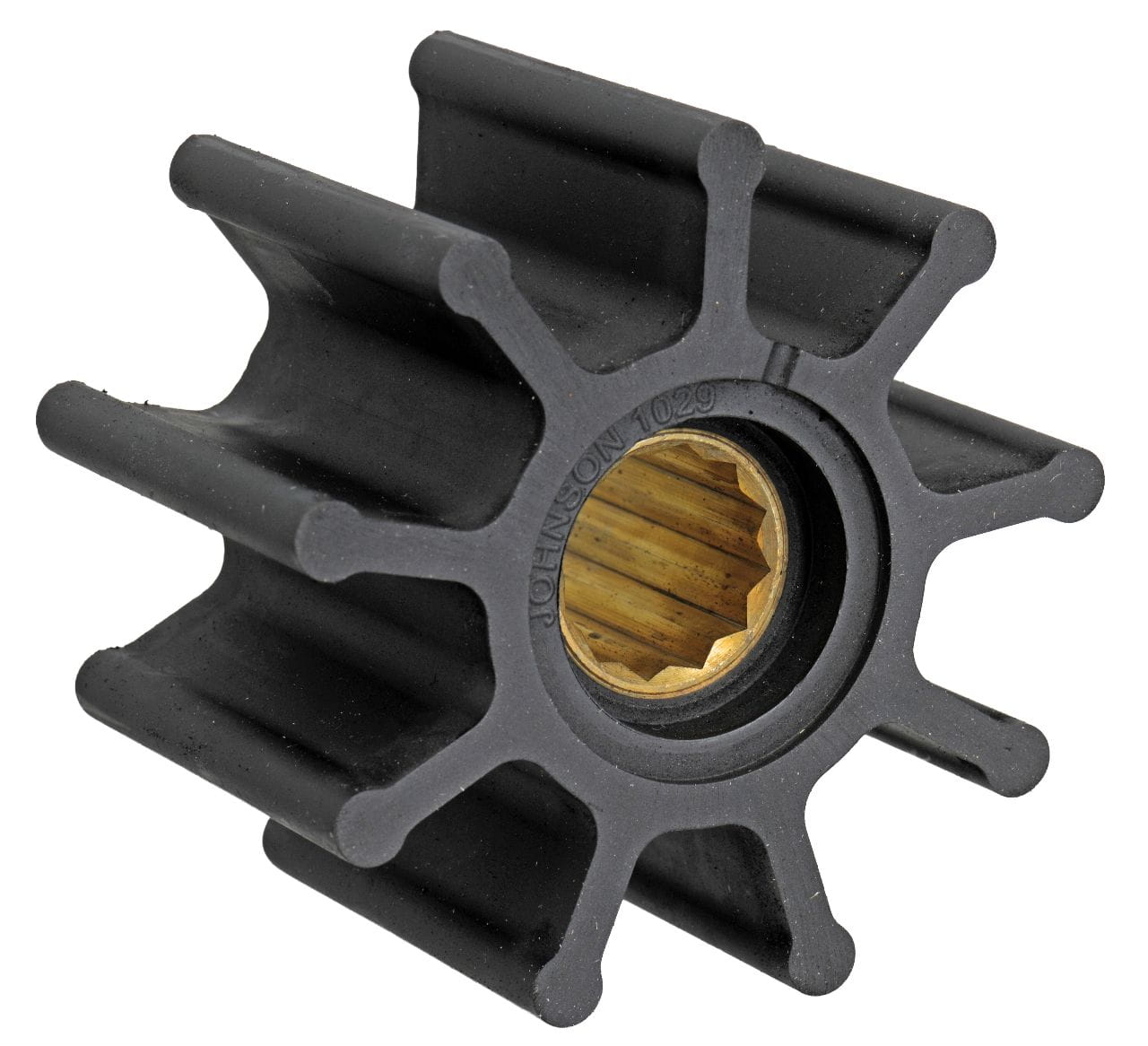

Original SPX/JOHNSON brand impeller no. 09-1029B-1 made of neoprene and nitrile rubber in OEM quality for long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.
Original SPX/JOHNSON brand impeller no. 09-808B-1 made of neoprene and nitrile rubber in OEM quality for long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.Suitable for: VOLVO: 2001 B, 2001/2/3R, 2002 B, "003 B, MB 10A, MB 10A/1, MD 11C/D, MD 1, MD 1B, MD 1KHD/HY, MD2, MD 2B, MD 2HBY, MD 5A, MD 5B/C, MD 6A, MD 6B, MD7A, MD 7B,NANNI: K34, K.L.A., L 30LOMBARDINI: LDW 401 MFARYMANN: A 30 M, A 40 M, FK2, K 34 (up to 10-35187-1), L 30 M,BUKH: DV 10 LME, DV 10 LSME, DV 10 M (from 10-35157-3), DV 10 ME/LSME (10-35157-3), DV 18 LME/LSME (10-35118-1 (10-35157-3)), DV 20 M 10-35157-3, DV 20 ME/SME10-35118-1 (10-35157-3), DV 24 ME/SME (10-35157-3), DV8 ME/SME10-35118-1 (10-35157-3)
Original SPX/JOHNSON brand impeller no. 09-801B-1 made of neoprene and nitrile rubber in OEM quality for long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.
Original SPX/JOHNSON brand impeller no. 09-802B made of neoprene and nitrile rubber in OEM quality for a long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.Suitable for: NANNI: D 2842 LE, D 2842 LXE, D 2842 LYE, D 2848 LE, D 2866 LE, D 2866 TE, 2100, 2100T
Original SPX/JOHNSON brand impeller no. 09-810B-1 made of neoprene and nitrile rubber in OEM quality for long service life. The impellers are usually supplied with a matching paper or rubber cover seal. The impeller of the water pump on the engine should be replaced annually.Suitable for: YANMAR: 2GM, 2GMF, 2YM, 3YM, 3GM, 3GMFNanni: 3.75 HE, 3.90 HE, P 30, R 30FARYMANN: FK 3, P 30 M, R 30 M, S 30 MBUKH: DV 10 ME/LSME (10-35241-1)BETA: 2KC, BD 722 20 BHP, BD 1005 28 BHP, Beta 10 - 10hp, Beta 14-13.5 hp, Beta 16-16hp, Beta 20-20-hp, Beta 25-25hp, Beta 28-28hp, Beta 35-35hp, Beta 38-37.5hp, BF 2803 62bhp, BV 1305 32.5 bhp, BV 1505 37.5bhp, BV 1903 43bhp, BV 2203 50bhp, BZ 482 13.5 bhp, KC, KR
Heavy seawater filter Type 1162 of nickel-plated brass. The filter cartridge is made of V4A stainless steel.The top covers of transparent polycarbonate and O-Ring seals allow easy inspection and control of the filter.Intake and outlet on the sides.Other options are available.Approved by RINA.
Heavy seawater filter Type 1164 of nickel plated brass.The filter cartridges are made of V4A stainless steel. The cover with transparent polycarbonate screen and O-ring seal allow easy inspection of the strainer.Intake on the bottom and outlet on the side.Other sizes and versions are available.Certified by RINA.
Sea water strainer type 1160B made of bronze.Filter inserts made of stainless steel (AISI 316L).Screw-in cover made of transparent polycarbonate (GRILAMID TR55) with O-ring seal for easy inspection and cleaning.Covers can be opened and closed with an included handle or nylon tool.Intake at the bottom, outlet on the side, approved by RINA.
Proven VETUS FTR 300 cooling water filter in all-plastic design.The transparent cover is ideal for constant monitoring and quick inspection of the degree of contamination.The large, active surface is easy to clean.The optional lid spanner can be used to open the cross lid more easily. You can find this, as well as replacement filter elements, O-rings or replacement lids, further down on this page under "Accessories".
The filter inserts are suitable for our GUIDI seawater filters Typ 1162 and Typ 1163. They are made of V4A stainless steel and reliably prevent the penetration of larger dirt particles, such as seaweed shreds, sand or small stones, into the cooling water system of the engine.
Strong seawater filter Type 1160. Body of nickel plated bass.The filter cartridges are made of V4A stainless steel.Transparent polycarbonate lid with O-ring seal allows inspection of the filter.Key for the lid is included.Intake on the bottom and outlet on the side.Other versions and sizes are available.Certified by RINA.
Heavy sea water filter Type 1158. Body and lid of nickel plated brass.The filter cartridges are made of V4A stainless steel.Threaded lid with O-ring seal allows easy inspection and cleaning of the filter.A plastic key for the lid is included.Intake on the bottom and outlet on the side.Other sizes and designs are available.Certified by RINA.
The filter inserts are suitable for our GUIDI seawater filters Typ 1158 und Typ 1160. They are made of V4A stainless steel and reliably prevent the penetration of larger dirt particles, such as seaweed shreds, sand or small stones, into the cooling water system of the engine.
Nylon handle for our small water strainers.Fits type 1158 and 1160.
Nylon holding bracket for our brass water strainers. Fits for type 1158 and 1160.
Original Ersatz O-Ringe aus Gummi für GUIDI Seewasserfilter in verschiedenen Durchmessern.
Heavy-duty Type 1166 cooling water filters made of bronze.The filter inserts are made of V4A stainless steel.The metal cover with O-ring seals allows for easy inspection of the filter.Inlet on the bottom, outlet on the side.Other sizes and models are available.Approved by RINA.
Heavy seawater filter Type 1163 of nickel-plated bronze. The filter cartridges are made of V4A stainless steel. Bronze lid with O-Ring seals allow easy control of the filter. Intake and outlet on the sides. Other options and sizes are available. Approved by RINA.
The filter inserts are suitable for our GUIDI seawater filters Typ 1164 and Typ 1166. They are made of V4A stainless steel and reliably prevent the penetration of larger dirt particles, such as seaweed shreds, sand or small stones, into the cooling water system of the engine.
Cover key for easier opening of the cross cover on VETUS filters.The key is suitable for cooling water filters type FTR 330 (not for type FTR 140).The key also fits the NSF 16 (not the NSF16S), NSF 19, NSF 25 and NSF 38 odor filters.
Very practical bracket for the mounting of VETUS filters and other auxiliary equipment.Especially useful for mounting in engine rooms with an isolation of up to 40 mm.AISI 316 stainless steel.Shipping with two mounting bolts.
Proven VETUS FTR 140 cooling water filter in all-plastic design.The transparent cover is ideal for constant monitoring and quick inspection of the degree of contamination.The large, active surface is easy to clean.Replacement filter elements, O-sealing rings or replacement lids can be found further down on this page under "Accessories".
Spare parts for the cooling water filter VETUS Typ FTR 330.Position 1 in the drawing: Spare filter element (Article-No. 1838-102).Position 3: O-Ring gasket for the cover (Article-No. 1838-103).Position 2 + 3: Cover with O-Ring gasket (Article-No. 1838-105).
Spare parts for the cooling water filter VETUS Typ FTR 140.Position 1 in the drawing: Spare filter element (Article-No. 1838-110).Position 3: O-Ring gasket for the cover (Article-No. 1838-108).Position 2 + 3: Cover with O-Ring gasket (Article-No. 1838-109).
Self-priming impeller pump with free shaft end. for socket mounting. Equipped with neoprene impeller for use as sea or fresh water pump.The pump housing is made of bronze, the axle with ball bearings is made of stainless steelThe details regarding the output refer to an input speed 1500 U/min and back pressure at 0.3 bar.
JABSCO centrifugal pumps CYCLONE are strong and durable pumps made from stainless steel, suitable as circulation pump for heating systems, ballast tank systems, cooling water or seawater, diesel or chemicals over a temperature range of +4° to 95°C.They are available as high efficiency pumps (type 50840) with up to 110 l/min power for continuous operation or as high pressure pumps (type 50860) for the temporally limited usage (30 min maximum) with pressure of up to 1,6 bar.Connection thread 3/4" BSP.Four rubber puffer pads in the base plate ensure a quite and vibration free operation.Centrifugal pumps are not self-priming, they must therefore be installed in such a way, that the flow of the pumped medium is guaranteed.
