Mast & boom

Traditional mast hoops for bending the luff of a gaff sail on the mast.Made on an English boat yard from steamed ash wood ledges in layers, hot bent and oiled. Because the hoops come not glued, but only temporarily secured with a bolt, they can simply be mounted around the standing mast and riveted with the enclosed copper rivets on board.The hoops are treated with linseed oil. We recommend to varnish or oil treat them before installation. The inner diameter of the mast hoops should be approx. 20% larger than the maximum mast diameter.

Made from turned ash wood, oval wood sphericals to make a parrel line for sails and gaffs.They can be strung onto a parrel line.Unfinished. To protect them, the parrel beads should be soaked in linseed or wood oil.Variations in the dimensions, due to the manufacturing process, are possible.

Made from ash wood.On flat-bottomed boats, half-moons serve to raise the mainsail throat with help from the halyard on downwind courses.The half moon is attached to the lower parrel line between the parrel beads, then the halyard is laid on the half moon.

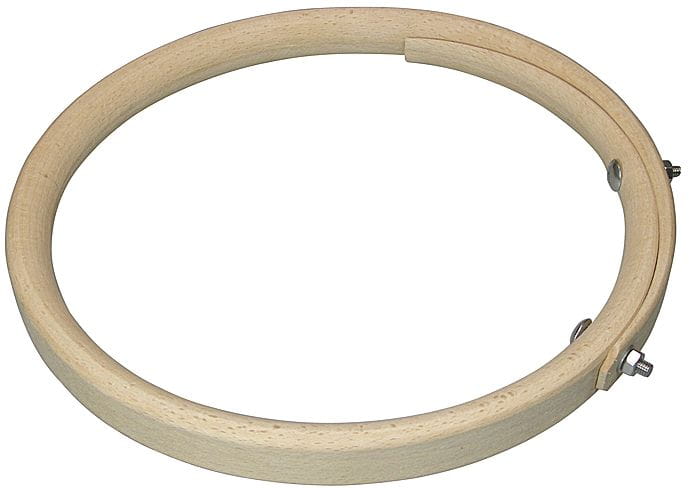

The luff of a (gaff rigged) main sail is lashed to the mast with these wooden mast hoops.Traditional rings made from cold-bent beech-wood with long, overlapping openings, locked by stainless steel bolts.Suggestion for size determination:Inner diameter of the mast ring should be about 20% greater than the maximum mast diameter.

Ring for lugger rigging, to hoist the yard (gaff).Beautiful simple bronze fitting, welded, cleanly sewn by hand with leather.The halyard suspension is constructed in such a way that the ring stays approximately horizontal under load and thus has little friction.D2 should be approximately 1.2 times the size of the largest mast diameter.

Classic mast-fitting set for round masts and round, oval, or square booms.Made in England, from high-quality marine bronze.The mast fitting is made up of two strong bolted rings of cast bronze, polished, and the screwed-on gooseneck.The (undrilled) boom fitting is cast in a single piece and can be either embedded in the boom or attached to the outer boom.The connected gooseneck is also a cleanly made cast piece.We offer this fitting mounted as a complete set, with a welded-on reefing hook fitting (for two reefs).D2 is the mast diameter.This fitting has a hand-crafted design and finish, and matches very well with our gaff saddle fitting.Other sizes and combinations are available on demand.

Traditional gaff claw (claw fitting).The sturdy gaff saddle has a hand sewn leather cover, which protects the mast finish and may be greased to ease sliding.The gaff end fitting is cast of marine bronze and hand-polished.Clew fitting with ring for the halyard and for the sail, made of welded bronze, shiny polished.This hand-finished fitting is a functional piece of art for any traditional boat or yacht.The complete set matches our mast and boom fittings in size and finish.D2 should not be less than 1.15 times the size of the largest mast diameter.Not appropriate for high peak or Gunter riggings. The inclination of the gaff should not be less than 40°.Other sizes and combinations are available on demand.

Classic fittings made from rugged cast bronze with eyes to bend wires to the spar on all 4 sides.The two eyes for the stays on top and the one below for the bobstay have been designed especially robust.Surface: tumbled with matt finish, European make.Available in two types: as an open ring or closed end fitting.Additional sizes are available on request.

Mast or bowsprit fitting with two attachment eyes for stays, shrouds, etc.Cylindrical. Hand-polished cast bronze.Undrilled. 2 eyes.

Classic mast bands made of cast in gunmetal, also suitable as a jib boom fitting.With four fixing eyes for stays, shrouds etc..Cylindrical fitting that is best mounted on a spar recess.Undrilled.

Strong stainless steel boom fitting for sailing boats and small yachts.The boom claw has four nylon rings to protect the boom and the sail.Material thickness: 6 mm.Made in Germany!

Classic boom fitting for sailing boats and small yachts with roller-reefing (with turning booms). The boom claw has four nylon rings to protect the boom and the sail.For simple sheet leads, use just one boom claw.By combining two boom claws, a complete, strong sheet car (lenght 300 mm) with three purchase points can be mounted, on which the mainsheet can be attached. Deliverable in two versions: a small one made from brass, cleanly polished or a bigger one made from aluminium bronze

Ring for lugger rigging, to hoist the yard (gaff).Beautiful simple bronze fitting, welded, cleanly sewn by hand with leather.The halyard suspension is constructed in such a way that the ring stays approximately horizontal under load and thus has little friction.D2 should be approximately 1.2 times the size of the largest mast diameter.

Made from cast bronze, equipped with a strong strap for the main sheet block.Surface: tumbled with matt finish, European make.

One-piece fitting, matches our gooseneck fittings (match the bolt diameter D4).Polished bronze.Also fits slightly tapered booms.

Functional bronze gooseneck applicable for small yachts.Matte-rolled finish. Track rails to screw on, car with holding screw as well as square spike that can be plugged on a wooden or aluminium boom.Track: L = 300 mm, W = 22 mm. Spike: 12 x 12 mm, L = 100 mm.This fitting allows the mainsail to be reefed by rotating the boom.The square socket in the boom (13 x 13 mm) has to be set up by the owner.

This traditional three-part fitting of hand-polished cast bronze allows sails to be reefed by rolling them around the boom (simple roller reefing). Intended for yachts and small cruisers (with mainsail sizes up to about 10 square meters). The complete fitting is put together from three pieces. The boom can be removed from the tetrahedral fitting. To reef, the boom is simply pulled aft off the fitting and turned.The pieces must be installed separately: 1) Boom fitting forward (tack) for the the boom's diameter D1 = 50 mm with suitable space for the tetrahedron of the gooseneck fitting. 2) Boom fitting aft (clew) with the rolling frame for the topping lift and sheet; 3) Gooseneck with tetrahedral fitting, sized for various mast diameters: D2 = 50 to 87 mm.

The HIGHFIELD lever is a reliable bronze backstay turnbuckle.An absolutely classic fitting, built the same way for the past 100 years. Not only robust hand quality by the British manufacturer DAVEY & Co., but also a piece of art on any deck.The whole fitting is made by hand from bronze, sand-cast and extensively hand-polished and hand mounted.The backstay wire must be pressed or spliced onto the bronze thimble. With the clamping lever, the wire can then be brought down tight to the deck.In the tensioned position, the wire sits below the pivot of the turnbuckle. Thus the locking device is automatically secured. The optional two-piece release fitting (must be ordered separately, available for size 1) allows the (loose) backstay wire to be hooked directly to the turnbuckle.

The rigging cleat, also called a thumb cleat, shoulder cleat or hound is a traditional mast fitting. It is used where the stay is spliced into an eye around the mast and keeps the eye from slipping down. The receiving width is 12mm. Heavy and solid, the fitting is made of cast bronze with a fine matt tumbled surface and has five countersunk holes with a diameter of 5 mm.For an additional charge, the fitting can also be supplied hollowed, i.e. precisely adapted to the required mast diameter. Just ask, we will be happy to advise you.

Brass cleat with curved base for direct attachment to the spar (bearing radius 41 mm). In addition to being used as a mast cleat for halyards, it can also be used on the main boom to attach reefing tackles and stretchers or on the jib boom to attach the jib ringhaul or the water stay. The elegant cleat is produced by WILMEX and is designed for rope diameters of 10-14 mm.

Strong mast fittings with a high breaking load that can also be used as bowsprit fittings. Made in England and finished in polished bronze. With very strong, drilled lugs and wide strap for secure fastening.Available with two or four lugs.

Bowsprit traveller for hauling out the jib sail on the jib boom or bowsprit. Hergestellt in Enghland. Heavy-duty A4 stainless steel fitting with solidly constructed, drilled plates. Well suited for attaching a headsail furling system. Bolting the furling gear into plates reduces the tendency for the furling line to snarl up. The ring is neatly stitched with rigging leather. Comes without bolt. Other sizes on request. Please note that bowsprit travellers are specified by the bowsprit they will work on. Normally they are sized 30% larger in diameter than the bowsprit.

Open bowsprit fitting in very strong design with high breaking load. Made in England from polished bronze.The wide strap is equipped with drilled lugs on every side. The lug at the top has two holes. The front of the two eyes is usually used as an attachment point for a fixed stay or for bowsprit halyard (dutch sailing barges). The sail or an outhaul block for the bowsprit traveller can be attached to the inner eye.Well-suited for recessing into the wood, in order to have the fitting band and boom nock finish off in an attractive manner.

The traditional American-style sheet shock absorber is cast from solid bronze.The ring is attached to long V-brackets. The rubber rings attached centrally round the axle dampen the shock of the sheet block and thereby protect the fittings and the joints.Fastened from below with bolts (M20) to be screwed into the base.Surface: fine matt tumbled.Other sizes on request.

The sheet horse made of high tensile marine bronze is an eye-catcher on any ship with classic, traditional look, e.g. dutch sailing barges, open cutters, dinghys or classic yachts. The classic fitting is used for traversing the main or jib sheet when tacking. Beautifully designed with deck plates and stops.The rod carries threads for bolting to the deck. To accommodate the foot block of the main or jib sheet, the sheet horse has a waist-shaped slide, whose wide design ensures controlled passing. Several application possibilities are conceivable. For example, the fitting can be used on the cockpit floor or on the aft deck as a mainsheet horse, or in front of the mast as a fore-sheet horse. Another use is mounting it at the stern above the tiller, as is common on smaller dutch sailing barges.The sheet horse can be supplied in various sizes.

A CENTURY OF WYKEHAM MARTIN!This roller-furling fitting is a piece of British yachting history. Developed at the beginning of the 20th century by Colonel Wykeham-Martin, these furling systems have been aboard dinghies and yachts for more then 100 years. You could say they are the father of all roller furlers.This solid construction has been completely overhauled by DAVEY & Co. and today is available in modern manufacture. The ball bearings are exceptionally wear-resistant and maintenance-free.The system is only intended for free-running jibs. The fittings are not designed to take the continuous strain of the forestay.Particularly reliable in setting and furling jibs. Foredeck work is simplified and dangerous flogging of the sail is limited.Made from hand-polished bronze. Drum and swivel work on ball bearings. All pieces are removable and thus easy to maintain.Replacement parts for the standard parts that wear out are available. Each contains: ball bearings, bearing discs, safety stopping nuts.Comes in 4 sizes:TYPE 1B for sails up to approx. 5 m²;TYPE 2B for sails up to approx. 10 m²;TYPE 3B for sails up to approx. 20 m²;TYPE 4B for sails up to approx. 35 m²;Drums and swivels for mounting on top yield a complete roller-furling system!Mounting instructions can be downloaded under "Downloads & Information."

Modern, smooth rolling cheek blocks with sliding bearings, developed by the Swedish mast builder SELDEN.Casings made from high tensile, glass fibre reinforced plastic with internal stainless steel fittings.Rope sheave made from high strength ACETAL (D 80 mm with low friction TEFLON sliding bearing) with riveted axle.The highest load possible is equal to 50% of the declared breaking load.For mounting the blocks on the mast without an additional base plate there is a model each with a hollow rounded support. The radius for which the block is optimally suited is specified.Mounting screws are not included in the shipment.

Made from stainless steel.Welded bail, for mounting on the boom or mast.Rounded mounting plate with lateral bail.

Made from stainless steel.Welded bail, for mounting on the boom or mast.Rounded mounting plate with longitudinal bail.

Classic fitting for large wooden spinnaker poles or whisker poles, with spring loaded locking.All fittings have a fixed eye for the uphaul (toppnant). The large fitting 6214-075 has an extra fixed eye for the downhaul.Manufactured from solid cast bronze with tumbled matte finished surface. Made in Europe.

Light spinnaker or whisker pole end fitting made of AISI-316 stainless steel with spring-loaded locking bolt.For riveting to an aluminium tube or for screwing to a round timber.According to the manufacturer, the variants ...-1607 and ...-1609 are designed for aluminium tubes with an outer diameter of 25 mm and 32 mm respectively, while the ...-1611 version is designed for wooden spinnaker poles with an outer diameter of 32 mm.

Stainless-steel spinnaker pole end fitting made by the renowned company Ronstan. Push-on beak design allows attachment to the pole ring without manually opening the pin. Screws onto wood or can be riveted to an aluminium pipe.

Beautifully shaped classic end fitting for wooden spinnaker poles or wooden whisker poles for jib or genoa. Made from solid, hand-polished cast bronze by the traditional manufacturer DAVEY in Great Britain.The bolt closes with a spring-loaded latch with stainless steel springs. Available in two sizes for poleend diameters of 45mm/1 ¾" or 58mm/2 ¼".This fitting does not have fixed eyes for the topping lift and foreguy, as these were still fitted around the spinnaker pole with spliced eyes at the time of its development.DAVEY designation 3422/GM.

Robust boom crutch socket, made from cast bronze by DAVEY. Surface hand polished or chrome plated. Straight design, open on one side. Fits well as base fitting for our boom scissors. (2 socket pieces are needed for one boom crutch). Measurements L x B x H: 62 x 33 x 42 mm, inside: 60 x 24 mm.

Traditional boom scissors made from ash wood.The crutch fits for dinghies and small cruisers.The resting boom height is around 80 cm, for boom diameter max. 90 mm.Made from ash battens 20 x 52 mm, sanded and oiled.Combines well with the bronze boom crutch sockets from DAVEY (please check "Suitable items").

Heavy fitting made from polished cast bronze that allows the construction of a boom crutch or a gallows frame.Large design, for inner tube diameter of 39 mm and outer tube diameter of 48 mm. The tubes are not available, the other parts of the set are only available in remaining stock.The corner fitting must be incorporated in a self-made wooden cross beam. The deck fitting anchors the supports on deck and holds them up.The complete gallows frame may be set up of follwing parts:2 x corner fittings (remaining stock available);2 x 5° deck fittings (remaining stock available);2 x 45° deck fittings for the diagonal supports (remaining stock available);2 hinges (remaining stock available);2 pieces brass tube of the desired length for the vertical supports (not available);2 pieces of brass tube for the diagonal supports (not available).

Solid cast fitting for traditional gallows frames; fits square wooden boom crutches.Angled approximately 30°. Sand cast from seawater-resistant bronze, hand polished. Weight: approx. 900g.A complete gallows frame requires a pair (2 pieces).
