Combi charger & inverter

Combined battery charger and inverter (to generate 230 V from the onbard battery). VICTRON ENERGY units have been developed on the basis of modern hybridhigh-frequency technology for professional use. The foundation for the MULTIPLUS assumes an efficient sine alternating current, connected with a battery charger and an automatic switch, all combined in a compact blue hausing: The clean sine alternating current allows undistributed use of all -- even electrically sensitive -- units, even those with high starting currents. At peak performance the unit provides 200% of the nominal power. USV function: the switch from inverter to generator - or shore power -happens automatically and so quickly that, for example, a computer can continue to work without interruption. The battery charging takes place over a 4-step adaptive load, so that the required charge is achieved. A second power output charges the starter battery using a 1-step process. Intelligent installation and control possibilities. Optional remote available. Weight 18 kg.- Battery charging with 4-step adaptive charging - Separate charging for starter battery- Inverter produces a clean sine alternating current- Automatic switching to external power source (USV function)- Control LEDs on the unit- Very good radio interference suppression- Optional remote control panel

Combined battery charger and inverter. VICTRON ENERGY devices are developed on the basis of the latest hybrid high-frequency technology for professional use.The basis of the MULTIPLUS is a powerful sinus inverter, combined with a battery charger and an automatic transfer switch in a compact blue housing.The pure sine wave alternating voltage enables trouble-free operation of electronically sensitive devices, even with high starting currents. The device can deliver 200 % of the rated power as peak power.With UPS function: Switching from inverter operation to generator or shore power takes place automatically and so quickly that computers, for example, can continue to work without interruption.The battery is charged according to a four-stage, adaptive charging characteristic so that exactly the required current is always supplied. A second charging current output charges the starter battery in a single stage.With intelligent setting and monitoring options and control LEDs on the device.Very good interference suppression.Optional remote control / control panel Digital Multi Control.The specified continuous output refers to an ambient temperature of 25 °C, with a non-linear load.For further details, please request our TOPLICHT-Info 101 (VICTRON).Translated with DeepL.com (free version)

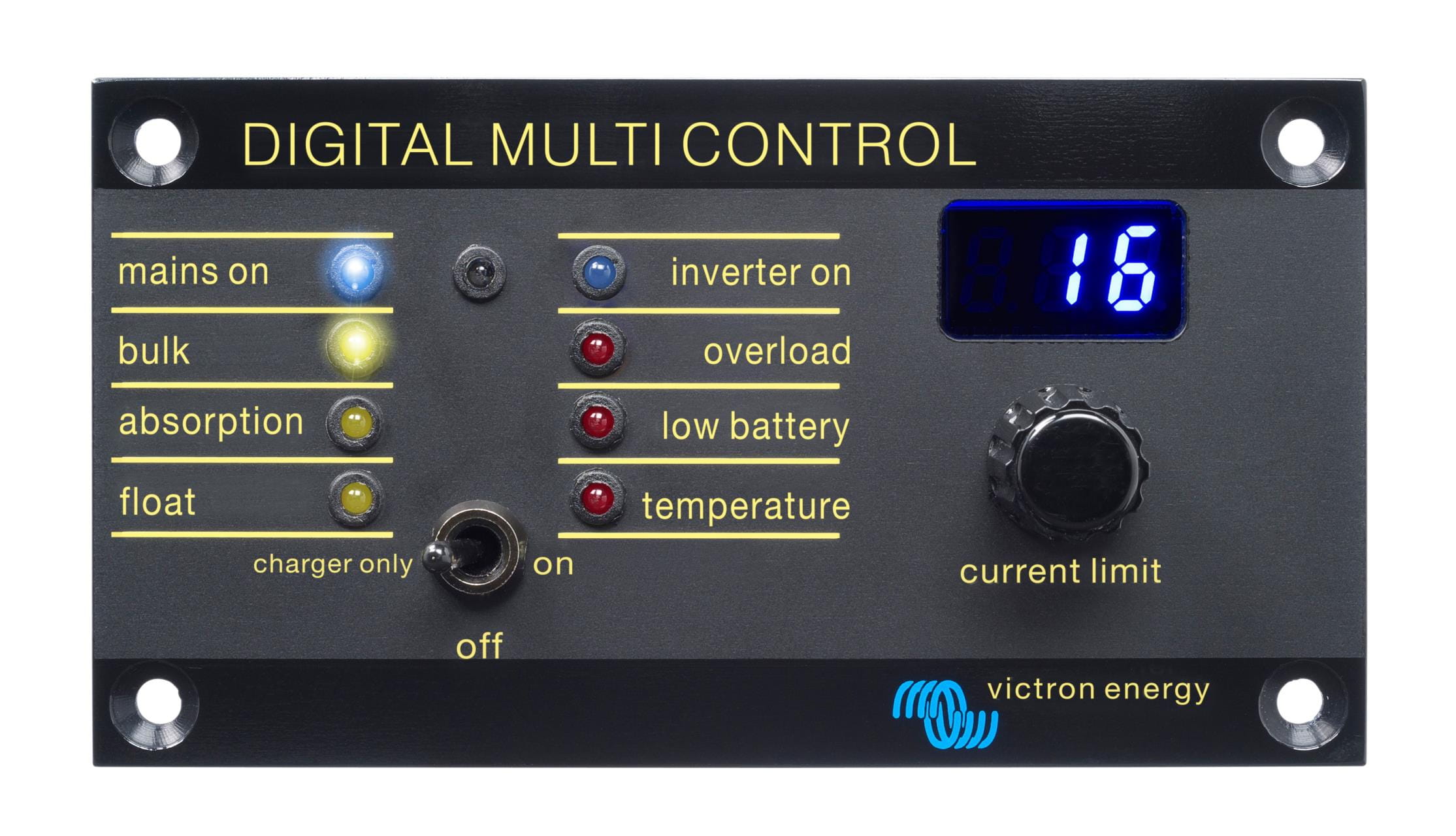

Digital remote control for all Multiplus inverters/chargers. The operating mode of the Multiplus can be set using a toggle switch. LEDs indicate the operating mode, charging phase and warnings. The maximum charging current can be set via a rotary knob and a display. Setting range up to 200 A.A built-in sensor automatically reduces the brightness of the LEDs in the dark.

The Inverter Control VE.Direct operating panel allows convenient remote control of a VE.Direct inverter from Victron Energy. Ideal, for example, in a maritime on-board network, motorhome or off-grid system: instead of operating directly at the inverter, you can control on/off centrally and thus easily regulate operation, maintenance or rest phases. This keeps your system flexible, safe and clearly under control.Victron Energy is a renowned manufacturer of inverter and energy management systems especially for mobile and maritime applications. This panel was developed specifically for inverters with a VE.Direct interface. According to the manufacturer's manual, the module is suitable for remote on/off control of all VE.Direct inverters. This makes it a good fit for professional on-board installations where the focus is on ease of use and reliable control.Brief technical informationCompatible with all VE.Direct Phoenix inverters.Control cable: 2-wire connection (not included).Dimensions: approx. 33 mm × 60 mm × 65 mm.Weight: approx. 0.04 kg.Color: grey. WarningsInstallation and connection only by qualified specialist personnel - especially for maritime on-board installation under standards such as "marine equipment"Before connecting, ensure that the inverter has a VE.Direct interface, otherwise the panel is not suitable.The control cable must be correctly dimensioned and connected - incorrect wiring can lead to malfunctions.The panel only controls the on/off function of the inverter. Further settings (e.g. parameterization) must be made directly on the inverter or via Victron software.
