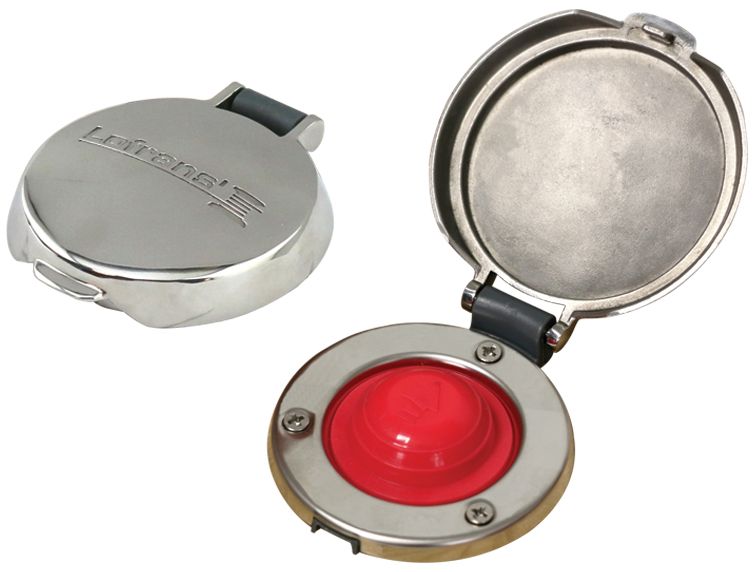

Lofrans foot switches are ideal for mounting on deck. A stainless steel protective cap prevents accidental operation. The foot switches are available as Up (red) or Down (black) version.Material: stainless steelDimensions: 80 x 95 x 20 mmOperating voltage: 12 / 24V DCMax. Current: 5 AmpereWaterproof according to IP67Operating temperature: -10 to +60 °CWeight: 250 g

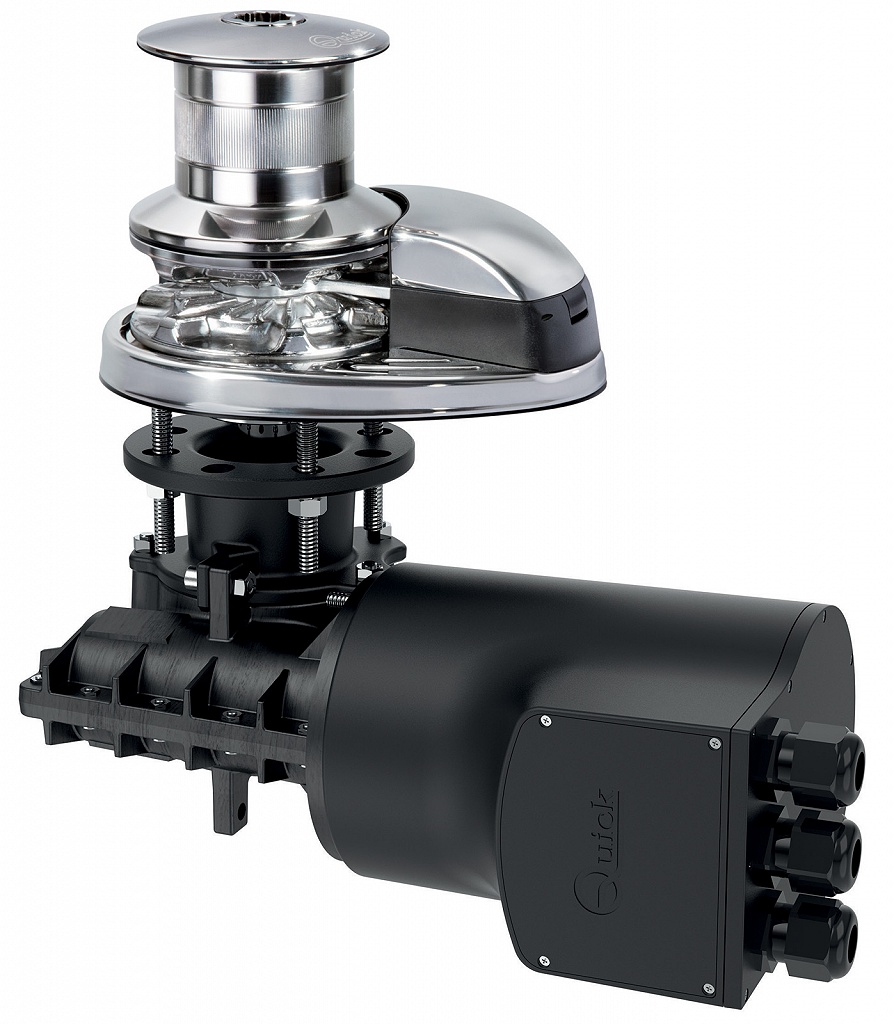

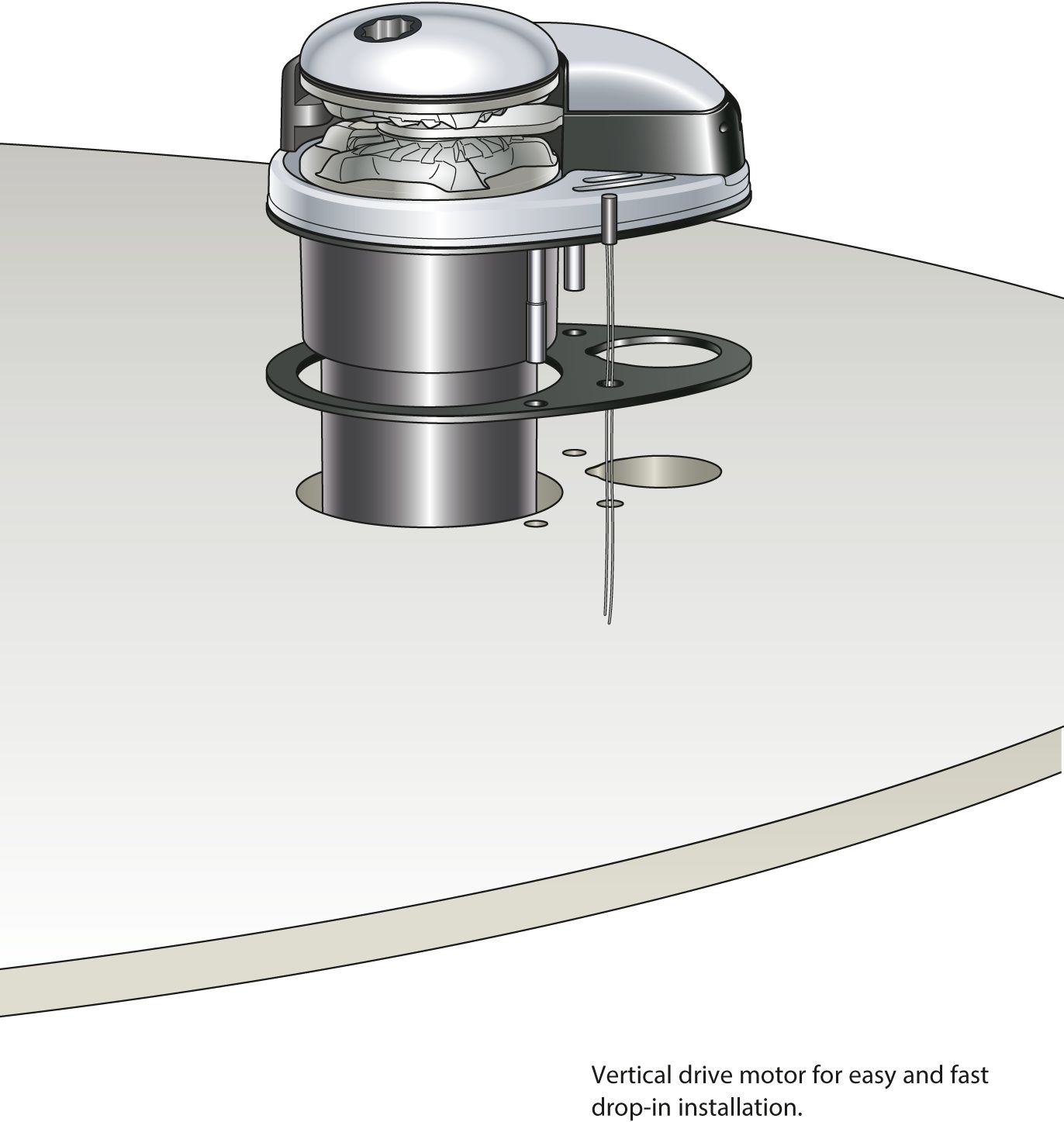

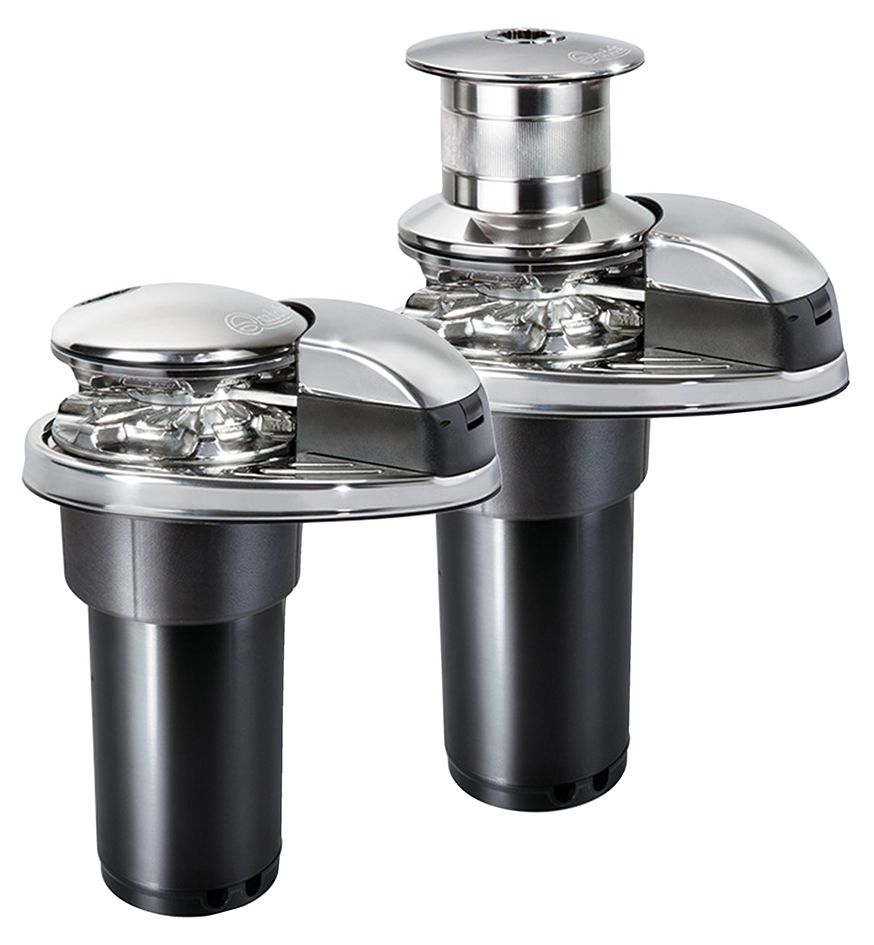

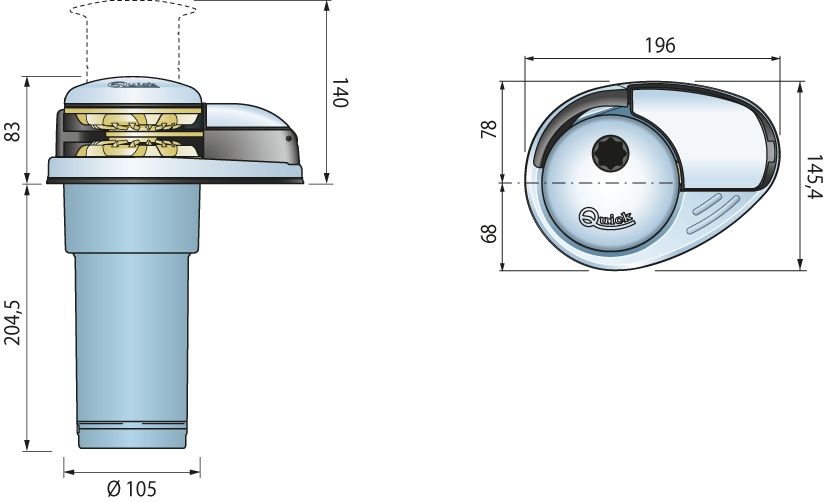

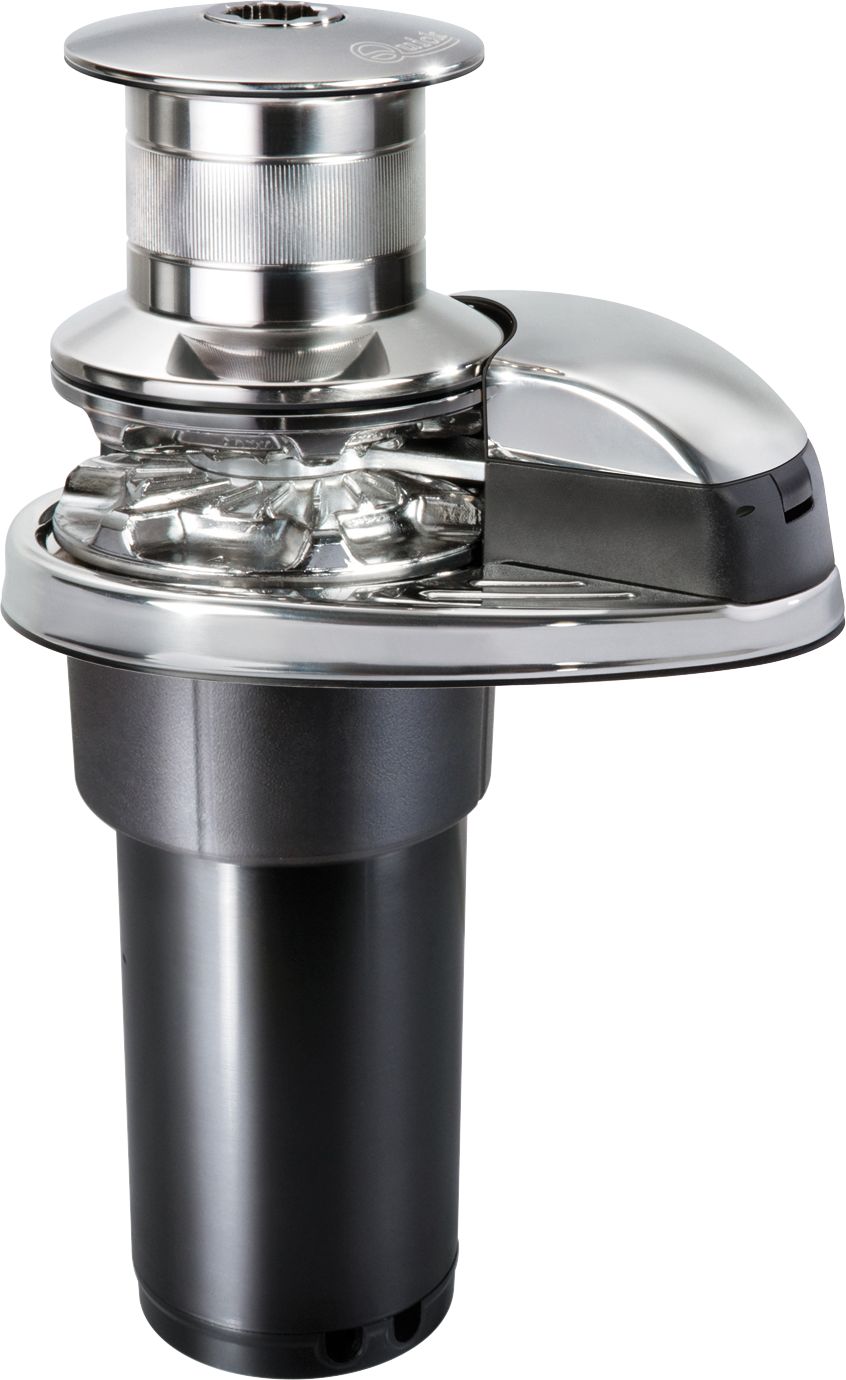

Robust, vertical, electric windlass with powerful watertight motor (protection class IP67).Base, chain cover and, if necessary, mooring cap in stainless steel AISI316. Combination chain sprocket made of chrome-plated bronze, for hoisting chain DIN 766 and beaten anchor line (12-14 mm). Suitable for boats from eight to ten metres in length.Manual free fall. Low-wear operation, simple installation and long service life thanks to vertical motor without angular gear: the patented, highly effective planetary gear enables powerful work with low power consumption, low weight and high efficiency. Flat design. Suitable for deck thickness 20-40 mm.Powerful motor 12 V / 800 W, current consumption 84 A.Working load in operation 95 kg, maximum 290 kg. Maximum pulling force 820 kg.Maximum hauling speed with 8 mm chain 22.5 m/min, under load 15.2 m/min.Available with and without hauling capstan.Scope of delivery: winch, relay box, built-in sensor for chain counter, plastic crank, base seal, drilling template.Switches and other accessories can be found under "Accessories" (see below).Other sizes and other QUICK windlass models are also available on request.
Electric windlass model TIGRES for boats up to 15 m in length from the renowned manufacturer LOFRANS. The housing is made of seawater resistant aluminum alloy and anodized silver. The reversible electric motor for retrieving and freeing the chain has a powerful output of 1500 watts. The motor (IP66) is integrated in the windlass, so no motor installation below deck is necessary. The capstan head can be operated separately. Emergency operation is possible with a handle.Features:working load 190 kg,transaction max. 1390 kg,max. catch-up speed 33 m/min, under working load 14-16 m/min,power 1500 watts,for boat lengths from 12 to 15 m,for chain diameter 8 mm or 10 mm acc. to DIN 766,indepent gipsy and drum operation,manual chain release,manual override,with capstan drum,weight 28 kg.Available for anchor chains of 8 mm or 10 mm diameter, according to DIN766. Also available for ISO chains on request.Supplied with hand lever and relay box, control switches must be ordered separately.Designing and making windlasses for more than 40 years leads LOFRANS to experience a lot about their products which have been going through a constant evolution year by year.

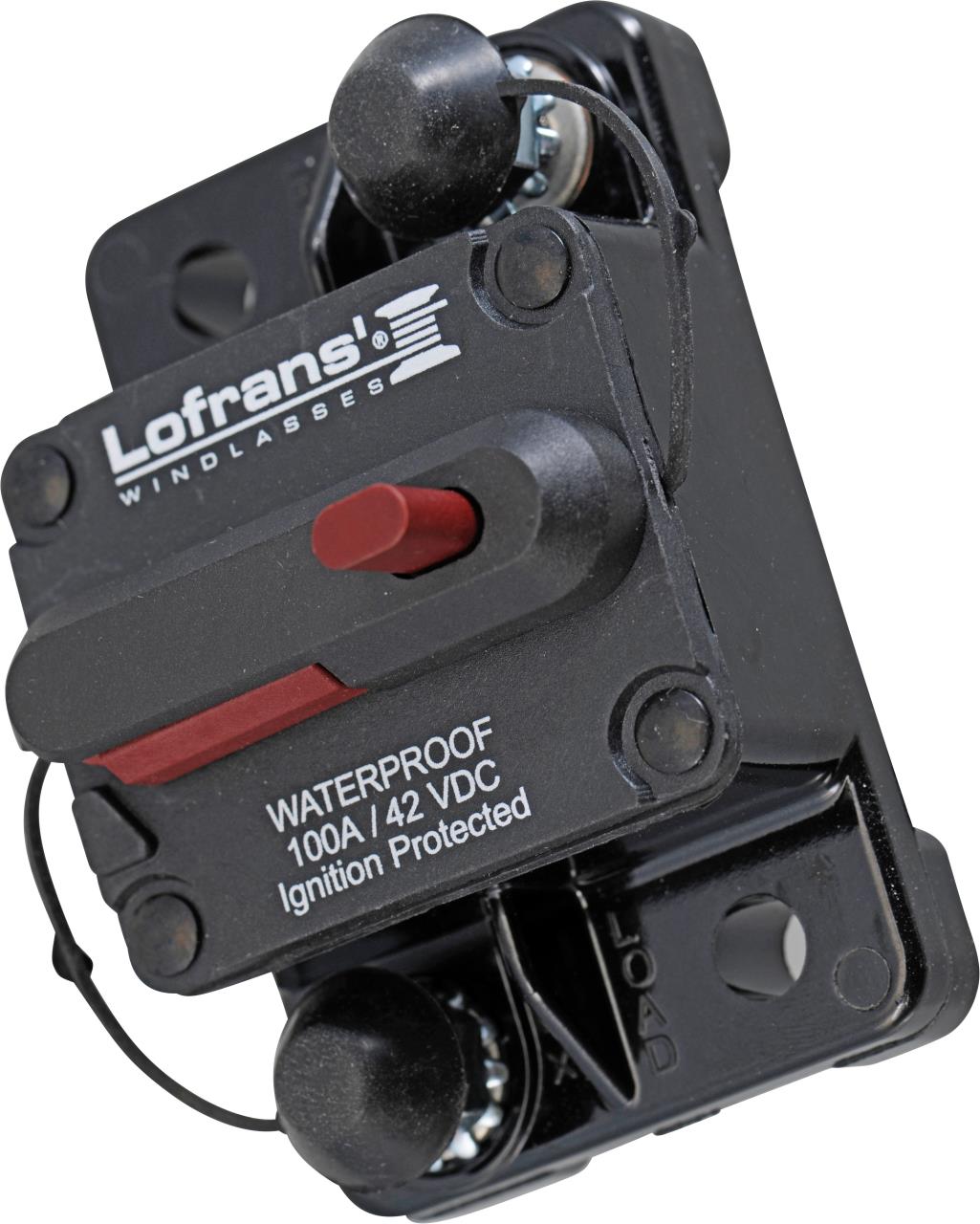

The thermal circuit breaker protects the electric motor of the Lofrans windlass from overloads.For the Lofrans Tigres windlass, the 100A circuit breaker is recommended for the 12 volt version and the 70A circuit breaker for the 24 volt version.For other Lofrans windlasses you can look up the necessary circuit breaker in the manual (under "Downloads & Information" at the bottom of the page).

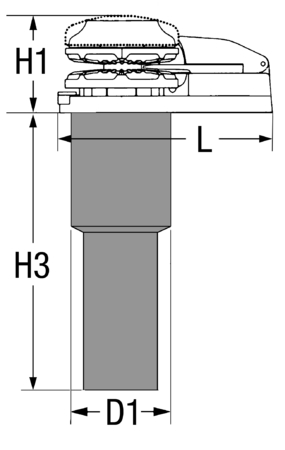

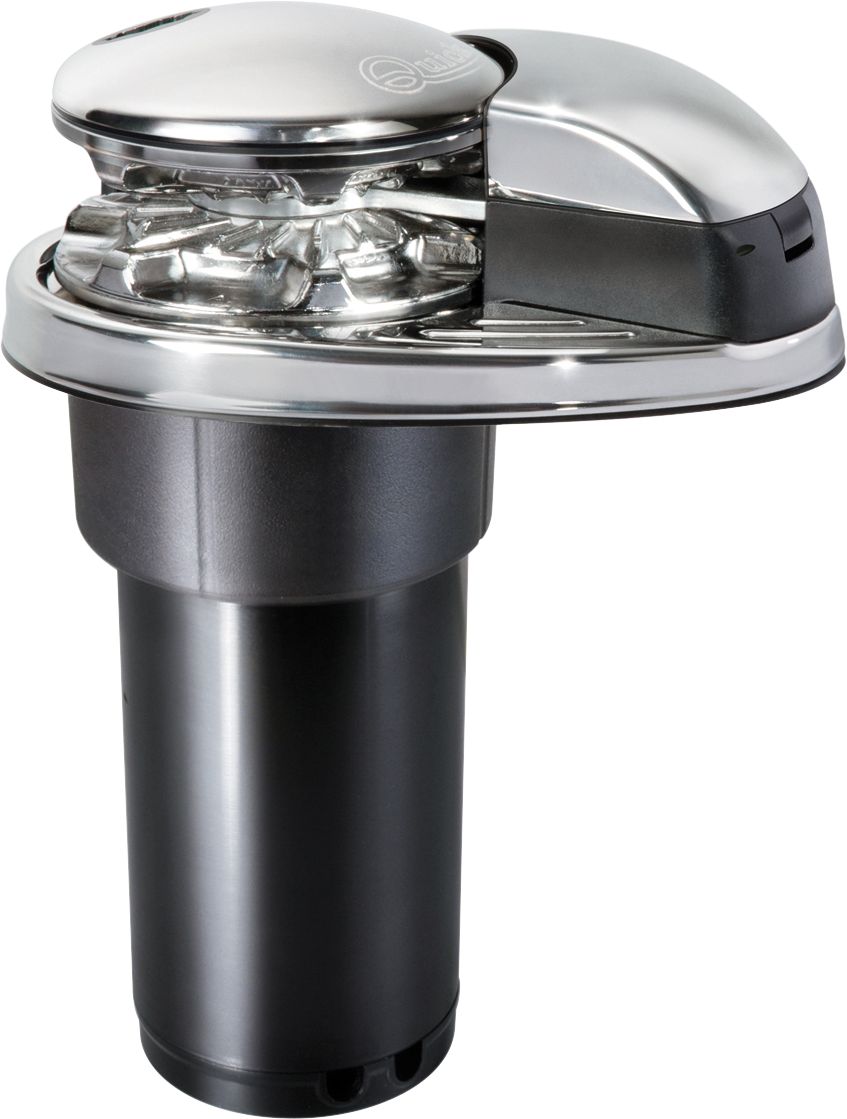

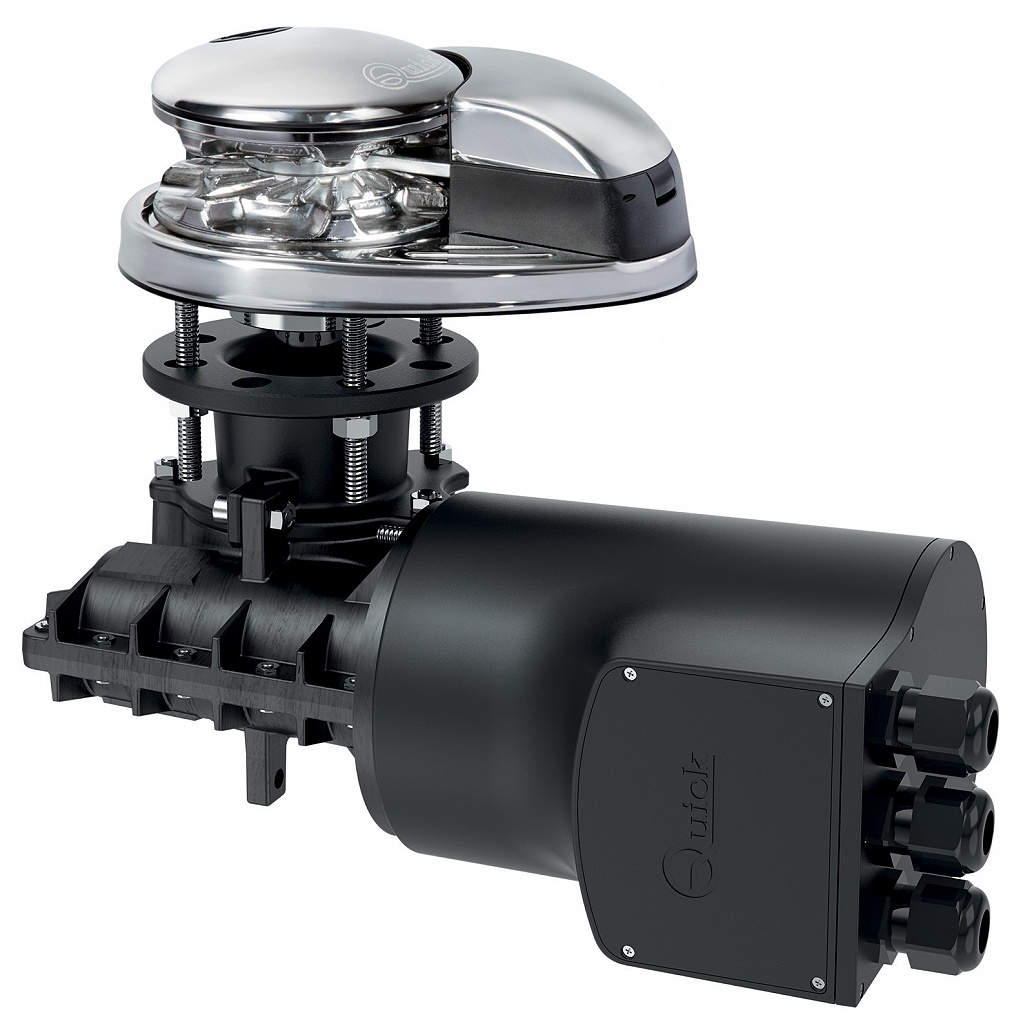

Robust electric windlass with powerful watertight motor (protection class IP67).Base, chain cover and, if necessary, mooring capstan made of stainless steel AISI316. Combination chain sprocket made of chromed bronze, for hoisting chain DIN 766 and beaten anchor line (12-14 mm). Suitable for boats from seven to twelve metres in length.Manual free fall. Low-wear operation, easy installation and long service life. Flat design. Suitable for deck thickness 25-50 mm.Powerful motor 12 V / 700 W, current consumption 95 A. Working load in operation 100 kg, maximum 300 kg. Maximum pulling force 680 kg. Maximum hauling speed with 8 mm chain 22.6 m/min, under load 11.6 m/min. Available with and without hauling capstan.Scope of delivery: winch, relay box, built-in sensor for chain counter, plastic crank, base seal, drilling template.Switches and other accessories can be found under "Accessories & Spare Parts" (see below).Other sizes and other QUICK windlass models are also available on request.

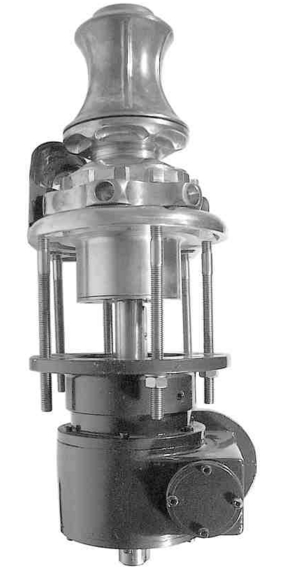

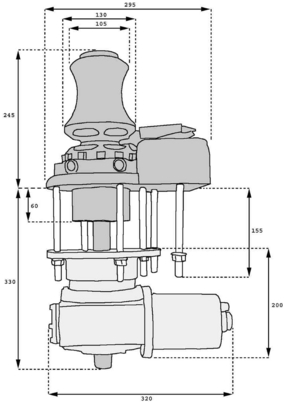

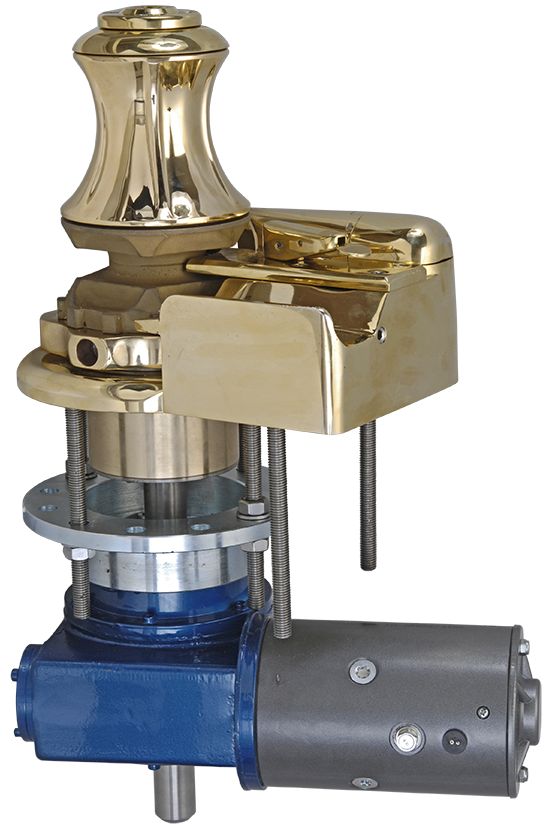

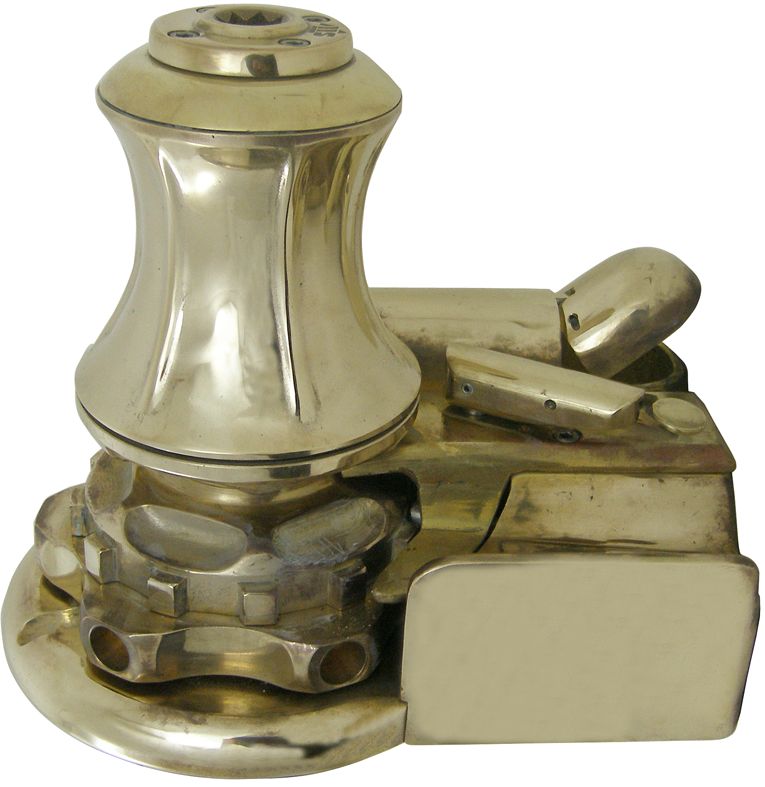

Beautiful, compact foreship windlass, made entirely of bronze and stainless steel. The windlass combines a robust warping capstan with a horizontal chain sprocket. Sprocket for DIN 766 chain in 10 mm or 13 mm. The chain wheel can be braked and disengaged using a standard winch handle (not included).The chain inlet is integrated into the base plate of the windlass. If the chain is fixed with a separate chain stopper, the capstan head can be used to retrieve a hawser.Dimensions:Type 500: (L x W x H) 360 x 200 x 220 mmType 700: (L x W x H) 380 x 200 x 220 mmMotor/gearbox dimensions below deck, each (L x W x H) 380 x 230 x 190 mm.Maximum deck thickness: 150 mm. Motor power:With the 10 mm winch, the powerful motor output of 1.5 kW generates a pulling force of 500 daN at a hauling speed of 12 m per minute.The 13 mm winch operates with a motor output of 2.3 kW (700 daN).Motorised operation for hoisting only! The anchor must drop freely for hoisting.The windlass is also available for 380V on request.Supplied complete with:Stainless steel hand spakeElectrical accessories: relay box and foot switch (button) in bronze installation box with cover and cable.Delivery time approx. 2 months. Optional accessories: Standard winch handleHand-held remote controlA data sheet is available under "Downloads & Information".

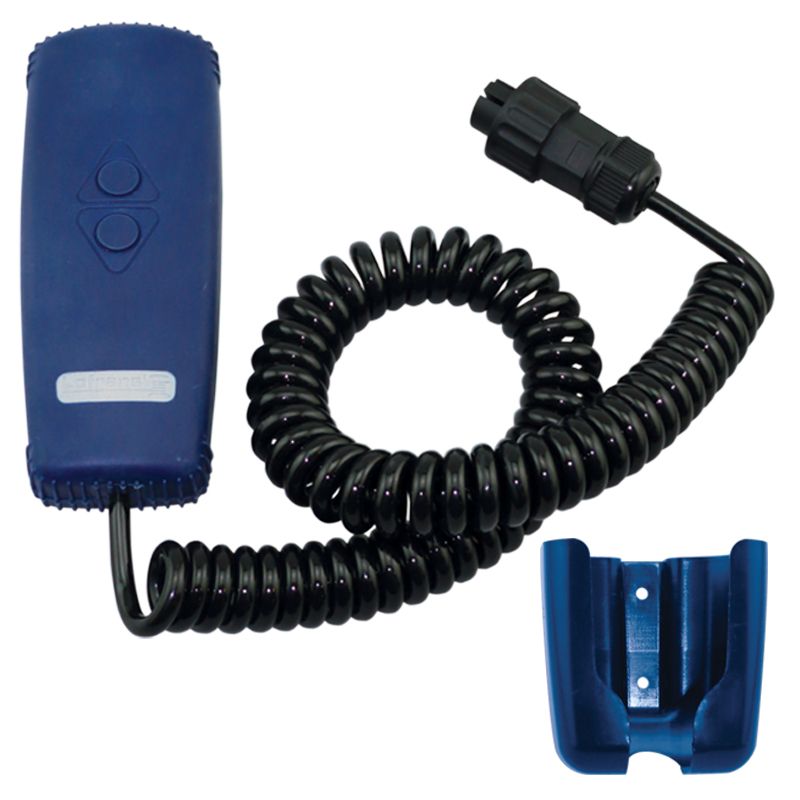

Remote control for the windlass LOFRANS Tigres. The non-slip housing allows safe operation of the winch even in adverse conditions. The flexible cable has a length of up to 4 meters. The plug and socket are waterproof according to IP67.Power supply: 10 - 30 V DCCurrent consumption in operation: 15 mA (12 V)Operating temperature: -10 - 60 °CProtection class: IP67Dimensions: 154 x 59 x 38 mmWeight: 120 g

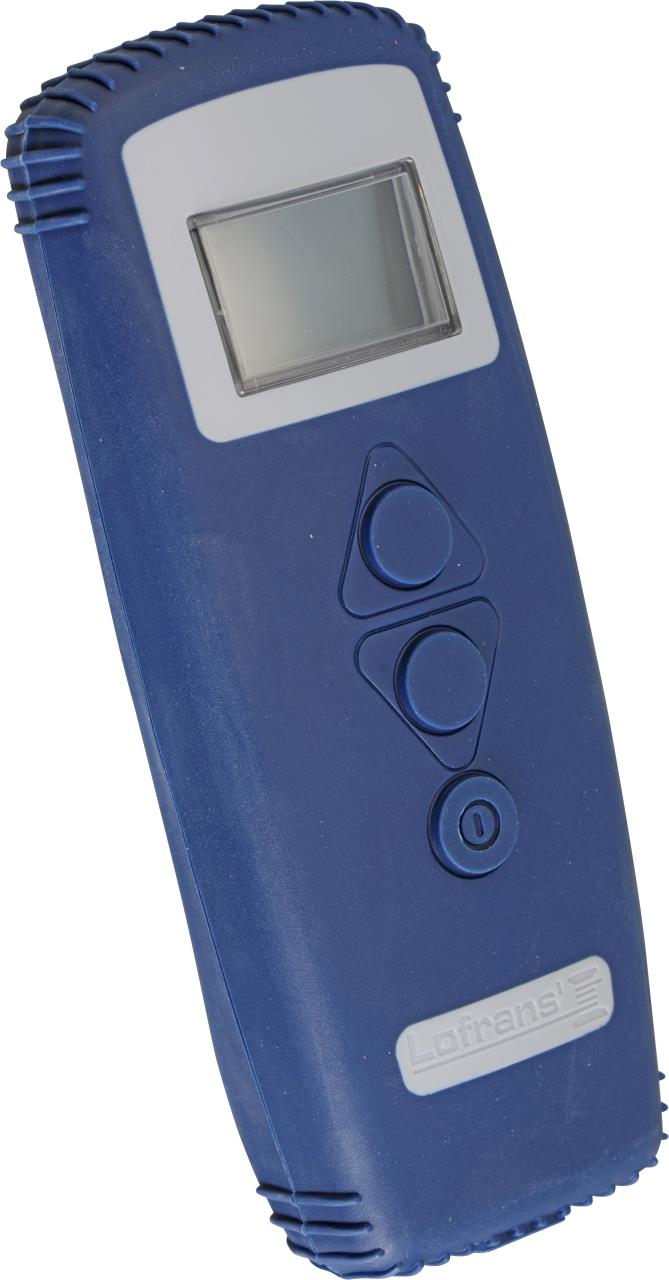

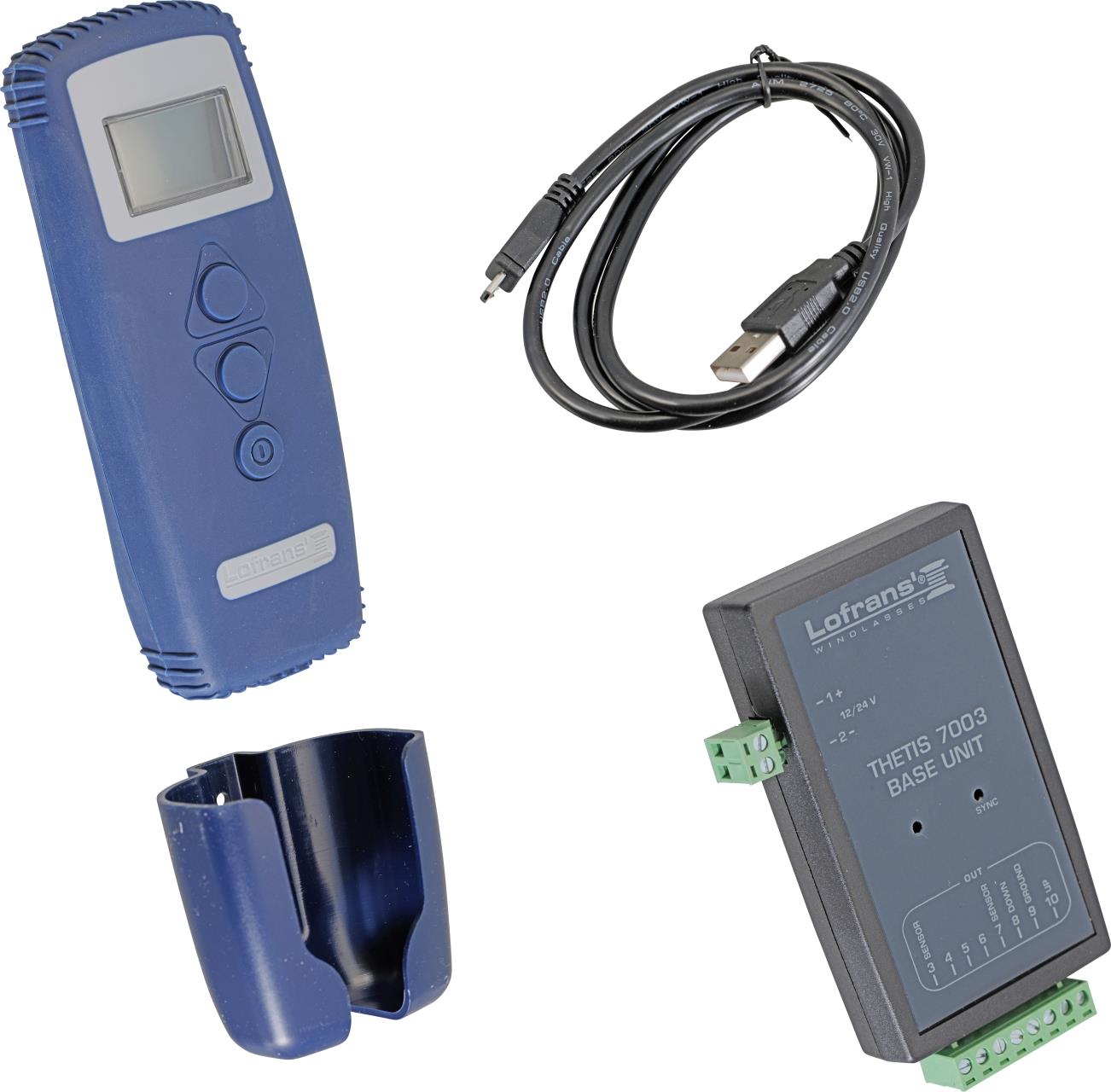

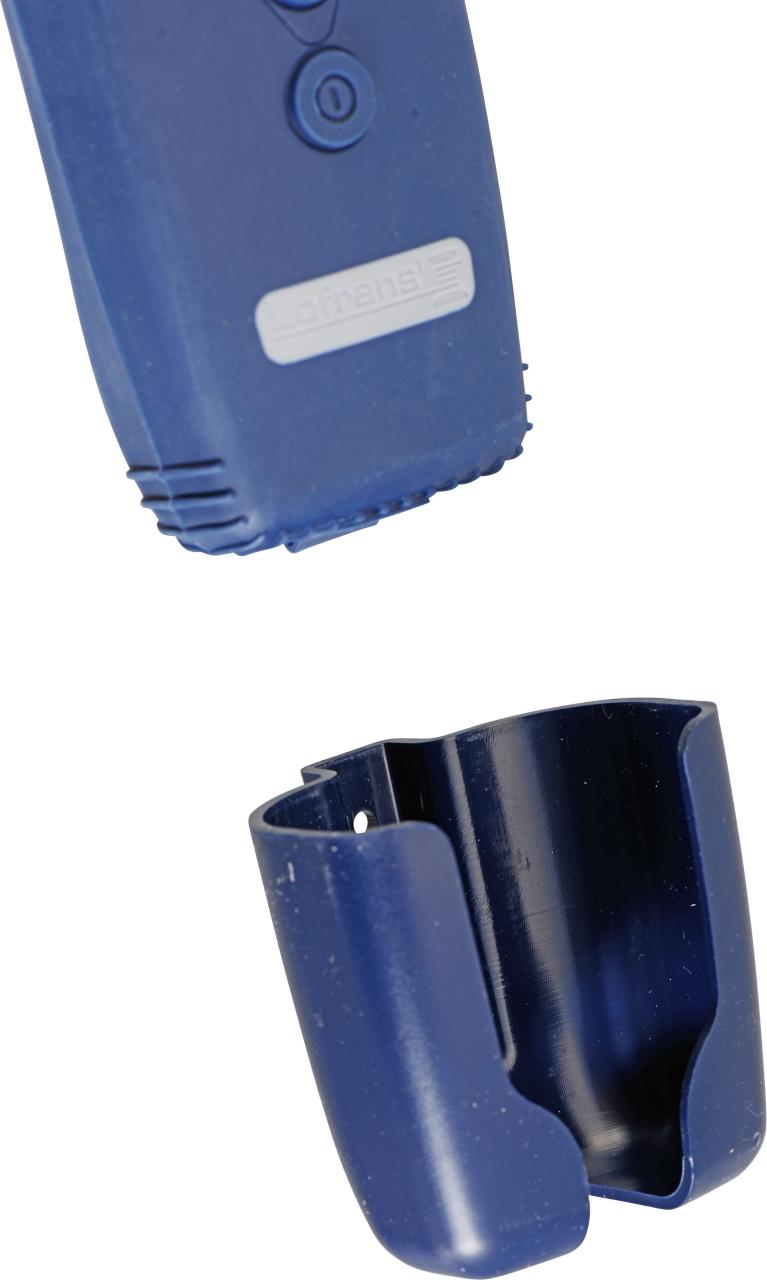

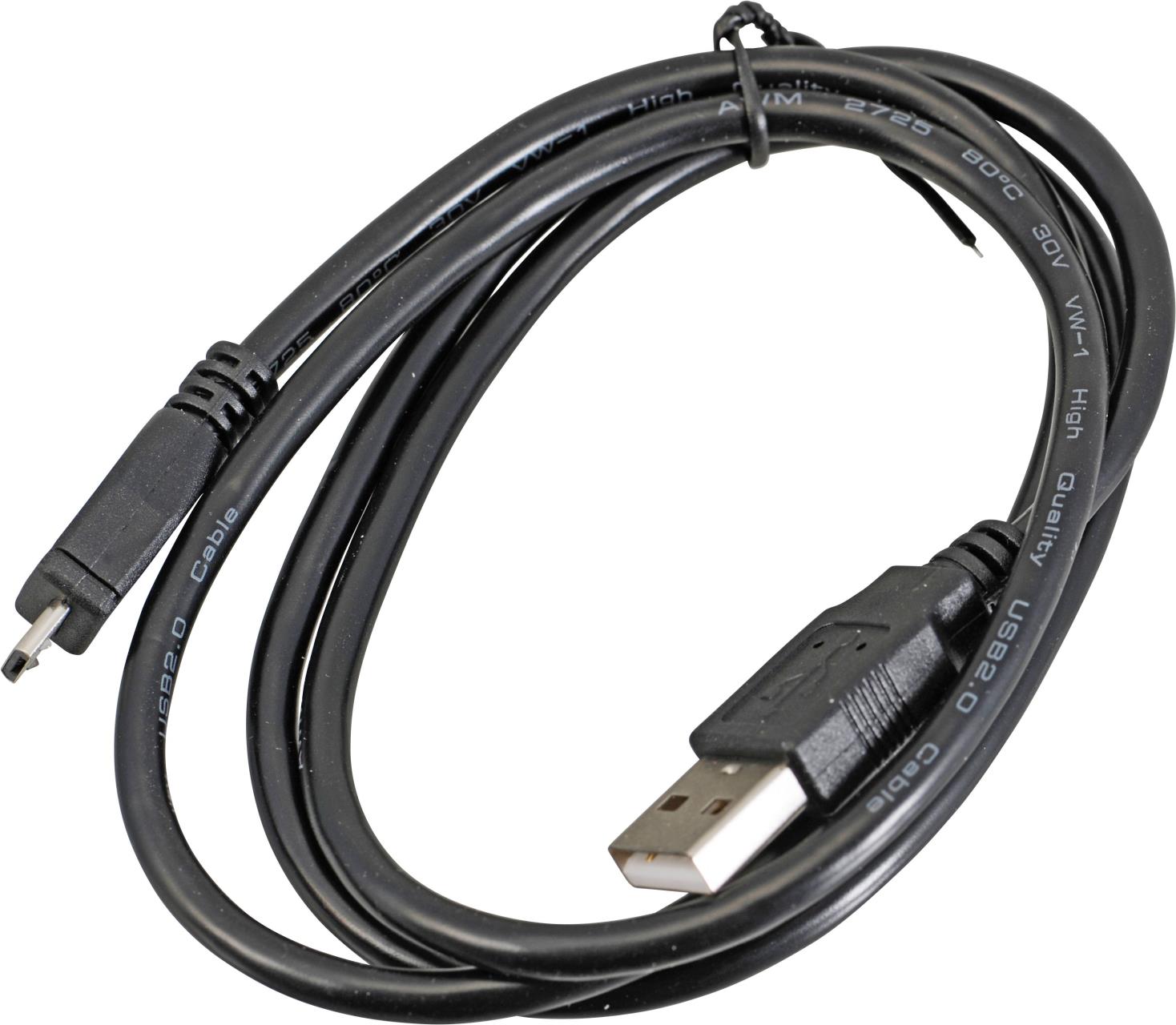

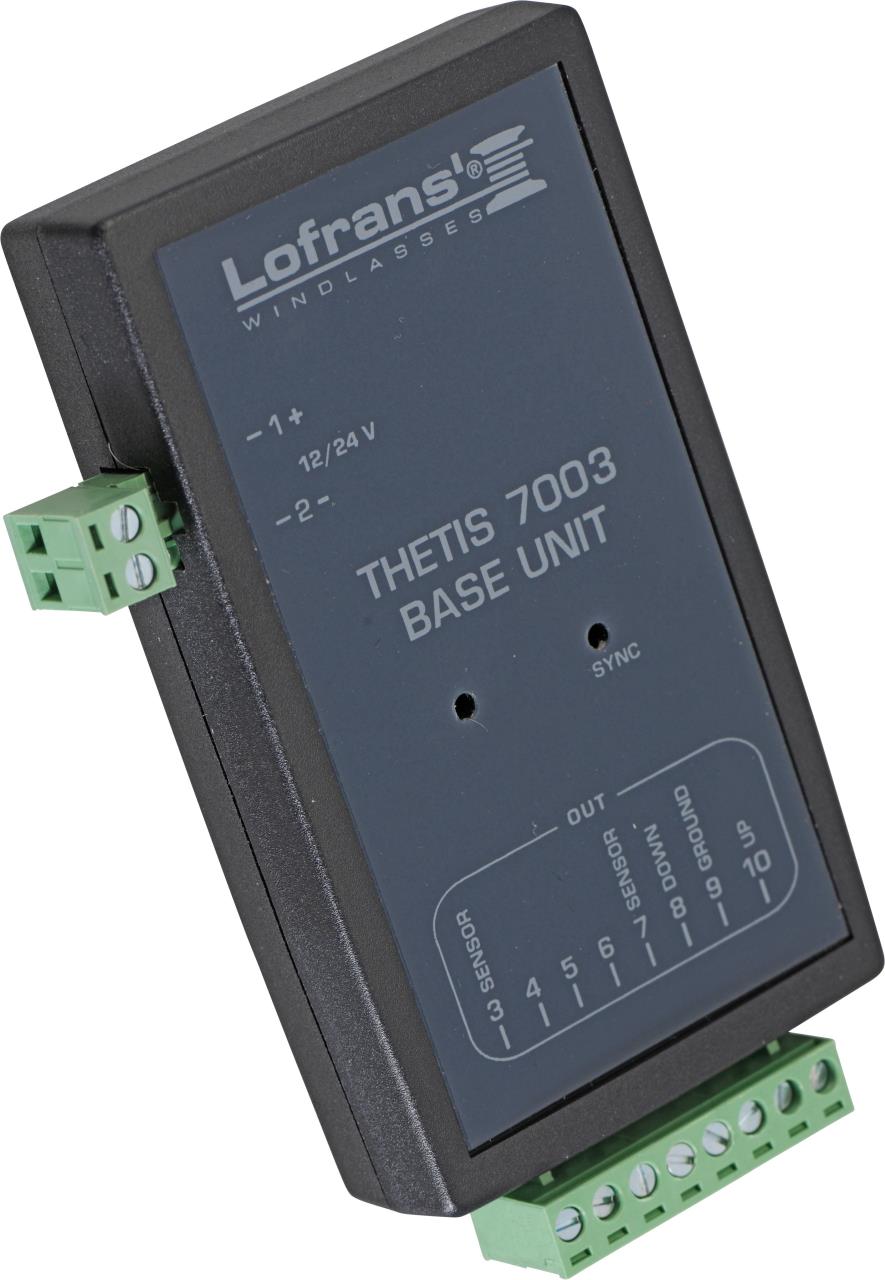

Radio remote control / chain counter LOFRANS THETIS 7003 for the windlass LOFRANS Tigres.The non-slip housing allows safe operation of the windlass even in adverse conditions. Two switches are available for up and down. Waterproof according to IP67. Dimensions see table below.The application speed, the applied chain length and the tension are shown on the LED display. Menu languages available are German, English, French, Italian and Spanish.Scope of delivery: Radio remote control, wall bracket, receiver box, USB charging cable (without plug for 230 volts), magnetic sensor and bracket, magnet for chain nut.Voltage: 12 - 24 V DCMax. Switching current at the output of the receiver : 2AOperating temperature: -10 - 60 °CProtection class: IP67
