Battery controll & tank monitoring
4 products
Battery monitor BMV VICTRON
From
€139.00 *

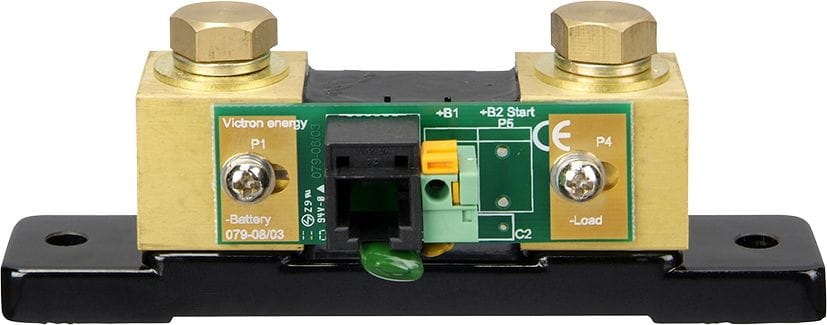

This battery-"tank gauge" surveys the charging condition of one battery bank and calculates the remaining capacity (taking in account the battery condition and temperature). Displayed are: - battery voltage,- charging current,- consumed Amp hrs,- remaining battery capacity,- current consumption,- charge status,- programmable visual and audible alarms,- programmable relays to start a generator in case of a voltage drop, for instanceEasy installation: only the 500 A shunt is to be installed in the battery cable (as close to the battery as possible) and to be connected to the display with the included RJ12 cable (length 10m).The unit is programmed using the quick installation menu.BMV-700: monitor for one battery. Simple calibration with the quick installation menu.BMV-702: like BMV-700, but with the possibility to show the voltage of a second battery.BMV-712: SMART version. An integrated Bluetooth module enables the programming, the readout and the interconnectedness as well as the definition of alarms by smartphone or tablet with the VICTR ON Bluetooth App. It has the same functions as BMV-702.The display comes complete with 500A shunt and RJ22 cable (length 10m). High current measurement resolution: 10 mA.Low current consumption: 2,9Ah per month at 12 V (with constant use).Wide input voltage range: 9,5 - 95 V. Mounting either directly (D: 63mm) or using the supplied cover (69 x 69mm).


PHILIPPI battery-tank monitor BTM2
From
€279.00 *
Easy-to-use battery tank monitor with touch colour display.Battery monitoring: current voltage, charge or discharge current, remaining time, temperature and state of charge of the consumer battery (optional shunt required). Historical values on the number of charging cycles, deep discharges and average depth of discharge provide an overview of the battery's use. The voltage of two other batteries can be monitored.The optional digital battery shunt SHE348 is installed in the negative lead of the consumer battery. With the SHP348 shunt, further current measurement for charging sources (solar) is possible. Both shunts are supplied with power via the voltage measurement line of the connected consumer battery. The shunts are suitable for continuous charging or discharging currents up to 300 A and battery capacities up to 1000 Ah.Tank monitoring: The fill levels of up to four tanks can be monitored. The threshold values for alarms and the tank geometry can be configured. Suitable for tank sensors TGT/TGW, UTV, TDS/TDN or input signal ranges 10-180 Ohm/240-33 Ohm/0-5 V/0-10 V/4-20 mA.Chargers of the PHILIPPI ACE series with ACE-LIN interface can be integrated and thus values for the charging process can be displayed.The integrated NMEA2000 interface allows the battery and tank data to be integrated into the on-board network (optional N2K cable 4378-015 required).Operating voltage 12-48V DC.






Voltmeter PHILIPPI
€89.00 *
To make the panels complete, there is the voltmeter with switch over for service- und starter battery available.
Battery management controller STERLING PMP1
From
€324.00 *
This Power Management Panel (STERLING PMP1) is a combined instrument including 4 voltmeters, 4 amp meters and one amp hour counter: The amp hours of one battery bank (generally the main domestic bank) are measured and displayed like tank contents (charging current minus consumption).At three other measuring points (which require additional shunts which must be ordered separately) you may measure current (amps) and voltage (V). Indicators: Ampere hours (1x), Current (amps) (4x), Voltage (V) (4x). LCD display.For 9 - 33 V systems.Comes with 1 shunt for one measuring point. Optional accessoires: Further shunts for additional measuring points.
