For storage of drinking water, freshwater, greywater, and wastewater, special tanks are used on boats. The tanks have filling, emptying and venting facilities and can be inspected from the inside through an inspection port or lid. Due to the fact most boats have limited space for installation, there are tanks with shapes similar to common hull shapes of pleasure crafts. Boat freshwater tanks offered in our range are made of thick-walled PE plastic and are available in various shapes and sizes. Double-walled, flexible water tanks or freshwater bags made of PVC are weight-saving alternatives to fixed built-in tanks, especially on small boats. Similar to boat water tanks, our holding tanks and grey water tanks are made of thick-walled, gas-tight polyethene and are available in various shapes and dimensions. Besides other tank accessories and fittings, we provide associated tank vents with different mounting options, as well as deck outlets made of stainless steel.
Tanks
Stainless pressure tanks MARCO ATX. The tanks have an interior rubber diaphragm with preset pressure cushion and a SCHRADER valve to create the pressure.These accumulator tanks generate constant flow to the pressure-water system with limited pumping intervals and power draw.MARCO ATX1:Volume 0,5 l, Connection 3/8" BSP with stainless T-connection.MARCO ATX2:Volume 2,0 l, Connection 1/2" BSP with stainless T-connection. Max. pressure of the tanks: 10 bar.

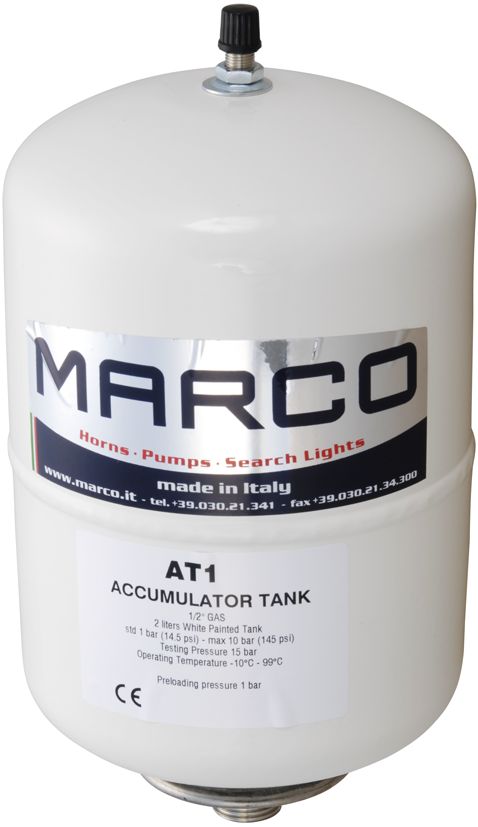

Pressure tanks MARCO AT, made from steel, white coated. The tanks have an interior rubber diaphragm with preset pressure cushion and a SCHRADER valve to control the pressure.These accumulator tanks generate constant flow to the pressure-water system with limited pumping intervals and power draw.MARCO AT1: Volume 2,0 l. Connection 1/2" BSP.MARCO AT2: Volume 5,0 l. Connection 3/4" BSP.Max. pressure 10 bar.

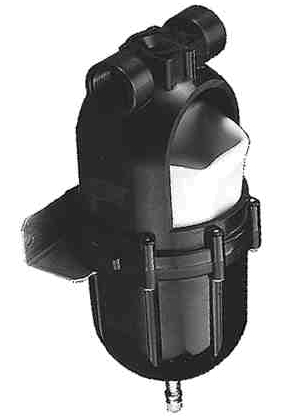

Plastic pressure tank which generates constant flow to the pressure-water system with limited pumping intervals and power draw. The tanks have an interior rubber diaphragm with preset pressure cushion and a SCHRADER vent to create the pressure.Connection 1/2" BSP.Max. pressure 10 bar.
Expansion tank for heat and pressure-water installations.Tank with integrated membrane for constant pressure (max. 8 bar).
Sturdy tanks made of thick-walled PE plastic (polyethylene), which prevents unpleasant odors from penetrating. Suitable for faeces and waste water. Dark blue color.Beveled rectangular shape - well suited for space-saving installation, e.g. close to the manholeTank top with screw-on inspection cover (opening diameter of 105mm) and a 3/8" internal thread for connecting the tank ventilationNumerous blind ports with internal threads that can be used individually depending on the installation situation and are intended for connecting the filling and drain lines: - 4 blind ports 1½" internal thread, 2 on each end face - 4 blind ports ¾" internal thread, 2 on each end faceThe selected dummy connections can be easily drilled out for connection.
This buffer tank, made of polyethylene, is easily mounted directly in front of the onboard WC.Due to its compact construction, it can be installed in just about every boat.The tank works with almost all standard onboard toilets (PAR-BRYDON, RM 69 etc.).The tank has two 1 1/2" threads: one for waste water (38 mm) and two (1/2" and 3/4") for ventilation.The tank can be easily retrofitted and needs no disinfection chemicals.Dimensions: (W x D x H) 500 x 400 x 250 mm; Contents 28 litres.
PE collection tank with multiple connections for graywater from showers, sinks, and air conditioning units. All of a boat’s service water is collected in this tank, which is mounted deep within the hull, and from there is pumped directly through a through-hull fitting to the outside or into a holding tank.The Intelligent Control Sensor, which controls the automatic operation of the wastewater pump, is waterproof and integrated into the one-piece molded inspection cover. This tank cover-sensor unit, with a fully encapsulated circuit board, contains no moving parts that are prone to clogging and allows for easy maintenance and cleaning. To ensure optimal performance, the sensor surfaces must be cleaned of dirt and residue regularly, at least every 3 months (do not use abrasive cleaners).The sensor is mounted at an optimal height relative to the outlet opening, thereby preventing the typical suction noise.There are screw mounts on the tank walls for attaching a 12/24-volt WHALE GULPER diaphragm pump.Each tank has 8 inlet ports (8-liter tank: 2x19 / 3x25 / 3x38 mm; 16-liter tank: 4x25 / 4x38 mm) and 2 outlet ports (8-liter tank: 1x19 / 1x25 mm, 16-liter tank: 2x25 mm). When installing the tank, simply drill out the ports intended for hose connection.Pump not included.
Small plastic tank for collecting waste water from showers or sinks, as part of a waste-water lifting system with floating switch and RULE 500 submersible pump for automatic emptying.The tank holds approx. 7l of waste water, thus it's only intended for small sinks with moderate inflow.Transparent cover for visual inspection, screws off for cleaning .Data:Intake: 38 mmOutlet: 19 mmCurrent: 2.5 A at 12 voltsDimensions: 210 x 240 x 140 mm.
Plastic holding tank with integrated 12 volt automatic pump.Holds 6 litres,3 intakes,usable for 19mm to 38mm hose.
Sturdy tanks made of thick-walled PE plastic (polyethylene), which prevents unpleasant odors from penetrating. Suitable for faeces and waste water. Dark blue color.Rectangular shape Tank top with screw-on inspection cover (opening diameter of 105mm) and a 3/8" internal thread for connecting the tank ventilationNumerous blind spigots with internal thread that can be used individually depending on the installation situation and are intended for connecting the filling and drain lines: - 4 blind spigots 1½" internal thread, 2 on each end face - 4 blind spigots ¾" internal thread, 2 on each end faceThe selected spigot can be easily drilled out for connection.
Solid tanks of thick-walled PE plastic (polyethylene), usable as a drinking water tank, white / half transparent.The tanks have several 1/2‘ and 1 1/4’ internal threads integrated into the body at both ends, offering variable connection options for filling and emptying. There is a 3/8’ internal thread on the top for connecting a tank vent. These threads can be individually pierced by the customer.A non-projecting inspection cover is placed on the top enabling a space-saving installation. The fill level can be determined from the outside.
Sturdy tanks made of thick-walled PE plastic (polyethylene), flattened at the sides to fit the side of the vehicle. Can be used as drinking water tanks in the colour white / semi-transparent. The tanks have several 1/2‘ and 1 1/4’ internal threads integrated into the body at both ends, offering variable connection options for filling and emptying. There is a 3/8’ internal thread on the top for connecting a tank vent. The integrated threaded sockets as supplied can be individually pierced by the customer.A non-projecting inspection cover is placed on the top enabling a space-saving installation. The fill level can be determined from the outside.
A weight-saving and inexpensive alternative to built-in tanks, exceptionally well suited for small boats.Double-walled: the inner of taste- and odor-free PVC; the outer of rip- and stress-resistant nylon fabric.All tanks have a fill (38 mm) and an outlet (13 mm), as well as straps on the corners.The attachment set is included.

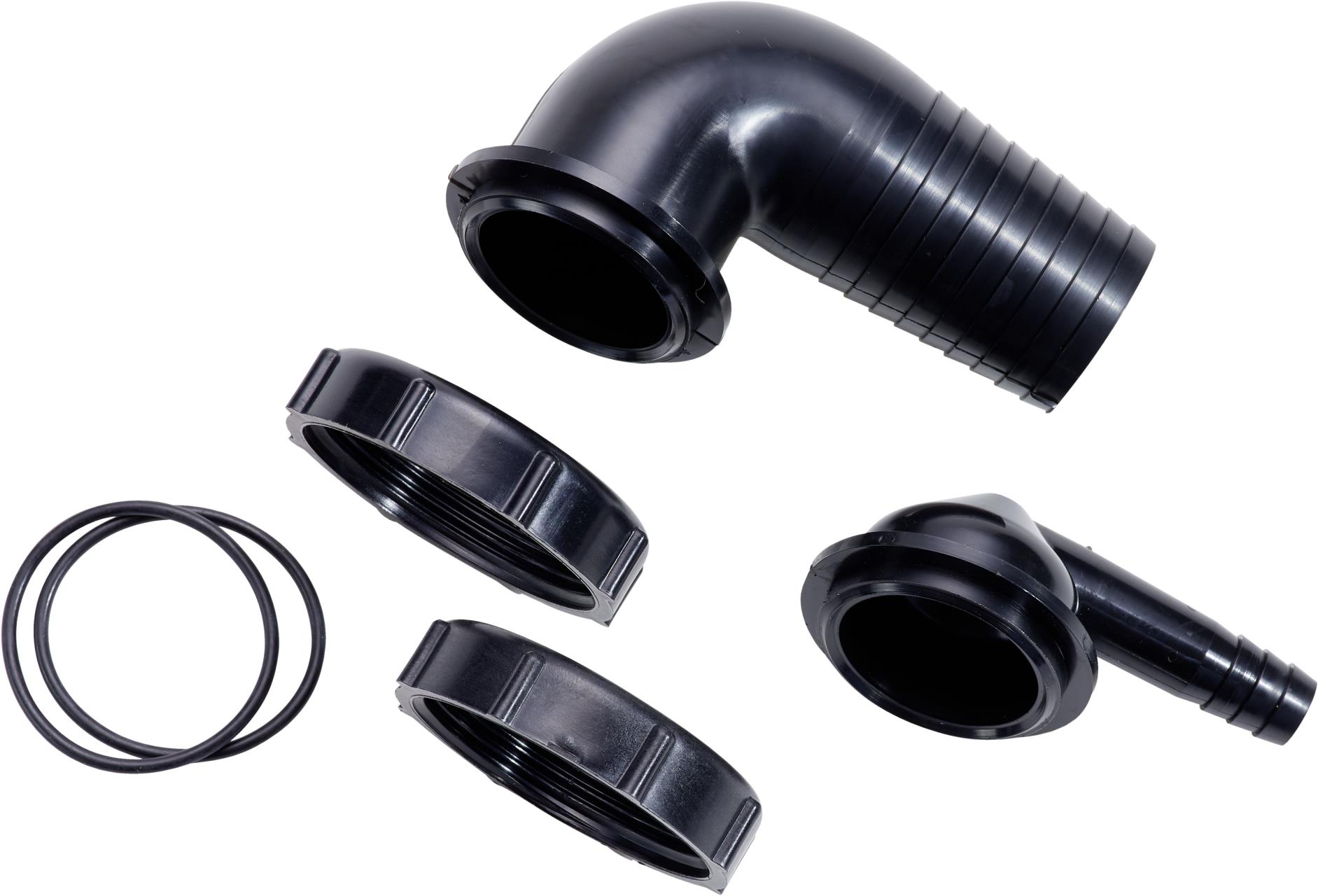

We offer the following accessories for PLASTIMO flexible drinking-water tanks.
Solid tanks of thick-walled PE plastic (polyethylene), usable as a drinking water tank, white / half transparent.The tanks have multiple connection possibilities for filling, emptying and venting. There exist numerous blind stub pipes with inner threads. Please find those in the PDF data sheets under "Downloads & Information".A non-projecting inspection cover is placed on the top enabling a space-saving installation. The fill level can be determined from the outside.
Heavy gauge brass tank vent, straight design, with inch thread connection.

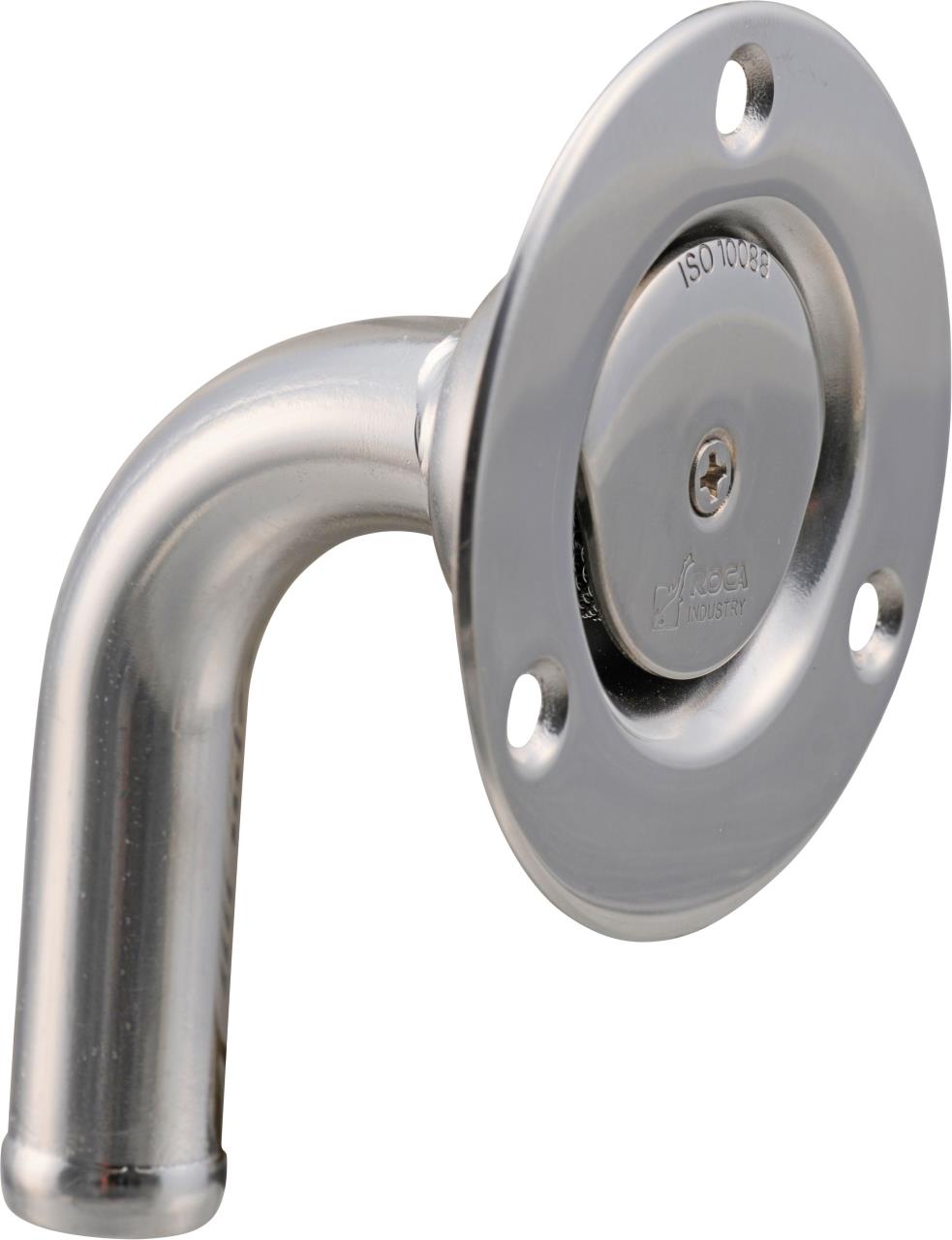

Countersunk design, stainless steel (AISI 316) bright polished. The ventilation system has a flame protection screen and a spritz cap. Installation: From the outside with screws. The spritz cap can be turned depending on the installation situation.

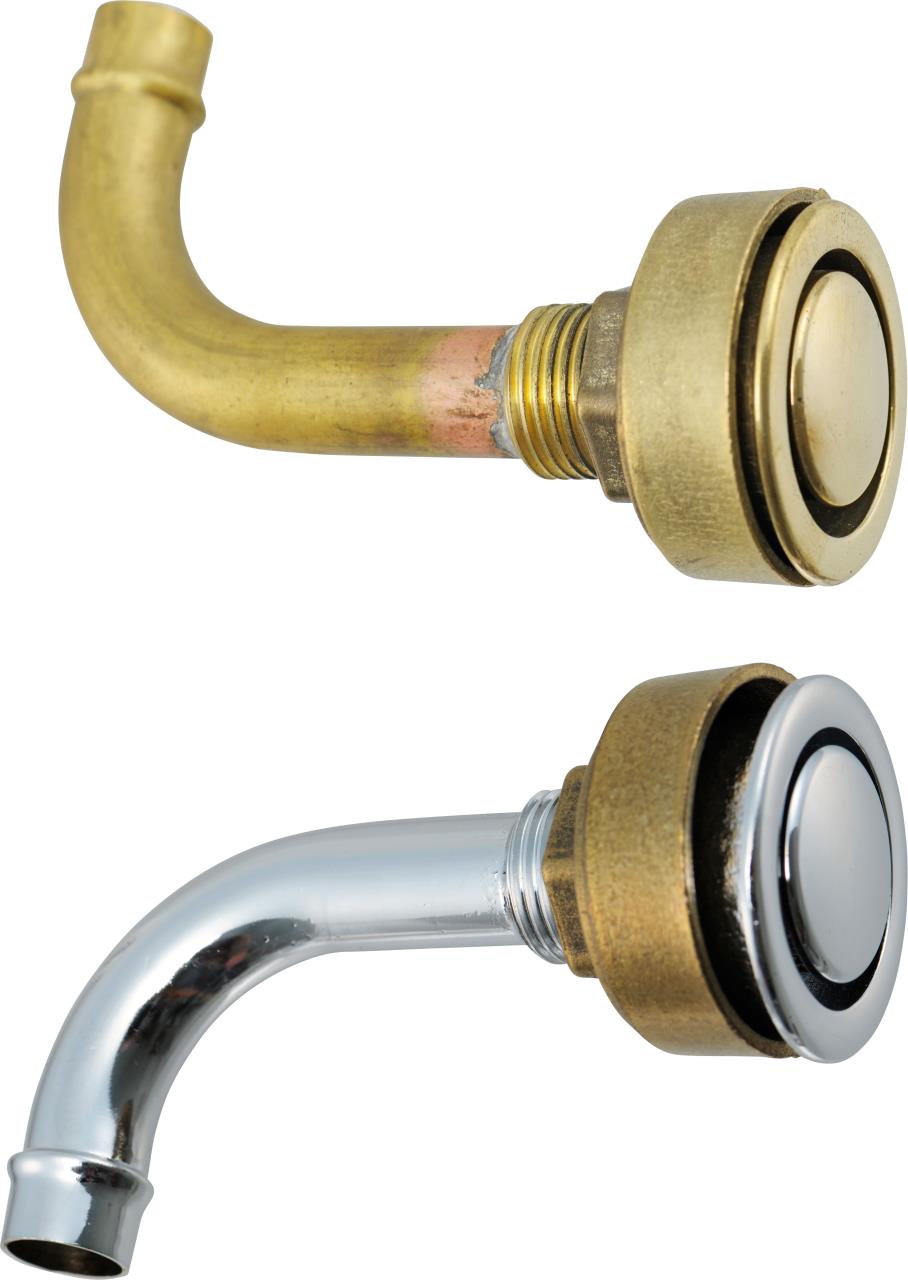

Bent fully countersunk tank-vent fitting.Brass. Polished or chromed finish.All vents have metal sleeves.Intended for a maximum hull thickness of 15 mm.Available with gland above or below.

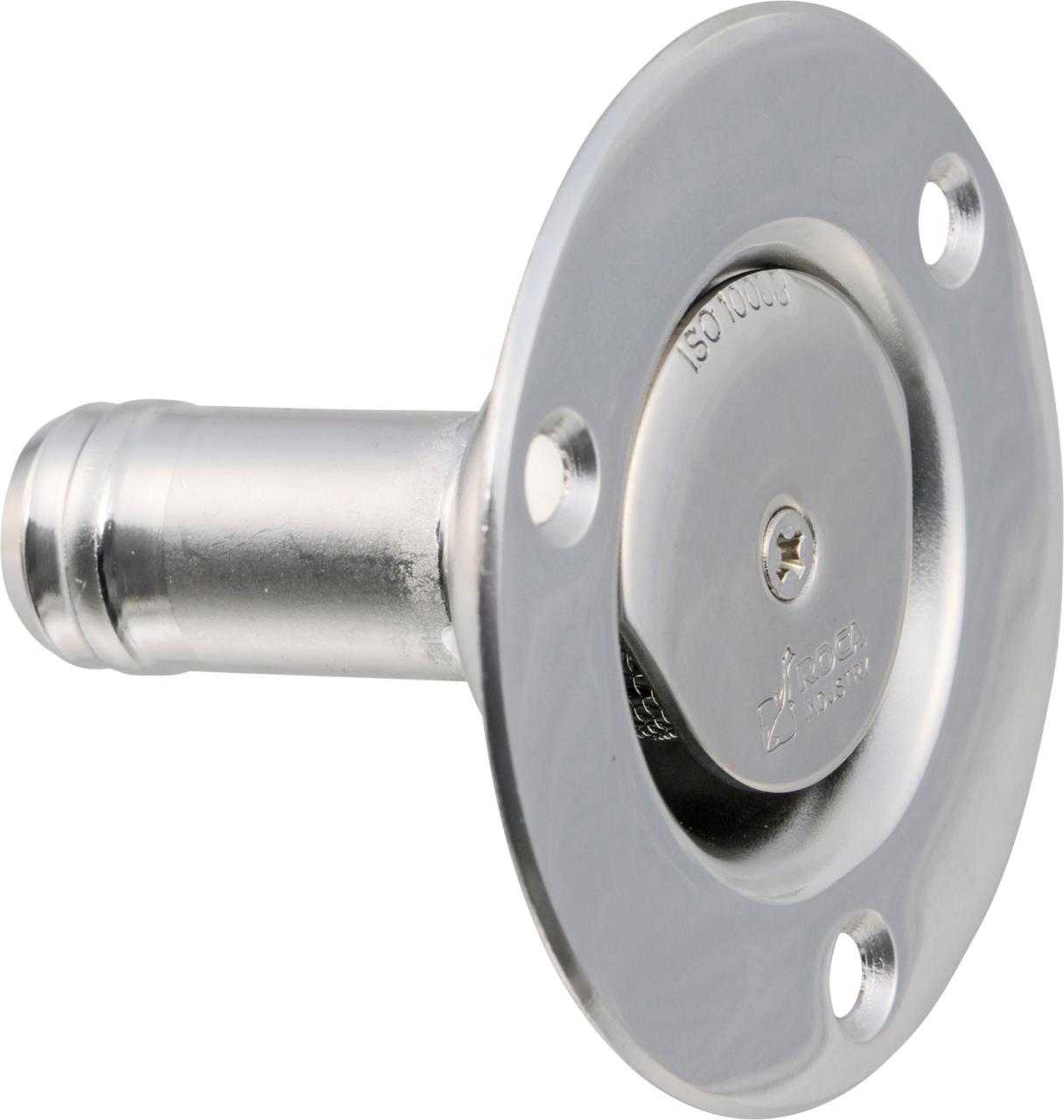

Countersunk design, stainless steel (AISI 316) bright polished. The ventilation system has a flame protection screen and a spritz cap. Installation: From the outside with screws. Fuel tank ventilation for large hose diameters.

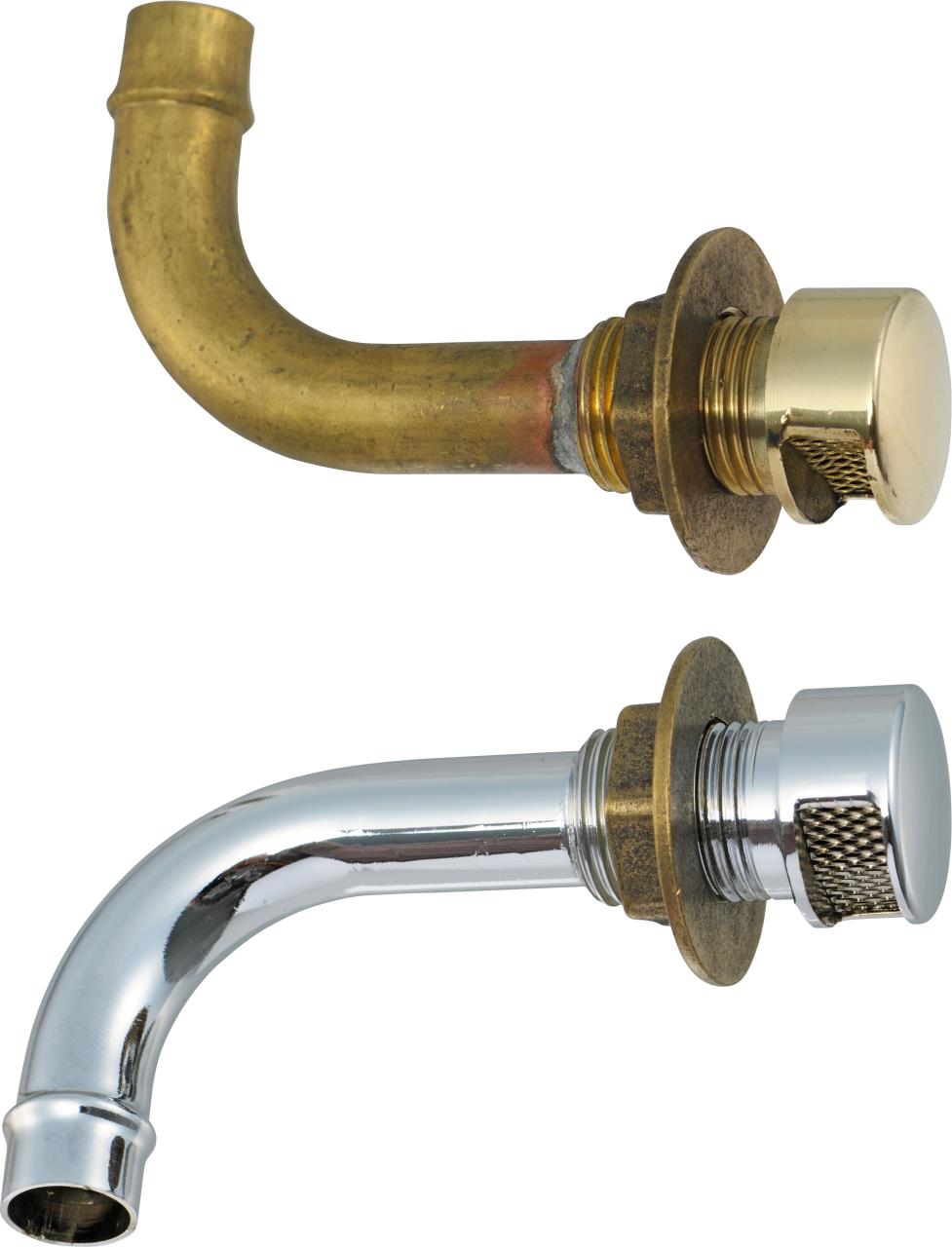

Bent tank vent.Brass, polished or chromed finish.All vents have metal sleeves.Intended for a maximum hull thickness of 15 mm.Gland for hose D = 16 mm.Available with the gland bent upwards or downwards.
Fully countersunk tank vent fitting.Brass. Polished or chromed finish.All vents have metal sleeves.Intended for a maximum hull thickness of 15 mm.
Straight tank vent. Brass, polished or chromed finish.Vent with metal sleeve.Intended for a maximum hull thickness of 15 mm.
Countersunk design, stainless steel (AISI 316) bright polished. The ventilation system has a flame protection screen and a spritz cap. The spritz cap can be turned depending on the installation situation. Installation: From the outside with screws.
Countersunk design, stainless steel (AISI 316) bright polished.The ventilation system has a flame protection screen and a spray cap.Depending on the installation situation, the spray cap can be rotated so that the hose connection can be used in any desired position.Installation: From the outside (hidden) with counter-clamp and two threaded bolts (wall depth, max. 15 mm).
This practical fitting should always be built in to the vent lines of fuel tanks.When filling, the escaping air makes a whistling noise. Shortly before the tank is full, it skips over to a trilling.The filling can thus be stopped in time, hindering the overflow of fuel and the pollution of the water.Material:Plastic,with 16 mm hose attachments on both sides,length 95 mm.
Countersunk tank vent of polished stainless steel (AISI 316), with 19 mm hose diameters.The vents have a flame-protection screen and a spray cover.Installation: from the inside with threads and nuts (max. wall thickness 15 mm).
