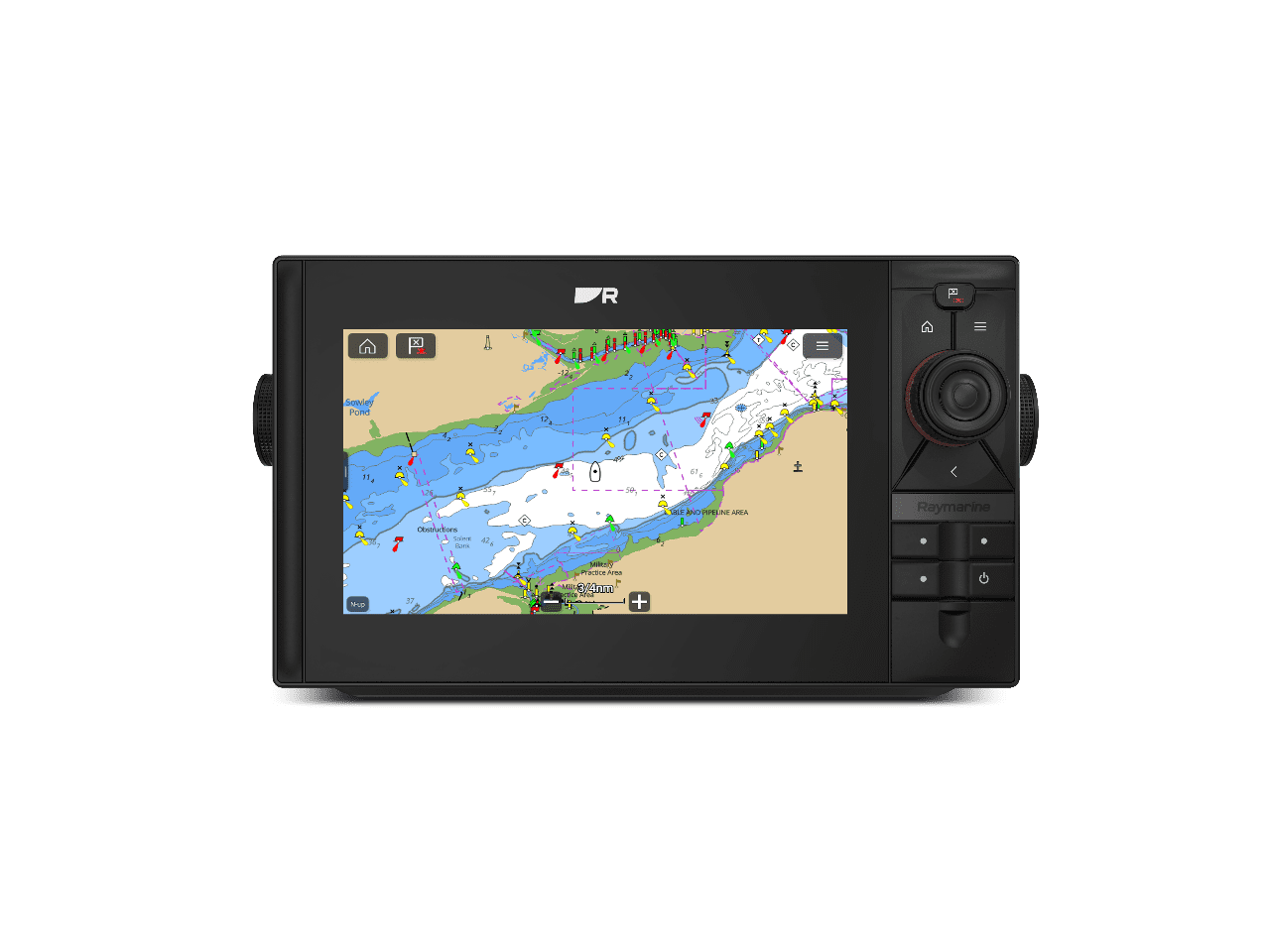

Kartendarstellung

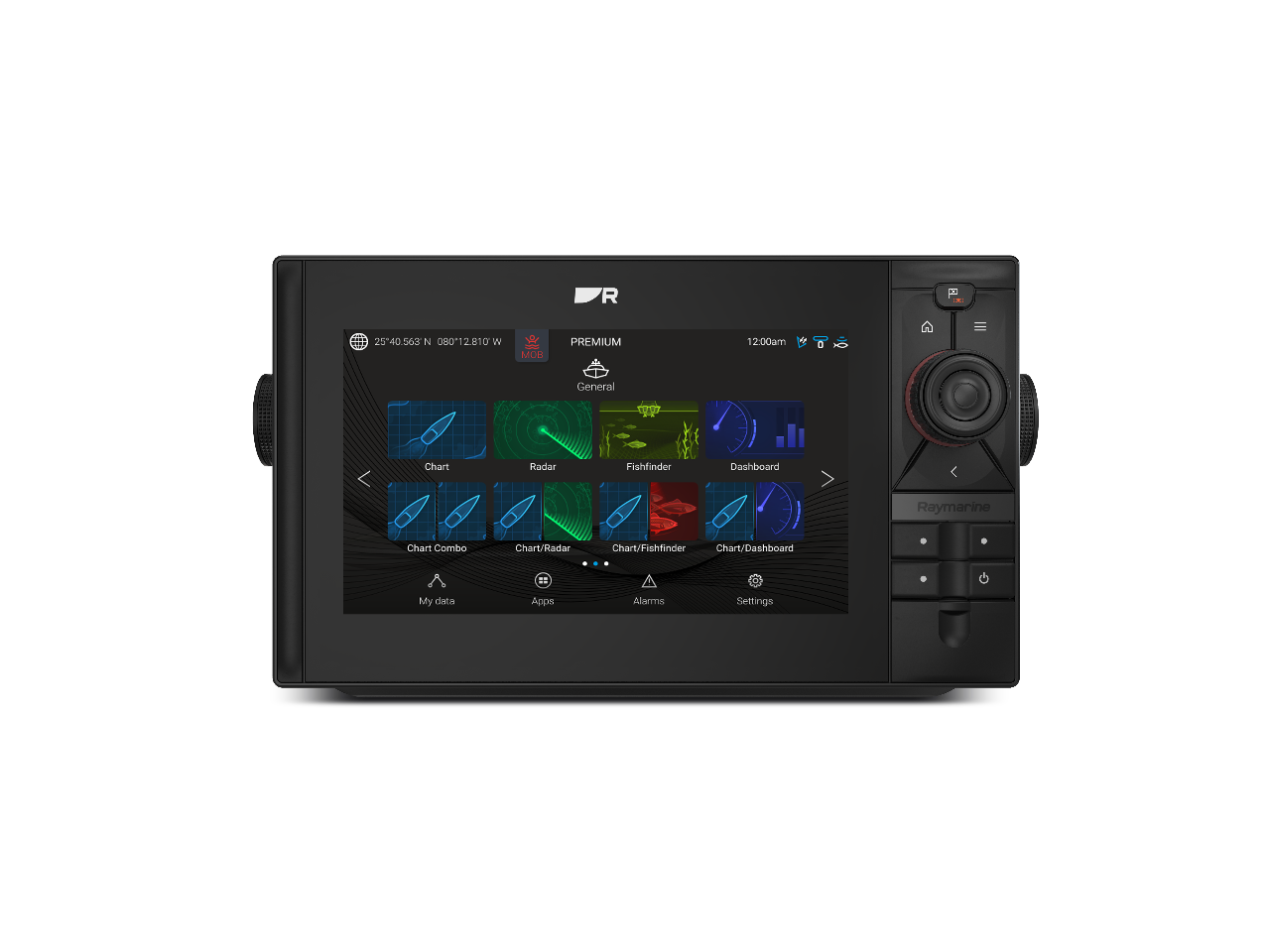

Menü-Screen

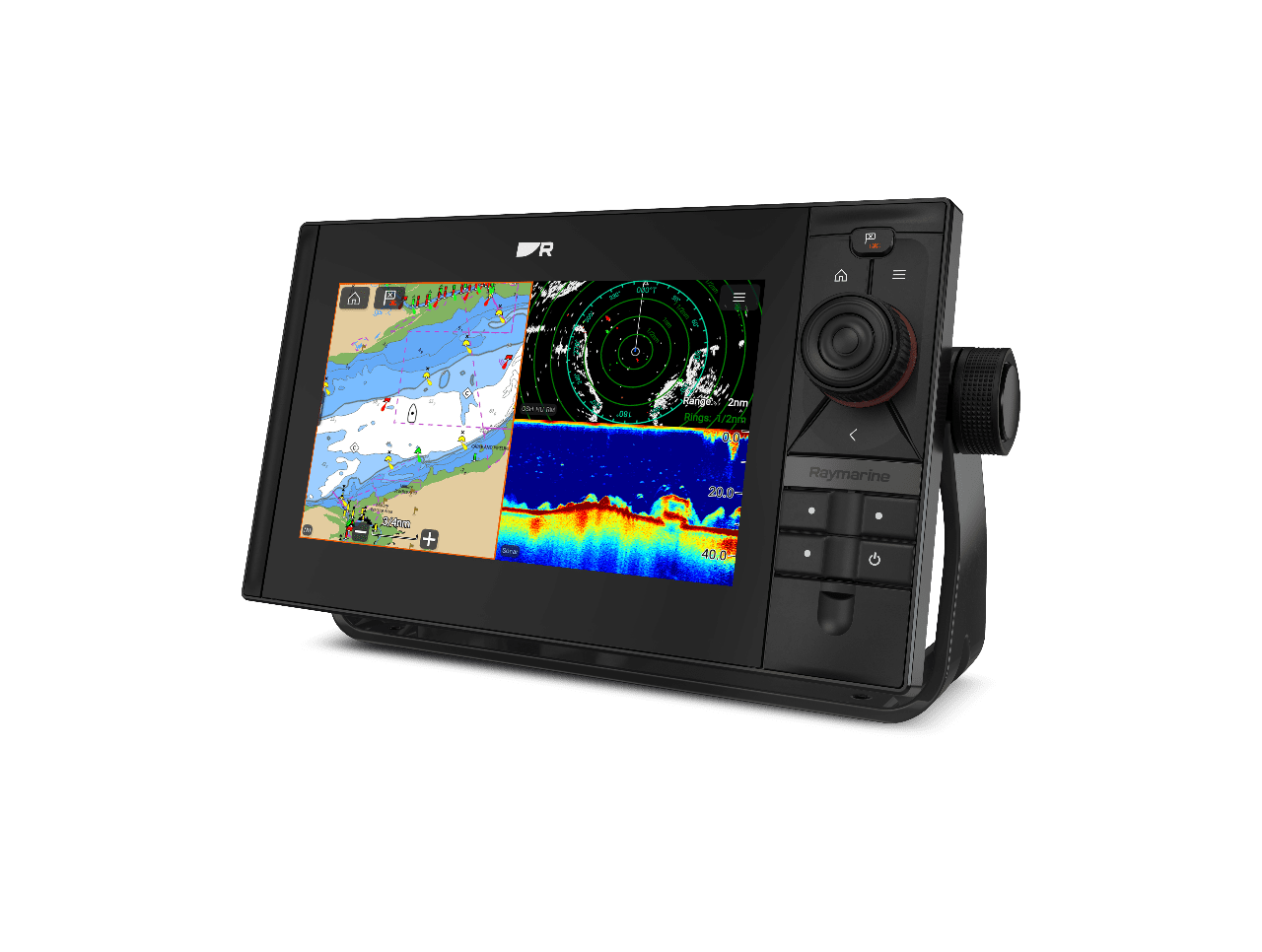

Splittscreen mit Radar und Tiefe

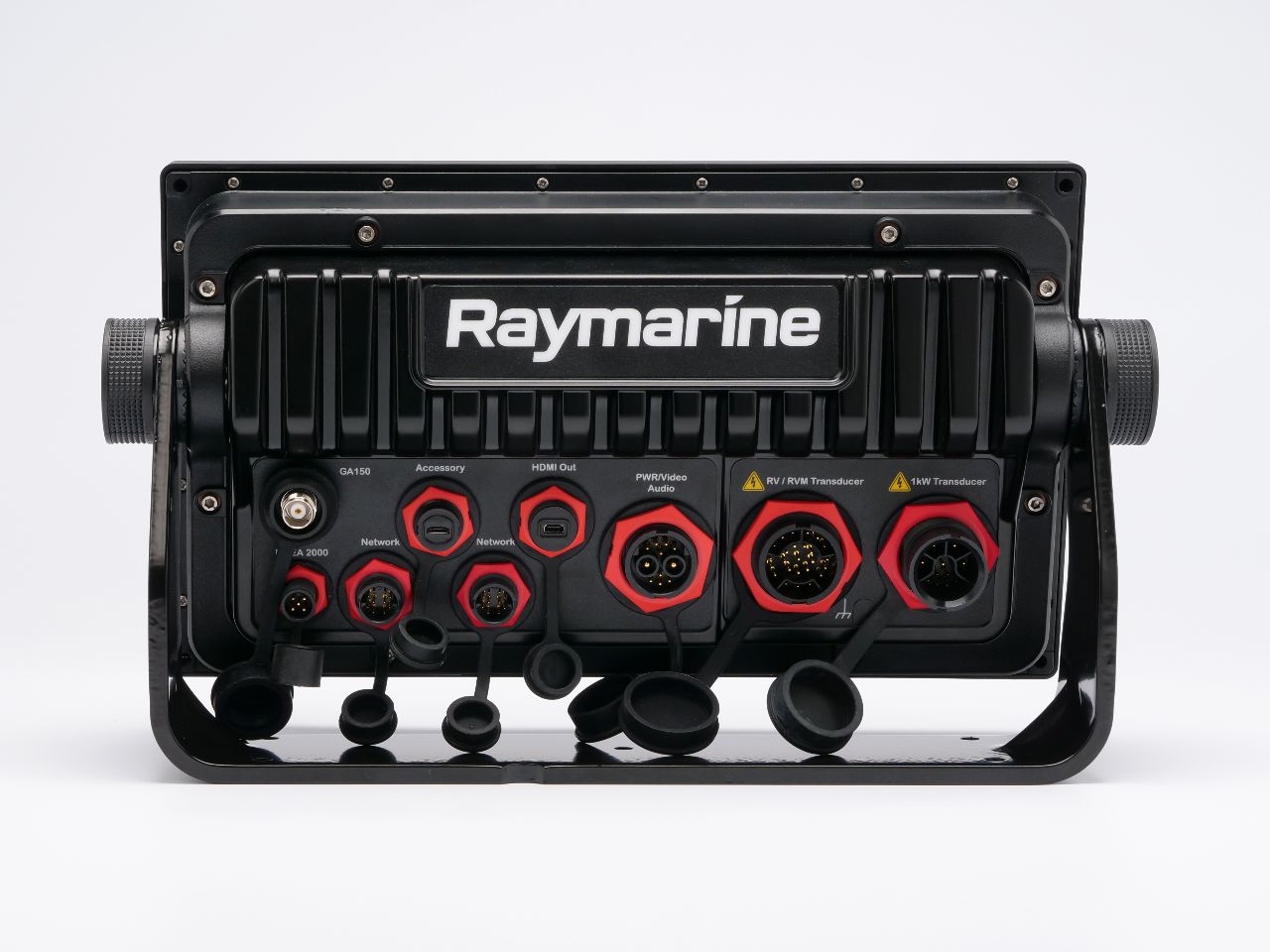

Geräte-Anschlüsse

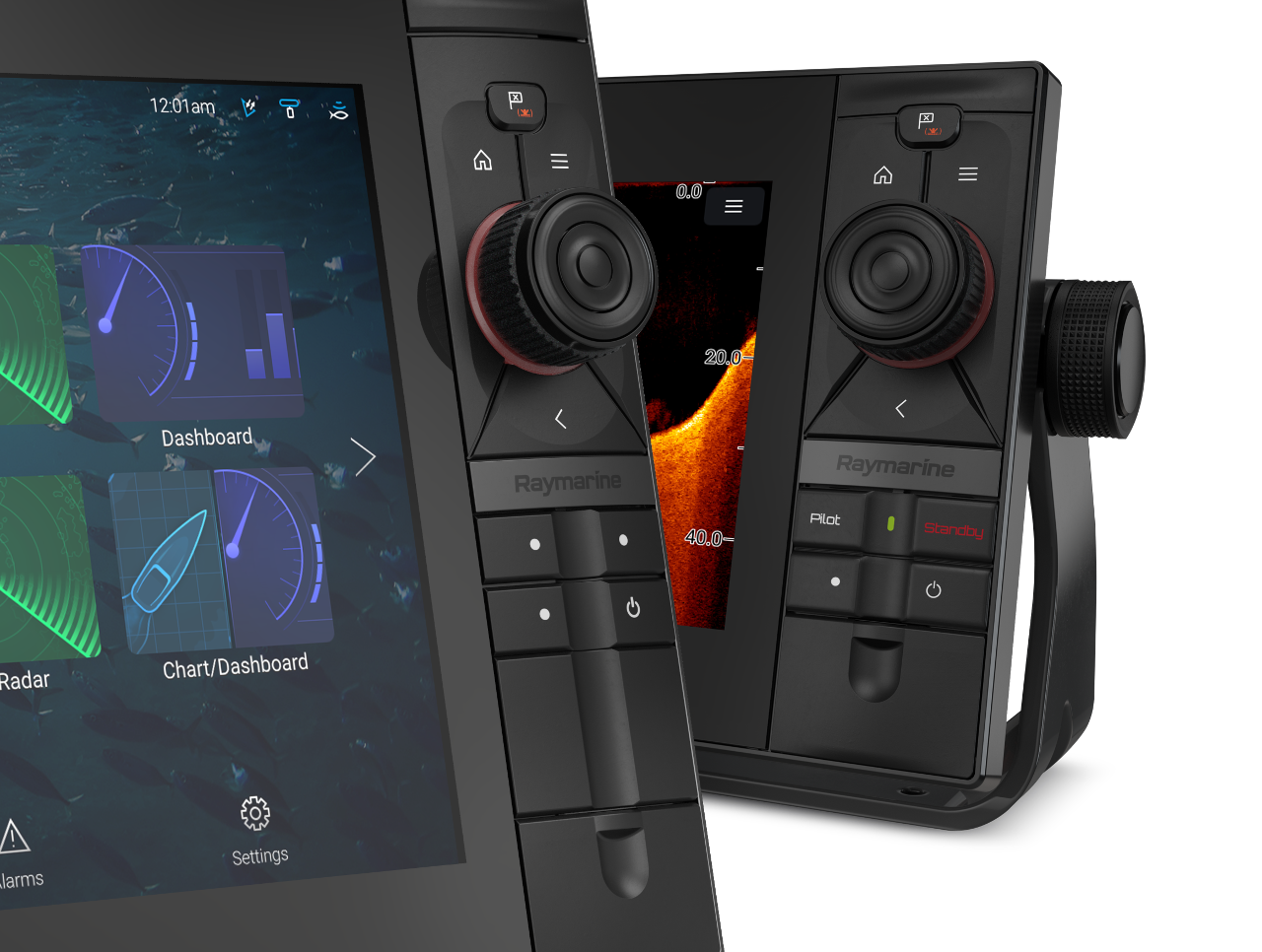

Wahlweise mit Autopilot-Bediendisplay

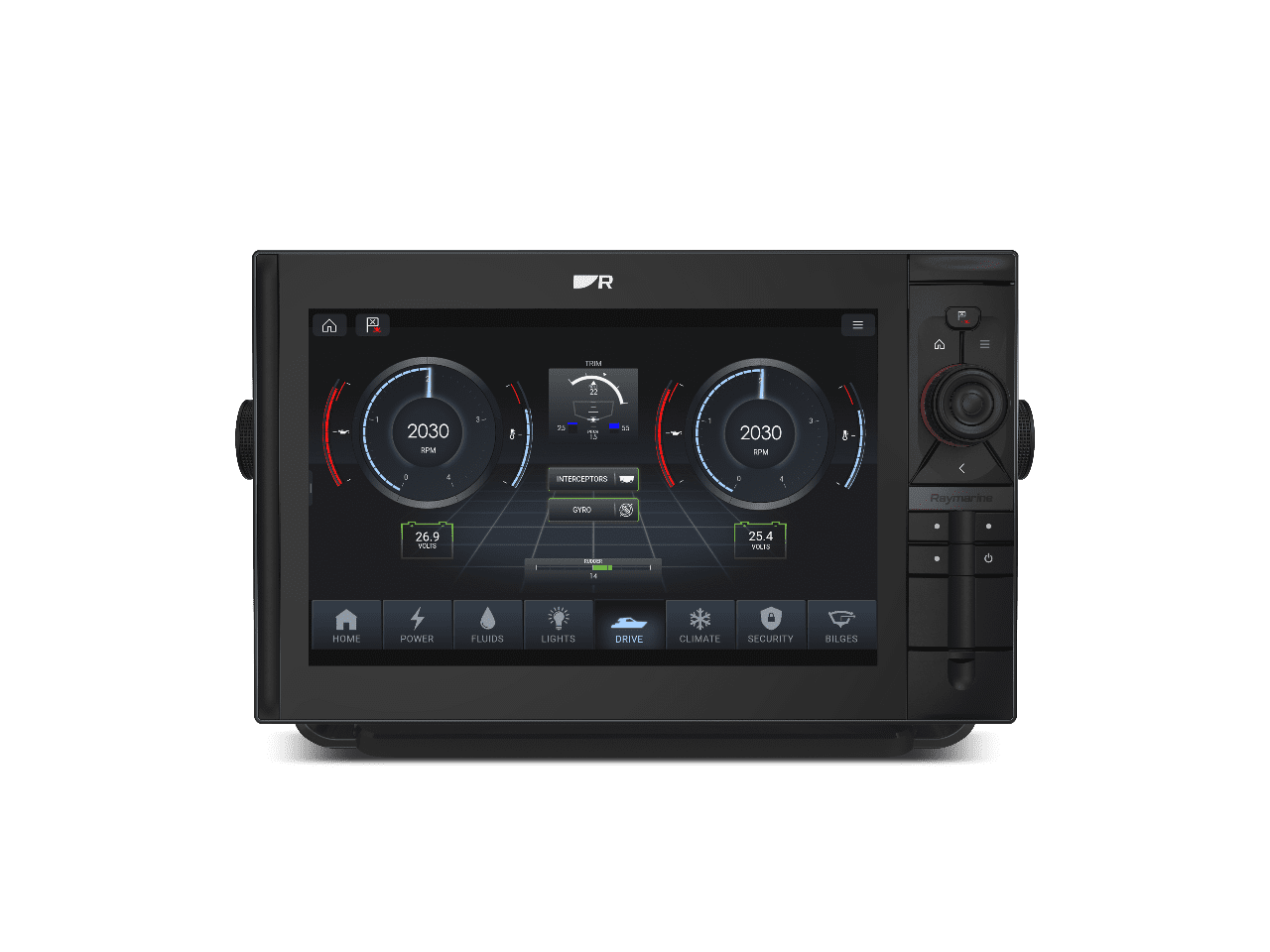

Motorüberwachung
Abdeckung Seekartensatz Nordeuropa
Abdeckung Seekartensatz Westeuropa
Abdeckung Seekartensatz Mittelmeer
RAYMARINE Axiom2 Pro 9 S
Die AXIOM2 Pro S-Serie ist das Flaggschiff der neusten Axiom-Plotter-Generation. Sie sind in der Praxis bewährte Kartenplotter, die wegen guter Ablesbarkeit in der Sonne, kombinierter Touch- und Regler/Tasten-Bedienung und ihrer Robustheit bei vielen Skippern zu Recht beliebt sind. Die Plotter lassen sich leicht vernetzen mit Gebern für Tiefe, Wind, Speed und Displays wie dem i70 und sind mit Anbindung für Autopiloten, AIS, Radar, Motordaten, Kameras oder Bord-Sensoren/Schaltern enorm erweiterbar. Die Daten können entweder ins Plotterbild integriert oder auf Split-Screens, beziehungsweise eigenen Dashboard-Seiten angezeigt werden. So behält die Crew leicht den Überblick. Dargestellt werden können Kartensätze von Raymarines eigenen Lighthouse-Standard, sowie Alternativen von Navionics oder C-Map.
Die Pro S-Serie bietet im Vergleich zur Axiom2-Serie das Tastenfeld rechts, dass besonders bei Seegang und Nässe die Bedienung stark vereinfacht. Das Standard-Tastenfeld unter dem Drehregler ist austauschbar gegen ein Evolution-Autopilot-Bedienung. So können Kurskorrekturen auch am Plotter ausgeführt werden.
Außerdem können an die Pro S-Modelle Ein-Kanal Sonargeräte angeschlossen werden. Der Plotter kann so hochaufgelöste CHIRP-Daten (Compressed High Intensity Radiated Pulse) darstellen. Hinzu kommen noch zwei SD-Karten Steckplätze, die von vorne zugänglich sind, was für den Wechsel von Kartenmodulen besonders beim Einbau in Schott oder Steuersäule vorteilhaft ist. Die Axiom2-Serie hat nur einen Steckplatz an der Rückseite.
Das technische Upgrade des AXIOM2 Pro S zur Vor-Version Axiom+ punktet mit schnellerem 6-Core-Prozessor, der Start, Zoomen und Umschalten noch flüssiger macht. Dazu trägt auch der von 16 auf 64 Gigabyte angewachsene Arbeitsspeicher bei. Das robuste Hybrid Touch 2-Display bietet zudem erweiterte App‑ und Motordatenintegration.
Wichtig: Die neuen Plotter haben dieselben Einbaumaße wie die Vorgänger-Serie Axiom+, passen also in die an Bord vorhandenen Ausschnitte!
Für Segler sind die einstellbaren Polardaten fürs Schiff, dynamische Kurslinien, sowie taktische Segelanzeigen und ein Regatta-Timer willkommene Features. Zudem bietet der Axiom2 Pro S jetzt die Integration von Auto-Routing-Funktionen, die Skipper mit der ORCA-App auf dem Tablett oder Smartphone oder über Navionics angelegt haben. Sie werden über Wifi hochgeladen.
Zudem läuft der Plotter ab Mitte 2025 mit dem neuen Betriebssystem Lighthouse 5 von Raymarine, die alten Plotter der AXIOM+-Serien werden nicht geupdatet und laufen auf der älteren Version 4 weiter. Raymarine gewährt 3 Jahre Garantie!
Als Bundle ist der AXIOM2 gegen einen kleinen Aufpreis mit Lighthouse-Kartensätzen für Nordeuropa, Westeuropa oder das Mittelmeer erhältlich. Die Sätze sind dann deutlich günstiger als wenn sie später einzeln gekauft werden. Die Kartensatz-Schnitte finden sie in den Bildern dargestellt.
Lieferumfang
Kartenplotter, Sonnenabdeckung, Bügelmontage, Dichtung, DeviceNet zu SeaTalkng-Adapter-Kabel 1 m, Optionale Erdungs-Verbindung (Schraube (M3x5), Federscheibe (M3), Crimp-Anschluss (M3)), RayNet (weiblich) zu RayNet (weiblich) Netzwerk-Kabel 2 m, Befestigungschrauben 4x, Power/Video/Audio Kabel 1,5 m.
Technische Daten
- Display: IPS-Breitbild HD 1280 X 720
- Wasserdichtigkeits-Klasse IPX 6 und IPX-7
- Stromverbrauch (max): 33,12 W
- Spannung: 8-32 V DC
- Maße Bügelmontage: Höhe: 186,2 mm, Breite: 329,5 mm, Tiefe (einschließlich Kabel): 234,9 mm
- Maße eingelassene Montage: Höhe: 173,79 mm, Breite: 299,32 mm, Tiefe (einschließlich Kabel): 234,9 mm
- GPS: GPS, GLONASS, Beidou, 10 Hz Aktualisierungsrate
- Steck-Anschlüsse: 2x RayNet, NMEA2000: DeviceNet, 25-poliger RealVision-Steckverbinder. Erfordert das Adapterkabel A80490 für CPT-S-Geber, 2x Micro-SDXC Kartenschlitze Vorderseite, HDMI-Ausgang, BNC Analgo-Videoeingang, RCA-Anschluss, GPS-Antennenanschluss
- CHIRP-Sonar-Kanal
- Bluetooth: V4.0, WLAN: 802.11/b/g/n
- Interner Speicher: 64 GB
- kompatible Sensoren: Radar, Autopilot, Sonarmodul, AIS-Transceiver, Wärmebildkameras und Kameras für sichtbares Licht,
UKW-Funkgeräte, Motorintegration, Digital Switching, assistiertes Anlegen, Augmented Reality,
Instrumente, Schiffsüberwachung
€0.00*
Available in 2-5 days.
The item is not in stock, but can be purchased and shipped within a few days.
Description
Die AXIOM2 Pro S-Serie ist das Flaggschiff der neusten Axiom-Plotter-Generation. Sie sind in der Praxis bewährte Kartenplotter, die wegen guter Ablesbarkeit in der Sonne, kombinierter Touch- und Regler/Tasten-Bedienung und ihrer Robustheit bei vielen Skippern zu Recht beliebt sind. Die Plotter lassen sich leicht vernetzen mit Gebern für Tiefe, Wind, Speed und Displays wie dem i70 und sind mit Anbindung für Autopiloten, AIS, Radar, Motordaten, Kameras oder Bord-Sensoren/Schaltern enorm erweiterbar. Die Daten können entweder ins Plotterbild integriert oder auf Split-Screens, beziehungsweise eigenen Dashboard-Seiten angezeigt werden. So behält die Crew leicht den Überblick. Dargestellt werden können Kartensätze von Raymarines eigenen Lighthouse-Standard, sowie Alternativen von Navionics oder C-Map.
Die Pro S-Serie bietet im Vergleich zur Axiom2-Serie das Tastenfeld rechts, dass besonders bei Seegang und Nässe die Bedienung stark vereinfacht. Das Standard-Tastenfeld unter dem Drehregler ist austauschbar gegen ein Evolution-Autopilot-Bedienung. So können Kurskorrekturen auch am Plotter ausgeführt werden.
Außerdem können an die Pro S-Modelle Ein-Kanal Sonargeräte angeschlossen werden. Der Plotter kann so hochaufgelöste CHIRP-Daten (Compressed High Intensity Radiated Pulse) darstellen. Hinzu kommen noch zwei SD-Karten Steckplätze, die von vorne zugänglich sind, was für den Wechsel von Kartenmodulen besonders beim Einbau in Schott oder Steuersäule vorteilhaft ist. Die Axiom2-Serie hat nur einen Steckplatz an der Rückseite.
Das technische Upgrade des AXIOM2 Pro S zur Vor-Version Axiom+ punktet mit schnellerem 6-Core-Prozessor, der Start, Zoomen und Umschalten noch flüssiger macht. Dazu trägt auch der von 16 auf 64 Gigabyte angewachsene Arbeitsspeicher bei. Das robuste Hybrid Touch 2-Display bietet zudem erweiterte App‑ und Motordatenintegration.
Wichtig: Die neuen Plotter haben dieselben Einbaumaße wie die Vorgänger-Serie Axiom+, passen also in die an Bord vorhandenen Ausschnitte!
Für Segler sind die einstellbaren Polardaten fürs Schiff, dynamische Kurslinien, sowie taktische Segelanzeigen und ein Regatta-Timer willkommene Features. Zudem bietet der Axiom2 Pro S jetzt die Integration von Auto-Routing-Funktionen, die Skipper mit der ORCA-App auf dem Tablett oder Smartphone oder über Navionics angelegt haben. Sie werden über Wifi hochgeladen.
Zudem läuft der Plotter ab Mitte 2025 mit dem neuen Betriebssystem Lighthouse 5 von Raymarine, die alten Plotter der AXIOM+-Serien werden nicht geupdatet und laufen auf der älteren Version 4 weiter. Raymarine gewährt 3 Jahre Garantie!
Als Bundle ist der AXIOM2 gegen einen kleinen Aufpreis mit Lighthouse-Kartensätzen für Nordeuropa, Westeuropa oder das Mittelmeer erhältlich. Die Sätze sind dann deutlich günstiger als wenn sie später einzeln gekauft werden. Die Kartensatz-Schnitte finden sie in den Bildern dargestellt.
Lieferumfang
Kartenplotter, Sonnenabdeckung, Bügelmontage, Dichtung, DeviceNet zu SeaTalkng-Adapter-Kabel 1 m, Optionale Erdungs-Verbindung (Schraube (M3x5), Federscheibe (M3), Crimp-Anschluss (M3)), RayNet (weiblich) zu RayNet (weiblich) Netzwerk-Kabel 2 m, Befestigungschrauben 4x, Power/Video/Audio Kabel 1,5 m.
Technische Daten
- Display: IPS-Breitbild HD 1280 X 720
- Wasserdichtigkeits-Klasse IPX 6 und IPX-7
- Stromverbrauch (max): 33,12 W
- Spannung: 8-32 V DC
- Maße Bügelmontage: Höhe: 186,2 mm, Breite: 329,5 mm, Tiefe (einschließlich Kabel): 234,9 mm
- Maße eingelassene Montage: Höhe: 173,79 mm, Breite: 299,32 mm, Tiefe (einschließlich Kabel): 234,9 mm
- GPS: GPS, GLONASS, Beidou, 10 Hz Aktualisierungsrate
- Steck-Anschlüsse: 2x RayNet, NMEA2000: DeviceNet, 25-poliger RealVision-Steckverbinder. Erfordert das Adapterkabel A80490 für CPT-S-Geber, 2x Micro-SDXC Kartenschlitze Vorderseite, HDMI-Ausgang, BNC Analgo-Videoeingang, RCA-Anschluss, GPS-Antennenanschluss
- CHIRP-Sonar-Kanal
- Bluetooth: V4.0, WLAN: 802.11/b/g/n
- Interner Speicher: 64 GB
- kompatible Sensoren: Radar, Autopilot, Sonarmodul, AIS-Transceiver, Wärmebildkameras und Kameras für sichtbares Licht,
UKW-Funkgeräte, Motorintegration, Digital Switching, assistiertes Anlegen, Augmented Reality,
Instrumente, Schiffsüberwachung
