WINDEX LED Lighting Unit

1088-105 WINDEX LED-Beleuchtungseinheit
1088-105 WINDEX LED-Beleuchtungseinheit (Montagebeispiel)
1088-105 WINDEX LED-Beleuchtungseinheit

€34.50*

€34.50*

Prices incl. VAT plus shipping costs

name
for
Stk

The WINDEX LED light is a lighting unit designed to be combined with the WINDEX 10, WINDEX 15, and WINDEX XL wind direction indicators. It enables safe readability of the wind direction even at night or in poor visibility conditions. The compact module is mounted below the wind indicator and illuminates the wind vane and the tabs from below with a wide, even beam of light.

Technical Data

  • Compatibility: WINDEX 10, 15, XL
  • Voltage: 12-24 V DC
  • Material: seawater-resistant plastic
  • Lighting: LED
  • Power consumption: 23 mA
  • Cable length: approx. 1 m
more information
Show article

The WINDEX LED light is a lighting unit designed to be combined with the WINDEX 10, WINDEX 15, and WINDEX XL wind direction indicators. It enables safe readability of the wind direction even at night or in poor visibility conditions. The compact module is mounted below the wind indicator and illuminates the wind vane and the tabs from below with a wide, even beam of light.

Technical Data

  • Compatibility: WINDEX 10, 15, XL
  • Voltage: 12-24 V DC
  • Material: seawater-resistant plastic
  • Lighting: LED
  • Power consumption: 23 mA
  • Cable length: approx. 1 m

Description

The WINDEX LED light is a lighting unit designed to be combined with the WINDEX 10, WINDEX 15, and WINDEX XL wind direction indicators. It enables safe readability of the wind direction even at night or in poor visibility conditions. The compact module is mounted below the wind indicator and illuminates the wind vane and the tabs from below with a wide, even beam of light.

Technical Data

  • Compatibility: WINDEX 10, 15, XL
  • Voltage: 12-24 V DC
  • Material: seawater-resistant plastic
  • Lighting: LED
  • Power consumption: 23 mA
  • Cable length: approx. 1 m

Questions about the product?

Accessories

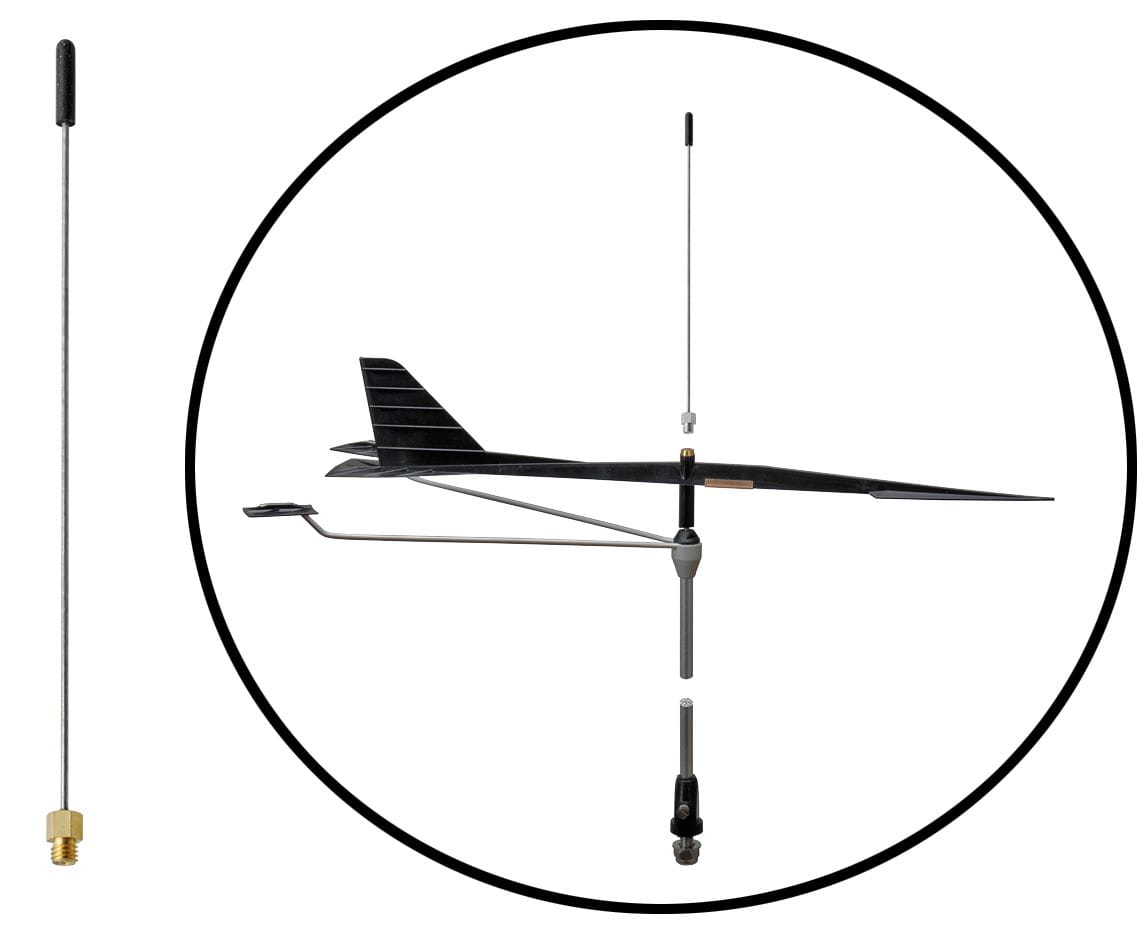

WINDEX DINGHY 6 Wind Direction Indicator
WINDEX DINGHY 6 Wind Direction Indicator
The WINDEX DINGHY / DINGHY 6&nbsp

From €26.91 *
Details

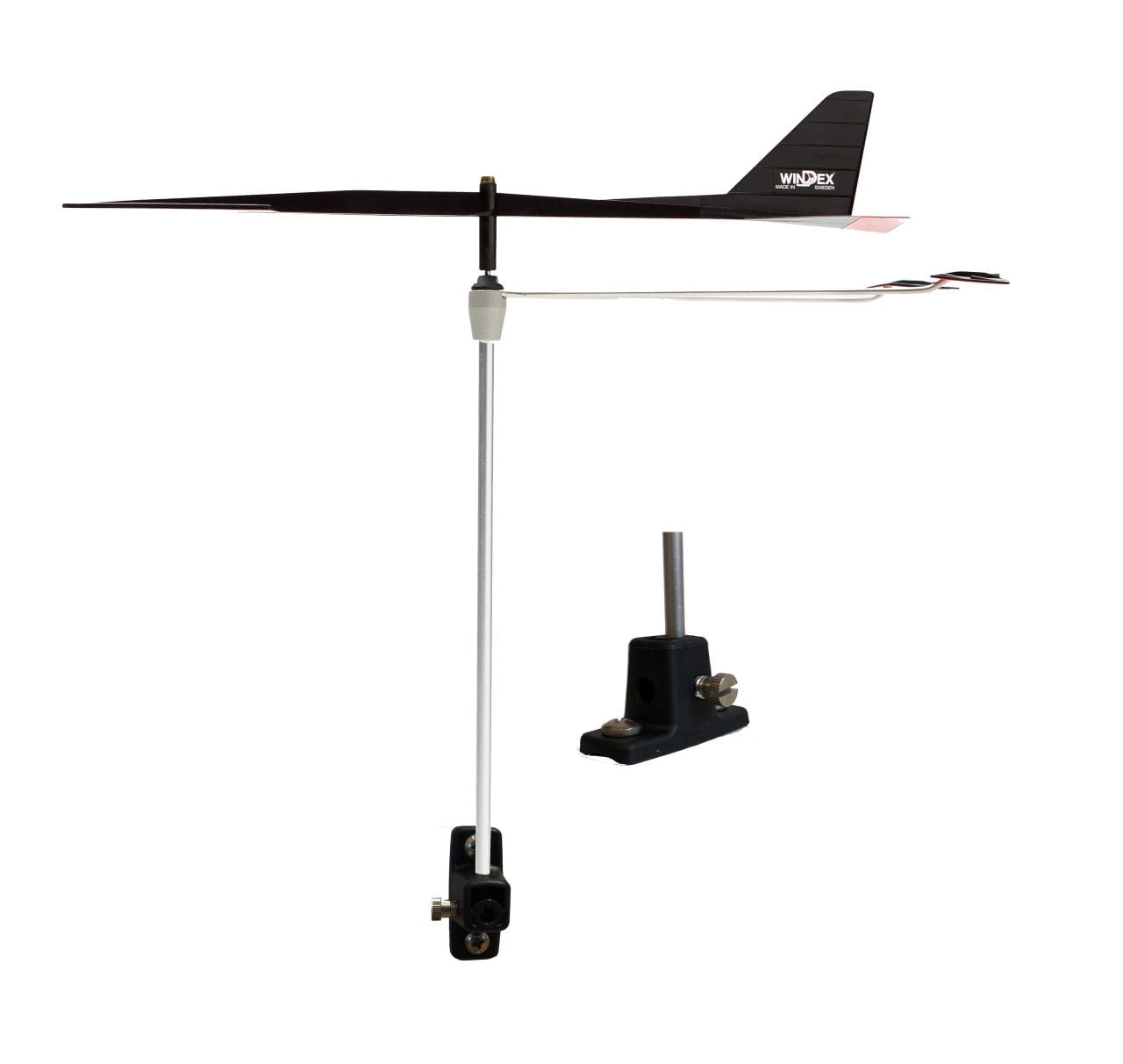

WINDEX 10 C Wind direction indicator
WINDEX 10 C Wind direction indicator
The original from Sweden: Wind direction indicator WINDEX 10 C is used for the precise display of the apparent wind direction on board and is designed for sailboats between 3–6 meters (10–20 feet) in length. The construction consists of a UV-resistant plastic needle with a smooth-running vane and two adjustable tacking tabs for optimal trim assistance. The high-quality sapphire bearing ensures low-friction movement even in light wind conditions. Thanks to the reflector tape on the underside of the vane and the tacking tabs, the WINDEX 10 is easy to read both during the day and at night. It is mounted using the included bracket, which allows the wind indicator to be attached on top of or to the side of the mast.WINDEX vanes are robust due to their high-quality construction and can be used for several years if installed correctly. They have been tested in a wind tunnel at wind speeds of 40 m/s and remain among the internationally leading wind indicators in the cruising and racing sectors.Technical DataModel: WINDEX 10 CApplication range: Sailboats from 3-6 m in lengthMaterial: UV-resistant plastic, aluminumVane length: approx. 250 mmFeatures: Adjustable tacking tabs, mounting bracket for top or side mounting

€33.90 *
Details

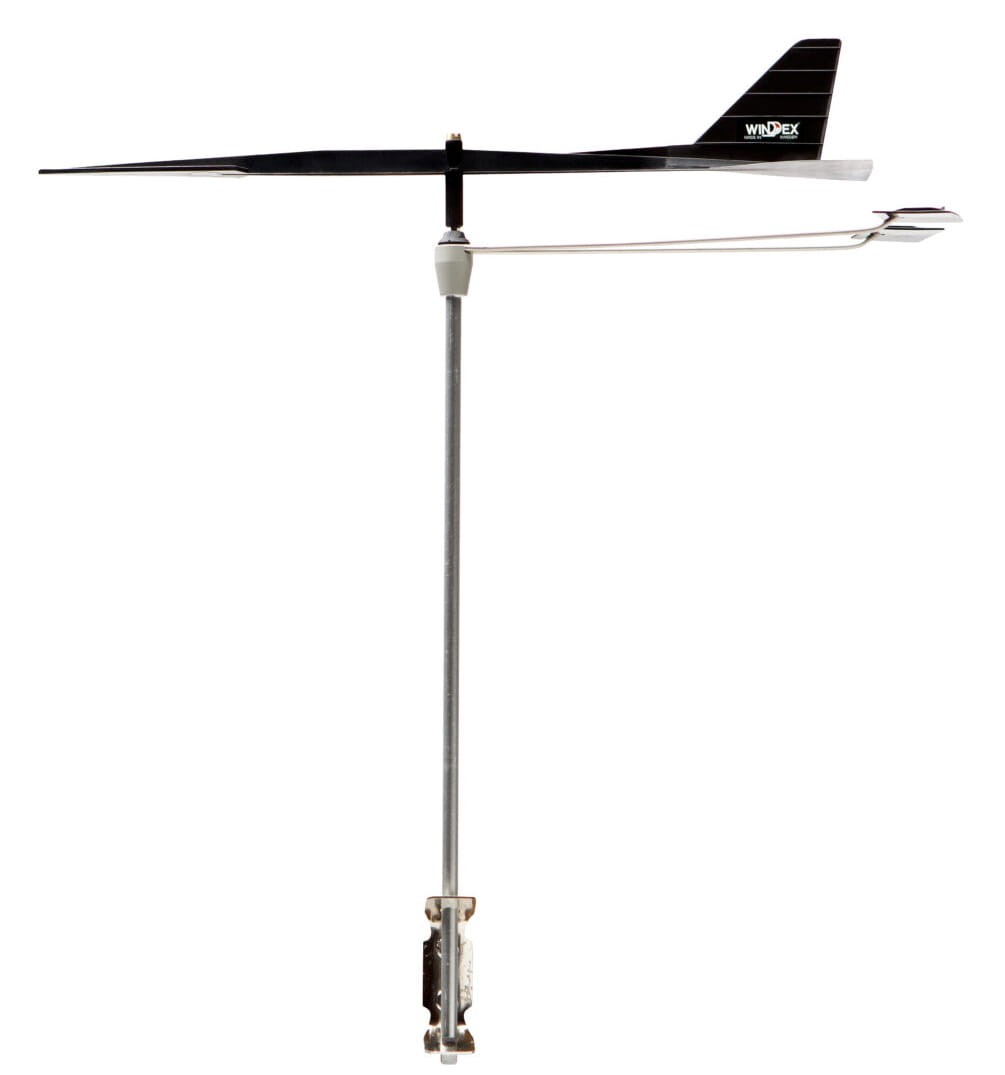

WINDEX 15 / 15 MK2 Wind direction indicator
WINDEX 15 / 15 MK2 Wind direction indicator
The WINDEX 15 / 15 MK2 is used to precisely display the apparent wind direction on board and is designed for sailboats from 5-12 meters (14-40 feet) in length. The construction consists of a needle made of UV-resistant plastic with a smooth-running wind vane and two adjustable tabs for optimum trimming assistance. The included BirdSpike extends the Windex by 190 mm above the vane and prevents birds from perching on it.The high-quality sapphire bearing ensures low-friction movement of the needle, even in light wind conditions. Thanks to the reflective tape on the underside of the wind vane and the small plates, the WINDEX 15 is easy to read during the day and at night. The wind indicator is mounted using the bracket supplied, which allows it to be attached to the top or side of the mast.WINDEX wind vanes are characterized by their high-quality construction and can be used for several years if installed correctly. They have been tested in the wind tunnel at wind speeds of 40 m/s and are still among the leading international wind indicators in the cruising and regatta sector.Information about the models: The WINDEX 15 is the predecessor and has slightly different dimensions; the new WINDEX MK2 model comes with an included Bird Spike.

From €39.90 *
Details

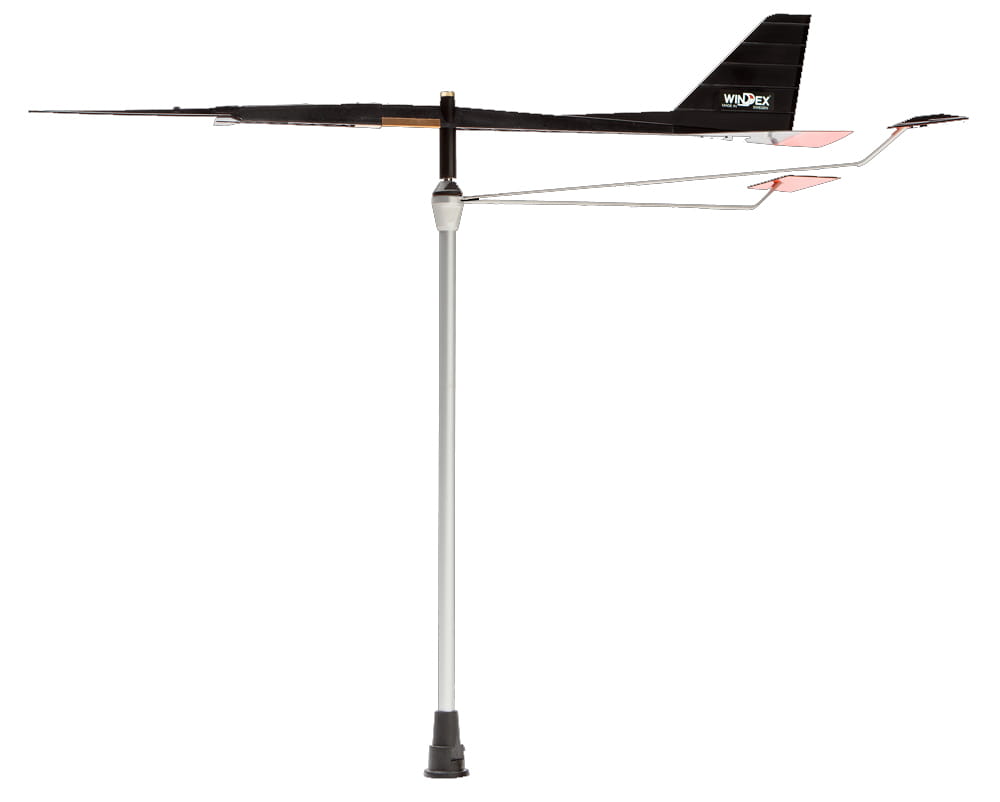

WINDEX XL Windrichtungsanzeiger
WINDEX XL Windrichtungsanzeiger
The WINDEX XL is suitable for cruising yachts from a length of 12 meters (40 feet) and provides precise indication of the apparent wind direction on board. The construction consists of a needle made of UV-resistant plastic with a smoothly rotating wind vane and two adjustable riders for optimal trim assistance. The high-quality sapphire bearing ensures low-friction movement of the needle, even in light wind conditions. Thanks to the reflector tape on the underside of the wind vane and the plates, the WINDEX XL is easy to read both during the day and at night. WINDEX wind vanes are characterized by their high-quality construction and can be used for several years if installed correctly. They have been tested in wind tunnels at wind speeds of 40 m/s and remain among the leading wind indicators worldwide in both cruising and racing sectors.Installation: The mount features a 5/16" thread. Alternatively, the Windex can be attached via an 8 mm drilled hole using a nut and washer. Technical DataModel: WINDEX XLApplication area: Sailing yachts from 12 m lengthMaterial: UV-resistant plastic, aluminumWind vane length: approx. 584 mmHeight: 570 mmWeight: 150 g

Price on request
Details

Similar products

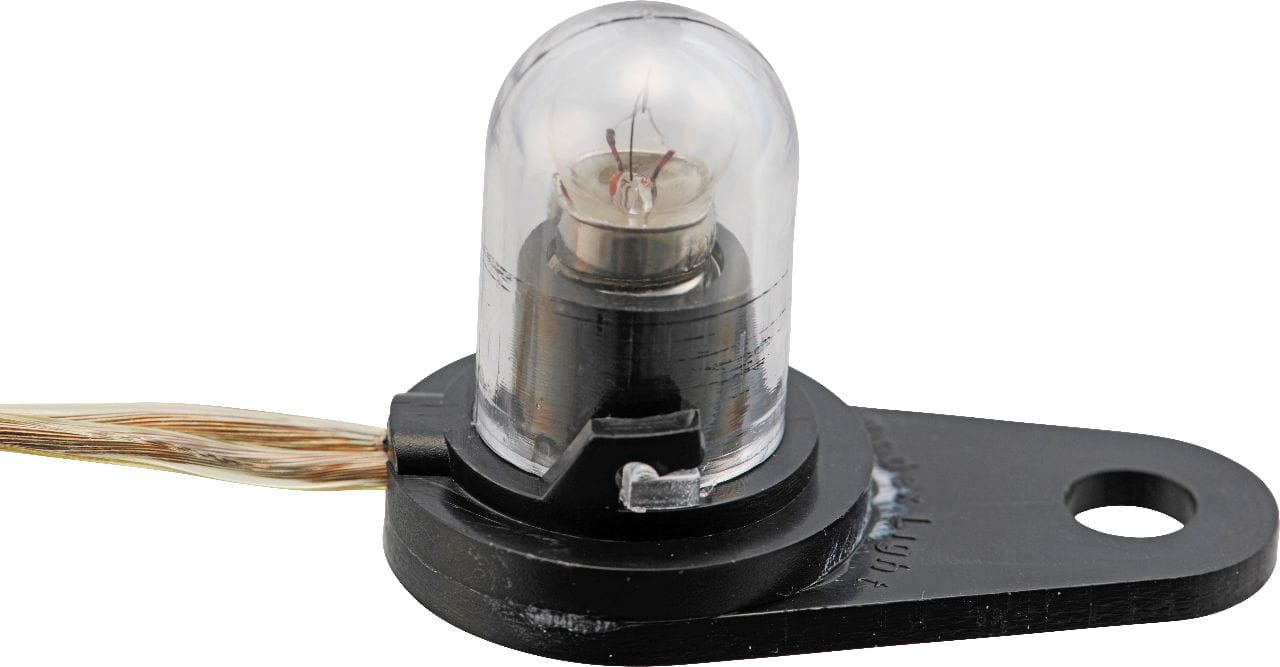

WINDEX 12 V Lightning Unit
