Description

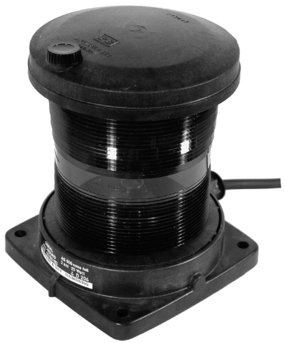

The 500 series is a navigation lantern from the Hamburg-based manufacturer PETERS & BEY for ships under 50 meters in length (unlimited in inland navigation). The watertight, black housing and the lenses are made of glass fiber reinforced polyamide, the inner parts and covers are made of stainless steel.

The position light is corrosion-free, shock-proof, seawater-resistant, anti-magnetic and splash-proof in accordance with IP 56.

The bulb can be easily changed from above by opening the housing cover.

The LED lantern 780 has the following approvals: BSH, GL, UL 1104, MED
This makes it suitable for commercial shipping.

The lantern can be operated with 12V or 24V bulbs and thus covers the typical voltage ranges of yachts and smaller commercial vessels.

Technical features:

Hole spacing on the mounting plate: 120 x 120mm.
Socket: BaY15d
For 24V voltage, a light source with a maximum output of 25W must be used (art. no.: 3255-224)
For 12V voltage, a light source with a maximum output of 15W must be used (art. no.: 3255-112)

Supplied without bulb.
Supplied with 1.2m installed cable.
