BSH certificate

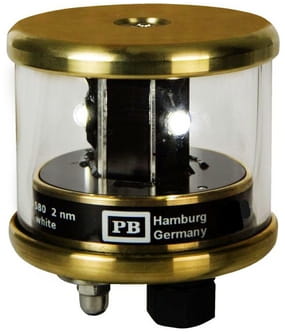

LED-navigation lights PB 580

Compact LED position light with BSH approval for ships up to 20 m in length.

The LED technology impresses with its low power consumption and extremely long, maintenance-free service life. Elegant, heavy and vibration-resistant housing made of polished brass. The cylindrical glass is weather-resistant, clear borosilicate glass. An internal operating hours counter causes the lantern to flash after 20,000 hours of guaranteed service life.

Suitable for on-board voltages from 9-28 volts.
Supplied ready for connection with 1.5 m cable and including corresponding holder.

Dimensions diameter x height: 64 x 54 mm
Weight: approx. 350 g
Protection class IP68

more information

€355.00*

€355.00*

Prices incl. VAT plus shipping costs

description

tricolored light stern

colour

r/g/w

for ships up to

20m

angle (°)

360,00

range (nm)

2

Stk

Art. No.	description	colour	for ships up to	angle (°)	range (nm)	Price (unit)	Delivery time	Note list	Buy

Description

Compact LED position light with BSH approval for ships up to 20 m in length.

The LED technology impresses with its low power consumption and extremely long, maintenance-free service life. Elegant, heavy and vibration-resistant housing made of polished brass. The cylindrical glass is weather-resistant, clear borosilicate glass. An internal operating hours counter causes the lantern to flash after 20,000 hours of guaranteed service life.

Suitable for on-board voltages from 9-28 volts.
Supplied ready for connection with 1.5 m cable and including corresponding holder.

Dimensions diameter x height: 64 x 54 mm
Weight: approx. 350 g
Protection class IP68

Questions about the product?

Questions about the product?

Talk to craftsmen, boat builders and sailors. We understand your questions and provide the right answers.

Contact experts

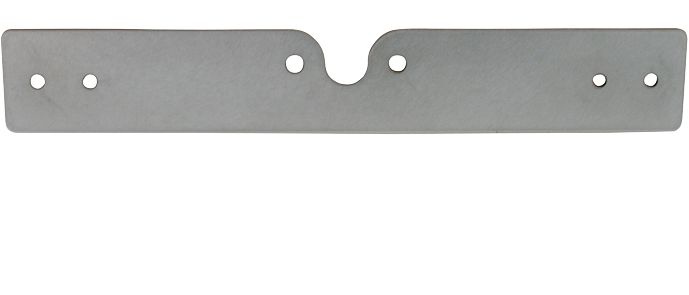

Mounting Brackets for PB 580 Navigation Lights

Mounting Brackets for PB 580 Navigation Lights

Various mounting brackets for the PB 580 LED position lantern series (item no. 3346-...) from PETERS & BEY.The mounting brackets are made of stainless steel and are suitable for the following installation:for side mounting, pole and top mounting as well as an offset version.A heating set for the rotating beacon is also available.Each PETERS & BEY lantern is supplied with a standard mounting bracket.

From €15.01 *

3346-001 Steuerbord Laterne PB 580 LED

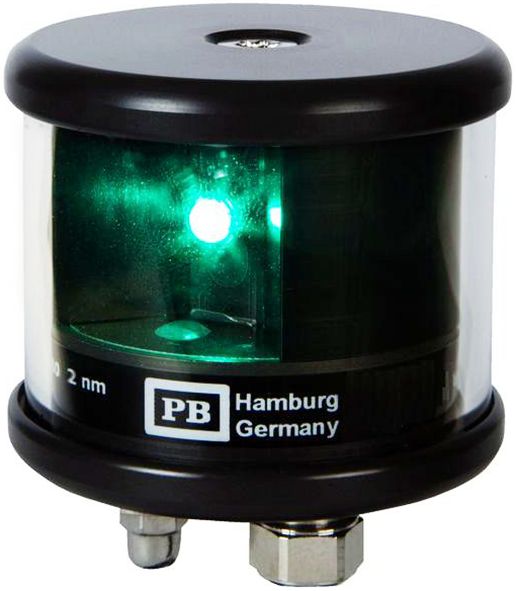

PB 580 LED-Navigation Lights
