The DEEP-PIPE immersion tube sensor is the ideal sensor for fuel tanks. The level is measured by a float enclosed in a vertical tube (diameter 38 mm). Small holes at the top and bottom of the tube compensate for the surge of fuel in the tank so that the float position remains stable in any sea state.

Measuring range 90-4 Ohm matched to VERATRON VDO VIEWLINE marine instruments for immersion tube transducers. (see accessories)

An optionally available 6 m long connection cable with TE Superseal plug can be used to make a watertight plug-in connection to the tank sensor in accordance with IP67.

Other sensors are available in various lengths from 150 mm to 1200 mm.

When dimensioning the corresponding length, a minimum distance to the tank bottom of 4 mm must be taken into account.

Accessories

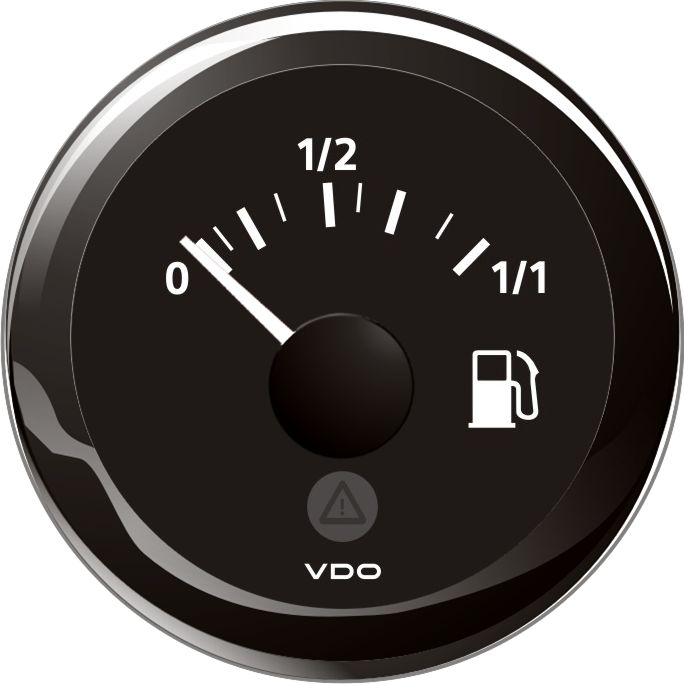

Tank gauge fuel VDO VIEWLINE
VDO-VIEWLINE tank gauge for fuel tanks.Different gauges to be used with either lever sensor or tubular sensor.A perfect instrument series from this German company with over 50 years of experience in the marine industry.VDO-VIEWLINE offers modern technology, high processing quality, and technical perfection: modern, clear dial design, a variety of installations (flush mounting is also possible), watertight seal pursuant to IP67 in the front, curved double window of scratch-proof plastic prevents fogging.Dials with backlight-technology - clear to read, even at night, thanks to LED lighting.Most instruments are also equipped with a red warning LED.8-pin MQS plug for attachment. Standard version with black dial and black round front ring. Instrument diameter 52 mm.Operating with power supply 8 - 32 Volt. Dial and front ring: black.. Tank sensors must be ordered separately (check "Suitable items").

From €65.90 *
