Temperature sensors for marine gauges

Accessories for the WEMA tank sensors for fuels and water and grey and black waters.The adaptors provide a 1 1/4" BSP thread which fits WEMA tank sensors.3470-100: Adaptor with 1 1/1" threads for the sensor, with 6 screws and threaded counterplate. Allows installation of the sensor in every plastic or steel tank. With gasket.3470-101: Flange with 1 1/4" threads, can be welded to a steel tank. Made from V4A inox steel.3470-102: Plasic adaptor which may be used if a VDO sensor (with flange SAE 5-hole 54mm) is to be replaced by WEMA sensor. 1 1/4" threads, 5-screw fixation as VDO sensors have. With gasket.3470-104: Counterplate with 5 threads for 3470-102. Can be used if the holes (for flange SAE 5-hole 54mm) in the tank are not threaded.

Capacitive sensor for fresh water tank. For tanks 80 - 600 mm deep.This sensor may only be used with gauges for capacitive sensors, particularly those made by VDO (VIEWLINE) or Kienzle (KIENZLE CLASSIC).

Capacitive sensor for waste tank and black water tank. For marine gauges which work with a capacitive sensor.. For tanks 200 - 600 mm deep.Measures the tank without any moving parts.Signal 4-20 mA.Thread 1 1/4" BSP, with matching plasic flange SAE-5-hole and seal.These sensors can only be used with gauges for capacitive sensors, particularly those made by VDO (VIEWLINE) or Kienzle (KIENZLE CLASSIC).The gauge must beordered separately (please check "Suitable items").

A robust flange assembly made from plastic with an integrated thread (1 1/4" BSP) for mounting a WEMA indicator.Simple fitting because of the cleverly devised construction: only a hole of 115 to 120mm has to be drilled.The central mounting bolt, a guiding pin and the O ring enable a quick opening, whereby the flange can also be used as an inspection cover.For installation you need not cutting precise holes or threads.

Lever arm sensor with a SAE-5-hole flange.Flange diameter: 54mm.Adjustable for tanks from 200 to 600mm height.180 Ohm = full3 Ohm = empty

Lever type sensor for fuel tank. For marine gauges. For tanks 150 to 605 mm deep. Can be adjusted for different tank depths..These sensors can be used with a variety of instrument gauges, particularly those made by VDO (VIEWLINE) or Kienzle (KIENZLE CLASSIC).Other sensors are available on request.

Flow sensor for fresh water for connection to a digital tank monitor BTM(2), VTM(2).Number of pulses: 1000 pulses /L.Dimensions : L 110 x W 23 x H 57 mm

Mechanical tank sensor TGW for fresh water.For gauges of TUROTEST series. The stainless steel tube sensors are made in Germany.High resolution (a switch point every 17mm), thread 1 1/4".5 (empty) to 180 (full) ohms.Comes with mounting flange and gasket.

Oil pressure sensor for VDO compatible display instruments. These sensors can be used for various instrument series, including those from the manufacturers VDO (VIEWLINE) or KIENZLE (KIENZLE CLASSIC).Specifications:Thread: M10 x 1 conical shortResistance values: 10 - 184 OhmOutput: 2-pole mass-freeNo warning contactOther sensors are available on request.

This unit converts the resistance value of one indicator or sensor from 0-190 Ohm (european stadard) to 240-30 Ohm (american standard) or reversed.This device allows the combination of instruments with sensors of different manufacturer.The minimum and maximum value displayed can be adjusted.

Sturdy feedback unit KOBELT 7174, e.g. for the electronic rudder indicators KOBELT 7175 or 7180. Made of bronze and stainless steel, it will withstand vibration and corrosion for years.This feedback unit has two microswitches and may be used if a switch function at max. rudder position is required. The unit also feeds back the rudder angle position to the rudder angle indicator or to the autopilot or Full Follow Up control systems.Available versions: 7174-AD: 2 microswitches, 1 poti to transmit data to one device (e.g. rudder indicator), to be calibrated with 1 trimpot. 7174-B: 2 microswitches, 2 potis to transmit data to two devices (e.g. rudder indicator and autopilot). Standard potentiometer is 1 kOhm.Operating voltage 12 V/24 V.Weight: 3,4 kg.

Sturdy feedback unit KOBELT 7168, e.g. for the electronic rudder indicators KOBELT 7175 or 7180. This feedback unit is used to transmit rudder angle positions to a rudder angle indicator,an autopilot or to electronic steering components. Its compact design and watertight construction will allow it to be installed in tight quarters. With its all bronze and stainless steel construction it is well suitable for operation in rough environment. Comes as: 7168-P: 1 potentiometer to transmit data to one device (e.g. rudder indicator) 7168-PP: 2 potis to transmit data to two devices (e.g. rudder indicator and autopilot). Standard potentiometer is 1 kOhm.Operating voltage 12 V / 24 V.Weight: 1 kg.Comes with connection rod 250 mm with ball joint terminals.

Rudder angle sensor for marine gauges. Available for a single gauge or two gauges.These sensors can be used with a variety of instrument gauges, particularly those made by VDO (VIEWLINE) or Kienzle (KIENZLE CLASSIC).Other sensors are available on request.

Mechanical tank sensor TGT for diesel and wastewater tanks. Works with the tank gauges of the TUROTEST instrument series. The stainless steel tube sensors are a German product.High resolution (a switching point every 17mm).5 (empty) to 180 (full) ohms.Thread 1.1/4".Comes with a plastic flange and gasket.Lengths of up to 800mm are available on request.

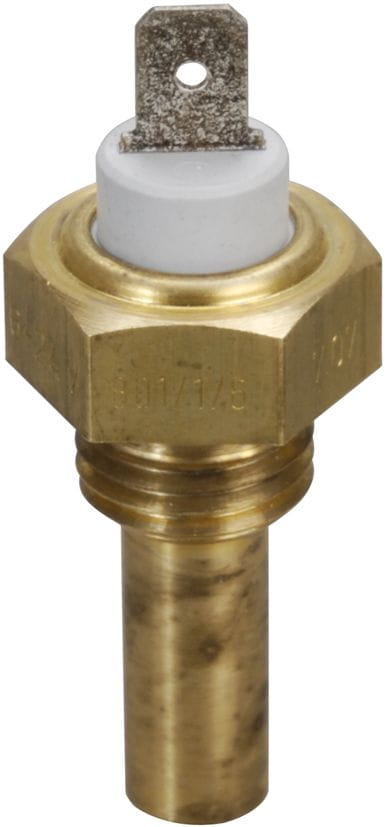

Temperature sensors for marine gauges. These sensors can be used with a variety of instrument gauges, particularly those made by VDO (VIEWLINE) or Kienzle (KIENZLE CLASSIC).Other sensors are available on request.

Adaptors for indicators with 1/8" NPT connecting thread.

Non-contact tank sensor for ultrasonic tank gauge. For water, diesel, grey water or waste tanks. The use of ultrasonic technology means that there are no moving parts required in the tank.Works perfectly in plastic tanks. Not suitable for metal tanks.The sender is mounted in top of the tank (bolt circle diameter of 53 mm per SAE with 5 holes) and can even replace a mechanic sensor (with appropiate gauge). Sensors are available for tank depths up to 800 mm.The distance washer has a height of 25 mm; the height can be varied by using several washers.Voltage 10-30 volts,Power draw 50 mA,Output signal 0.5 - 2.5 volts.The matching gauges please find listed at "Suitable items" below.

The DEEP-PIPE immersion tube sensor is the ideal sensor for fuel tanks. The level is measured by a float enclosed in a vertical tube (diameter 38 mm). Small holes at the top and bottom of the tube compensate for the surge of fuel in the tank so that the float position remains stable in any sea state.Measuring range 90-4 Ohm matched to VERATRON VDO VIEWLINE marine instruments for immersion tube transducers. (see accessories)An optionally available 6 m long connection cable with TE Superseal plug can be used to make a watertight plug-in connection to the tank sensor in accordance with IP67.Other sensors are available in various lengths from 150 mm to 1200 mm.When dimensioning the corresponding length, a minimum distance to the tank bottom of 4 mm must be taken into account.

Highly reliable transducer for diesel tanks, which is simply connected to the NMEA2000 network of a ship via the built-in plug and play. The level is measured contact-free via reed contacts using a float with a ring magnet. The electronics of the N3 model are encapsulated and therefore completely insensitive. The data can be displayed via a multifunctional display, the plotter or a WEMA display for NMEA data. The N3 encoder can be easily removed for maintenance or in the event of blockages.Important note: The NMEA2000 transducers from WEMA must be programmed for the intended use before delivery, i.e. the fluid type and tank number must be assigned. The transducers listed here are all factory-set for use with diesel tanks and tank no. 1. If you need the sensor for water or waste tanks, please order the alternative articles for diesel or waste tanks here in the store. If you require other tank numbers, these can be ordered from the manufacturer as preset, please ask.Installation is carried out using a 1 1/4" BSP thread in the tank or with the help of a corresponding carrier adapter, which is screwed into the tank (not included in the scope of delivery, see accessories below). Thanks to this design, the sensor can be unscrewed quickly and easily for inspection or cleaning. The manufacturer recommends selecting the length of the sensor so that there is a minimum distance of 2.5 cm and a maximum distance of 5 cm from the bottom of the tank.The connection cable is 99 centimeters long. 1 1/4 inch thread, connector: NMEA Male .Technical dataStainless steel transducer with float and reed contactsPower supply: 12 V via NMEA2000 connectionProtection class IP651 1/4 inch threadConnector: NMEA Male

Highly reliable transducer for water tanks, which is simply connected to the NMEA2000 network of a ship via the built-in plug and play. The level is measured by means of a float with ring magnet without contacting the reed contacts. The electronics are encapsulated and therefore completely insensitive.Important note: The NMEA2000 transducers from WEMA must be programmed for the intended use before delivery, i.e. liquid type and tank number can be assigned. The transducers listed here are all factory-set for use with water tanks and tank no. 1. If you need the sensor for diesel or waste tanks, please order the alternative articles for diesel or waste tanks here in the store. If you need other tank numbers, these can be ordered from the manufacturer as preset, please ask. Alternatively, you can order your ownInstallation is carried out using a 1 1/4" BSP thread and corresponding support adapter, which is screwed into the tank (not included in the scope of delivery, see accessories below). Thanks to this design, the sensor can be unscrewed quickly and easily for inspection or cleaning. The manufacturer recommends selecting the length of the sensor so that there is at least 2.5 and a maximum of 5 cm distance to the tank floor.The connection cable is 99 centimeters long. 1 1/4 inch thread, NMEA male connector.

The WEMA water level alarm gives you an acoustic warning when the water level rises above the normal level, e.g. in the bilge.The robust switch for the alarm is mounted in the bilge at a height where there is normally no water and connected to the buzzer included. If the water inside the sensor tube rises to 80 mm, the warning buzzer switches on.Jamming of the float by foreign objects is impossible due to the surrounding V4A tube. The switching unit can be easily pulled out of the holder and cleaned. The durable design also includes the encapsulated electronics and a 3 m long connection cable with a cable cross-section of 2 x 0.75mm².The switch can also be optionally connected to a signal lamp.The maximum load capacity is 0.3 amps at 12 volts and 0.15 amps at 24 volts.The water alarm is suitable for 12 and 24 volts.

The WEMA sensors for temperature, oil pressure and rudder indicators are compatible with the gauges of different manufacturers.The bodies of the temperature sensors are made from brass, water-proof according to IP67.Some sensors are fitted with an alarm, the tolerance for temperature alarm is 3°C, the oil pressure alarm is at 0,8 bar.The rudder indicator can, without modification, serve single or double gauges with 0 - 190 Ohm.Suitable for 12 or 24V.A link to adaptors for WEMA and KUS indicators can be found under Suitable Items below.

Sehr zuverlässiger Geber für Schmutzwasser- und Fäkalientankstanks, der durch den Edelstahl-Käfig um den Schwimmer vor Blockaden desselben schützt. Über den verbauten Stecker wird der Geber einfach per Plug and Play mit dem NMEA2000-Netzwerk des Schiffes verbunden.Die Messung des Füllstandes erfolgt mittels eines Schwimmers mit Ringmagnet berührungsfrei über Reedkontakte. Die Elektronik des Models N3H ist vergossen und daher völlig unempfindlich. Die Daten können über ein Multifunktionsdisplay, den Plotter oder ein WEMA-Display für NMEA-Daten angezeigt werden. Der Geber N3H kann zur Wartung oder bei Blockaden mit wenigen Griffen aus dem Träger-Gewinde (nicht im Lieferumfang) geschraubt werden.Wichtiger Hinweis: Die NMEA2000 Geber von WEMA müssen vor der Auslieferung für den geplanten Einsatz-Zweck programmiert werden, das bedeutet, Flüssigkeitstyp und Tanknummer müssen zugewiesen werden. Die hier genannten Geber sind alle ab Werk auf die Nutzung für Fäkalientank und Tank-Nr.1 eingestellt. Benötigen Sie den Geber für Wasser oder Diesel, bitte entsprechend die Alternativ-Artikel für Diesel oder Wasser hier im Shop ordern. Benötigen sie andere Tanknummern, können diese beim Hersteller entsprechend voreingestellt geordert werden, bitte nachfragen. Die Montage erfolgt mittels eines 1 1/4" BSP-Gewindes im Tank oder mit Hilfe eines entsprechenden Träger-Adapters, der im Tank verschraubt wird (gehört nicht zum Lieferumfang, siehe Zubehör unten). Aufgrund dieser Konstruktion kann der Geber zur Kontrolle oder Reinigung einfach und schnell ausgeschraubt werden. Der Hersteller empfiehlt, die Geber-Länge so zu wählen, dass noch mindestens 2,5 und maximal 5 cm Abstand zum Tankboden bleiben.Technische DatenEdelstahl-Geber mit Schwimmer und Reed-KontaktenStromversorgung: 12 V via NMEA2000-AnschlussSchutzklasse IP651 1/4 Zoll GewindeStecker: NMEA Male

Very reliable tank sensors for water and fuels.Measurement of the fill level is carried out contact less with the help of a swimmer with a ring magnet on reed contacts. The electronics are sealed and therefore absolutely unsusceptible.Mounting is done with a 1 1/4" BSP thread and fitting adapters. Hence the sensors are simple to dismount and clean. Additional lengths of up to 1200mm are available upon request.
