RHEINSTROM waste water pump type M

Art. No.	description	voltage (V)	current (A)	output	dimensions (mm)	Price (unit)	Delivery time	Note list	Buy

Downloads

The sewage pump RHEINSTROM M is a self-priming diaphragm pump with bronze housing.
Even bigger solids can be conveyed without damaging the pump because of the lip valves which have been installed.
The self-locking valves make the pump non-reactive, i.e. it can be mounted to the side standing, hanging or sideways.

Technical data:
Output: 20 l / min
Head: 8 m
Suction height: 5 m
Suction and pressure connection: 1 ½"
Connection: 38 mm hose
Weight: 12 kg.

Questions about the product?

Accessories

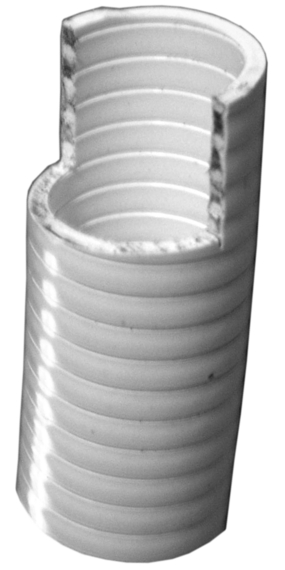

Waste hose

Thick-walled, white waste-water hose of PVC with integrated plastic spiral.Formulated for exceptional odor containment, made in Germany, very flexible, does not kink. The surface is smooth and easy to keep clean.

From €6.40 *

Details

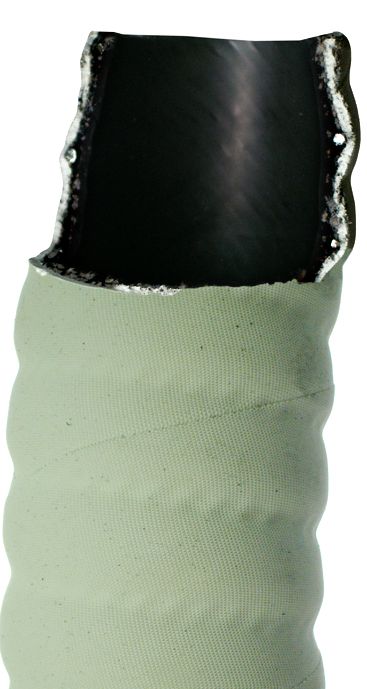

Waste hose SPECIAL

Absolutely odor-proof faeces hose with integrated steel spiral.Three-layer design: white CR rubber on the outside, intermediate layer of textile fabric with steel spiral, smooth black EPDM rubber on the inside.The hose is designed for a working pressure of 6 bar and is temperature-resistant from -35°C to +135°C.

From €24.90 *

Details

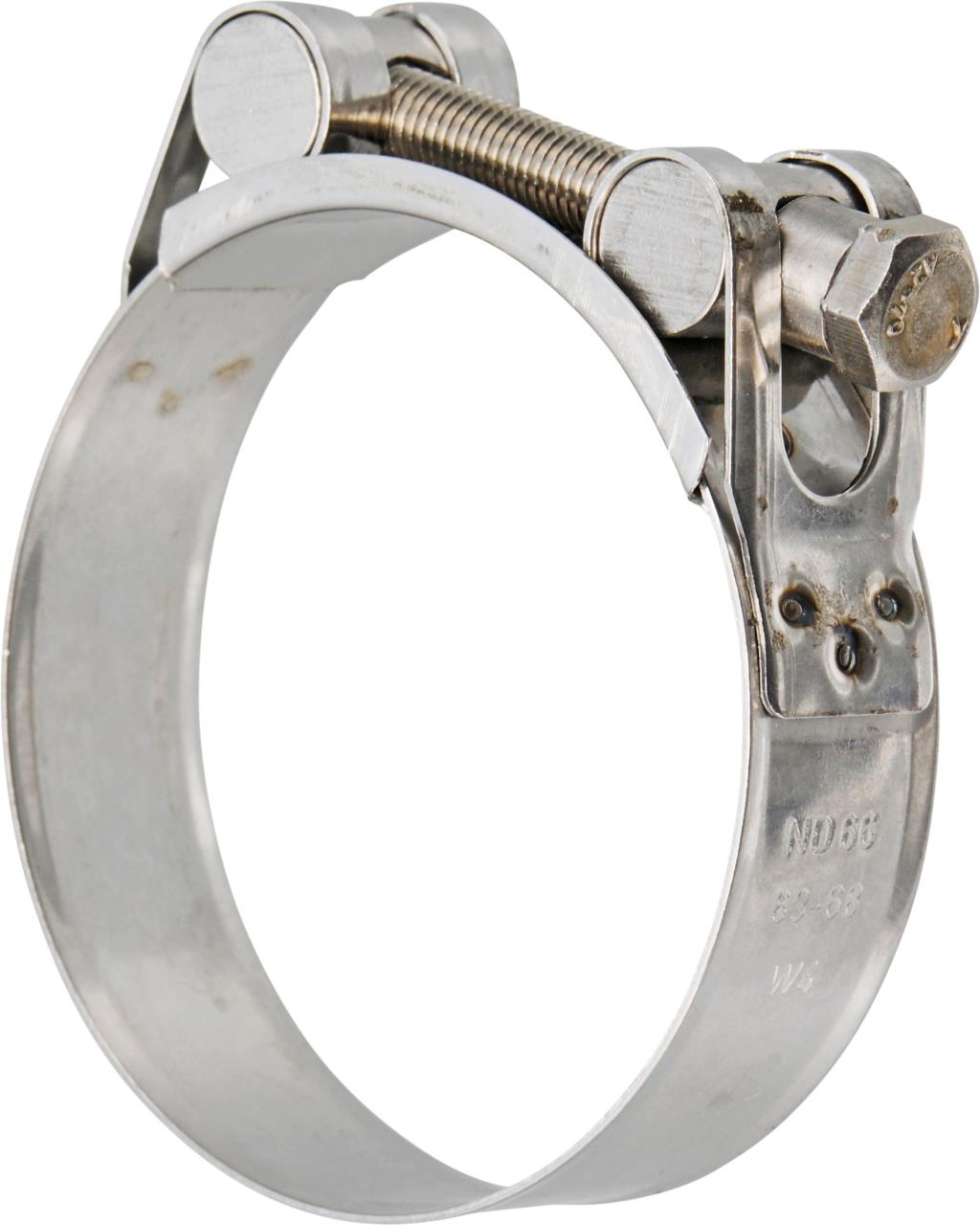

T-bolt clamp

Heavy, wide hose clamps, made entirely of A2-stainless steel.Hexagonal bolt for easy mounting in hard-to-reach corners. Due to the width particularly well suited for hose mounting on board.Type: HEAVY DUTY.

From €5.90 *

Details

Similar products

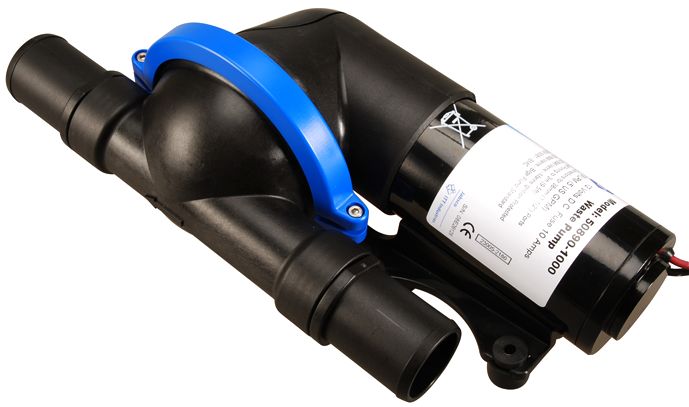

Waste water pump JABSCO 50890

Robust diaphragm pump for extracting sewage from the pump specialist JABSCO. Dry self-priming up to 3.0 m. Full passage due to the use of lip valves. Universal and flexible installation, as both the pump head and the hose direction can be adjusted as required.Dimensions L x W x H: 278 x 161 x 132 mm. Available for 12 V or 24 V.

From €339.00 *

Details

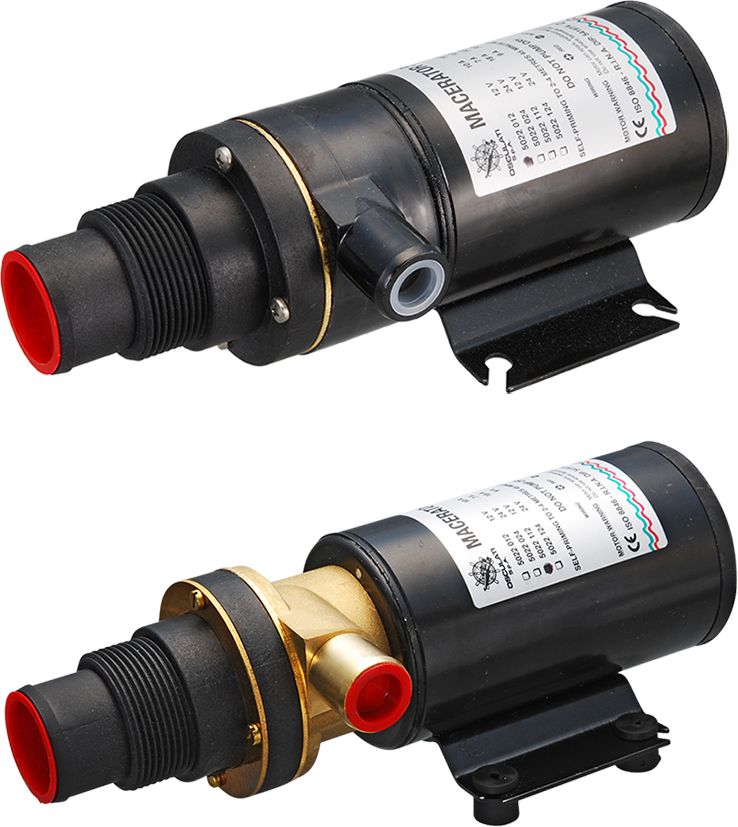

Waste mercerator pump

High performance mercerator pump especially for sanitation waste.Pump head of black plastic or bronze.Self-priming up to 1,5 m.Attachments:Inlet for hose 38 mm,Pressure-side for hose 25 mm.Dimensions: 240 x 130 x 90 mm.

From €139.00 *

Details

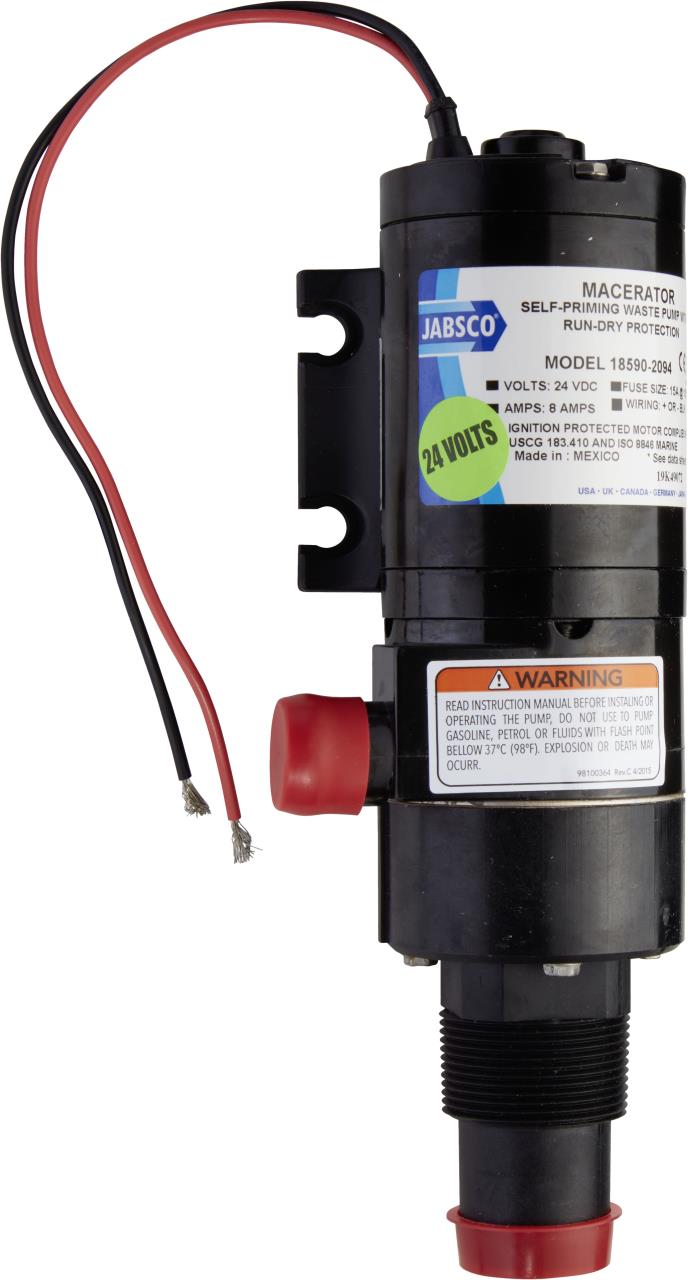

Macerator pump JABSCO

The perfect solution, for example, for emptying a waste water tank.Dry self-priming impeller pump with nitrile impeller and built-in stainless steel cutting wheel as chopper.Suction lift to 1.2 m, pump power max. 2700 l/h.Special feature: The pump works with a patented dry-running protection: when it runs dry, it immediately switches off, thereby hindering damage to the impeller.New activation of the pump through switching it off and on. Attachments:Inlet-1-1/2" (38 mm) Hose Barb and1-1/2" N.P.T. (Male). Outlet-1" (25 mm) Hose Barb. Dimensions: 286 x 106 x 92 mm.

From €359.00 *

Details

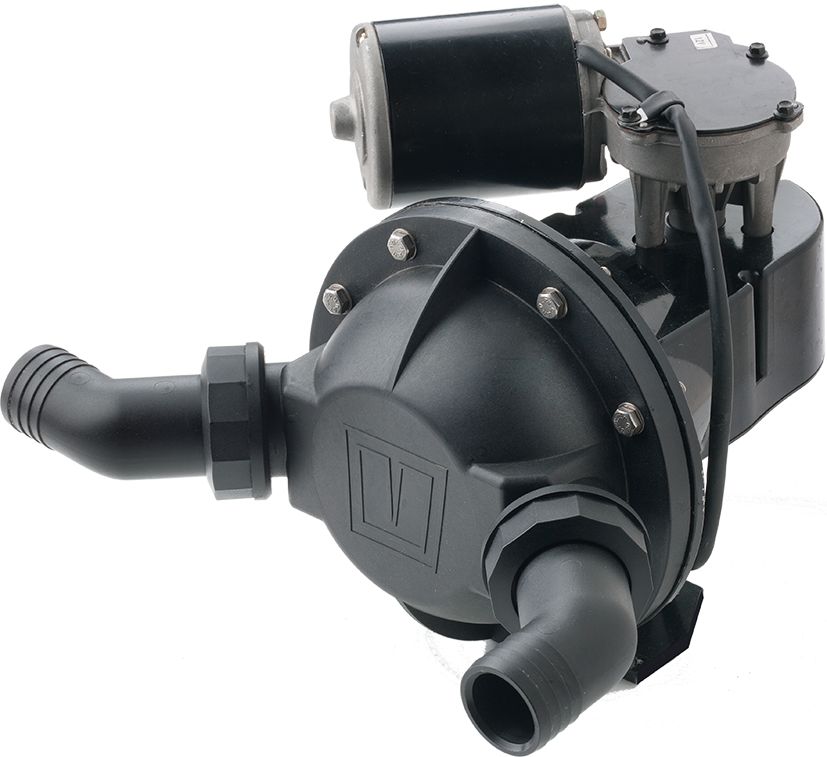

Electric diaphragm pump

The self priming membrane type pump is especially suitable for pumping polluted liquids, such as toilet waste, bilge water.The robust pump casing is wholly made from plastic and is equipped with rotatable connectors with sleeves, which can easily be demounted. These contain tube valves.This construction guaranties a very flexible mounting, little danger of blockage and simple cleaning of the pump.The strong electric motor is capable of continuous operation. Pump capacity: 27 l/min Maximum suction height:: 3 m Maximum delivery height: 5 m Housing material: plastic, black Membrane material: neoprene rubber Valve material: natural rubber Current draw for 12 V DC 8 AMP Current draw for 24 V DC 5 AMP Hose fittings for 38 mm Weight: 3,7 kg Mesurements: 300 x 320 x 220 mm

From €449.00 *

Details

RHEINSTROM diaphragm pump M50E

Very powerful, self-priming electrical diaphragm pump with reliable industrial motor.This Rheinstrom diaphragm pump has been found to be very reliable over many years. It can be used as a bilge pump, a grey water pump and a delivery pump.Constant delivery rate, high safety against clogging, very good cleaning possibilities.Made of hard-wearing materials, the body is made of seawater-proof cast bronze.Fast and easy cleaning and maintenance and direct access to the valves are obtained by simply opening the lid of the pump. The discharge and suction side may be altered.Technical dataPump performance: 40 l/minDelivery head: 10 mSuction height: 3,5 mConnection: 38 mm hose connectionMotor: 110 WWeight: 9,5 kgA repair kit is available.

From €990.00 *

Details

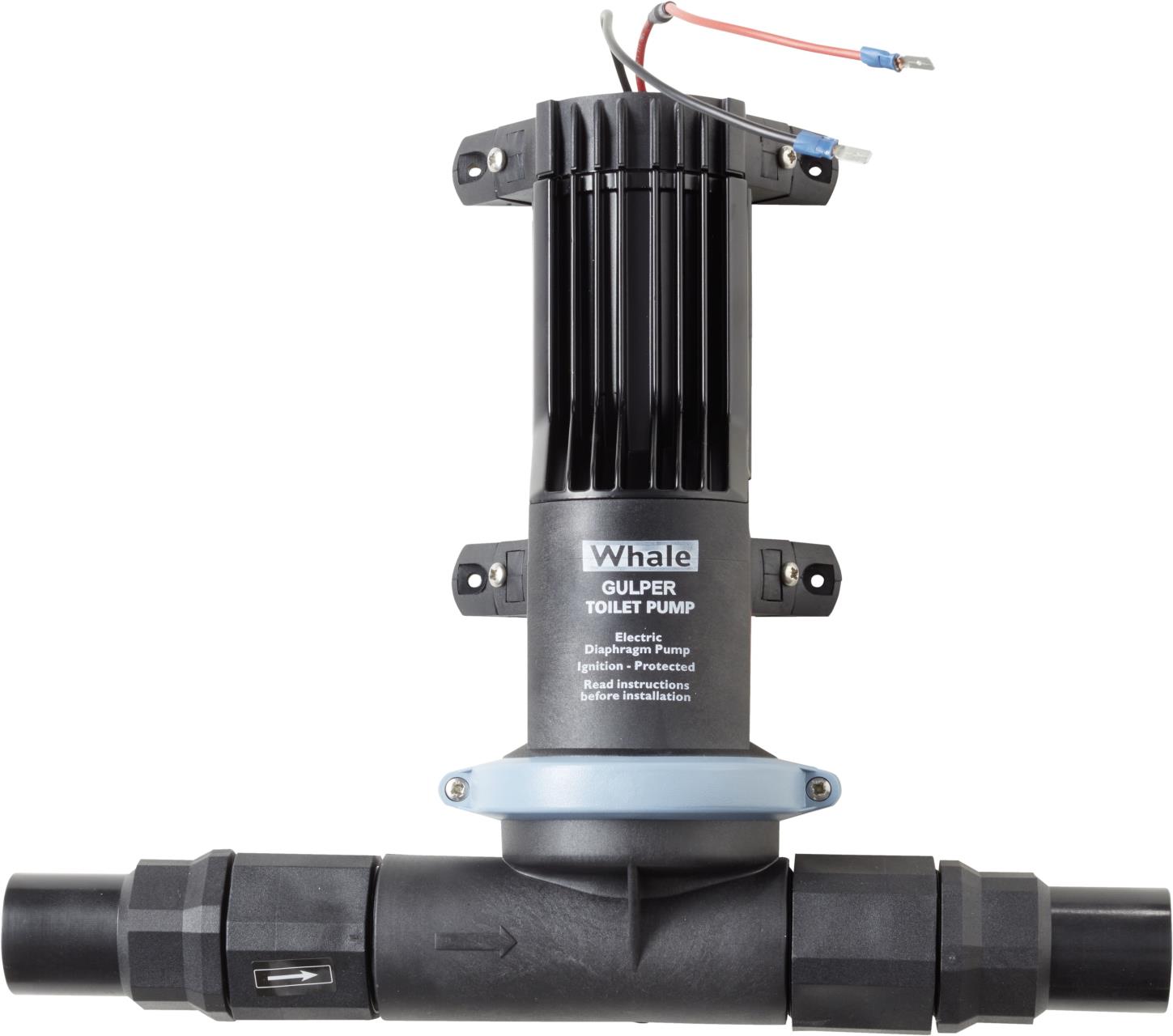

Waste pump WHALE GULPER

Membrane pump for emptying holding tanks.^ Protected against dry-running, self-priming to 3 m, discharge height max. 4 m. Low power draw; 2.5 A (at 12 V)Inlet hose attachments on both sides 38 mm. Dimensions: 340 x 300 x 120 mm. Weight 2.2 kg.

From €499.00 *

Details

Fresh and waste water tank

Sturdy tanks made of thick-walled PE plastic (polyethylene), which prevents unpleasant odors from penetrating. Suitable for faeces and waste water. Dark blue color.Rectangular shape Tank top with screw-on inspection cover (opening diameter of 105mm) and a 3/8" internal thread for connecting the tank ventilationNumerous blind spigots with internal thread that can be used individually depending on the installation situation and are intended for connecting the filling and drain lines: - 4 blind spigots 1½" internal thread, 2 on each end face - 4 blind spigots ¾" internal thread, 2 on each end faceThe selected spigot can be easily drilled out for connection.

From €89.00 *

Details
