Waste hose SPECIAL

Art. No.	D (mm)	wall thickness (mm)	Gewicht (kg/m)	Price (metre)	Delivery time	Note list	Buy

Description

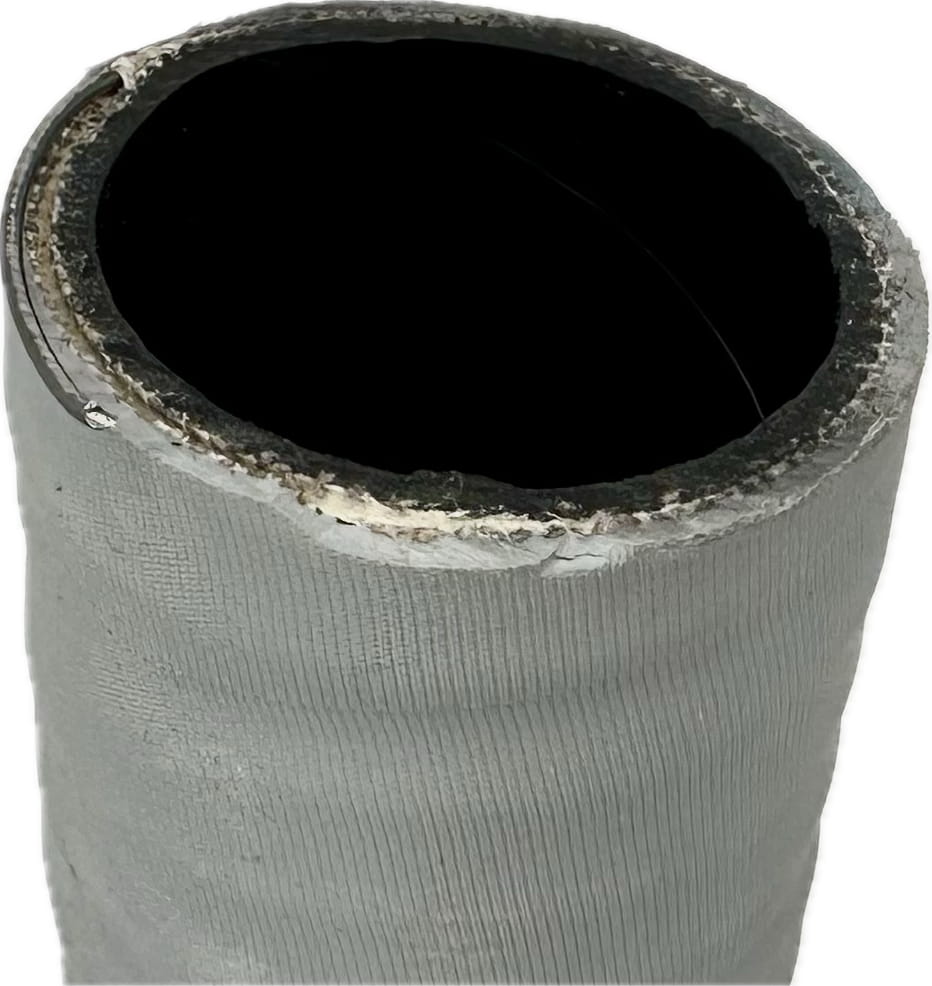

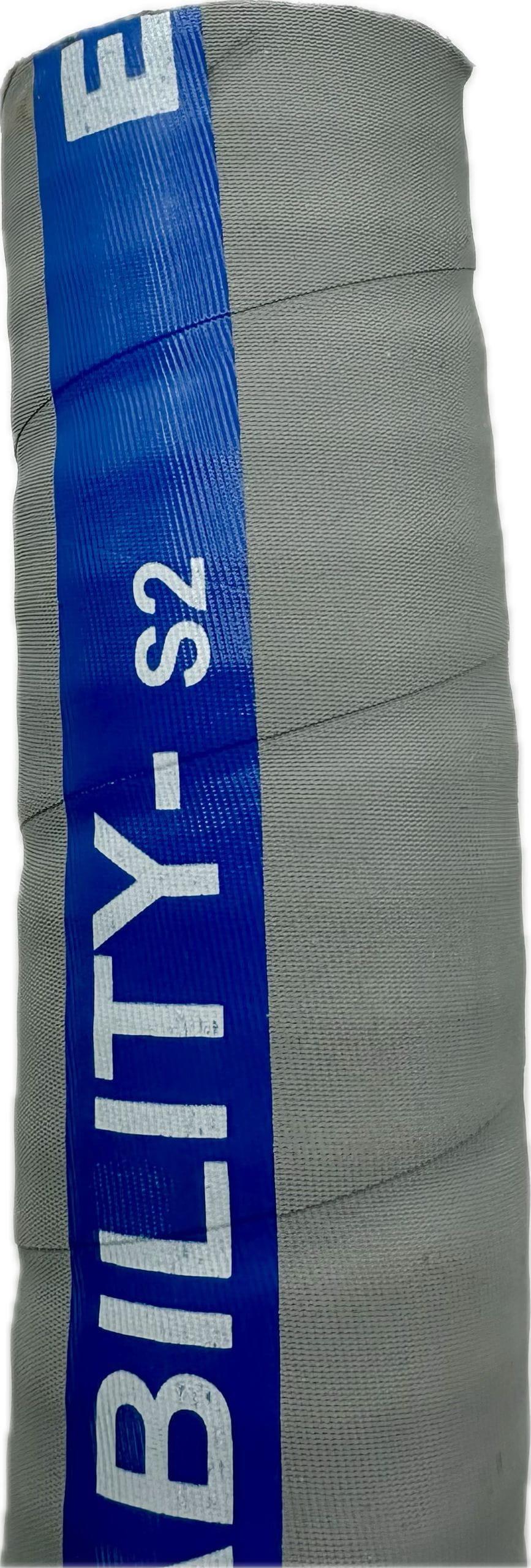

High-quality, completely odour-proof sewage hose made from multiple layers. Light grey EPDM rubber on the outside, butyl rubber on the inside. Reinforced with tear-resistant fabric and a metal spiral for stability. The hose is designed for a working pressure of 5 bar and is temperature-resistant from -40°C to +120°C.

Questions about the product?

Talk to craftsmen, boat builders and sailors. We understand your questions and provide the right answers.

Contact experts

Hose clamps stainless steel A2

Solid stainless steel design - all pieces completely stainless.With hexagonal bolts for high torque, high tear resistance and elasticity.

From €1.50 *

Details

1922*03 Schlauchschelle HEAVY DUTY Edelstahl - Bild 1

T-bolt clamp

Heavy, wide hose clamps, made entirely of A2-stainless steel.Hexagonal bolt for easy mounting in hard-to-reach corners. Due to the width particularly well suited for hose mounting on board.Type: HEAVY DUTY.

From €5.90 *

Details

Waste hose

Thick-walled, white waste-water hose of PVC with integrated metal spiral.Formulated for exceptional odor containment, made in Germany, flexible, does not kink. The surface is smooth and easy to keep clean.Temperature range -5 to +60°C, operating pressure 6 bar. The 16 mm and 19 mm diameters are specifically designed as vent hoses.

From €6.40 *

Details

6990*01 Schwanenhals-Schnüffelventil TRUDESIGN - Bild 1

Vented loop GRP TRUDESIGN

A very robust 160° vented loop elbow made from GRP with an inserted lip valve and fastening brackets for bulkhead mounting.The pipe, that is to be vented, is led above the water line and is fitted with a vent loop at the apex, thereby effectively preventing the siphon effect at toilets and pump installations and stopping the water from flowing back. TRUDESIGN is the world leader in fittings made from composite materials. From its founding in 1974 the fittings are manufactured in New Zealand. Every TRUDESIGN part is made from high tensile composite GRP, a glass fibre reinforced Polyamide (6). The advantages are a high rigidity, temperature-resistance -40° to 80° C, resistant to oil and chemicals, of low weight, absolutely corrosion-resistant, electrically non-conductive and therefore especially suited for ship building materials which are galvanically sensitive like aluminium and steel.Every TRUDESIGN fitting has a tapered Whitworth pipe thread BSP (British Standard Pipe Thread) according to ISO 228-1, it is therefore fully convertible with fittings from brass, bronze or stainless steel. The shuttle valves and through hulls are approved and IMCI certificated after ISO 9093-2 (sea cocks and through hulls for pleasure vessels).

From €14.95 *

Details

4629-015 VETUS Geruschsfilter NSF16S, klein

VETUS NSF16S No-Smell Filter small for Waste Water

Each waste water tank requires an air breather line, through which unpleasant odours may escape. This can be prevented by installing a VETUS no-smell filter into the breather line.The filter is made of plastic and can be mounted on the wall. The hose connections are located on the bottom side. The NSF16S model is suitable for a 16 mm diameter vent hose.The odor-neutral filter element contains a special odor-absorbing material. The filter element is replaceable and should be renewed once a year.

€109.90 *

Details

4657*04 Aktivkohle-Geruchsfilter TRUDESIGN

Active carbon filter TRUDESIGN

For the installation in the ventilation pipe of the black water tank.A Carbon Filter is a useful addition to a holding tank vent pipe to reduce the odour of sewage.The activated carbon in the filter absorbs and converts the odours from your holding tank.Dual tail setup to fit 19 mm and 25 mm hose.Shipping with 2 mounting brackets.

€57.00 *

Details

Diverter valve WHALE

Very sturdy plastic T-valve from the manufacturer WHALE. Intented for blackwater, waste water and bilge water systems. (Bilge pump distribution, tank switching, etc.)Possible lever positions:- left outlet open- right outlet open- both outlets closedAvailable for 25 mm or 38 mm hose connection.

From €119.90 *

Details

4659*01 Fäkalien-/ Schmutzwassertank rechteckig - Bild 1

Fresh and waste water tank

Sturdy tanks made of thick-walled PE plastic (polyethylene), which prevents unpleasant odors from penetrating. Suitable for faeces and waste water. Dark blue color.Rectangular shape Tank top with screw-on inspection cover (opening diameter of 105mm) and a 3/8" internal thread for connecting the tank ventilationNumerous blind spigots with internal thread that can be used individually depending on the installation situation and are intended for connecting the filling and drain lines: - 4 blind spigots 1½" internal thread, 2 on each end face - 4 blind spigots ¾" internal thread, 2 on each end faceThe selected spigot can be easily drilled out for connection.

From €89.00 *

Details
