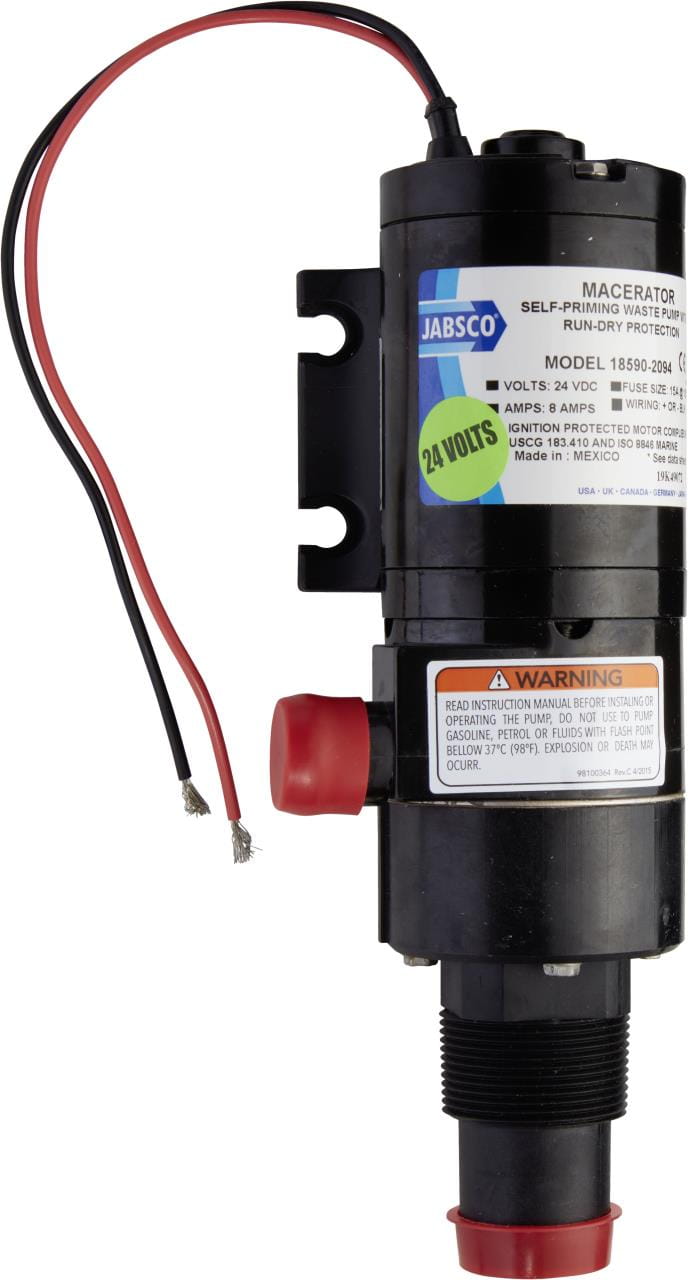

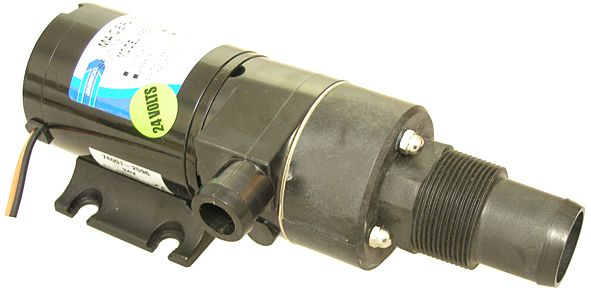

Macerator pump JABSCO

4635*01 Fäkalienpumpe JABSCO

4635*01 Fäkalienpumpe JABSCO

4635*01 Fäkalienpumpe JABSCO

4635*01 Fäkalienpumpe JABSCO

Macerator pump JABSCO

from €359.00*

€359.00*

Prices incl. VAT plus shipping costs

Available, delivery time: 6-10 Tage

In stock

model

MACERATOR 18590

voltage (V)

24

12

current (A)

8

16

output

45 l/min

Stk

The perfect solution, for example, for emptying a waste water tank.
Dry self-priming impeller pump with nitrile impeller and built-in stainless steel cutting wheel as chopper.
Suction lift to 1.2 m, pump power max. 2700 l/h.
Special feature: The pump works with a patented dry-running protection: when it runs dry, it immediately switches off, thereby hindering damage to the impeller.
New activation of the pump through switching it off and on.
Attachments:
Inlet-1-1/2" (38 mm) Hose Barb and1-1/2" N.P.T. (Male).
Outlet-1" (25 mm) Hose Barb.
Dimensions: 286 x 106 x 92 mm.

more information

Show 2 articles

📖 View article in the TOPLICHT catalogue

Art. No.	model	voltage (V)	current (A)	output	Price (unit)	Delivery time	Note list	Buy
4635-012	MACERATOR 18590	12	16	45 l/min	€359.00* net: €301.68	In stock The item is in stock ready for shipping. The delivery time is approx. 1 to 3 working days.
4635-024	MACERATOR 18590	24	8	45 l/min	€399.00* net: €335.29	In stock The item is in stock ready for shipping. The delivery time is approx. 1 to 3 working days.

Showing 1 to 2 of 2 products

Downloads

The perfect solution, for example, for emptying a waste water tank.
Dry self-priming impeller pump with nitrile impeller and built-in stainless steel cutting wheel as chopper.
Suction lift to 1.2 m, pump power max. 2700 l/h.
Special feature: The pump works with a patented dry-running protection: when it runs dry, it immediately switches off, thereby hindering damage to the impeller.
New activation of the pump through switching it off and on.
Attachments:
Inlet-1-1/2" (38 mm) Hose Barb and1-1/2" N.P.T. (Male).
Outlet-1" (25 mm) Hose Barb.
Dimensions: 286 x 106 x 92 mm.

Description

The perfect solution, for example, for emptying a waste water tank.
Dry self-priming impeller pump with nitrile impeller and built-in stainless steel cutting wheel as chopper.
Suction lift to 1.2 m, pump power max. 2700 l/h.
Special feature: The pump works with a patented dry-running protection: when it runs dry, it immediately switches off, thereby hindering damage to the impeller.
New activation of the pump through switching it off and on.
Attachments:
Inlet-1-1/2" (38 mm) Hose Barb and1-1/2" N.P.T. (Male).
Outlet-1" (25 mm) Hose Barb.
Dimensions: 286 x 106 x 92 mm.
