Shore Power Cable Rubber CEE 230 Volt
A reliable shore power cable is required to take over shore power. It must be able to withstand the sometimes unfavourable conditions in harbours or marinas and be easy to lay out and fold up.
The 25 metre long 230 V shore power and extension cable is made of flexible, black rubber cable of the H07RN-F cable type.
The CEE plug and CEE coupling with hinged cover are IP44 splash-proof. The load capacity of the cable is 16 amps.
Technical features
- Very flexible and therefore also suitable for tight bending radii
- High elasticity and tough surface, which has proven itself well under medium mechanical stress
- Good resistance to oil, grease, petrol, seawater, chemicals
- Good UV and ozone resistance
- Can be used in a temperature range of approx. -25 °C to +60 °C
Compared to the more expensive PUR cable (see ´Similar products´), it has the following disadvantages.
- Lower abrasion resistance and therefore faster wear under rough conditions
- The abrasion may leave black streaks (on deck)
- A little bit heavier with the same cable length
- Faster ageing under prolonged UV exposure
€99.00*
€99.00
Prices incl. VAT plus shipping costs
| Art. No. | length (m) | Cable Type | Fibre (mm²) | Cable-Ø (mm) | Unit price | Delivery time | Note list | Buy |
|---|
Description
A reliable shore power cable is required to take over shore power. It must be able to withstand the sometimes unfavourable conditions in harbours or marinas and be easy to lay out and fold up.
The 25 metre long 230 V shore power and extension cable is made of flexible, black rubber cable of the H07RN-F cable type.
The CEE plug and CEE coupling with hinged cover are IP44 splash-proof. The load capacity of the cable is 16 amps.
Technical features
- Very flexible and therefore also suitable for tight bending radii
- High elasticity and tough surface, which has proven itself well under medium mechanical stress
- Good resistance to oil, grease, petrol, seawater, chemicals
- Good UV and ozone resistance
- Can be used in a temperature range of approx. -25 °C to +60 °C
Compared to the more expensive PUR cable (see ´Similar products´), it has the following disadvantages.
- Lower abrasion resistance and therefore faster wear under rough conditions
- The abrasion may leave black streaks (on deck)
- A little bit heavier with the same cable length
- Faster ageing under prolonged UV exposure
A reliable shore power cable is required to take over shore power. It must be able to withstand the sometimes unfavourable conditions in harbours or marinas and be easy to lay out and fold up. A clearly visible colour reduces the risk of overlooking the cable and tripping over it.The 230 V shore power cable is made of yellow PUR (polyurethane) cable type H07BQ-F. This extremely robust cable type can withstand even the highest loads and is therefore also used in the construction industry, agriculture and in particularly harsh environments. The CEE plug and the CEE coupling with hinged cover are moulded onto the cable to make it watertight. The load capacity of the cable is 16 amps.Technical dataFlexible, but less suitable for tight bending radii than rubber-sheathed cable (see ´Similar products´)High elasticity, but stiffer than rubber cable and therefore somewhat more difficult to foldHighest abrasion resistance, cut and notch resistantVery good resistance to oil, grease, petrol, seawater, chemicalsExcellent weather resistance (UV radiation, ozone)Can be used in a temperature range of approx. -40 °C to +90 °C
A set of 6 practical plastic clips to fasten the shore power cable securely on board. Your power cable is fixed to the railing and the deck area remains free. Helps avoiding tripping hazards and possible slipping on the cable. Suitable for railing tubes and wire pull-throughs.
A reliable shore power cable is required to take over shore power. It must be able to withstand the sometimes unfavourable conditions in harbours or marinas and be easy to lay out and fold up. A clearly visible colour reduces the risk of overlooking the cable and tripping over it.The 230 V shore power cable is made of yellow PUR (polyurethane) cable type H07BQ-F. This extremely robust cable type can withstand even the highest loads and is therefore also used in the construction industry, agriculture and in particularly harsh environments. The CEE plug and the CEE coupling with hinged cover are moulded onto the cable to make it watertight. The load capacity of the cable is 16 amps.Technical dataFlexible, but less suitable for tight bending radii than rubber-sheathed cable (see ´Similar products´)High elasticity, but stiffer than rubber cable and therefore somewhat more difficult to foldHighest abrasion resistance, cut and notch resistantVery good resistance to oil, grease, petrol, seawater, chemicalsExcellent weather resistance (UV radiation, ozone)Can be used in a temperature range of approx. -40 °C to +90 °C
A set of 6 practical plastic clips to fasten the shore power cable securely on board. Your power cable is fixed to the railing and the deck area remains free. Helps avoiding tripping hazards and possible slipping on the cable. Suitable for railing tubes and wire pull-throughs.

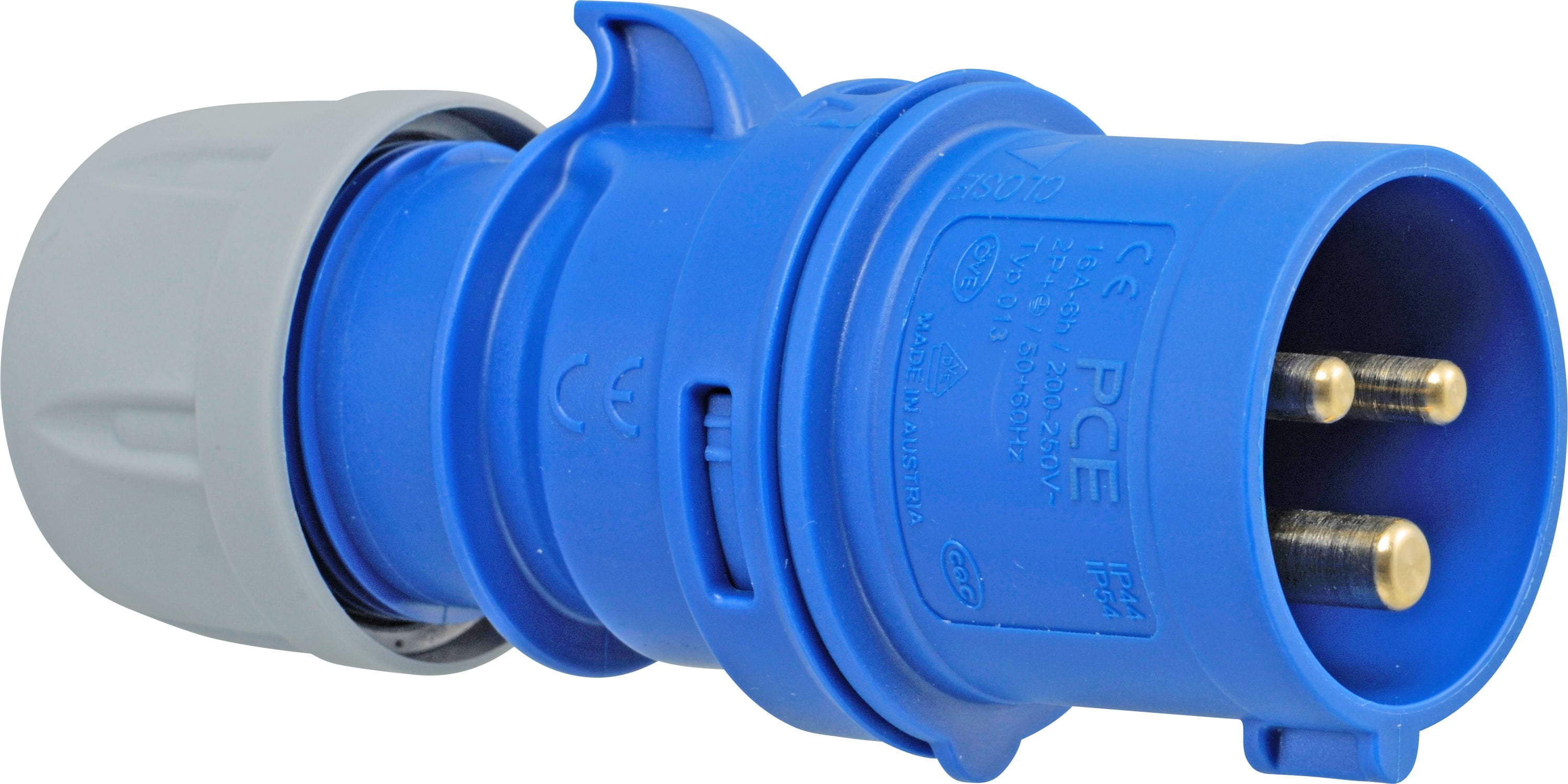

CEE plug 230 V - 16A - 3 pole,IP44 splash water proofed For wiring and inspection, the housing can be easily opened by twisting it. Just use a screwdriver to press and release a small catch.Cable ends have to be fixed in screw terminals.

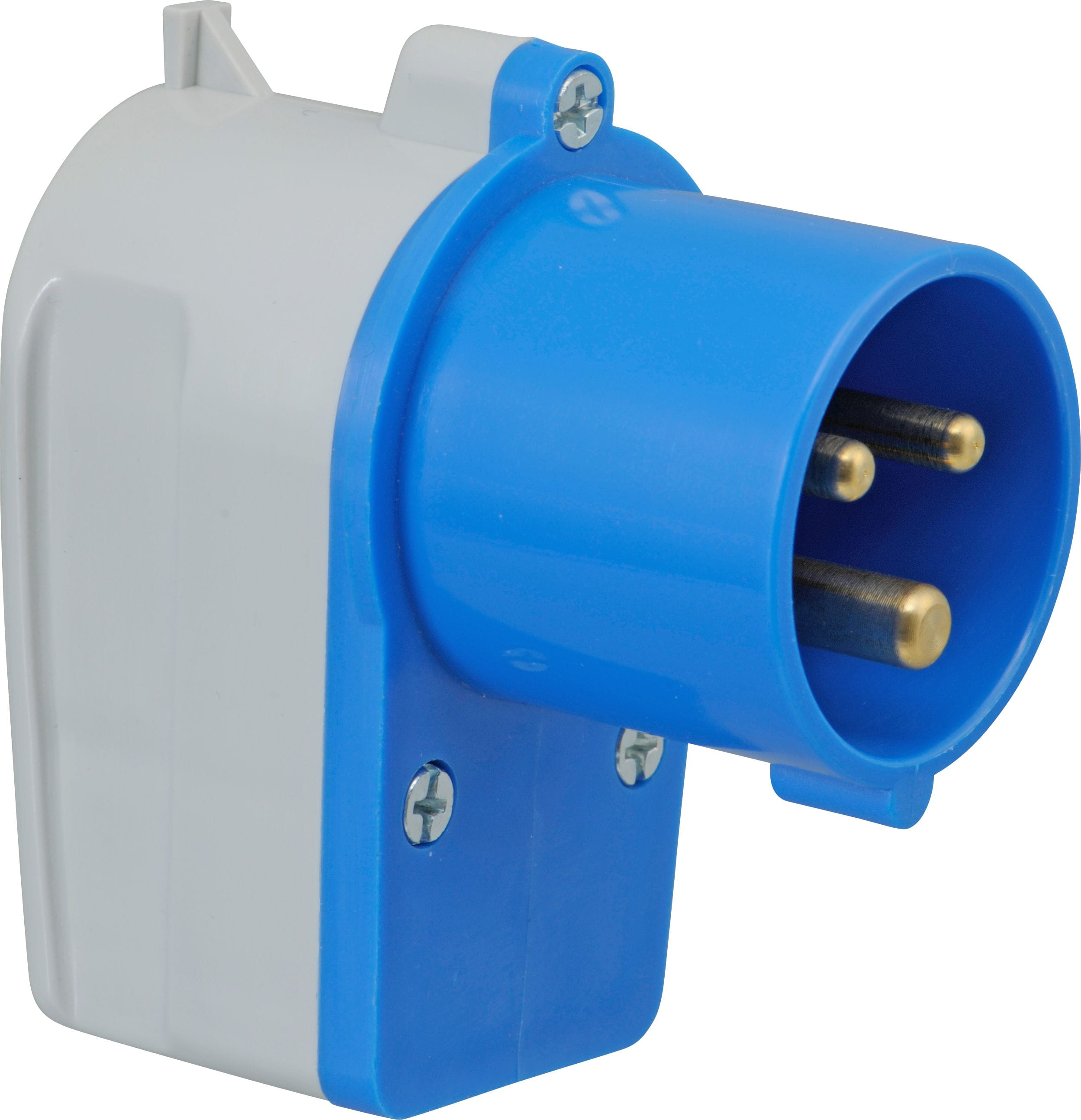

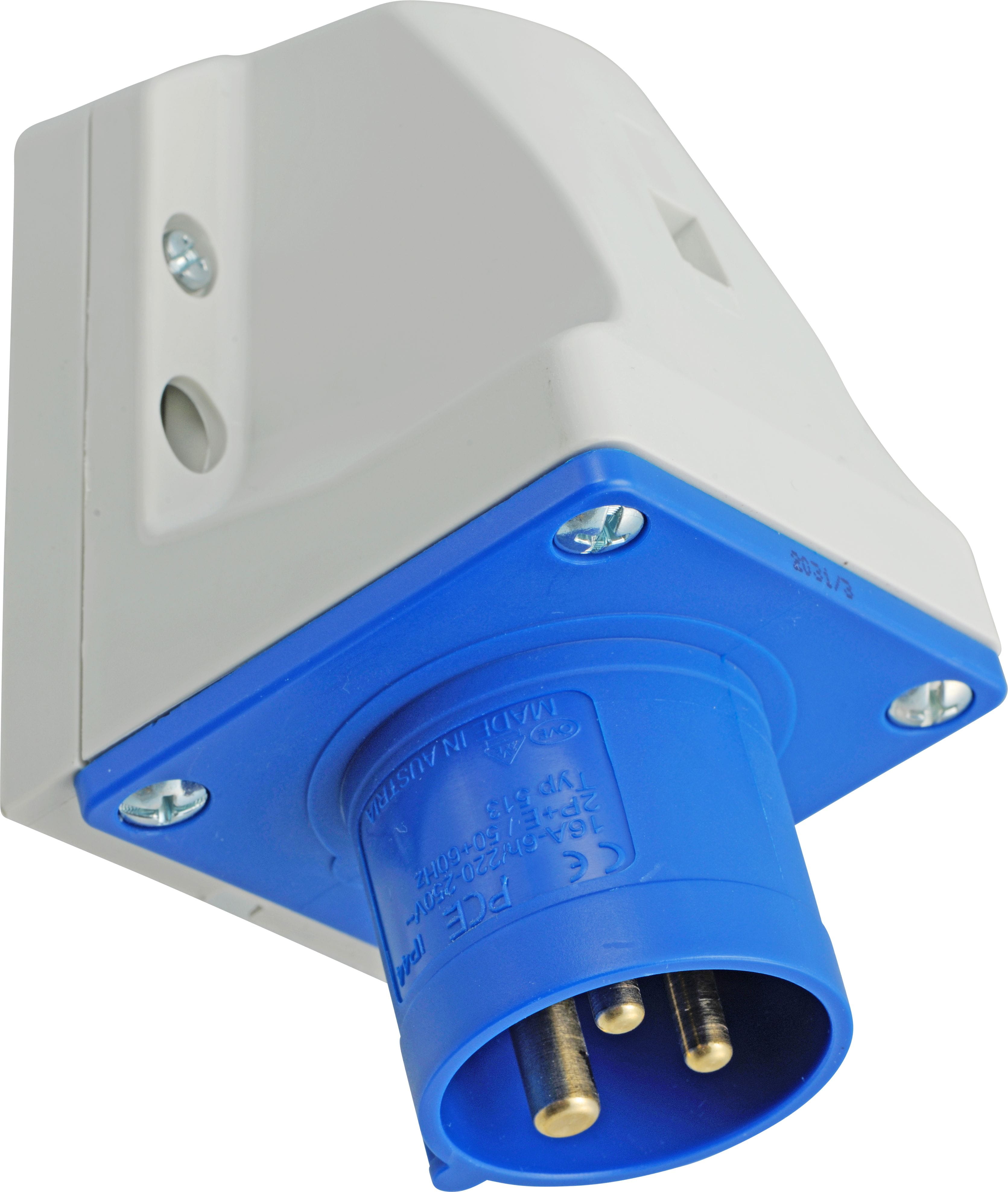

Build-up plug for shore power with three Europe plug pins CEE/16A
The shore power 230 volt CEE waterproof built on plug (protection class IP 67) is designed for installation on deck or at the stern of boats. Well suited for shore power supply. Designed for 16 amps, 3-pole.Suitable sockets as well as sealing cap are connected waterproof and secured against slipping out by means of a bayonet connector. You also can plug in and use standard CEE couplings, but they cannot be locked with the bayonet ring.The housing of the CEE surface-mounted plug is made of polyamide, contacts are made of nickel-plated brass. Including a rubber flange gasket (84x74mm).
High-quality, waterproof CEE socket suitable for shore connection CEE surface-mounted plug (item no. 4671-053), 230 Volt, 16 Ampére, 3 poles, IP67 rating.The shore power socket consists of a one-piece housing with bayonet fitting and robust hinged cap with internal sealing ring. The hinged cap has a bayonet lock. The coupling socket can be closed watertight by turning it. Standard 230V CEE plugs can be inserted into the socket without any problems. However, a waterproof connection is not given in this case.

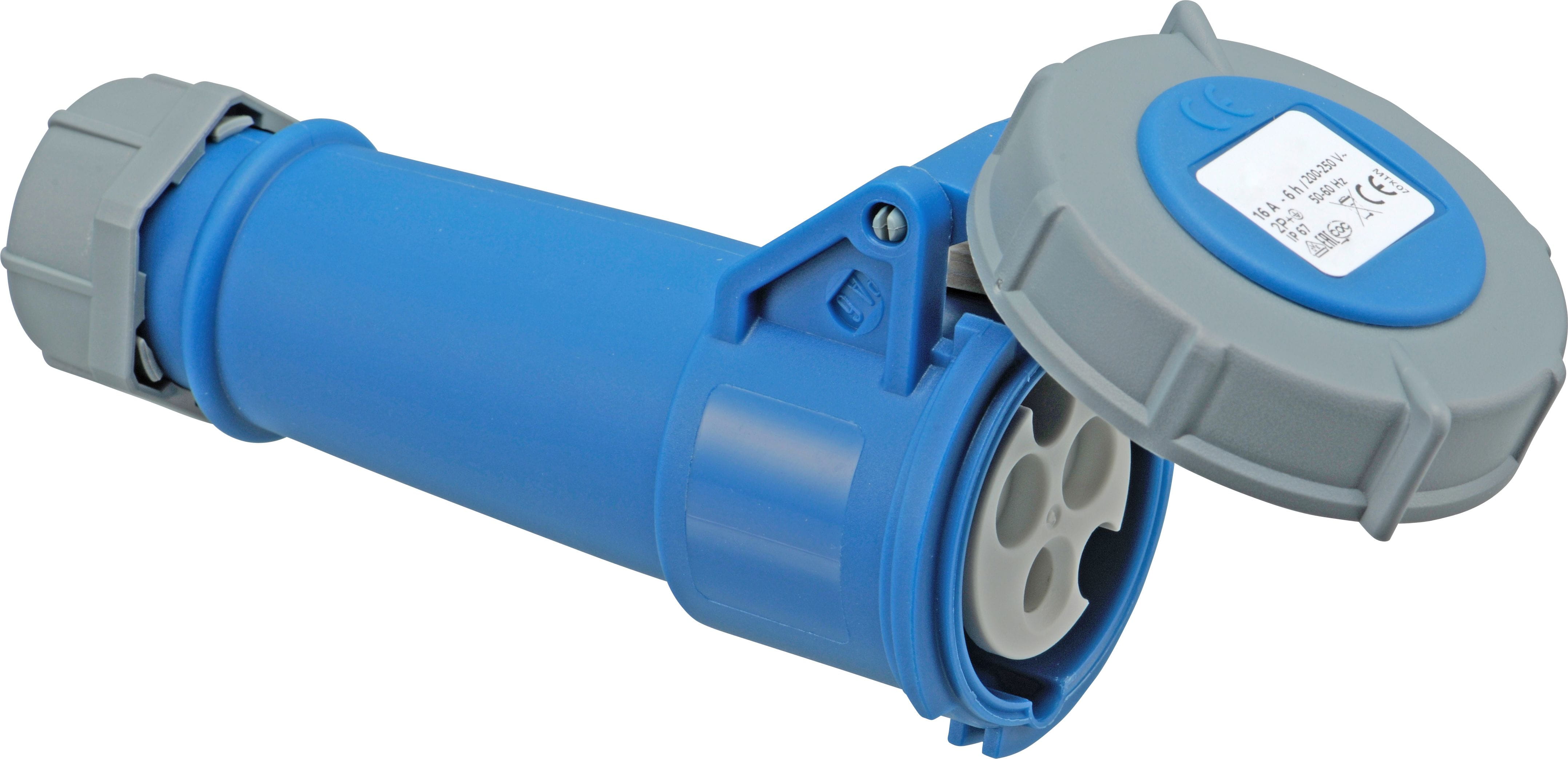

CEE socket 230 volt, 16 ampere, 3 poles, IP44 splash water proofed.For wiring and inspection, the housing can be easily opened by twisting it. Just use a screwdriver to press and release a small catch.Cable ends have to be fixed in screw terminals.
CEE angle socket 230 volt, 16 Ampere, 3 poles, IP44 splash water proofed, length 80 mm.A responsibly made shore power connection requires a clean and safe cable run. If a standard CEE plug is too long due to the installation situation of the socket or the cable has to be routed in too narrow bending radii, a CEE angle plug with cable sleeve protection can be helpful. In this case, the plug can be inserted more easily and the cable will not be damaged by kinking.
A set of 6 practical plastic clips to fasten the shore power cable securely on board. Your power cable is fixed to the railing and the deck area remains free. Helps avoiding tripping hazards and possible slipping on the cable. Suitable for railing tubes and wire pull-throughs.
A compact CEE splitter that you can triumphantly pull out when there are not enough power sockets in the harbor or on the boat. CEE plug and 2 CEE Sockets with hinged lid, 230 V/16 A (IP44).
1.5 metre 230 volt adapter cable for taking over shore power. The cable is IP44 splash-proof and can be used with up to 16 ampere. There is a CEE plug on the input side and a practical CEE connector with integrated SCHUKO socket on the output side.
230 volt adapter cable for taking over shore power. The 0.5 m adapter cable is IP44 splash-proof, 3-pole and can carry up to 16A. It carries a CEE plug on the input side and a NEMA L6 socket with locking ring and protective cap on the output side. The NEMA socket also features a LED power indicator. The moulded connectors are not dismountable.NEMA connectors are a series of different types of connectors named after the National Electrical Manufacturers Association. They are mainly used in America, and in some parts of Asia. The number of contacts and the pin assignment are primarily designed for the single-phase three-wire network that is common in these regions. Individual plugs of the standard are available in a version with a rotatable locking device housed in the socket, which is identified by the letter L. The purpose of the locking device is to prevent the plug from being pulled or from accidentally slipping out of the socket.
230 volt adapter cable for taking over shore power. The cable is IP44 splash-proof and can be used with up to 16 ampere. Each with Schuko socket and CEE plug with lid on one side.
0.4 metre 230 volt adapter cable for taking over shore power. The cable is IP44 splash-proof and can be used with up to 16 ampere. Each with Schuko plug and CEE socket with hinged lid on one side.
The portable 230 volt, 16 ampere shore power distributor with CEE input and 1.5 metre cable supply is a useful addition to boat equipment when only a few sockets are available at the marina or in winter storage.On the output side, the compact and lightweight power distributor offers two 230 volt CEE couplings and a 230 volt earthed socket.The mobile, IP44 splash-proof shore power distribution box can be used lying on the floor or hung up using the wall suspension on the back.
A reliable shore power cable is required to take over shore power. It must be able to withstand the sometimes unfavourable conditions in harbours or marinas and be easy to lay out and fold up. A clearly visible colour reduces the risk of overlooking the cable and tripping over it.The 230 V shore power cable is made of yellow PUR (polyurethane) cable type H07BQ-F. This extremely robust cable type can withstand even the highest loads and is therefore also used in the construction industry, agriculture and in particularly harsh environments. The CEE plug and the CEE coupling with hinged cover are moulded onto the cable to make it watertight. The load capacity of the cable is 16 amps.Technical dataFlexible, but less suitable for tight bending radii than rubber-sheathed cable (see ´Similar products´)High elasticity, but stiffer than rubber cable and therefore somewhat more difficult to foldHighest abrasion resistance, cut and notch resistantVery good resistance to oil, grease, petrol, seawater, chemicalsExcellent weather resistance (UV radiation, ozone)Can be used in a temperature range of approx. -40 °C to +90 °C
A reliable shore power cable is required to take over shore power. It must be able to withstand the sometimes unfavourable conditions in harbours or marinas and be easy to lay out and fold up.The 25 metre long 230 V shore power and extension cable is made of flexible, black rubber cable of the H07RN-F cable type.The CEE plug and CEE coupling with hinged cover are IP44 splash-proof. The load capacity of the cable is 16 amps.Technical featuresVery flexible and therefore also suitable for tight bending radiiHigh elasticity and tough surface, which has proven itself well under medium mechanical stressGood resistance to oil, grease, petrol, seawater, chemicalsGood UV and ozone resistanceCan be used in a temperature range of approx. -25 °C to +60 °CCompared to the more expensive PUR cable (see ´Similar products´), it has the following disadvantages.Lower abrasion resistance and therefore faster wear under rough conditionsThe abrasion may leave black streaks (on deck)A little bit heavier with the same cable lengthFaster ageing under prolonged UV exposure

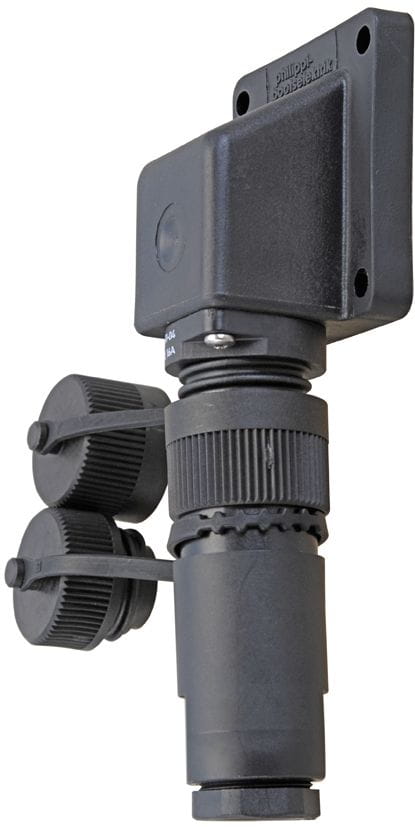

Complete 220 volt shore connection set, of unbreakable blackplastic.Very compact design. Waterproof per IP 66, with GL approval.Nickel plated contacts, intended for attachment cords up to 2.5 mm.sq.Maximum current 16A. The complete set consists of: angeled body,socket connector and protection cap,flange socket with protection cap.Inox protection bracket is available.Spare connectors may be ordered separately.

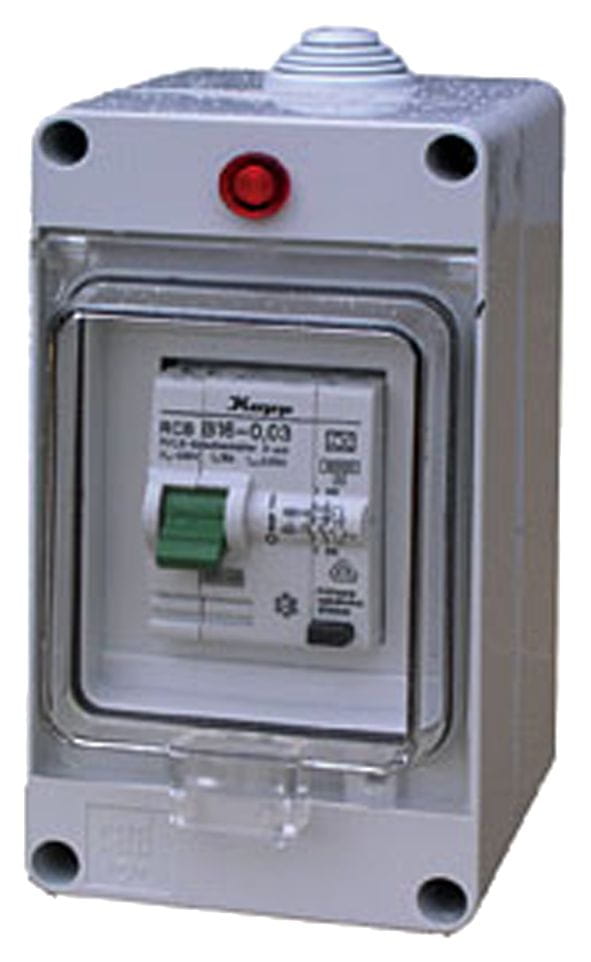

Shore power unit for secure power acquisition 30V/50Hz, pursuant to EN ISO 13297.Compact 2-pole FI/LS circuit breaker combination, with test button for power-failure simulation.Features:A pilot light shows the condition of the connection,Inner connection directly to the clamps of the FI/LS circuit breaker,Cord entrance with a twisting sleeve,Watertight plastic housing with folding cover, protection class IP 65,FI/LS-circuit breaker: 16 A / 0.03 A 2-pole,Dimensions: (W x H x D) 74 x 140 x 97 mm.
Sturdy coupling socket for the CEE shore connection in the cockpit 16 A, max 230 V. Is plugged onto the connection installed in the cockpit with a bayonet lock cover. Additional rubber seal to protect the plug in the back box from moisture when not connected. Waterproof to IP 44.
The stainless steel shore power connection from Ratio for the cockpit offers a safe, IP 56 waterproof 16 A power supply on your boat. The cover with rubber seal and bayonet lock provides optimum protection against corrosion of the connections. Ideally combined with the matching plug from Ratio (see accessories).Complies with ISO standard 13297 and guarantees reliability and safety when connecting to shore power. The bayonet lock guarantees a secure connection. Up to 230 V and 16 A. The scope of delivery includes stainless steel screws and a rubber gasket for installation in the locker or side wall.
