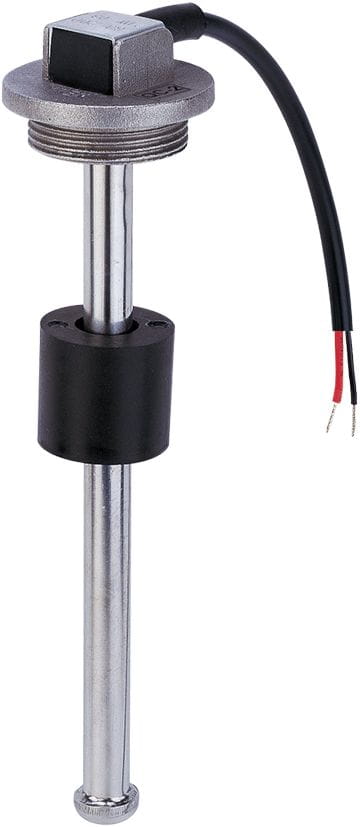

Very reliable tank sensors for water and fuels.
Measurement of the fill level is carried out contact less with the help of a swimmer with a ring magnet on reed contacts. The electronics are sealed and therefore absolutely unsusceptible.
Mounting is done with a 1 1/4" BSP thread and fitting adapters. Hence the sensors are simple to dismount and clean.

Additional lengths of up to 1200mm are available upon request.

Similar products

Adaptors for WEMA tank sensors
Accessories for the WEMA tank sensors for fuels and water and grey and black waters.The adaptors provide a 1 1/4" BSP thread which fits WEMA tank sensors.3470-100: Adaptor with 1 1/1" threads for the sensor, with 6 screws and threaded counterplate. Allows installation of the sensor in every plastic or steel tank. With gasket.3470-101: Flange with 1 1/4" threads, can be welded to a steel tank. Made from V4A inox steel.3470-102: Plasic adaptor which may be used if a VDO sensor (with flange SAE 5-hole 54mm) is to be replaced by WEMA sensor. 1 1/4" threads, 5-screw fixation as VDO sensors have. With gasket.3470-104: Counterplate with 5 threads for 3470-102. Can be used if the holes (for flange SAE 5-hole 54mm) in the tank are not threaded.

From €9.80 *
Inspection port for S3 tank sensors by WEMA
A robust flange assembly made from plastic with an integrated thread (1 1/4" BSP) for mounting a WEMA indicator.Simple fitting because of the cleverly devised construction: only a hole of 115 to 120mm has to be drilled.The central mounting bolt, a guiding pin and the O ring enable a quick opening, whereby the flange can also be used as an inspection cover.For installation you need not cutting precise holes or threads.

€36.90 *
