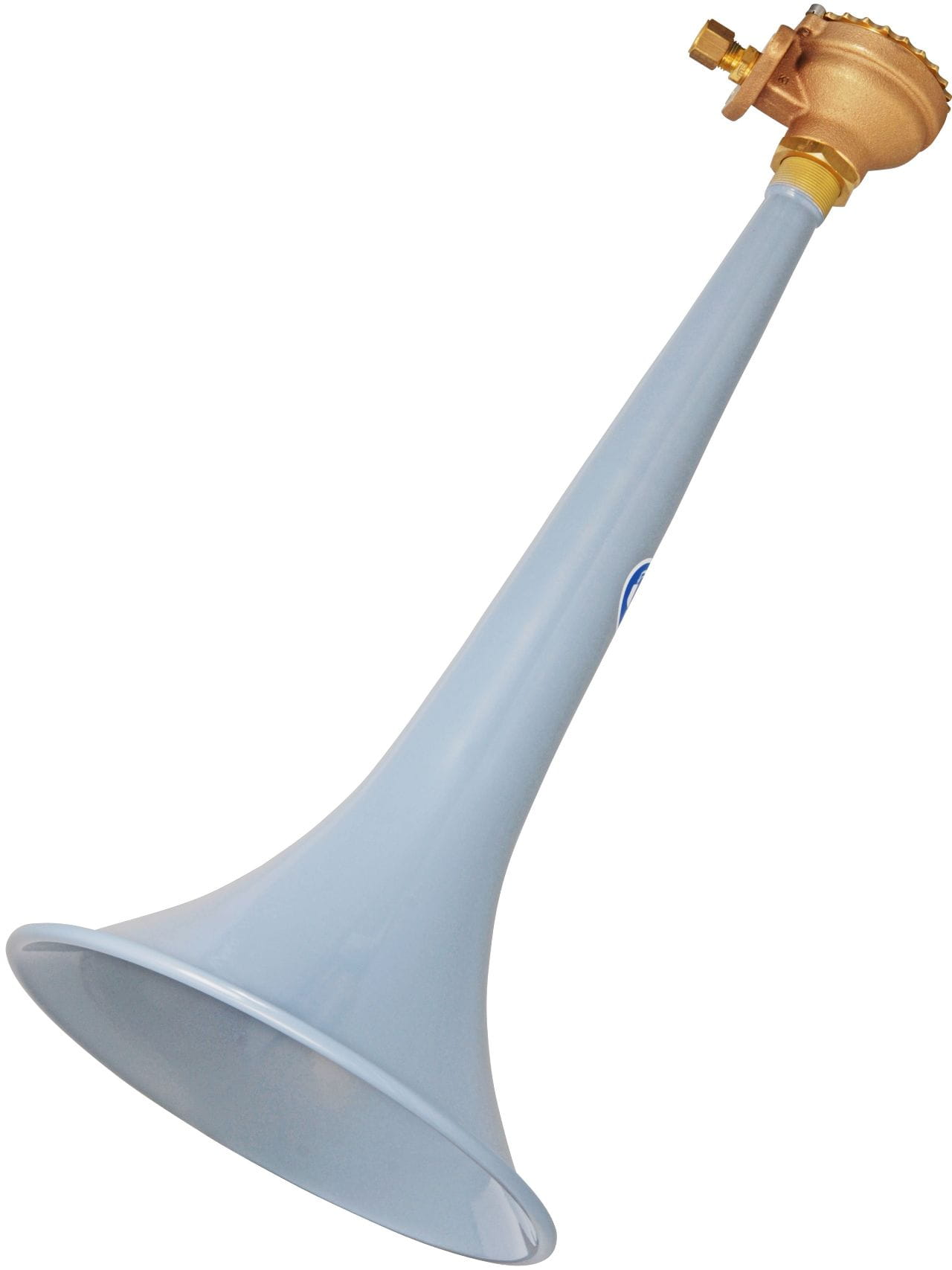

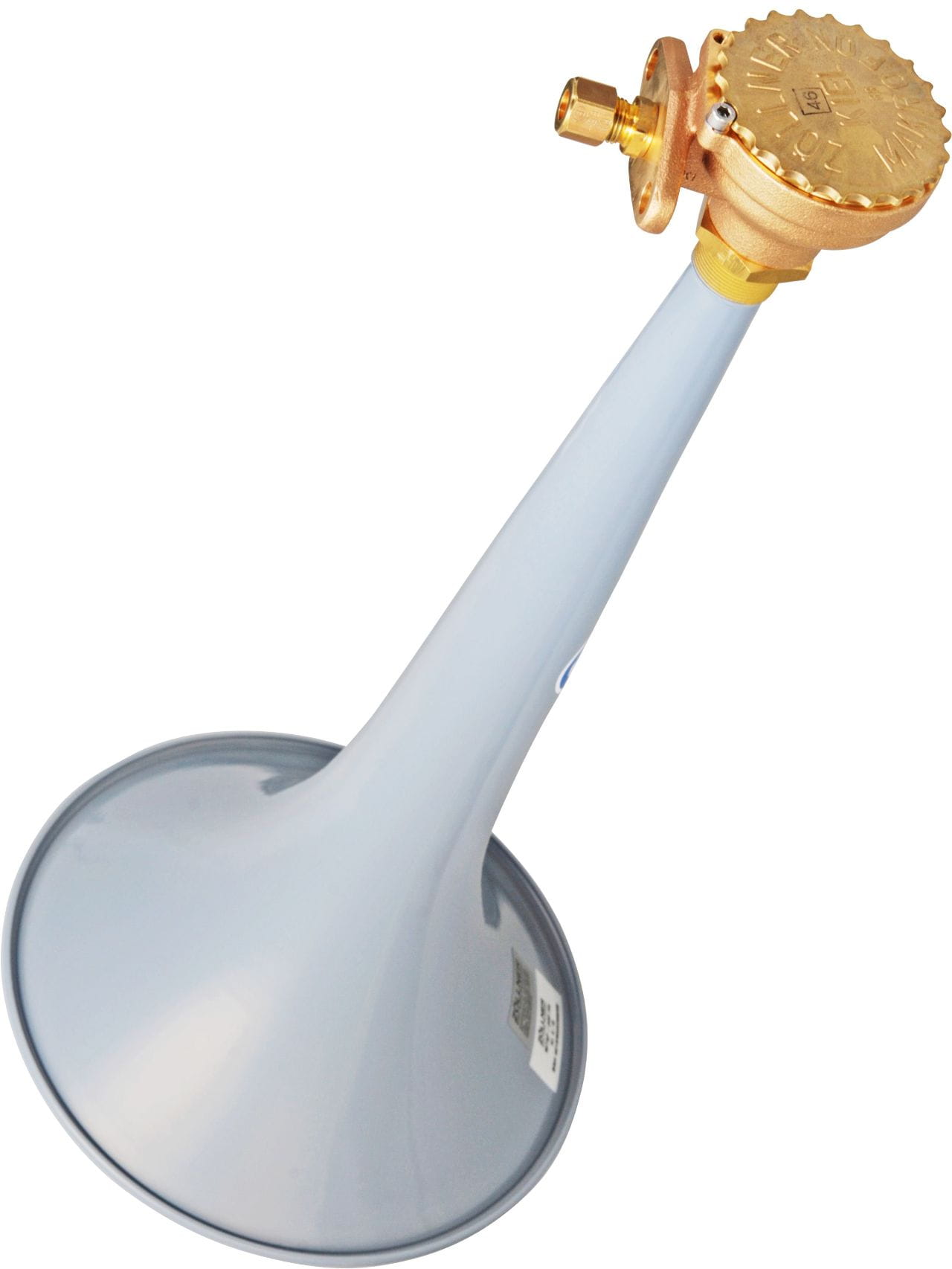

3425-010 MAKROFON M75F/260 mit Kupferschalltrichter grau lackiert
3425-010 MAKROFON M75F/260 mit Kupferschalltrichter grau lackiert
3425-010 MAKROFON M75F/260 mit Kupferschalltrichter grau lackiert

The MAKROFON M75F/260 HVEF is a compressed air sounder that generates sound via a diaphragm and damping plate. The signal (pleasant low tone) is triggered via an electromagnetic valve.

The diaphragm housing is made of copper, painted gray.

Technical features

  • For IMO Class II + III (ship length 20 to 200 m)
  • Frequency: 260 Hz
  • Sound pressure level 1 m: 138 dB
  • Compressed air: 4-10 bar
  • Air consumption: 8-12 l/sec
  • System voltage: 230 V AC or 115 V AC or 24 V DC
  • Protection class: DP 56
  • Dimensions L x D: 590 x 268 mm
  • Weight: 2.8 kg
more information

€1,190.00*

€1,190.00*

Prices incl. VAT plus shipping costs

version
model
IMO
Stk

Description

The MAKROFON M75F/260 HVEF is a compressed air sounder that generates sound via a diaphragm and damping plate. The signal (pleasant low tone) is triggered via an electromagnetic valve.

The diaphragm housing is made of copper, painted gray.

Technical features

  • For IMO Class II + III (ship length 20 to 200 m)
  • Frequency: 260 Hz
  • Sound pressure level 1 m: 138 dB
  • Compressed air: 4-10 bar
  • Air consumption: 8-12 l/sec
  • System voltage: 230 V AC or 115 V AC or 24 V DC
  • Protection class: DP 56
  • Dimensions L x D: 590 x 268 mm
  • Weight: 2.8 kg
