Description

Refillable 2 kg powder extinguisher for fires of fire classes A, B and C (13A 89B C). The fire extinguisher is particularly suitable for use in engine rooms or outdoors to extinguish burning liquids (fuels), gases or solids.

The container is deep-drawn from a single piece of aluminium, which guarantees maximum tightness (without weld seams). The outer polyester resin coating increases weather resistance and durability. Equipped with push handle / hand lever release. The shock-resistant pressure gauge has a non-return valve for pressure regulation and a sintered filter to protect sensitive parts.

The extinguishing agent used is ABC multi-purpose dry extinguishing powder plus additives in various granulometries, certified to EN 615. Can be used in the temperature range from -30 to +60 °C. The powder extinguisher has EN3, GS and CE approval and is supplied with a plastic wall bracket.

Technical data

  • Extinguishing capacity: 13A 89B C
  • Pressure type: Permanent
  • Filling quantity: 2 kg ±3%
  • Extinguishing agent: Powder ABC A33
  • Propellant: Nitrogen (N2) + helium (HE)
  • Covered power: 450 kW
  • Discharge time: approx. 11 seconds
  • Range: approx. 4 metres
  • Operating pressure: 11 bar at 60 °C / 9 bar at 20 °C / 6 bar at -30 °C
  • Height: 379 mm
  • Diameter: 108 mm
  • Total weight (filled): 2.7 kg
  • Pressure gauge: yes
  • Rechargeable bottle: yes

Questions about the product?
Talk to craftsmen, boat builders and sailors. We understand your questions and provide the right answers.
Contact experts

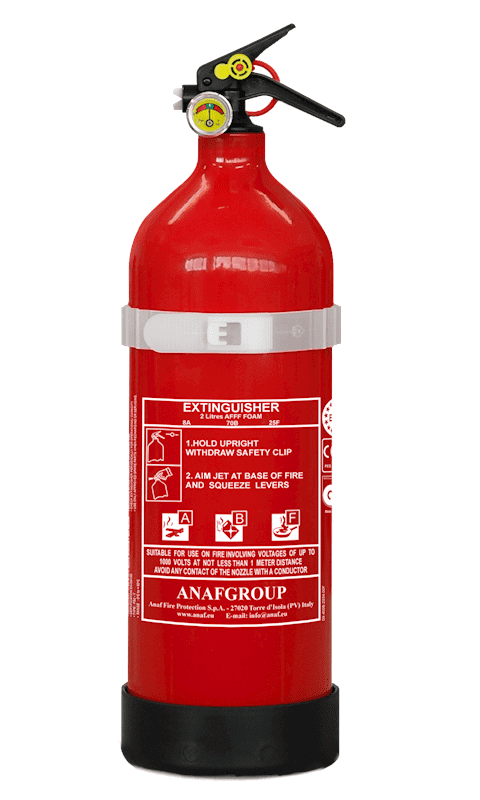

ANAF PS2-Y ABF foam fire extinguisher 2 kg with manometer
Refillable 2 kg foam extinguisher for fires of fire classes A, B and F (8A 70B 25F). The fire extinguisher is suitable for use below deck, in the cabins and in the galley to extinguish burning liquids (fuels), solids or cooking fat.The container is deep-drawn from a single piece of aluminium, which guarantees maximum tightness (without weld seams). The outer polyester resin coating increases weather resistance and durability. Equipped with push handle lever release. The shock-resistant pressure gauge has a non-return valve for pressure regulation and a sintered filter to protect sensitive parts.The extinguishing agent used is water with additives (to improve the extinguishing properties for class A fires) and AFFF. Can be used in the temperature range from 0 to +60 °C. The foam extinguisher has EN3 and CE approval and is supplied with a plastic wall bracket.Technical dataExtinguishing capacity: 8A 70B 25FPressure type: PermanentFilling quantity: 2 kg ±3%Extinguishing agent: Foam F AFFFPropellant: Nitrogen (N2) + helium (HE)Covered power: 450 kWDischarge time: approx. 18 secondsRange: approx. 4 metresOperating pressure: 13 bar at 60 °C / 11 bar at 20 °C / 9 bar at 0 °CHeight: 378 mmDiameter: 108 mmTotal weight (filled): 2.7 kgPressure gauge: yesRefillable bottle: yes

€62.90 *
