Brass portlight frames FORESTI

Light brass design, with a polished or chromed finish.The ports come ready for installation: drilled, with outer ring and sleeve bolts M4 x 16 mm.Glass depth 4 mm.Weight approx. 750 g.Comes with a glass pane.The glass pane version is not CE certified, may be used in certain areas of boatbuilding (not in areas of the boat exposed to the direct brunt of the sea), appropriate for decoration and for interior applications.Also available as CE certified version with PMMA pane.

Round brass port, polished or chromed finish. Equipped with Plexiglas (PMMA glass).These ports are not only useful in boatbuilding - the Plexiglas design is CE certified - but also for many other applications in decoration and interior design.A simple and inexpensive port with high functionality.Comes ready to install and drilled, with matching backing ring for the outside.Spare parts, such as gaskets, bow nuts, etc., are available.CE certification: catagory A to D, area I, III, IV.

Small, polished or chromed porthole. Plexiglass design (with CE certification). Comes with sealing ring and concealed screws. Weight approx. 1.7 kg.

Midweight design of brass or chromed brass with Plexiglas. For installation from the inside, with soft rubber sealant. Comes with a backing ring (outer ring). Good seal thanks to adjustable hinge bolts and snap-in, adjustable toggle fastening. These ports have a CE certification (Category A-D, Areas I, III and IV). Thickness of glass: 6 mm,40/50 mm ligament. It's large thickness makes it well suited for all-wood walls.

Portlights of light design, made from polished or chromed brass.These ports come pre-drilled and ready to mount with outer ring and sleeved screws M4 x 16 mm, glass thickness 4 mm.Approximate weight 750 g.Comes with CE-certified Plexiglas (PMMA-glass)(Design Category A-D, Areas I, II, III, IV).Intended for use in boatbuilding (in protected areas of the boat), as decorative pieces and in the cabin.

Portlights of (ellipsoidal) oval shape. Polished or chromed brass. Installation from outside.The frame for this port is installed in the cabintop from the outside, which gives it a smooth look.A good seal is achieved through the port's adjustable hinge bolts, as well as adjustable snap-in locking knobs.Comes complete with matching backing ring and sleeved screws.Ideally suited to cabintop thicknesses of about 18 mm.

Small polished or chromed-brass port.Design comes with glass.Weight: approx. 1.7 kg.Shipment with backing ring and sleeve bolts.Also comes in a CE-certified design (CE-category A to D, areas I, III, IV) with Plexiglas.

Mid-weight design of brass or chromed brass.Installed from inside, with soft-rubber seal. Comes compete with matching backing ring for the exterior. Good water-tightness through adjustable hinge bolts and snap-in, adjustable toggle locks.Because of its large depth, well suited to wood cabintops.Thickness of glass: 6 mm.

Fixed port. Mid quality. Brass, attaches with screws.Available with two surface options:Cleanly turned polished brass or matte chromed brass.Hardened single-pane safety glass, depth 8 mm.CE-certified.Also available with deadlight.

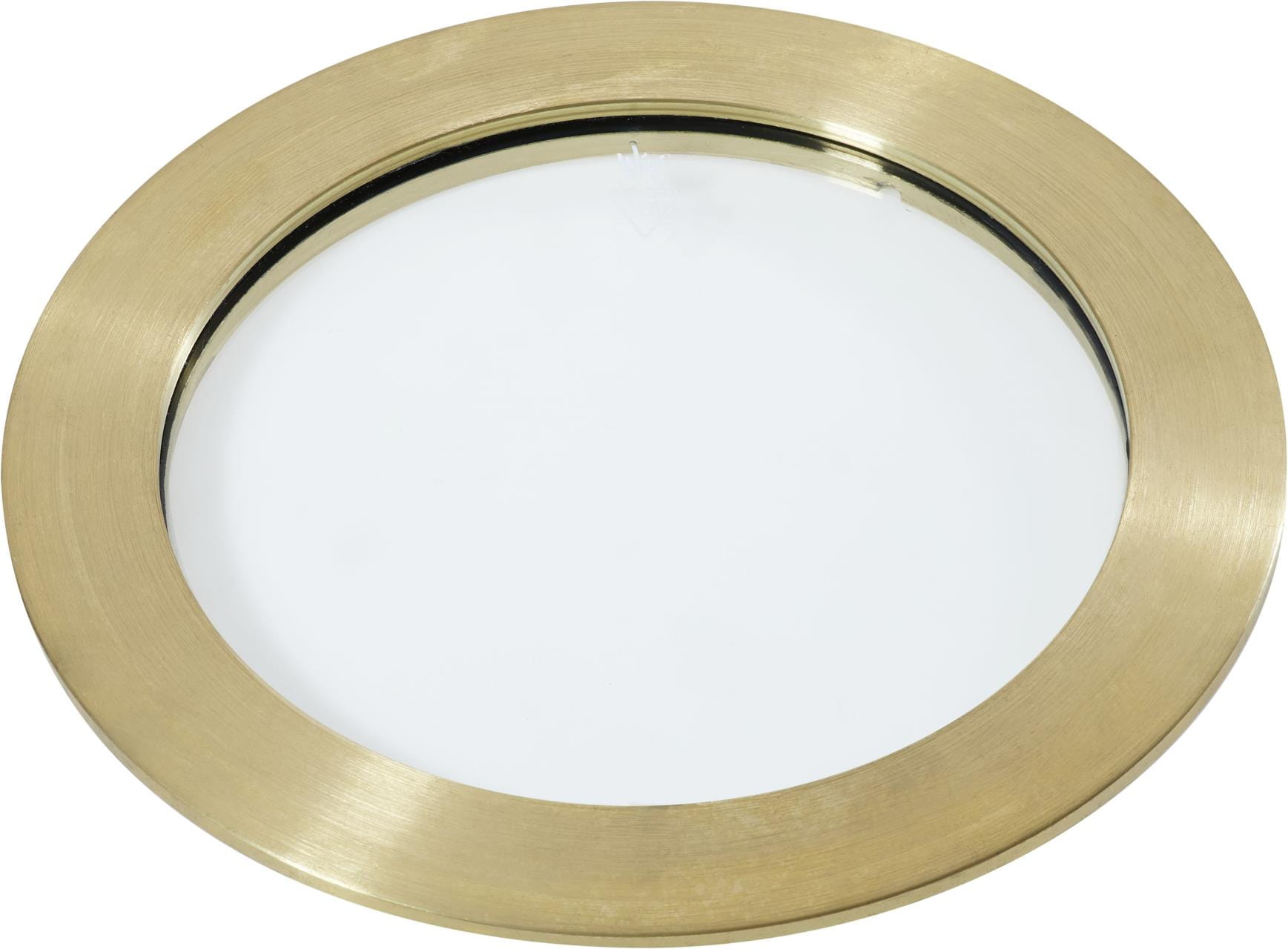

Brass portlight frame for portlight art.-no. 1873-.... accurate drilled, not polished.

Counter frame for portlight (Article-No. 1815-...), brass drilled, without screw holes.

Polished brass portlight frames, oval design, drilled, without glass.

Polished brass porthole frames.With round, narrow design and drilled holes. FORESTI & SUARDI Coming from a crafts business, established in 1961, the north Italian brass foundry FORESTI &SUARDI Has become a modern industrial company that hasn't forgot about its traditional roots. Nowadays FORESTI manufactures all kinds of boat fittings, ship windows, sanitary accessories, interior fittings And especially a wide range of high quality lights for the use on ships but also on land.

Light-quality port of brass or chromed brass to be installed from inside.Comes complete with matching outer ring, drilled.With soft-rubber seal.Comes with glass window.Weight: 5 kg.Also available in CE-certified (CE-category A to D, Areas I, III, IV) design with plexiglass (PMMA-Glass).

Round brass port with polished or chromed finish. Equipped with hardened glass.The brass pieces are precisely machine cast, the hinges are made of stainless steel and the seal is neoprene rubber.These ports are not only used in boatbuilding, but also in many other areas of interior decoration. A light and inexpensive port with high functionality.Comes completely ready for installation and drilled, with a matching backing ring for the exterior.Such spare parts as seals, turning nuts, etc. are available.These bullseye ports with glass panes are not CE certified. For that, choose the same ports with Plexiglas panes (Article-No. 1740-...).

Light-quality port of brass or chromed brass to be installed from inside.Comes complete with matching outer ring, drilled.With soft-rubber seal.Weight: 5 kg.CE-certified design (CE-category A to D, Areas I, III, IV) with plexiglass (PMMA-Glass).

High quality port of cast marine bronze,tumbled matte finish.Clasic short-oval shape.The ports are intended to be installed from the inside.Frame and outer ring are pre-drilled with countersunk holes D = 5 mm.Comes complete with matching outer ring.The large depth of the port allows installation in all-wood cabintops. The neoprene - soft rubber gasket - around the rim ensures a perfect seal.The hardened safety glass is sealed to the frame with silicone. Excellent detail: Drainage channels are built into the frame. Thus even when the ports get opened, no saltwater can get in. All ports come complete with removeable bronze-coloured-plasic screens. Replacement parts for these quality ports, including seals, screws and bronze turning nuts, available. Matching are the oval fixed ports. Made by the American traditional manufacturer SPARTAN.

High-quality yacht window made of cast marine bronze. Matt tumbled surface. Long oval classic shape. Made by the traditional American manufacturer SPARTAN.The window can be opened. It is closed with strong bronze knurled nuts.The windows are intended for installation from the inside. Frame and outer ring are already provided with countersunk holes (D = 5 mm). Supplied complete with matching outer ring. The large web depth also allows installation in solid wood structures.The neoprene soft rubber cord glued into the frame ensures perfect tightness. The tempered safety glass is sealed into the frame with silicone.A special design feature of SPARTAN windows: drainage channels are incorporated into the web of the frame. Therefore, when the window is opened, no (salty) dripping water can get inside.Each window comes with a removable insect screen made of bronze-coloured plastic.The long-oval fixed windows (see "similar products" below) from SPARTAN have the same glass and external dimensions and fit these ship windows exactly.

Solid non-opening port.Classic long-oval shape.Cast bronze frame, tumbled matt finish.The pane, made of hardened safety glass, is installed from the outside and sealed with silicone. Thus this port is also appropriate for horizontal applications because water cannot collect in the frame.The frame comes drilled with 5 mm countersunk fastener holes.Glass depth 6 mm.Matches the long-oval opening ports from the American manufacturer SPARTAN.

High quality port of cast marine bronze.Tumbled matt finish. Classic rectangular shape.Opens. Locks with a strong bronze turning nuts.The ports are intended to be installed from the inside.Frame and outer ring are pre-drilled with countersunk holes D = 5 mm.Comes complete with matching outer ring.The large depth of the port allows installation in all-wood cabintops. The neoprene - soft rubber gasket - around the rim ensures a perfect seal.The hardened safety glass is sealed to the frame with silicone. Excellent detail: Drainage channels are built into the frame. Thus even when the ports are open, no saltwater can get in. All ports come complete with removeable bronze-coloured-plasic screens. Replacement parts for these quality ports, including seals, screws and bronze turning nuts, available.Made by the American traditional manufacturer SPARTAN.

Polished bronze portlight frames, oval design, drilled, without glass.

Round bronze fixed port, chrome plated. Frame drilled with countersunk fastener holes. Sand-cast bronze, polished on the visible side.The glass is held in place with a ring nut and is sealed with silicone.Not CE-ceritified.

Polished-bronze backing ring.

Solid non-opening round port.Cast bronze frame, tumbled matt finish.The pane, made of hardened safety glass, is installed from the outside and sealed with silicone. Thus this port is also appropriate for horizontal applications because water cannot collect in the frame.The frame comes drilled with 5 mm countersunk fastener holes.Glass depth 5 mm.
