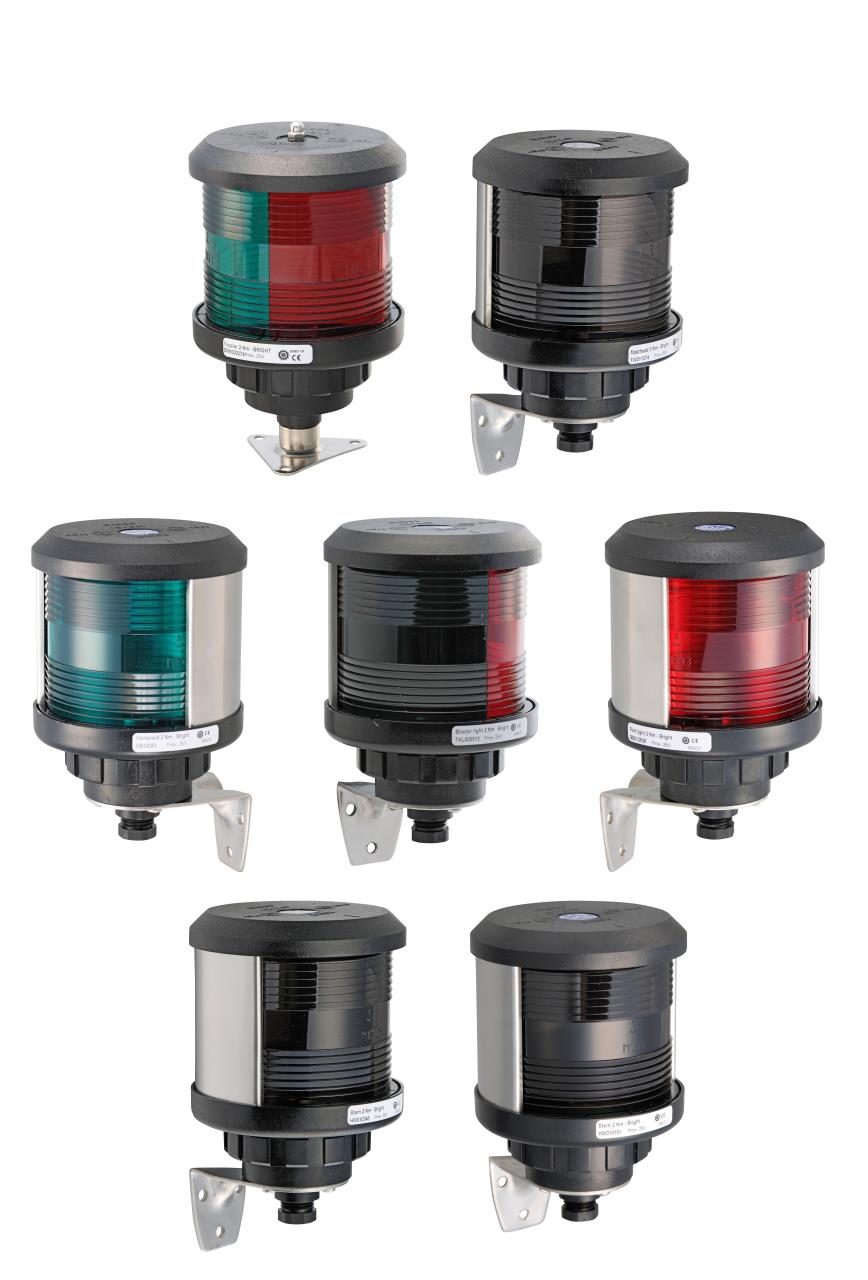

The all-round lights of the Series 35 by the Dutch manufacturer DEN HAAN ROTTERDAM stand out with their compact design and robust construction. The housing is made of black, glass fiber reinforced polycarbonate, which is corrosion-resistant, seawater-resistant, and non-magnetic.

The Fresnel lens is also made of polycarbonate and is shock-resistant. Connection is made via a PG9 cable gland from the underside of the lantern.

The hoistable signal lights are supplied with two mounting lugs, while the other signal lights come with a standard mounting base. Additional mounting bases are also available.

MED-approved navigation lights for vessels up to 20 m in length for inland and maritime navigation.

Available as an anchor light (also hoistable), as a red signal light (also hoistable), as a green signal light, and as a yellow signal light.

Technical specifications:

  • Weight: 300 g
  • Bulb socket: BaY15d
  • Protection class: IP56
  • Voltage: 12–24V
  • Power: max. 25W

Bulb not included.

more information

from €65.50*

€65.50*

Prices incl. VAT plus shipping costs

version
colour
angle (°)
range (nm)
Stk
View article in the TOPLICHT catalogue

Description

The all-round lights of the Series 35 by the Dutch manufacturer DEN HAAN ROTTERDAM stand out with their compact design and robust construction. The housing is made of black, glass fiber reinforced polycarbonate, which is corrosion-resistant, seawater-resistant, and non-magnetic.

The Fresnel lens is also made of polycarbonate and is shock-resistant. Connection is made via a PG9 cable gland from the underside of the lantern.

The hoistable signal lights are supplied with two mounting lugs, while the other signal lights come with a standard mounting base. Additional mounting bases are also available.

MED-approved navigation lights for vessels up to 20 m in length for inland and maritime navigation.

Available as an anchor light (also hoistable), as a red signal light (also hoistable), as a green signal light, and as a yellow signal light.

Technical specifications:

  • Weight: 300 g
  • Bulb socket: BaY15d
  • Protection class: IP56
  • Voltage: 12–24V
  • Power: max. 25W

Bulb not included.

Questions about the product?
Questions about the product?
Talk to craftsmen, boat builders and sailors. We understand your questions and provide the right answers.
Contact experts

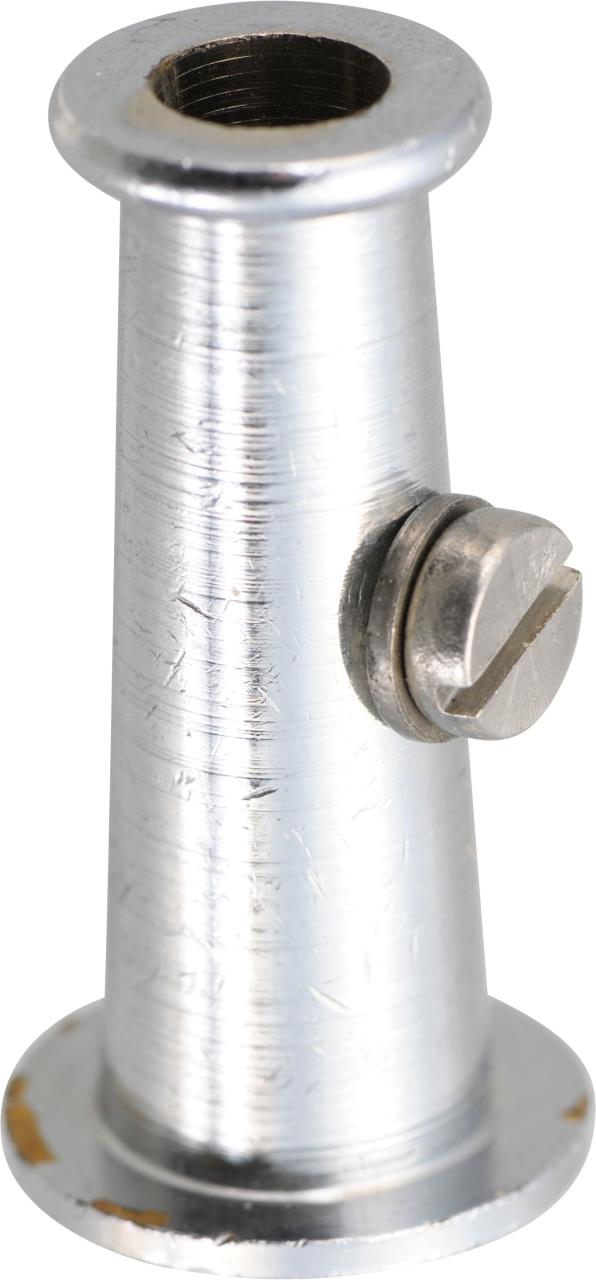

DHR 35 wind-indicator adapter
DHR 35 wind-indicator adapter
Adapter for wind indicator suitable for navigation light series DHR 35.

€14.90 *
Details
3336*04 DHR 35 Montage-Adapter
DHR 35 Mounting Adapter
Original adapter feet from DEN HAAN ROTTERDAM for the navigation and signal lights of the 35 series. With the adapters all lanterns - except the heatable version - can be converted. The mast and angle adapters are made of seawater-resistant stainless steel, the foot base and the tube adapter are made of robust plastic. The adapters are simply screwed onto the lantern from below with a plastic ring.

From €55.00 *
Details

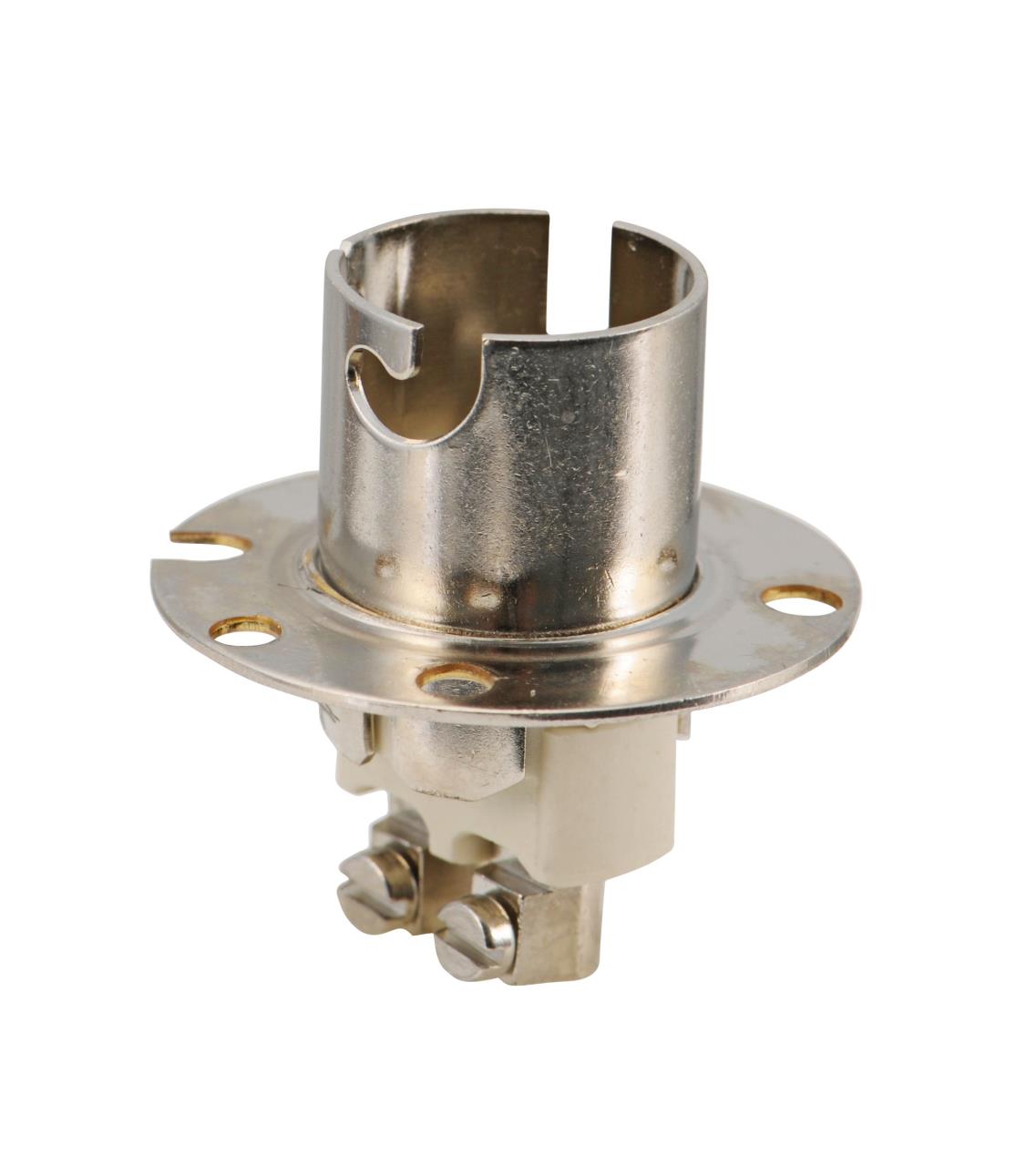

Replacement socket for DHR35 position lanterns with BaY15d b
