3015-024 Blaue Tafel (Binnenschifffahrt) - Seitenmontage 3015-024 Blaue Tafel (Binnenschifffahrt) - Seitenmontage
3015-025 Blaue Tafel (Binnenschifffahrt) - Dachmontage 3015-025 Blaue Tafel (Binnenschifffahrt) - Dachmontage
3015-025 Blaue Tafel (Binnenschifffahrt) - Dachmontage 3015-025 Blaue Tafel (Binnenschifffahrt) - Dachmontage
3015-100 Schaltpanel für Blaue Tafel inklusive Funkelgenerator 3015-100 Schaltpanel für Blaue Tafel inklusive Funkelgenerator
3015-100 Schaltpanel für Blaue Tafel inklusive Funkelgenerator Rückseite 3015-100 Schaltpanel für Blaue Tafel inklusive Funkelgenerator Rückseite
3015-024 Blaue Tafel (Binnenschifffahrt) - Seitenmontage
3015-025 Blaue Tafel (Binnenschifffahrt) - Dachmontage
3015-025 Blaue Tafel (Binnenschifffahrt) - Dachmontage
3015-100 Schaltpanel für Blaue Tafel inklusive Funkelgenerator
3015-100 Schaltpanel für Blaue Tafel inklusive Funkelgenerator Rückseite

The blue board with white sparkling light is the day and night sign in inland navigation, with which the upstream driver indicates that he should pass the downstream driver starboard:starboard instead of port:port as usual.

The frame and board are made of powder-coated aluminum. The board is blue (RAL 5017) with a 5 cm wide white border. The pivot axle is made of stainless steel.

The blue board is equipped with a powerful electric motor (24 V, 1.5 A) and a white rotating light. It is available for either side or roof mounting.

The control panel with sparkle generator must be ordered separately. It has a 3-position switch for operating the blue panel, an indicator light with bulb connection and an automatic fuse for the motor. The control panel also controls the twinkling of the white light. The control panel measures 75 x 75 mm.

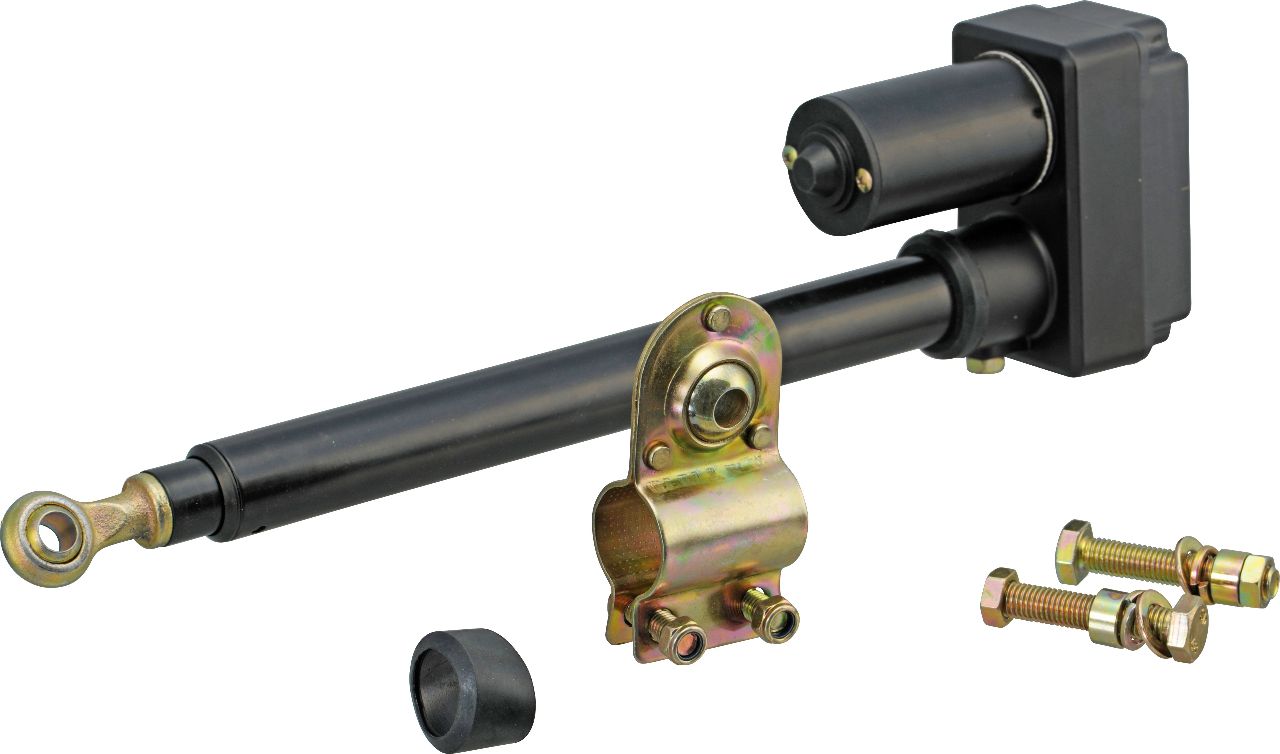

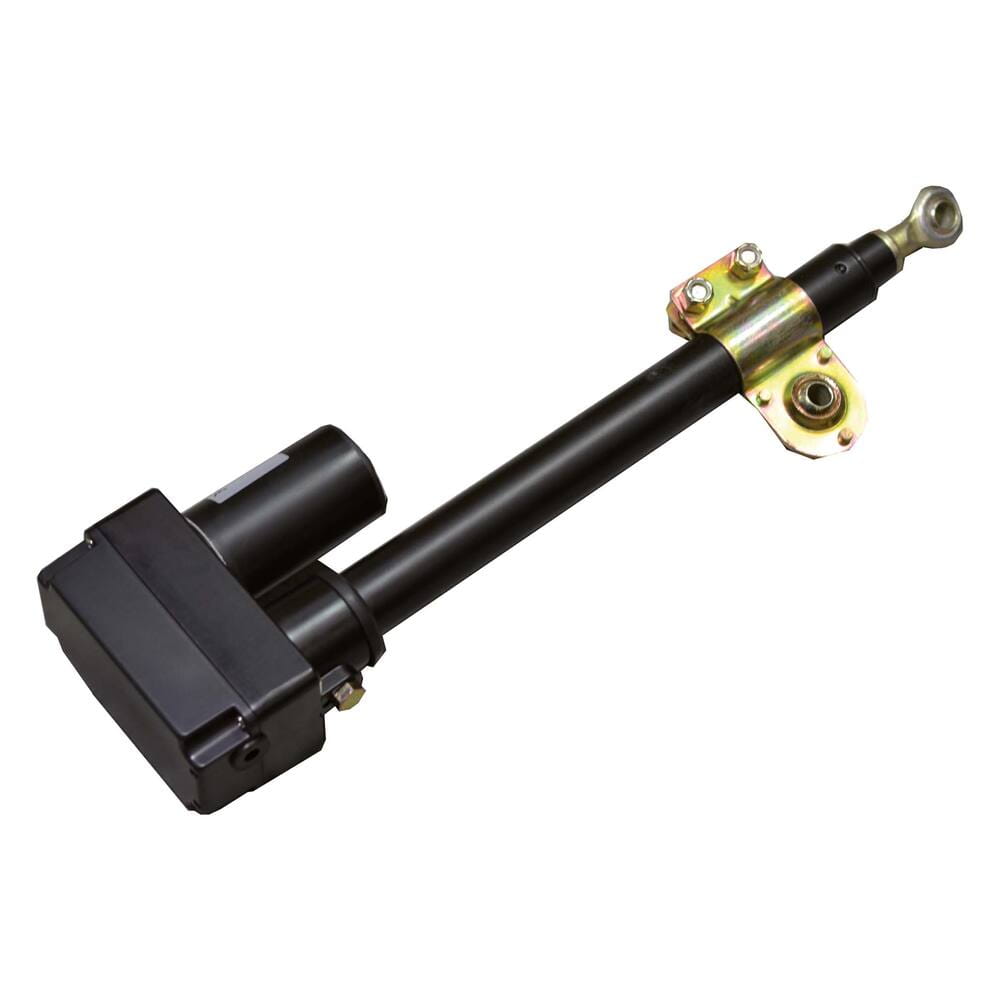

The electric motor of the blue panel is available as a spare part.

Technical features

  • Installation: either on the roof of the wheelhouse or on the starboard side
  • Voltage: 24 volts
  • Current: 1.5 A (electric motor)
  • Sheet metal material: aluminum
  • Frame material: Aluminum
  • Material rotary axis: Stainless steel
  • Cylinder material: Nickel-plated steel
  • Mounting tube material: Stainless steel
more information

from €3,490.00*

€239.00*

Prices incl. VAT plus shipping costs

installation
measurements
model
Stk

Description

The blue board with white sparkling light is the day and night sign in inland navigation, with which the upstream driver indicates that he should pass the downstream driver starboard:starboard instead of port:port as usual.

The frame and board are made of powder-coated aluminum. The board is blue (RAL 5017) with a 5 cm wide white border. The pivot axle is made of stainless steel.

The blue board is equipped with a powerful electric motor (24 V, 1.5 A) and a white rotating light. It is available for either side or roof mounting.

The control panel with sparkle generator must be ordered separately. It has a 3-position switch for operating the blue panel, an indicator light with bulb connection and an automatic fuse for the motor. The control panel also controls the twinkling of the white light. The control panel measures 75 x 75 mm.

The electric motor of the blue panel is available as a spare part.

Technical features

  • Installation: either on the roof of the wheelhouse or on the starboard side
  • Voltage: 24 volts
  • Current: 1.5 A (electric motor)
  • Sheet metal material: aluminum
  • Frame material: Aluminum
  • Material rotary axis: Stainless steel
  • Cylinder material: Nickel-plated steel
  • Mounting tube material: Stainless steel
