Mortise switch lock stainless steel

4070-325 Einsteckschloss aus Edelstahl mit Wechselfunktion, Profilzylinder DIN rechts

4070*17 Einsteckschloss aus Edelstahl mit Wechselfunktion

Yacht-Einsteckschloss für Profilzylinder

4070-325 Einsteckschloss aus Edelstahl mit Wechselfunktion, Profilzylinder DIN rechts

4070*17 Einsteckschloss aus Edelstahl mit Wechselfunktion

Yacht-Einsteckschloss für Profilzylinder

Mortise switch lock stainless steel

from €126.00*

€126.00*

Prices incl. VAT plus shipping costs

Available, delivery time: 6-10 Tage

In stock

model

strong mortise lock A2

version

right

left

Stk

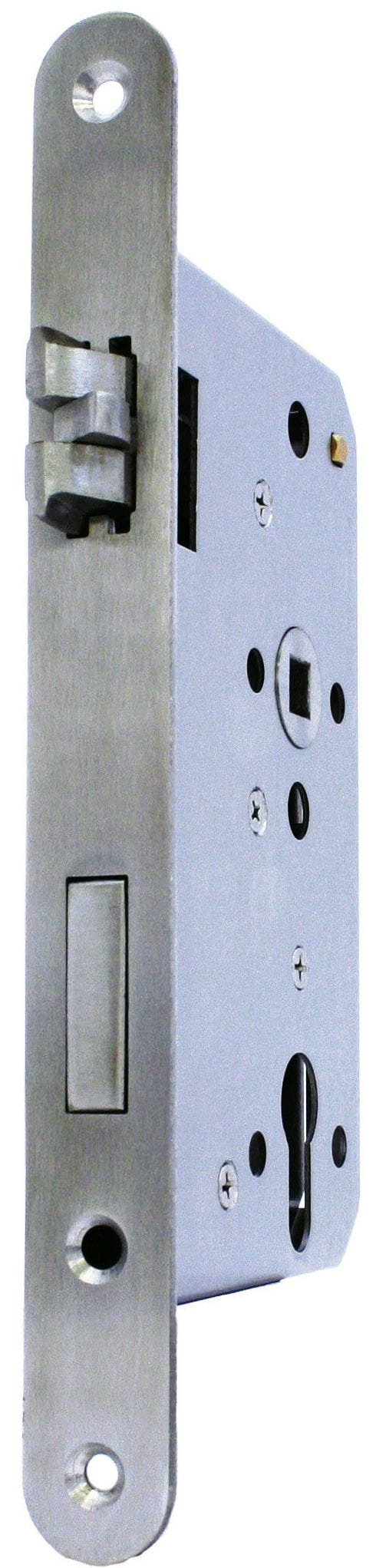

Strong mortise lock with switch function made from stainless steel with matt surface, prepared for profile cylinders.

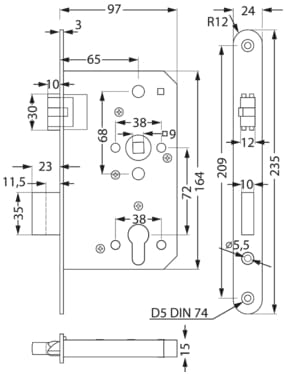

Locknut: 9 mm.
Backset: 55 mm.
Distance: 75 mm.

Tripple catch with switch function: the catch can not only be operated by the knob, but also by the key.

Round face plate with a radius of 12 mm.

A striking plate and a cylinder must be ordered separately.

To select the right lock typ, please see our PDF below.

more information

Show 2 articles

📖 View article in the TOPLICHT catalogue

Art. No.	model	version	Price (unit)	Delivery time	Note list	Buy

Downloads

Datenblatt

Strong mortise lock with switch function made from stainless steel with matt surface, prepared for profile cylinders.

Locknut: 9 mm.
Backset: 55 mm.
Distance: 75 mm.

Tripple catch with switch function: the catch can not only be operated by the knob, but also by the key.

Round face plate with a radius of 12 mm.

A striking plate and a cylinder must be ordered separately.

To select the right lock typ, please see our PDF below.

Description

Strong mortise lock with switch function made from stainless steel with matt surface, prepared for profile cylinders.

Locknut: 9 mm.
Backset: 55 mm.
Distance: 75 mm.

Tripple catch with switch function: the catch can not only be operated by the knob, but also by the key.

Round face plate with a radius of 12 mm.

A striking plate and a cylinder must be ordered separately.

To select the right lock typ, please see our PDF below.

Downloads

Datenblatt
