4071*08 Schiffs-Kastenschloss aus Edelstahl
4071*08 Schiffs-Kastenschloss aus Edelstahl - Bild 2
4090*05 Kastenriegelschloss - Bild 4

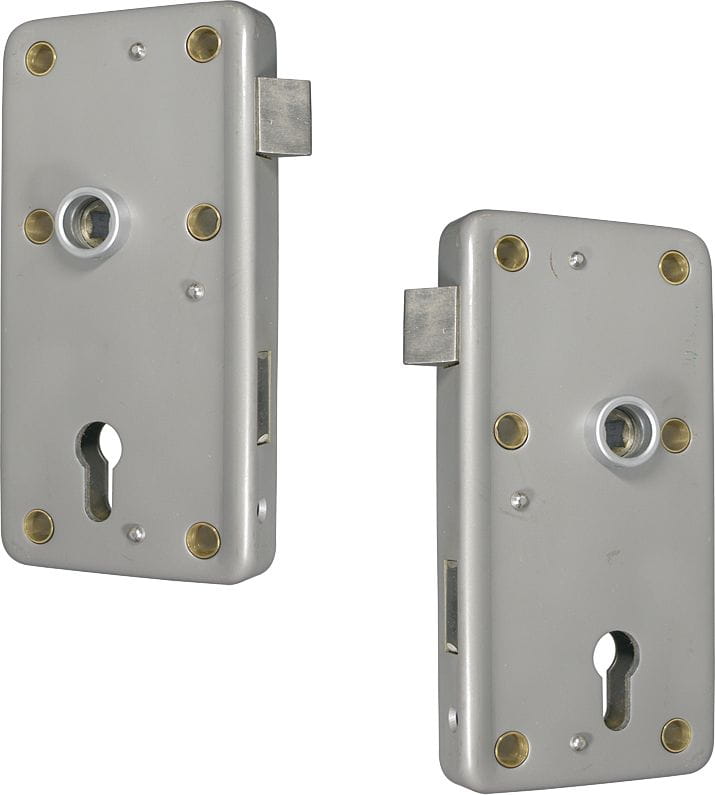

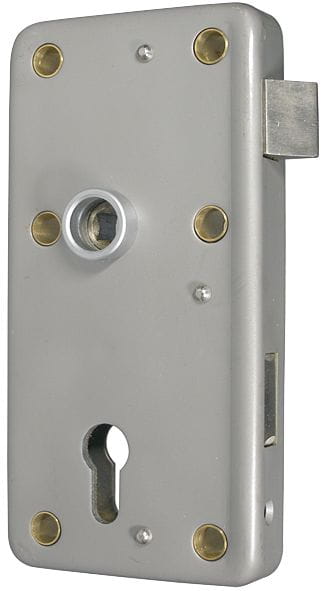

Heavy rim ship lock stainless steel
Heavy rim ship lock, made of stainless steel with a matt surface, prepared for a profile cylinder.

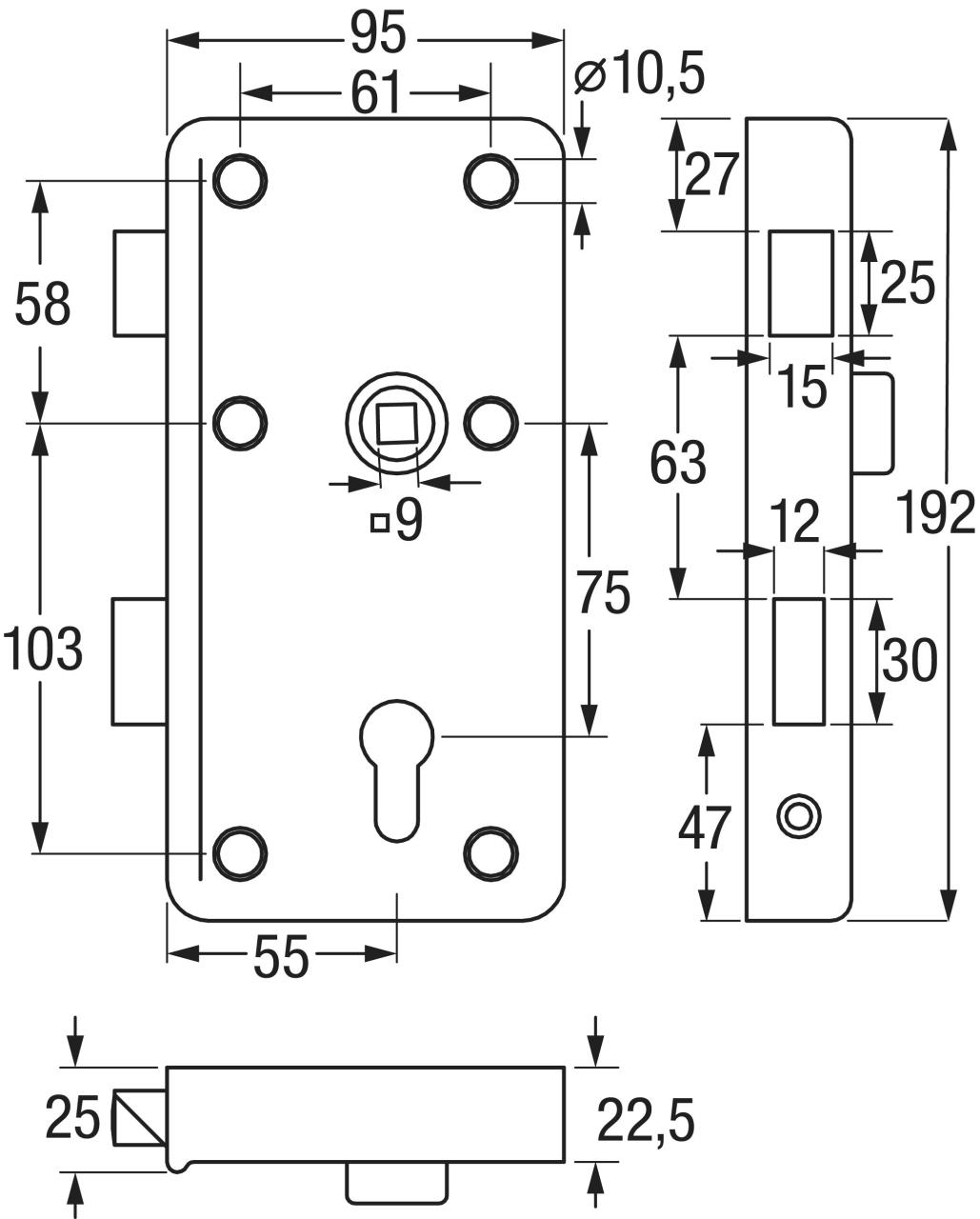

Locknut: 9 mm.
Backset: 55 mm.
Distance: 75 mm.
Comes with 6 mounting bushings for fastening the lock securly.
This lock can be used outwards or inwards by adjusting the catch.
A Strinking box and a cylinder must be ordered separately.
To select the right lock typ, please see our PDF below.
from €98.00*
€98.00*
Prices incl. VAT plus shipping costs
Description
Heavy rim ship lock, made of stainless steel with a matt surface, prepared for a profile cylinder.
Locknut: 9 mm.
Backset: 55 mm.
Distance: 75 mm.
Comes with 6 mounting bushings for fastening the lock securly.
This lock can be used outwards or inwards by adjusting the catch.
A Strinking box and a cylinder must be ordered separately.
To select the right lock typ, please see our PDF below.
Downloads
