Dog assembly steel DIN83104
Heavy-duty dog assembly for ship doors and hatch covers. The design complies with DIN 83104. The forged steel handles (St 37-2) are coated with a reddish-brown zinc oxide primer. Depending on the model, the weld-in tubes are made of steel or aluminum and are equipped with brass bearing bushings and an M10 × 1 thread for a grease nipple.
Available designs:

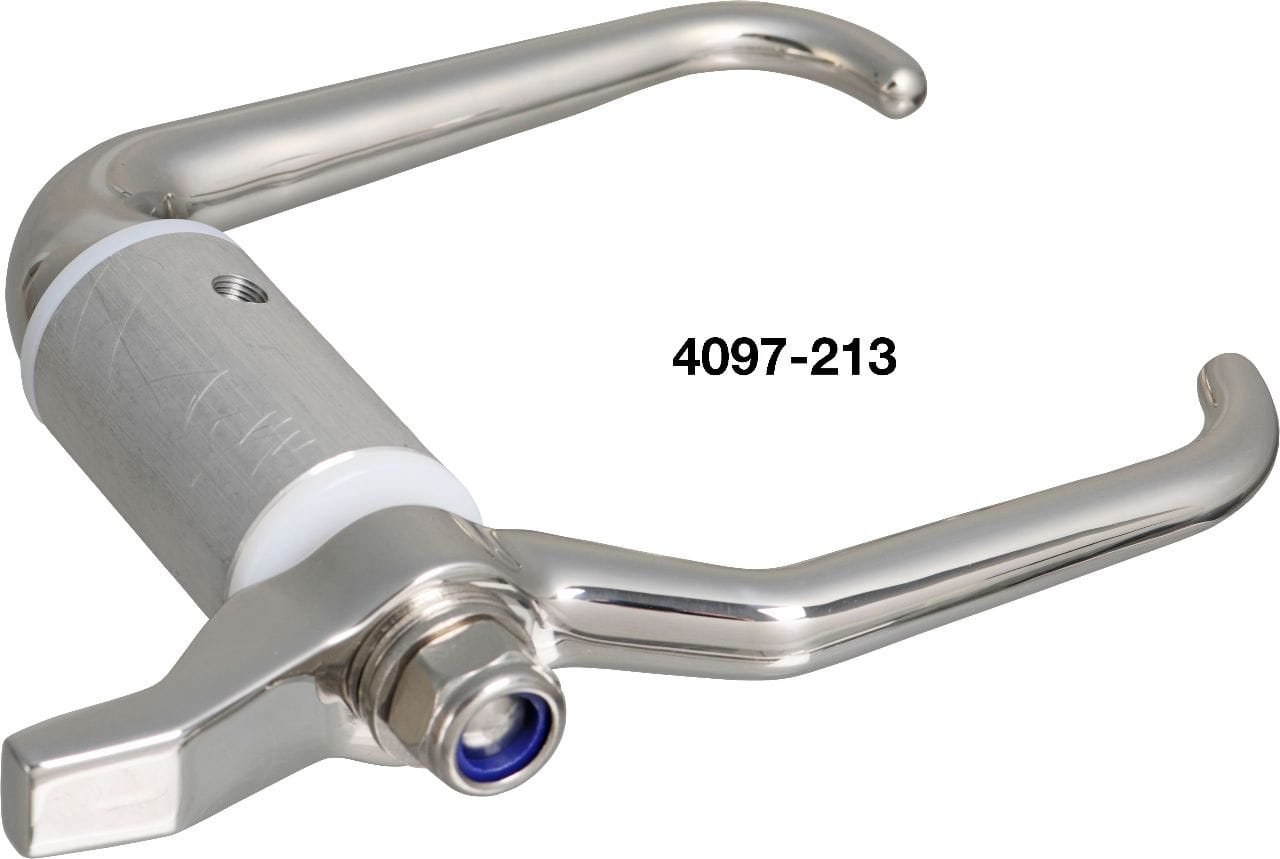

- Type A: Operation from both sides with two handles.
- Type B: One handle and a square spigot (19 × 19 mm) on the opposite side.
- Type C: One handle and a flat head on the opposite side.
The closures are available in various versions with 60, 73, or 93 mm long weld-in tubes. The model designation consists of the design (A, B, or C) and the tube length in millimeters; for example, A73 for Design A with a 73-mm-long sleeve.
A limit stopper for welding to the door or hatch frame is available separately under “Accessories.” Additional parts can be found in the “Accessories”category .
€0.00*
| Quantity | Unit price |
|---|---|
| To 4 |
€52.90*
|
| From 5 |
€47.60*
|
Description
Heavy-duty dog assembly for ship doors and hatch covers. The design complies with DIN 83104. The forged steel handles (St 37-2) are coated with a reddish-brown zinc oxide primer. Depending on the model, the weld-in tubes are made of steel or aluminum and are equipped with brass bearing bushings and an M10 × 1 thread for a grease nipple.
Available designs:
- Type A: Operation from both sides with two handles.
- Type B: One handle and a square spigot (19 × 19 mm) on the opposite side.
- Type C: One handle and a flat head on the opposite side.
The closures are available in various versions with 60, 73, or 93 mm long weld-in tubes. The model designation consists of the design (A, B, or C) and the tube length in millimeters; for example, A73 for Design A with a 73-mm-long sleeve.
A limit stopper for welding to the door or hatch frame is available separately under “Accessories.” Additional parts can be found in the “Accessories”category .
