Stainless steel turnbuckle (import quality)

Small turnbuckle with high breaking strength, made from manganese bronze.The open-body design allows easy installation by hand. The rods are stainless steel. Thread: BSF (British Standard Fine).

Bronze turnbuckle. Classic design with open body.The turnbuckle is made from high-tensile waterproof aluminum bronze.Very high breaking strength.Particularly the distortion parameters (Rp02) are about double those of stainless steel.In addition, these turnbuckles can be turned under high loads without seizing up.These turnbuckles are supplied from different manufacturers. This results in slight difference in surface polish.

Classic deadeye, turned from ash wood.We deliver the deadeye unfinished, with a rounded groove for wire, rope or round steel.

Simple steel rigging screw, hot-dip galvanized closed body.Fork/fork design. The forks on the smaller rigging screws are galvanized.

Solid, hot-dip galvanized steel turnbuckle with closed body and counter nuts.Eye and eye ends.The long, thin bodies guarantee a large throw.From size M 22 up in solid forged design with beautiful, long and thin fork.Working load (SWL) = 1/5 the breaking load. Test certification available on request.Hint: The threads are partly cut again after hot-dip galvanizing and should therefore be well lubricated. After mounting and adjusting, it is a good idea to cover the open threads with tape.

Solid, hot-dip galvanized steel turnbuckle with closed body and counter nuts.One side fork terminal, one side eye terminal.The long, thin bodies guarantee a large throw.From size M 22 up in solid forged design with beautiful, long and thin fork.Working load (SWL) = 1/5 the breaking load. Test certification available on request.Hint: The threads are partly cut again after hot-dip galvanizing and should therefore be well lubricated. After mounting and adjusting, it is a good idea to cover the open threads with tape.

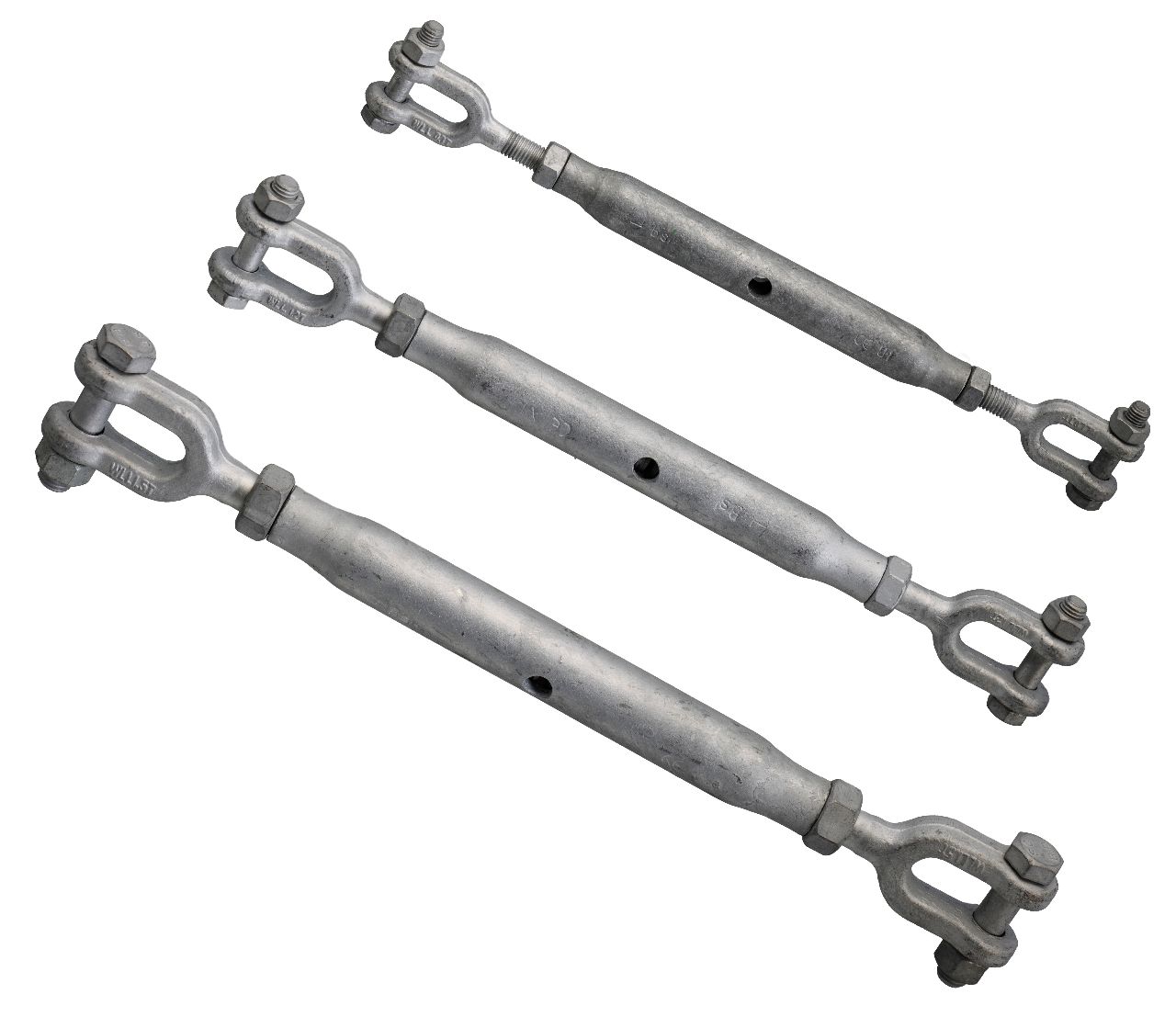

Solid hot-dip galvanized turnbuckle with closed sleeve and locking nuts.Terminals: fork / fork.The long thin body guarantees a large throw.From size M 22 up, the turnbuckle is forged with nice long and thin forks.Working load (SWL) = 1/5 of the breaking load. Test certificate available on request.Hint: The threads are partly cut again after hot-dip galvanizing and should therefore be well lubricated. After mounting and adjusting, we recommend covering the uncovered threads with a sleeve.

Flat, metric special nuts with very small outer dimensions, made from stainless steel (1.4401) for use as counter nuts for turnbuckles.

Turnbuckle made from stainless steel (AISI316). Brand-name product from BERENDSEN STEEL, in Denmark. Electropolished.Metric threads, closed body with counter nuts, welded forks with split-pin bolts on both ends.

Simple turnbuckle with hook and eye. Open body. DIN 1480. Galvanized steel.Measurement variations are possible.

Simple tensioner with hook/eye. Open body. DIN 1480. Polished stainless steel. Size differences are possible.

Heavy duty SELDEN turnbuckles with pressed stainless steel forks (typHASSELFORS) and a classic open body made from chromed aluminium bronze.The spar builder SELDEN developed this turnbuckle with UNF threads, because the combination of bronze body and stainless steel threaded forks guarantees that the turnbuckle can be turned, even under high loads, without seizing up.European brand-name product.Design: fork/fork. Further models on request.

Strong hook for mounting on turnbuckles.Following the principle of pelican hooks, these lever-like hooks can be loosened and tightened when under the load of a standing wire.Turnbuckle is not supplied.

Turnbuckle, made from stainless steel (AISI316), electropolished.Metric threads, closed body with counter nuts. Welded forks with split-pin bolt on both ends. Measurement variations are possible.

Turnbuckle with closed body, made from 1.4401 (AISI316) stainless steel by the Danish manufacturer BLUE WAVE.Design: welded forks on both sides with pins.Metric threads with counter nuts.Further models on request.

Elegant high-strength shroud turnbuckle with classic open body. The chromed body is forged from high-quality aluminium-bronze. The stainless steel forks (1.4401/AISI316) are very cleanly and lavishly wrought entirely from solid material, without welds and their corresponding weak points. The standard UNF fine-threads ensure, through the combination of bronze body and stainless steel threaded fork, that the turnbuckle can be adjusted under high loads, with no danger of breakage. The turnbuckles are 10% to 20% stronger than the strongest wire shroud that could be used. Brand-name product from Europe. Design: fork/fork, other designs by request.

Sturdy, hot-dip galvanized clamping screw with a closed sleeve and locknuts. Forged design with sturdy forks. Fork-to-fork construction. The long, slender sleeves ensure a long clamping stroke. Working load limit (WLL) = 1/5 of the breaking load. The WLL is stamped on the forks. Supplied with a factory certificate in accordance with EN 10204-2.2 upon request.
