Bilge pump PLASTIMO with bypass

1769*02 Membranpumpe mit Bypass PLASTIMO
1769*02 Membranpumpe mit Bypass PLASTIMO

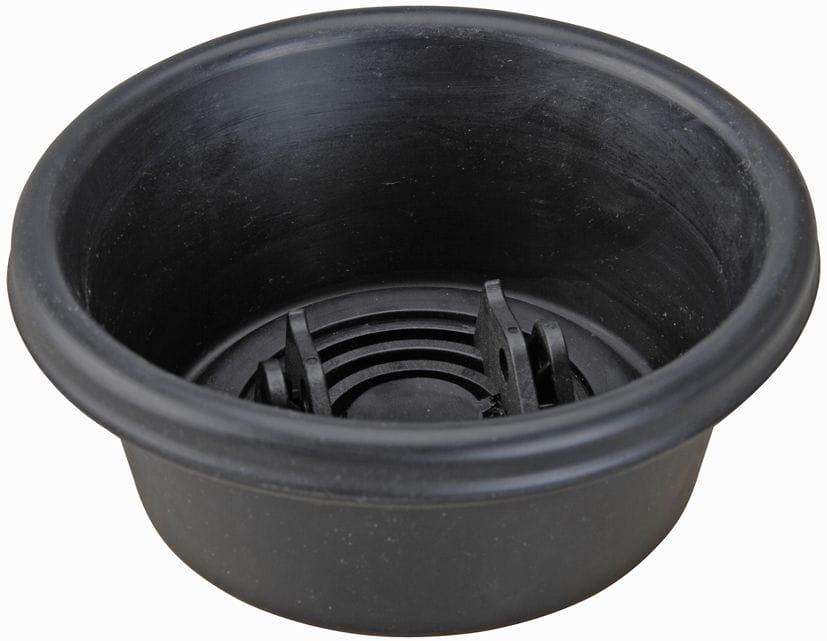

1769-039 Ersatzmembran für Membranpumpe mit Bypass PLASTIMO
1769*02 Membranpumpe mit Bypass PLASTIMO

from €129.90*

€139.90*

Prices incl. VAT plus shipping costs

Available, delivery time: 1 - 0 Tage

In stock

version
output
connection (mm)
B (mm)
L (mm)
H (mm)
Stk

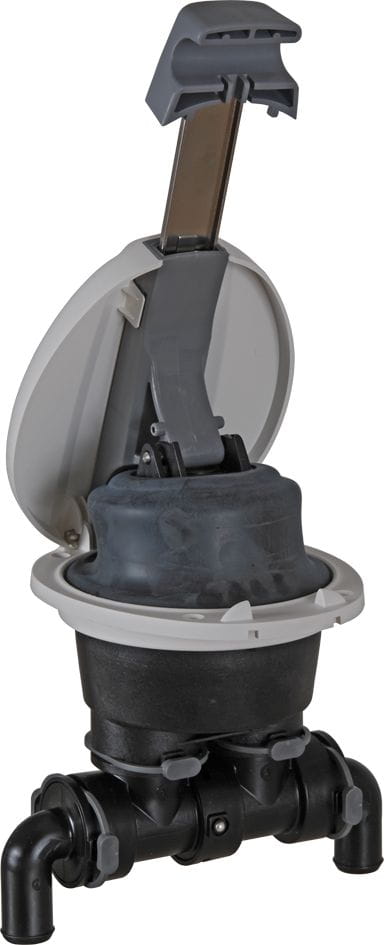

A manual bilge pump with unique features:
Simple and space-saving bulkhead mounting, closed extruding only by 35 mm, operable at any time by a lever (elongated 320 mm long) that is extricable housed in the cover.

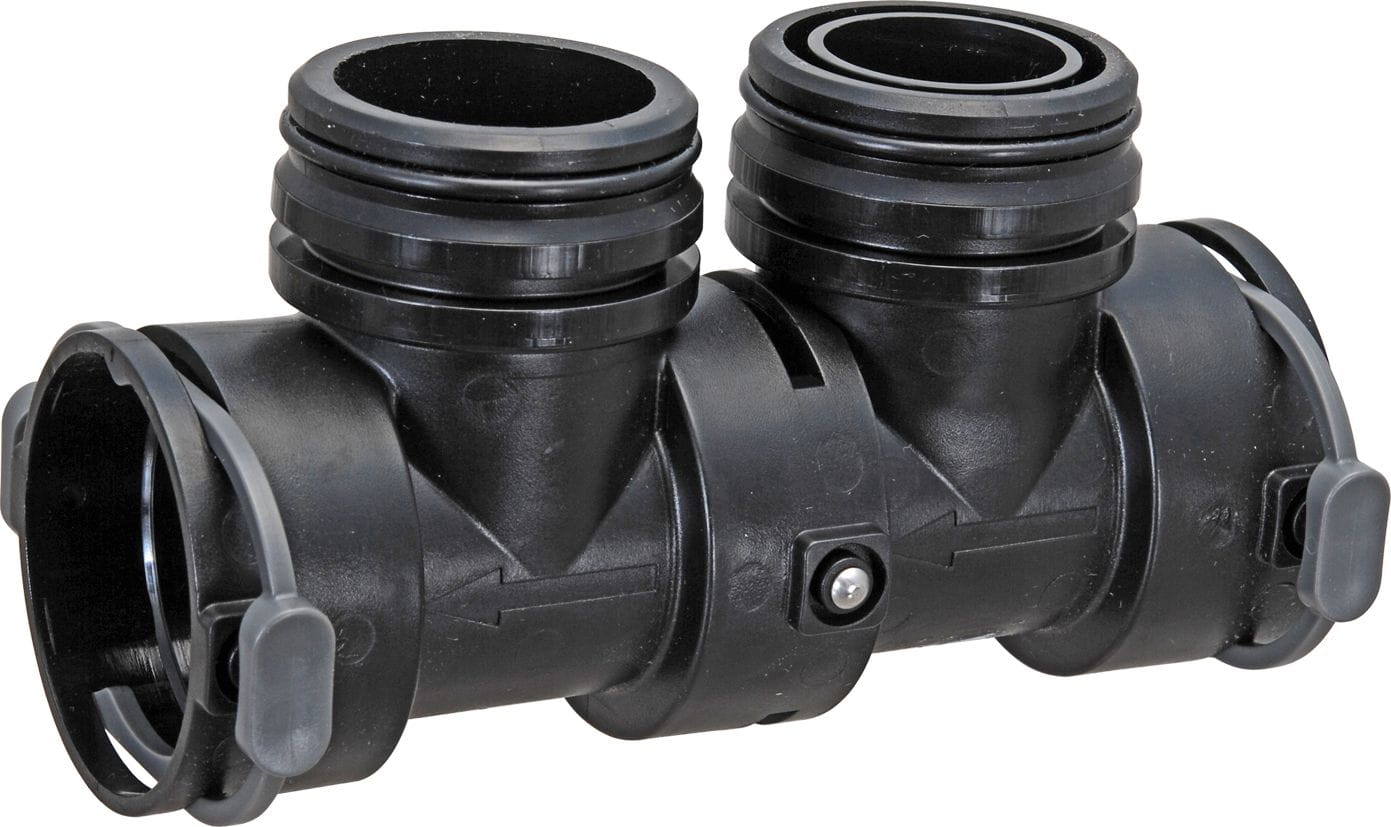

Universal installation of the pump with attached hose couplings (25 or 38 mm), that can freely rotate, are angulated and detachable.
Easy maintenance and simple membrane replacement.

Materials: the body of the pump (grey) and cover (white) are made from plastic,
lever stainless steel, membrane and valve are oil resistant nitrile rubber.

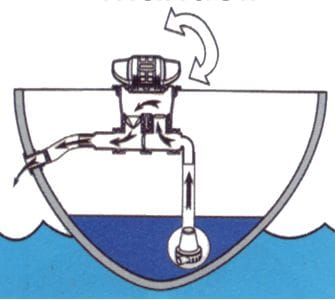

Employing the integrated bypass an additional electric bilge pump can be used.

Capacity 1l/hoisting, weight 920 g.
more information
Show 3 articles
📖 View article in the TOPLICHT catalogue

A manual bilge pump with unique features:
Simple and space-saving bulkhead mounting, closed extruding only by 35 mm, operable at any time by a lever (elongated 320 mm long) that is extricable housed in the cover.
Universal installation of the pump with attached hose couplings (25 or 38 mm), that can freely rotate, are angulated and detachable.
Easy maintenance and simple membrane replacement.

Materials: the body of the pump (grey) and cover (white) are made from plastic,
lever stainless steel, membrane and valve are oil resistant nitrile rubber.

Employing the integrated bypass an additional electric bilge pump can be used.

Capacity 1l/hoisting, weight 920 g.
