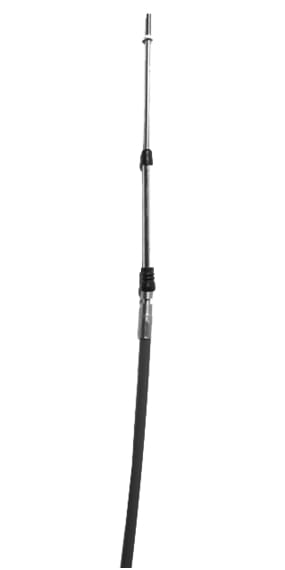

RCS-Push-Pull control cable

4201*03 MAXFLEX Schaltkabel 3300C

from €109.00*

€109.00*

Prices incl. VAT plus shipping costs

L (m)
Stk
If maximum ease of movement, particularly small bending radii or greater power transmission between gearshift and machine are required, RCS-Marine push-pull cables should be used.
Type 284V:
Stroke 76 mm,
Bending radius 51 mm,
End thread No.10-32 UNF,
Outer diameter = 9 mm,
max. deflection 8°,
Color blue.
All end parts made of stainless steel, Teflon-coated core, steel-reinforced plastic sheathing, permanently lubricated, effective end seals.

Available in lengths from 1 m to 20 m in 25 cm increments. (Delivery time approx. 1 week).
more information
Show 57 articles
📖 View article in the TOPLICHT catalogue
If maximum ease of movement, particularly small bending radii or greater power transmission between gearshift and machine are required, RCS-Marine push-pull cables should be used.
Type 284V:
Stroke 76 mm,
Bending radius 51 mm,
End thread No.10-32 UNF,
Outer diameter = 9 mm,
max. deflection 8°,
Color blue.
All end parts made of stainless steel, Teflon-coated core, steel-reinforced plastic sheathing, permanently lubricated, effective end seals.

Available in lengths from 1 m to 20 m in 25 cm increments. (Delivery time approx. 1 week).

Description

If maximum ease of movement, particularly small bending radii or greater power transmission between gearshift and machine are required, RCS-Marine push-pull cables should be used.
Type 284V:
Stroke 76 mm,
Bending radius 51 mm,
End thread No.10-32 UNF,
Outer diameter = 9 mm,
max. deflection 8°,
Color blue.
All end parts made of stainless steel, Teflon-coated core, steel-reinforced plastic sheathing, permanently lubricated, effective end seals.

Available in lengths from 1 m to 20 m in 25 cm increments. (Delivery time approx. 1 week).
