WALLAS SPARTAN AIR Diesel-Warmluftheizung 4,5kW

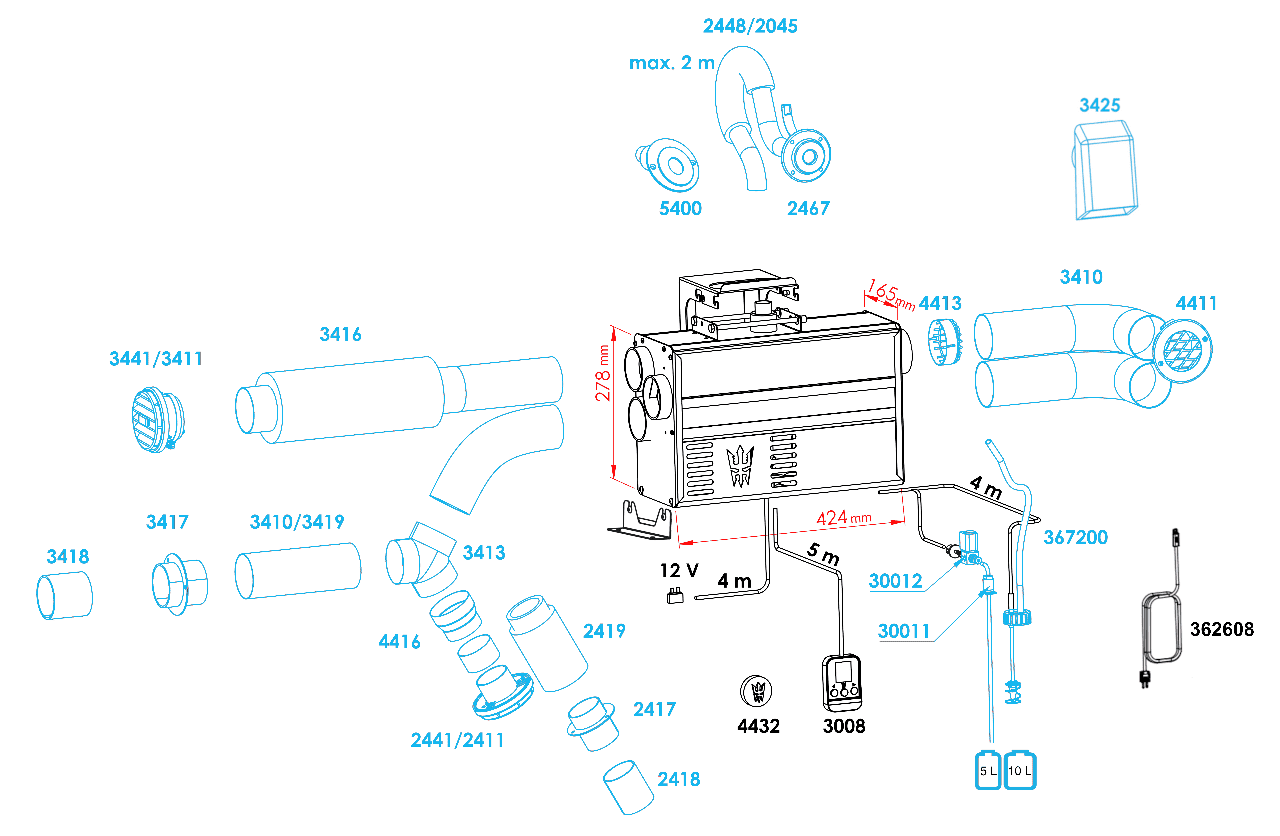

WALLAS SPARTAN AIR Zubehör

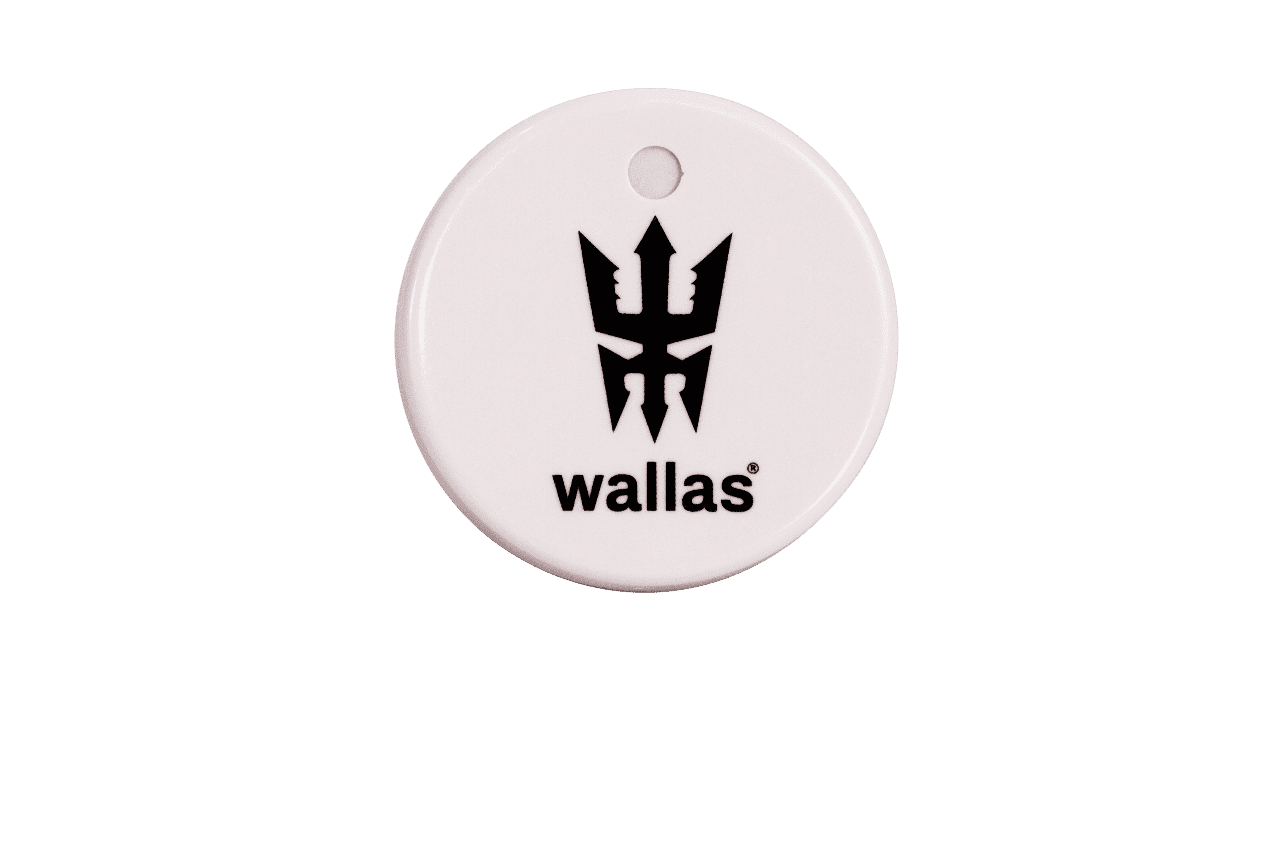

WALLAS Sensor - Der drahtlose Sensor übermittelt genaue Temperaturdaten an das Kontrollpanel

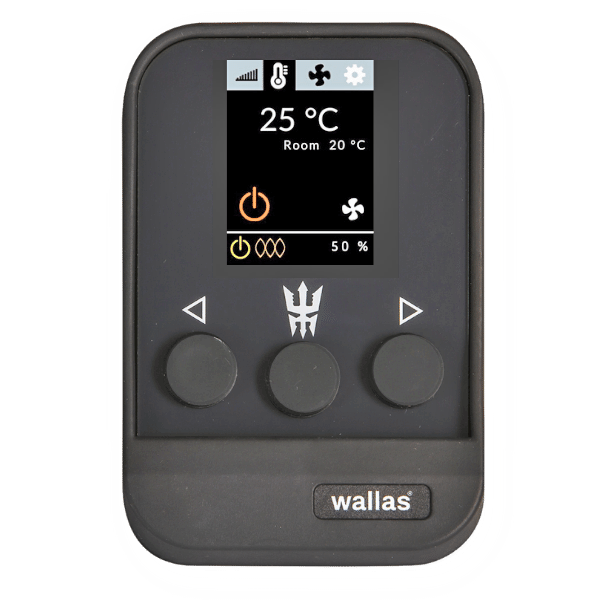

WALLAS Kontrollpanel - Kontrollpanel zur Steuerung der Heizung

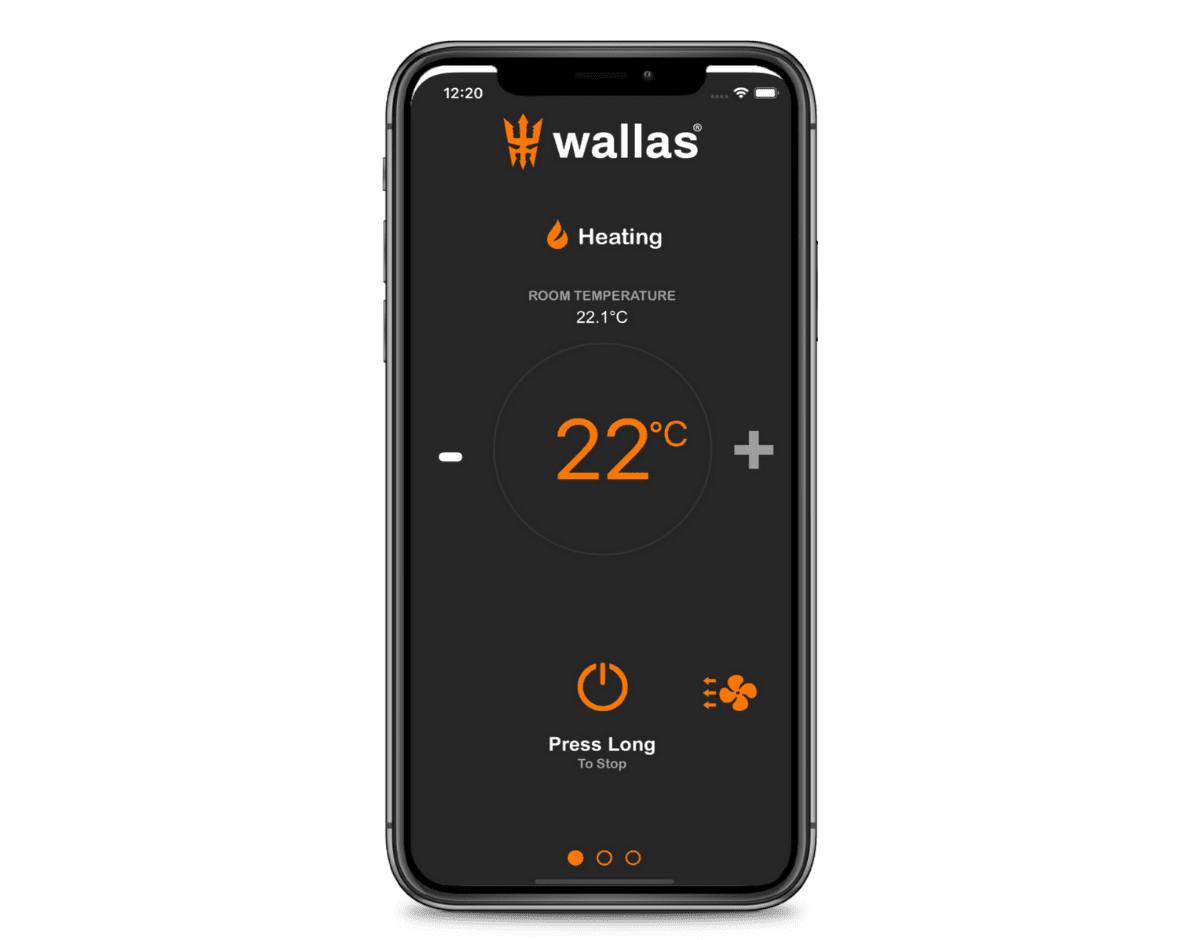

WALLAS Telefon App - zur Steuerung der Heizung aus der Ferne

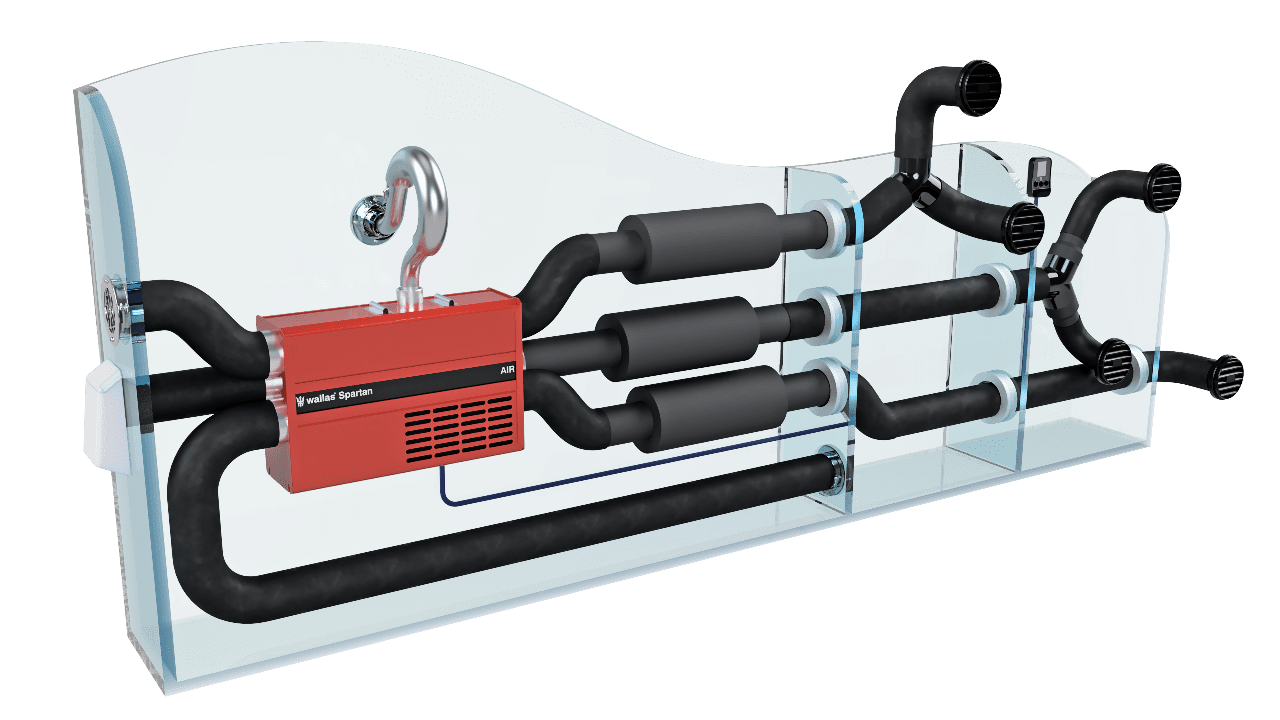

Installation einer SPARTAN AIR Heizungsanlage
WALLAS SPARTAN AIR diesel hot-air heater 4.5kW
Powerful 12 V diesel heater.
The SPARTAN AIR model offers the latest remote control functions on the market for marine heaters, making operation convenient for everyone. The heater's control panel can be accessed remotely via a mobile app. This makes it easy to switch on and operate the heater from home.
A wireless sensor monitors the indoor temperature with high accuracy and ensures an even temperature in the boat.
SPARTAN AIR has three inlet openings. In comparison, SPARTAN TWIN has two and many other heaters on the market have only one. Multiple inlet hoses ensure better efficiency and fresher air in the interior. Both models in the SPARTAN series are energy-efficient 4.5 kW heaters - a good choice for medium-sized boats up to 12 m/40 ft.
- Heating output 1.4 - 4.5 kW
- 3 fresh air inlets
- 3 hot air outlets
- Integrated fuel pump
- 12 volts, 0.7-4.5 amps
- Laminar flow burner technology and brushless radial fan ensure high warm air output with minimal noise, even without a silencer. Pleasant operation for the crew and freedom from disturbance for adjacent berths in the harbor.
The future-oriented Greenboost burners are suitable for automotive diesel (EN 590) and fuels with a higher proportion of renewable fuels and guarantee low diesel consumption with low-emission combustion. - Very low power consumption. Can also be started with very low on-board voltage (from 9.6 V).
- Effective fresh air circulation for ventilation without heating is possible
- Uncomplicated installation of the heaters in the engine room
- Long service life, in corrosion-resistant metal housing
- 3-year guarantee
- Worldwide service network
The heating is controlled via the wired Advanced control panel, which has Bluetooth and WLAN connectivity (wireless system update and control via smartphone app also possible). The separate wireless Bluetooth room thermostat (extremely simple and flexible installation, multiple thermostats possible) can be placed where the temperature is actually to be measured.
Functions:
- stepless manual control
- intelligent processor-controlled thermostat control
- two-stage boost function
- Sun switch (switches off automatically on warm days)
- Child safety lock
- LED backlighting.
See table for dimensions. As the dimensions and connections correspond to the proven heaters of the WALLAS DT series, replacing old systems is very easy.
Scope of delivery:
(Material for the installation of flue gas, supply air and hot air pipes is not included, as this must be adapted individually for each ship)
- Heater
- Wall bracket with fixing screws
- Control panel (with 6.0 m connection cable)
- Wireless Bluetooth room thermostat
- 4.0 m fuel line with fuel filter
- 4.0 m connection cable with 15 A fuse
€2,499.00*
€2,499.00*
Prices incl. VAT plus shipping costs
Description
Powerful 12 V diesel heater.
The SPARTAN AIR model offers the latest remote control functions on the market for marine heaters, making operation convenient for everyone. The heater's control panel can be accessed remotely via a mobile app. This makes it easy to switch on and operate the heater from home.
A wireless sensor monitors the indoor temperature with high accuracy and ensures an even temperature in the boat.
SPARTAN AIR has three inlet openings. In comparison, SPARTAN TWIN has two and many other heaters on the market have only one. Multiple inlet hoses ensure better efficiency and fresher air in the interior. Both models in the SPARTAN series are energy-efficient 4.5 kW heaters - a good choice for medium-sized boats up to 12 m/40 ft.
- Heating output 1.4 - 4.5 kW
- 3 fresh air inlets
- 3 hot air outlets
- Integrated fuel pump
- 12 volts, 0.7-4.5 amps
- Laminar flow burner technology and brushless radial fan ensure high warm air output with minimal noise, even without a silencer. Pleasant operation for the crew and freedom from disturbance for adjacent berths in the harbor.
The future-oriented Greenboost burners are suitable for automotive diesel (EN 590) and fuels with a higher proportion of renewable fuels and guarantee low diesel consumption with low-emission combustion. - Very low power consumption. Can also be started with very low on-board voltage (from 9.6 V).
- Effective fresh air circulation for ventilation without heating is possible
- Uncomplicated installation of the heaters in the engine room
- Long service life, in corrosion-resistant metal housing
- 3-year guarantee
- Worldwide service network
The heating is controlled via the wired Advanced control panel, which has Bluetooth and WLAN connectivity (wireless system update and control via smartphone app also possible). The separate wireless Bluetooth room thermostat (extremely simple and flexible installation, multiple thermostats possible) can be placed where the temperature is actually to be measured.
Functions:
- stepless manual control
- intelligent processor-controlled thermostat control
- two-stage boost function
- Sun switch (switches off automatically on warm days)
- Child safety lock
- LED backlighting.
See table for dimensions. As the dimensions and connections correspond to the proven heaters of the WALLAS DT series, replacing old systems is very easy.
Scope of delivery:
(Material for the installation of flue gas, supply air and hot air pipes is not included, as this must be adapted individually for each ship)
- Heater
- Wall bracket with fixing screws
- Control panel (with 6.0 m connection cable)
- Wireless Bluetooth room thermostat
- 4.0 m fuel line with fuel filter
- 4.0 m connection cable with 15 A fuse
