Oil heater REFLEKS 60M

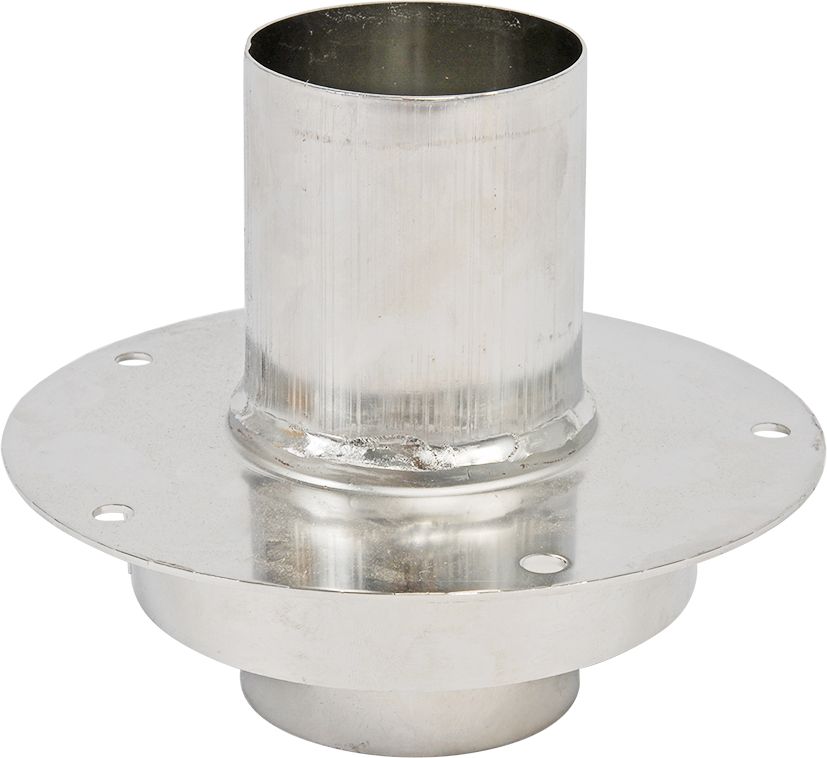

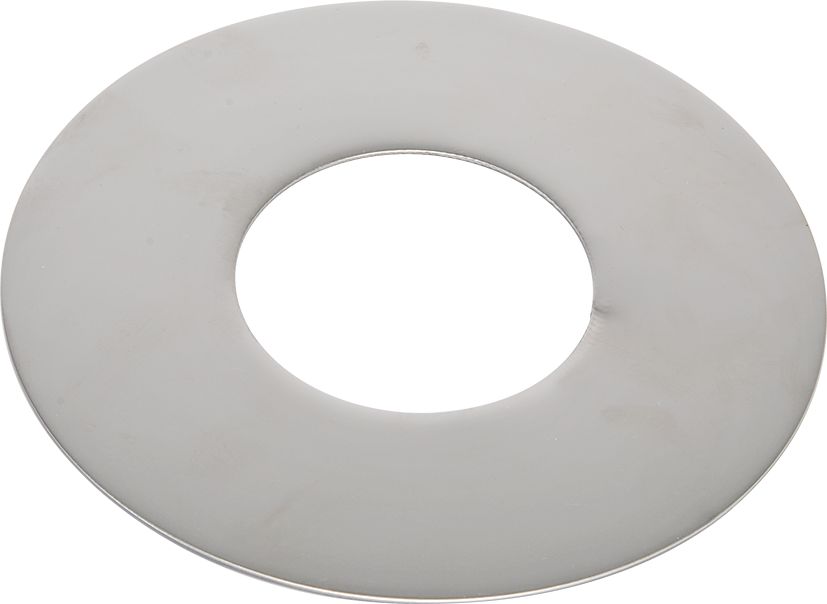

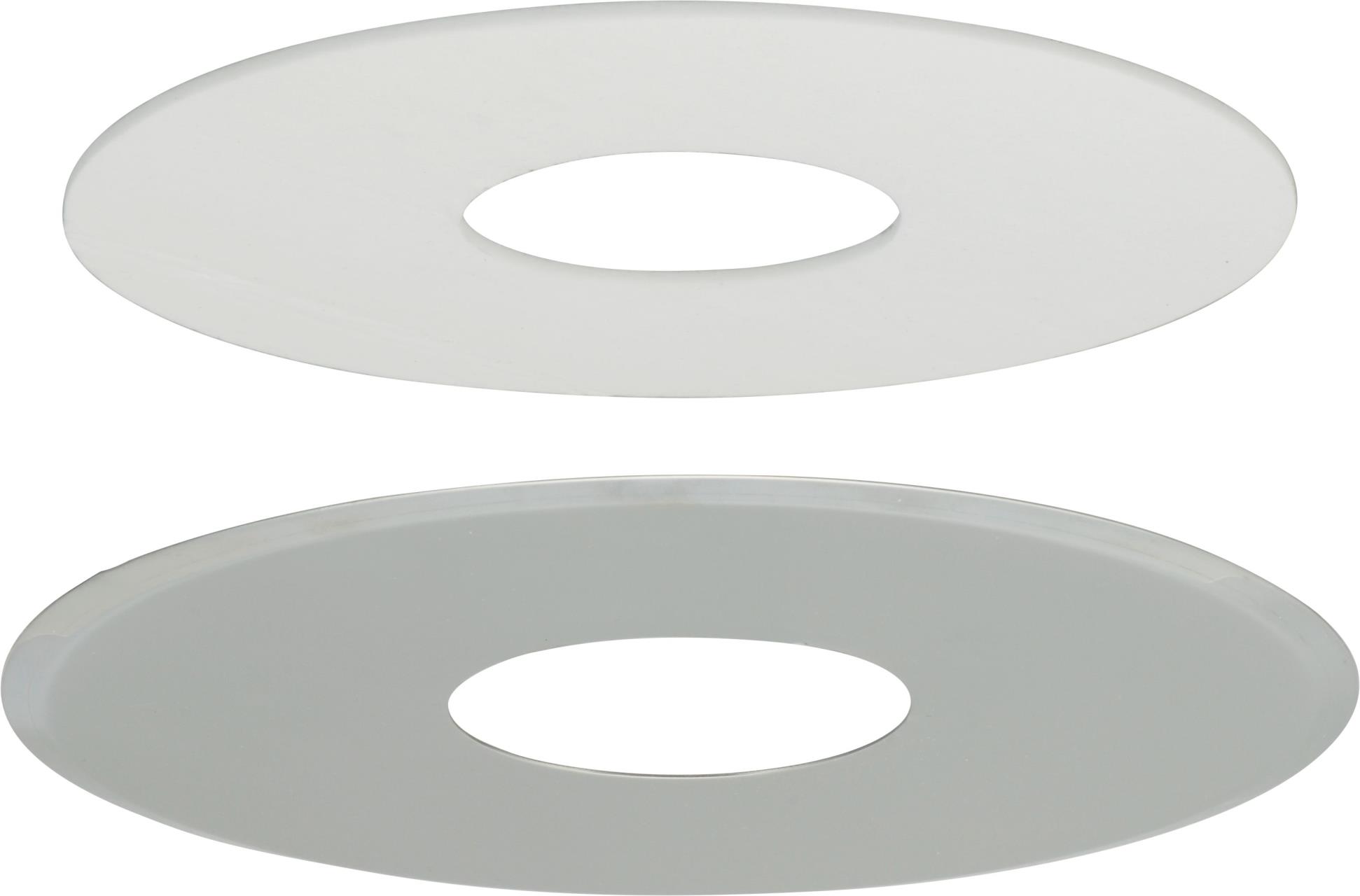

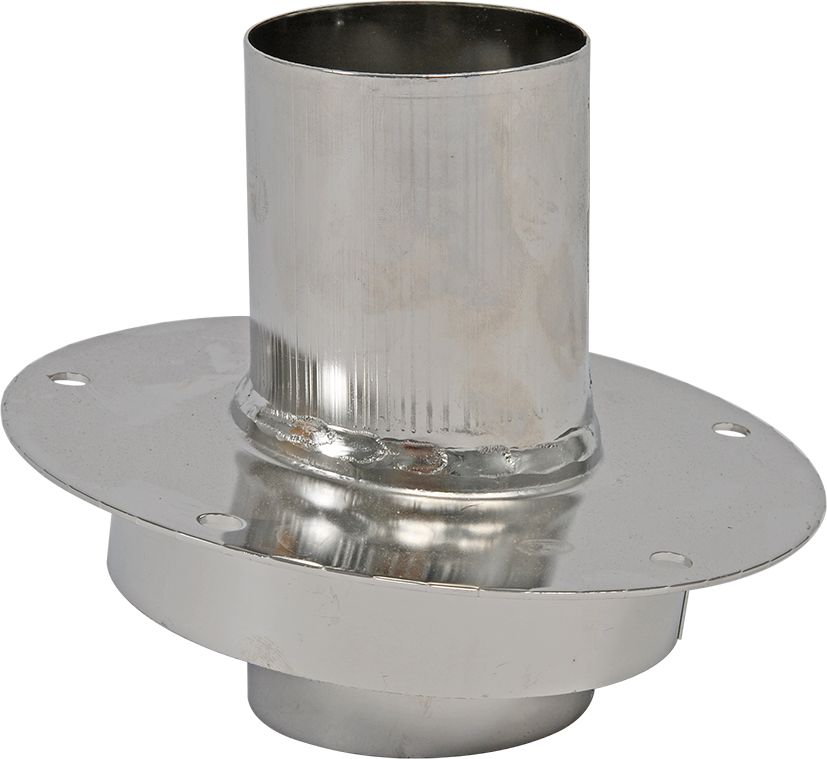

Deck through hull REFLEKS

Deck through hull with round deck plate, stainless steel. Suitable for our REFLEKS flue pipes.

From €128.00 *

Through hull inclined REFLEKS

Through-deck fitting with round, inclined deck plate.Made of stainless steel.Avaialable in various angles for adapting to the deck inclination.Fits the REFLEKS flue pipes.

From €149.00 *

Details

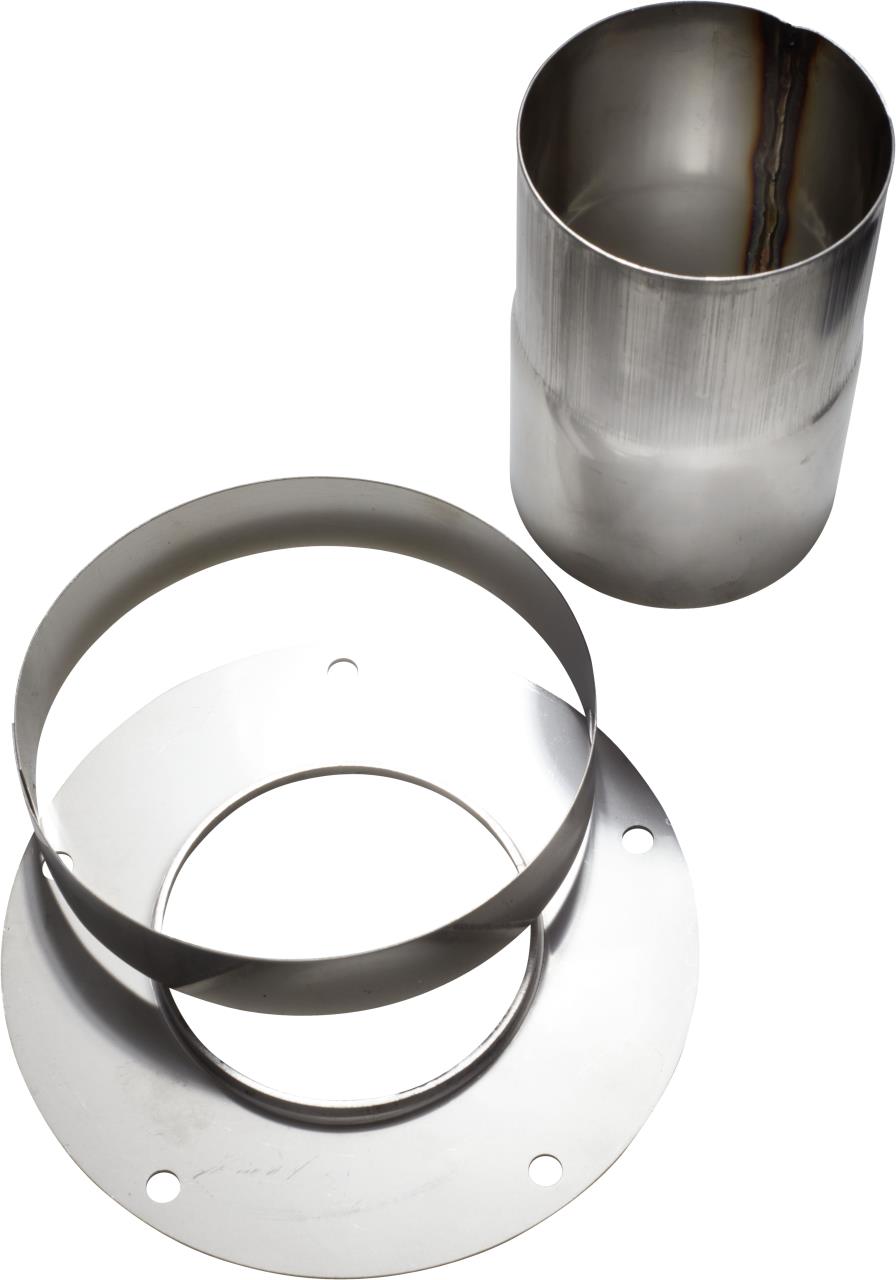

Deck through hull REFLEKS components

Components for mounting a through-deck fitting that matches your deck inclination perfectly.Pipe, a round deck plate and flange to weld locally.Made of stainless steel.Fits the REFLEKS flue pipes.

From €98.00 *

Details

Insulated flue pipe REFLEKS

Thickness 0.6 mm, insulated with 10 mm of rock wool.Above all, at the lowest temperatures, double flue pipes are necessary outside, so that the draft through very cold pipes can be restricted.

From €156.00 *

Details

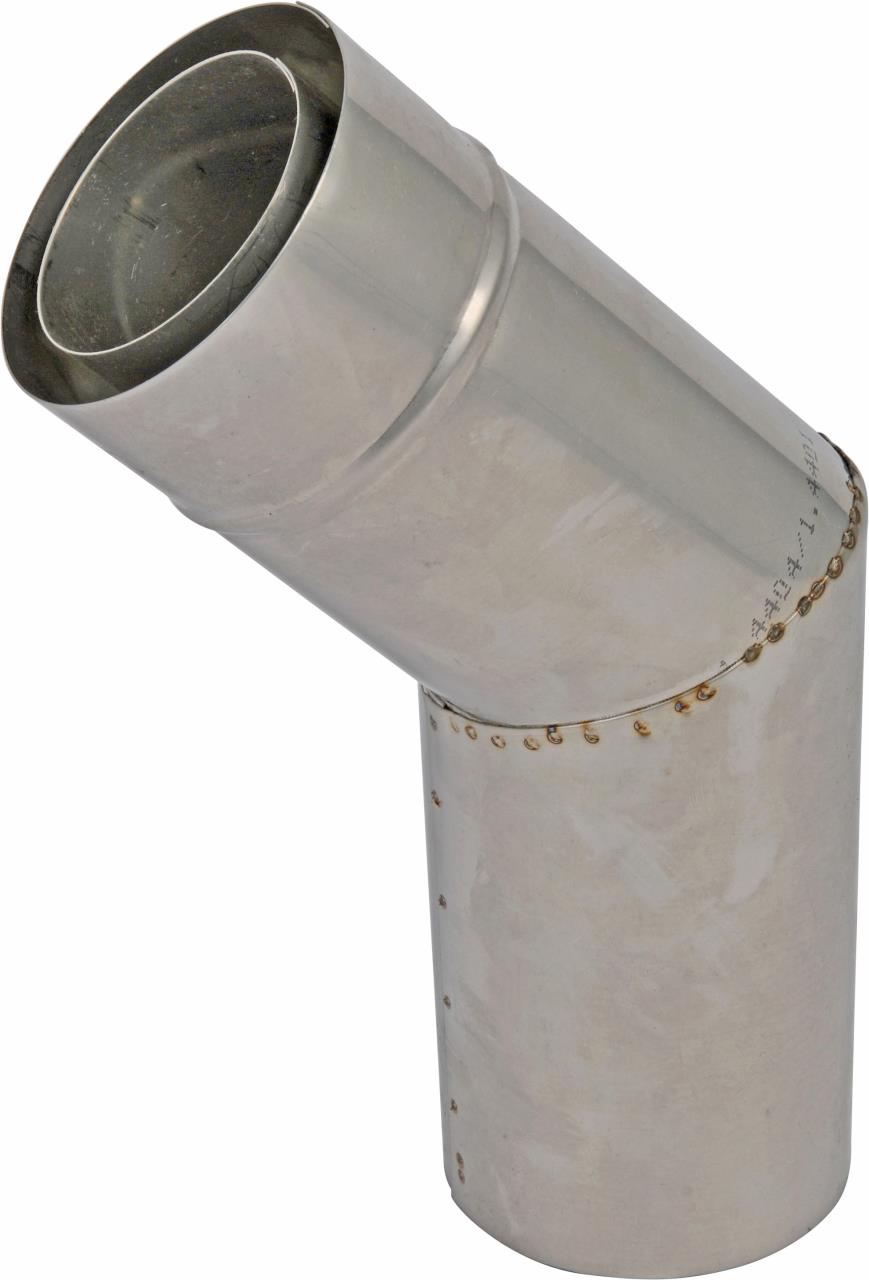

Insulated flue pipe elbow 45° REFLEKS

Thickness 0.6 mm, insulated with 10 mm of rock wool.Above all, at the lowest temperatures, double flue pipes are necessary outside, so that the draft through very cold pipes can be restricted.

From €168.00 *

Details

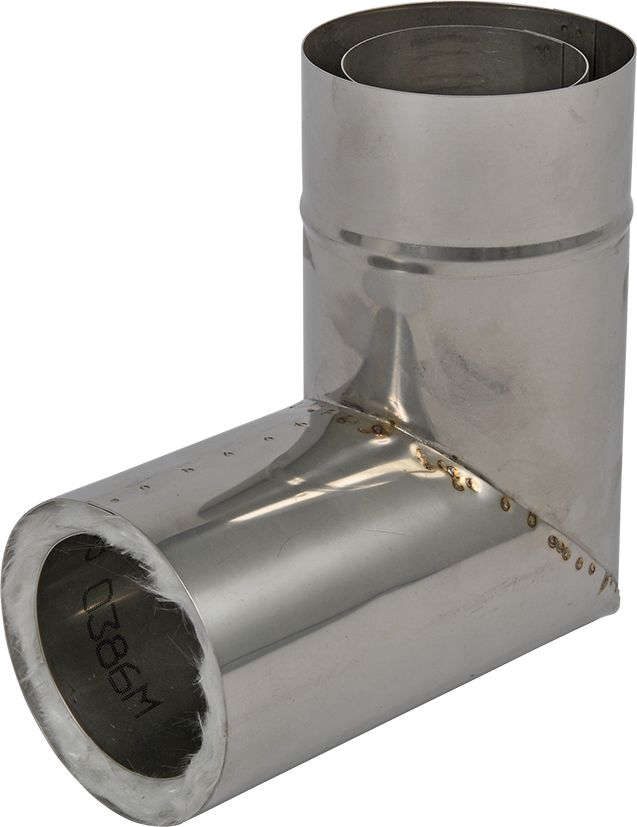

Insulated flue pipe elbow 90° REFLEKS

Thickness 0.6 mm, insulated with 10 mm of rock wool.Above all, at the lowest temperatures, double flue pipes are necessary outside, so that the draft through very cold pipes can be restricted.

From €168.00 *

Details

Insulated flue pipe adapter REFLEKS

Required for double-walled flue pipes, in order to mount an exhaust hood that fits the inner diameter.

From €59.90 *

Details

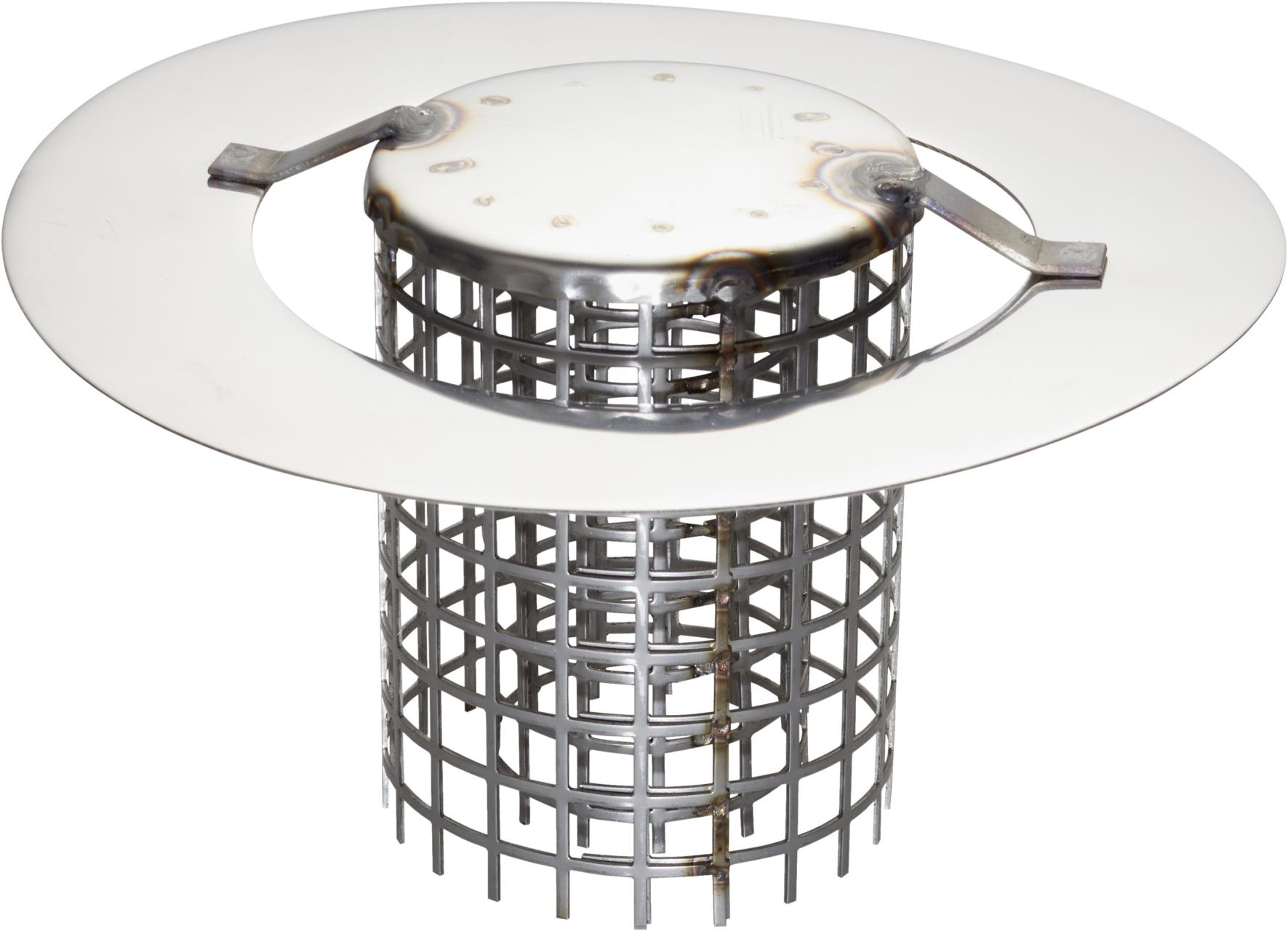

Burner coil for REFLEKS oil heater 60/61

Combustion chamber application with catalysing function; for improving the combustion process, especially at low regulation.All new REFLEKS stoves, exept stoves 60/61, are equipped with these coils.

€99.00 *

Details

Oil drip tray REFLEKS

Base plate for all REFLEKS stoves.Very highly recommended for safe installation. Because of its high edge, it will collect leaked fuel.

From €110.00 *

Details

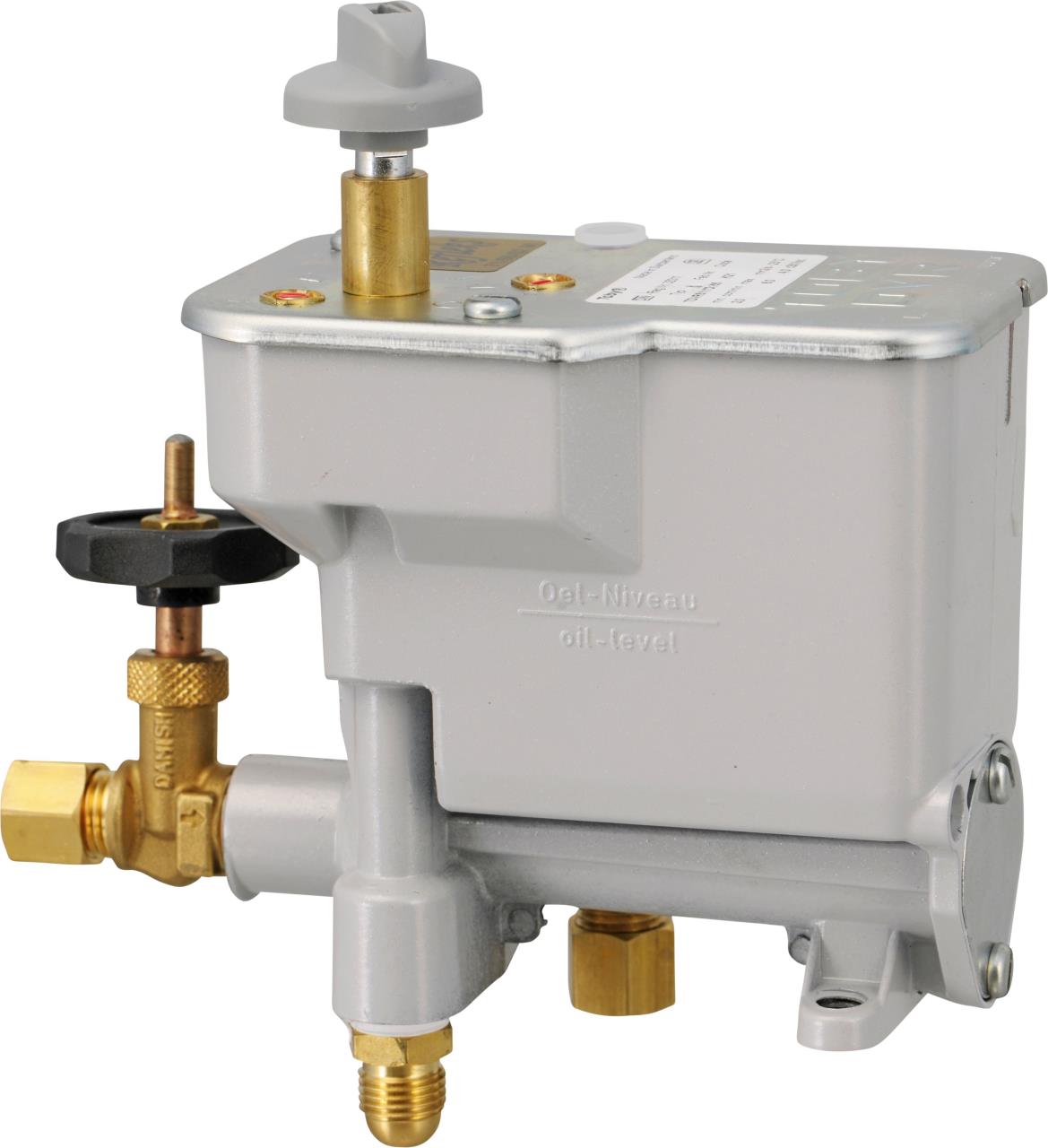

Oil metering regulator REFLEKS

By REFLEKS especially for their different stoves pre aligned oil metering valves by the swiss manufacturer TOBY.The oil metering valves are equipped with an attached safety valve with a fusible cut-out for the automatic cut-off when the stove is overheating above 100°C. Fitting tubing: copper tube with D = 8 mm;Inlet and overflow pipe: compression type fitting,Outlet: flare type fitting.The TOBY oil metering valve DVR 5 is a time-tested single compartment controller for oil stoves, that operates with the gasification technique. The controller serves to regulate the amount of oil flowing and thereby the heating output. At the same time it acts as the safety valve for the stove.Since the CC oil metering valves used by REFLEKS before 2012 are not produced any more, a change to the TOBY oil metering valve became necessary.

From €398.00 *

Details

Fuel pipe connection for TOBY controller

Fuel pipe connection for 8 mm pipe diameter.Melting cap for TOBY oil metering valves for automatic closing in the event of a fire.

€62.90 *

Details

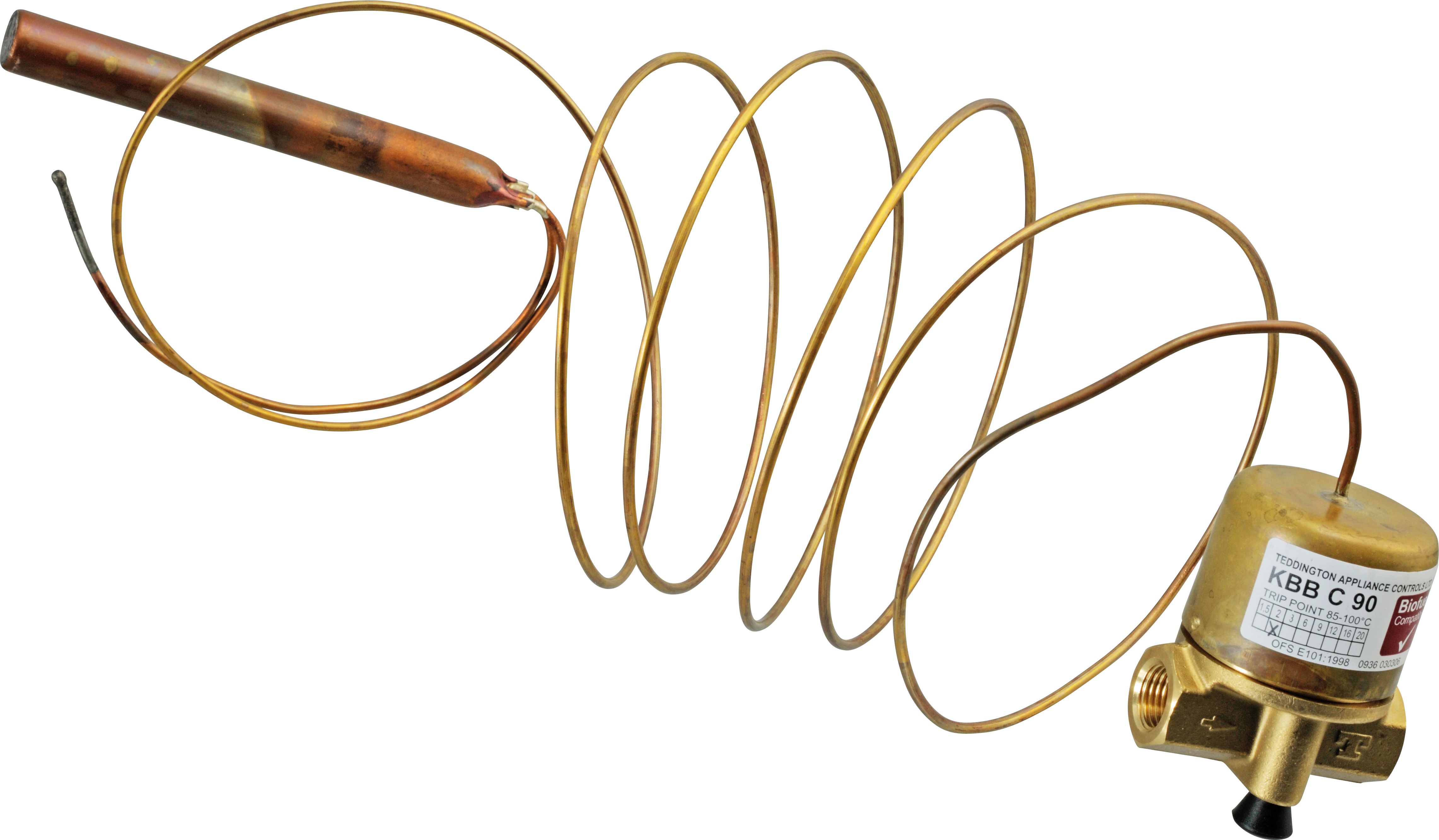

Temperature safety valve

All REFLEKS heating systems with a water circuit should be equipped with this shut-off valve.The KBB fire protection valve is a compact valve in a corrosion-resistant, non-flammable design that operates purely mechanically and does not require a power supply.The temperature sensor is connected to the valve via a permanently soldered capillary line.As soon as the temperature at the sensor exceeds the set value (90°), the oil supply to the stove is immediately interrupted by the valve.The valve remains closed until the reset button is pressed.The valve can also be triggered manually by pulling the reset button.The valve (supplied with connection material for 8 mm pipes, SR 8 mm cutting ring fitting on both sides) is installed in the oil supply line directly upstream of the regulator.The temperature sensor measures the flow hot water temperature near the heater. If the set temperature (90°C) is exceeded, the oil supply is shut off immediately.To connect the sensor to the heating pipework, use a copper T-piece with two G ½" male threaded pipe fittings (please order item no. 4292-100 separately). The vertical branch of the T-piece does not have direct access to the water circuit of the heating system, but is soldered onto the water-carrying pipe and serves to accommodate the temperature sensor.Care must be taken during installation to ensure that the capillary line is not kinked under any circumstances. Length of the sensor line 200 cm.

From €99.80 *

Details

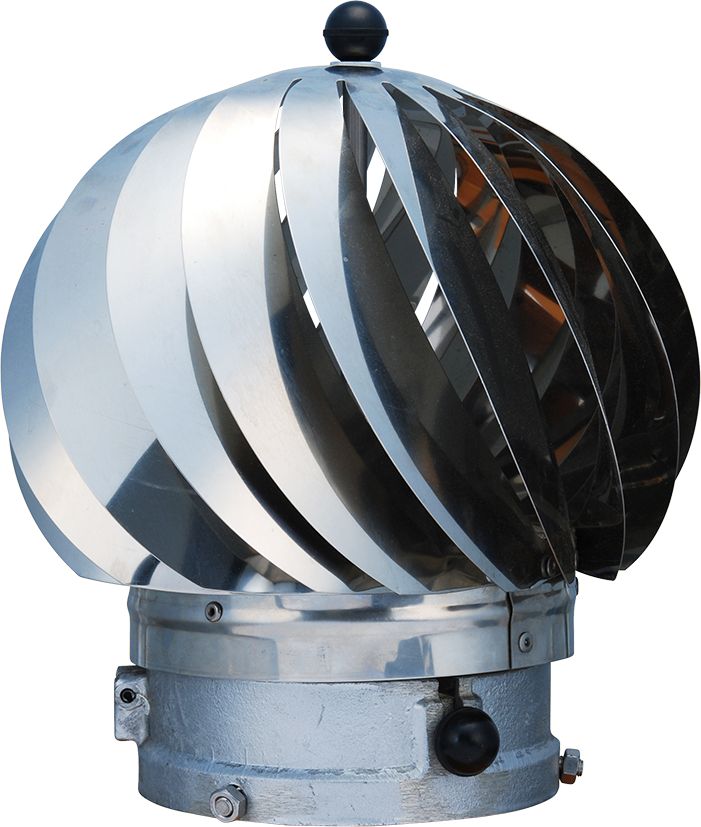

Rotary ventilator ASPIROMATIC stainless steel

Rotating stainless steel vent that can also be used as a gas vent for all opening types, protected against backdrafts and supports the correct draft of the chimney.The (folding) extraction fan runs on ball bearings and is propelled by the wind.The flange is made of a light DURAL-INOX alloy. Available is also a version 240 C with a square ground plate (330 x 330mm) for profiles of 200 x 200mm up to 250 x 250mm. The enclosed attachment bolts allow mounting on pipes of varying diameters.Output data based on 3 beaufort wind velocity (10 kn).

From €298.00 *

Details

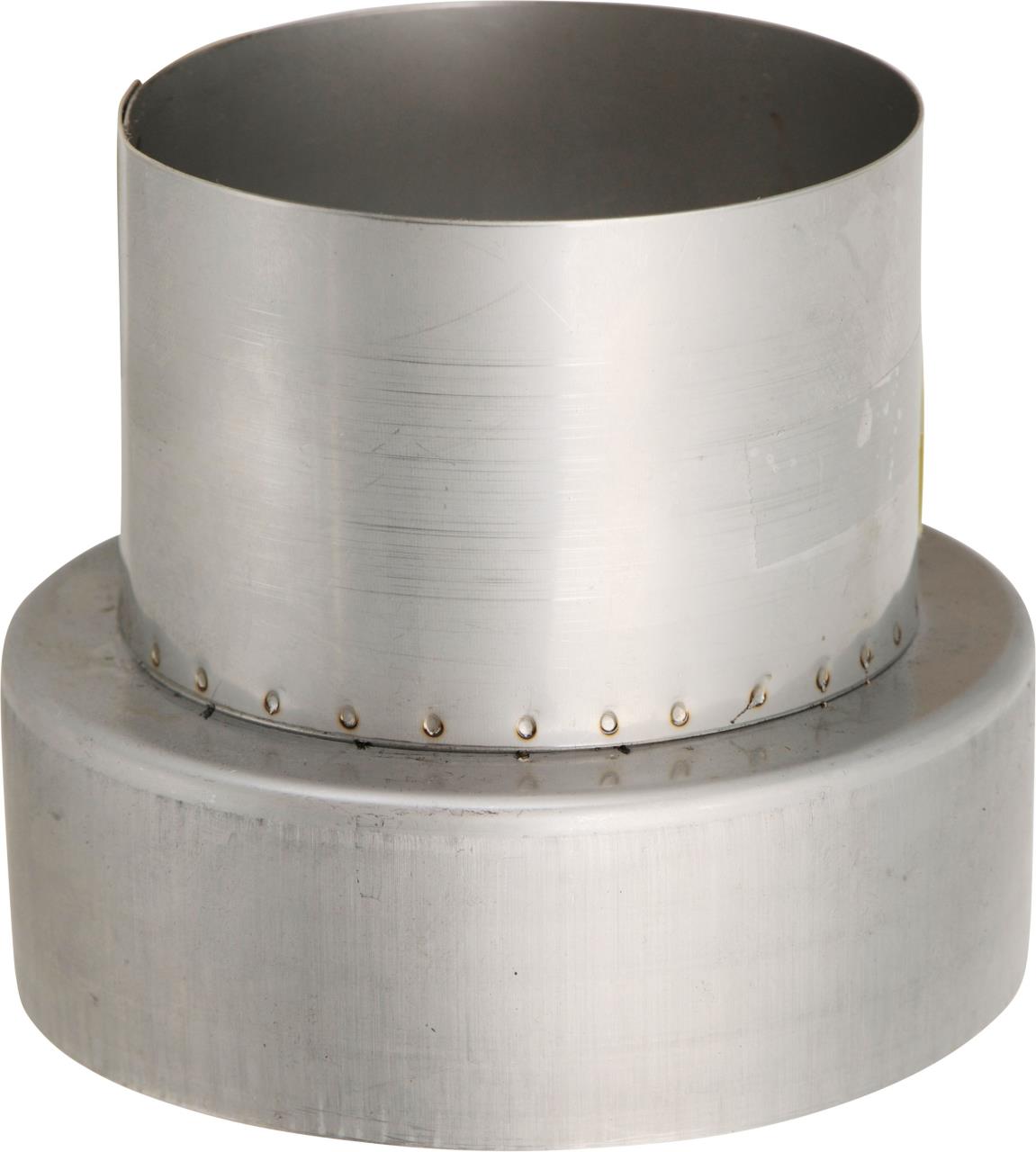

REFLEKS-adapter for ASPIROMATIC ventilator

Fits the REFLEKS 90 mm flue pipe system, in order to attach the small ASPIROMATIC ventilator (Art-Nr. 1836-160). Stainless steel, 1 mm wall thickness. Diameter 95 / 150 mm, height 95 mm.

€107.00 *

Details

DICKINSON flue tube cover

Exhaust hood for DICKINSON stove pipes.Rain-proof standard hood, made of stainless steel.As a Dickinson importer and wholesaler, we carry just about every original spare part and accessory.

From €227.00 *

Details

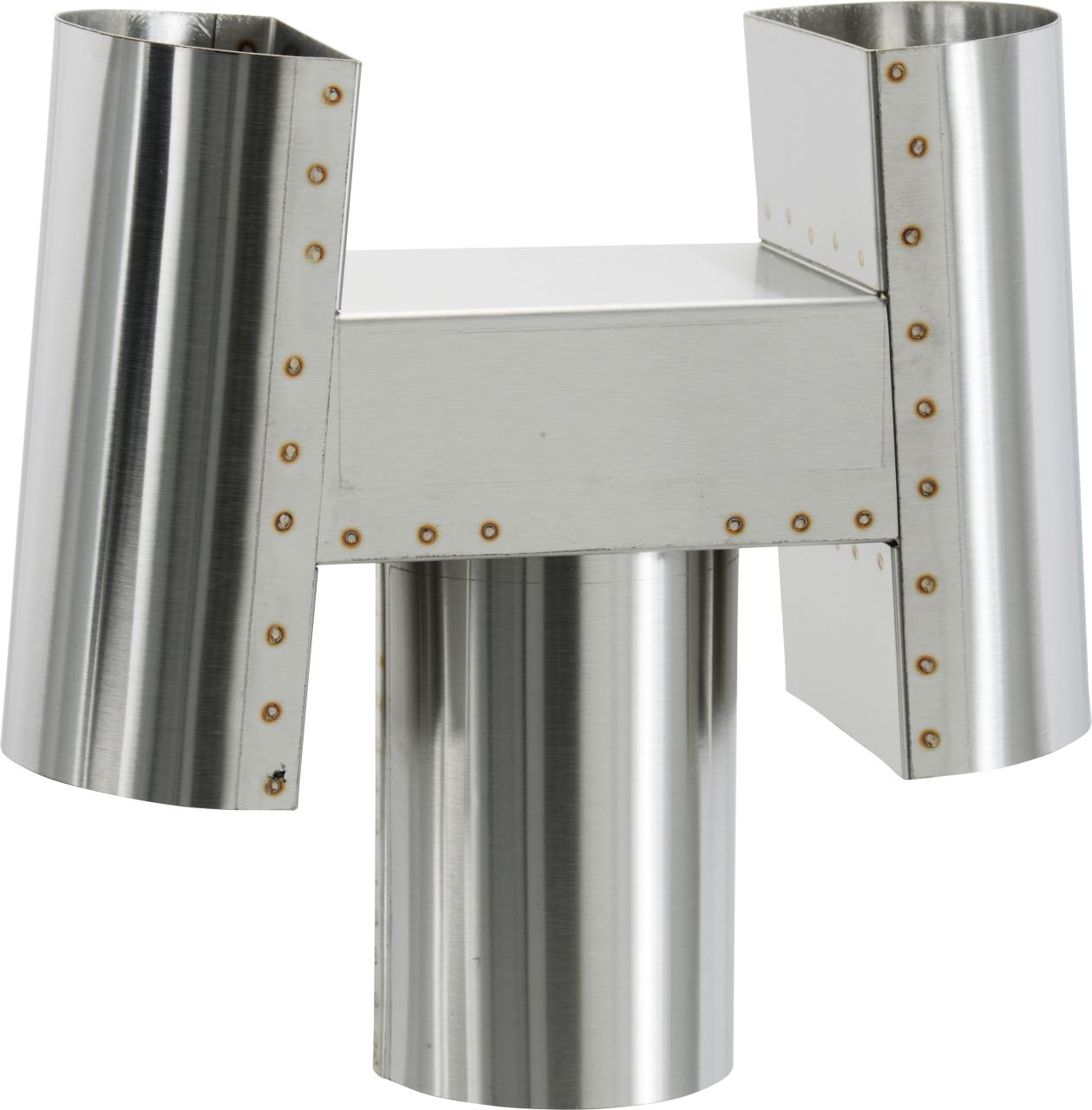

DICKINSON exhaust hood

Exhaust hood for DICKINSON stove pipes.H - shaped, for difficult ventilation situations.Stainless steel.As a Dickinson importer and wholesaler, we carry just about every original spare part and accessory.

From €227.00 *

Details

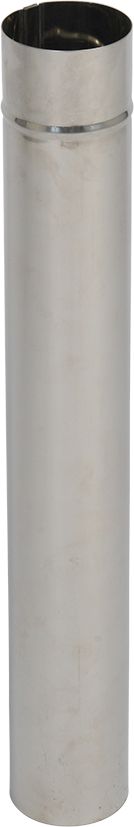

Flue pipes REFLEKS

This flue pipes matches the REFLEKS heating system and other gas or coal stoves with matching exhaust outlets.Made of acid-proof stainless steel (wall depth 0.6 mm).Plugs together: slightly conical with pressed sleeve on one side.

From €29.90 *

Details

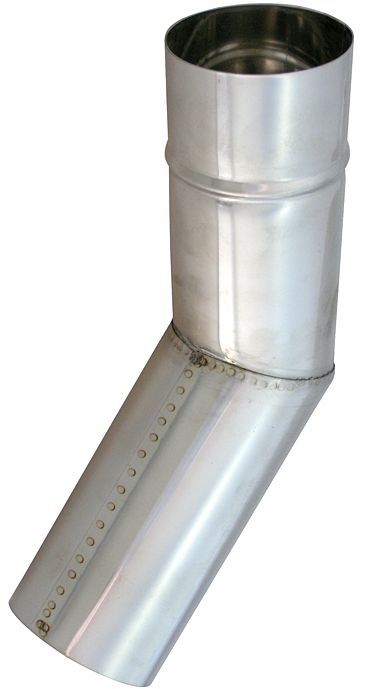

Flue pipe elbow 45° REFLEKS

This flue pipes matches the REFLEKS heating system and other gas or coal stoves with matching exhaust outlets.Made of acid-proof stainless steel (wall depth 0.6 mm).Plugs together: slightly conical with pressed sleeve on one side.

From €56.90 *

Details

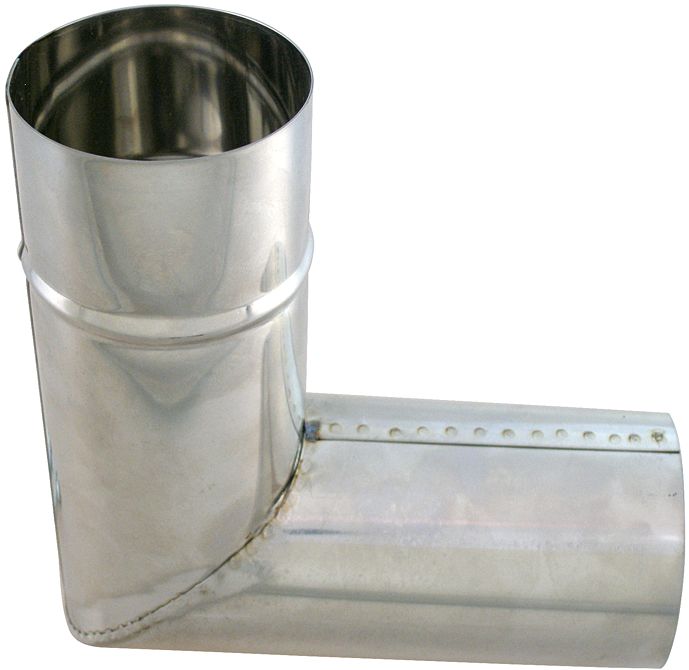

Flue pipe elbow 90° REFLEKS

This flue pipes matches the REFLEKS heating system and other gas or coal stoves with matching exhaust outlets.Made of acid-proof stainless steel (wall depth 0.6 mm).Plugs together: slightly conical with pressed sleeve on one side.

From €61.00 *

Details

Flue pipe elbow 90° REFLEKS with cleanout door

This flue pipes matches the REFLEKS heating system and other gas or coal stoves with matching exhaust outlets.Made of acid-proof stainless steel (wall depth 0.6 mm).Plugs together: slightly conical with pressed sleeve on one side.

From €69.90 *

Details

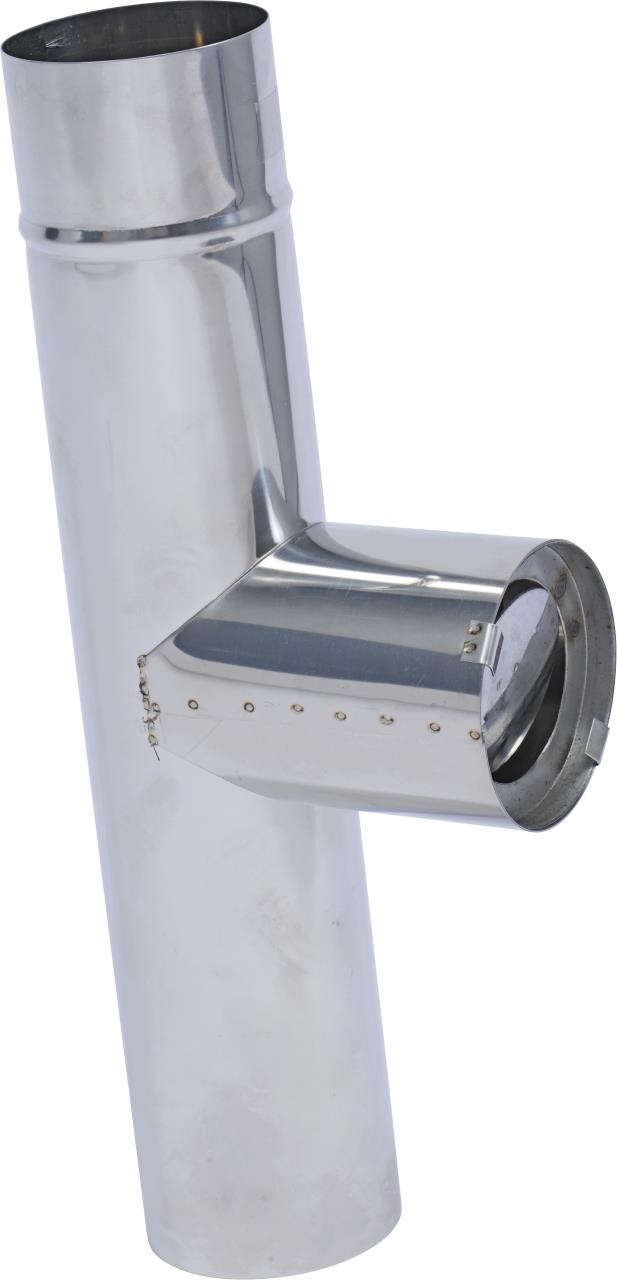

Flue gas damper REFLEKS

Pipe socket with draft flap for draw regulation and performance improvement of REFLEKS stoves.The exhaust ventilation is installed directly over the stove and when used automatically guides air into the exhaust guide pipe.Recommended for long or problematic exhaust leads.Length 330 mm.

From €133.00 *

Details

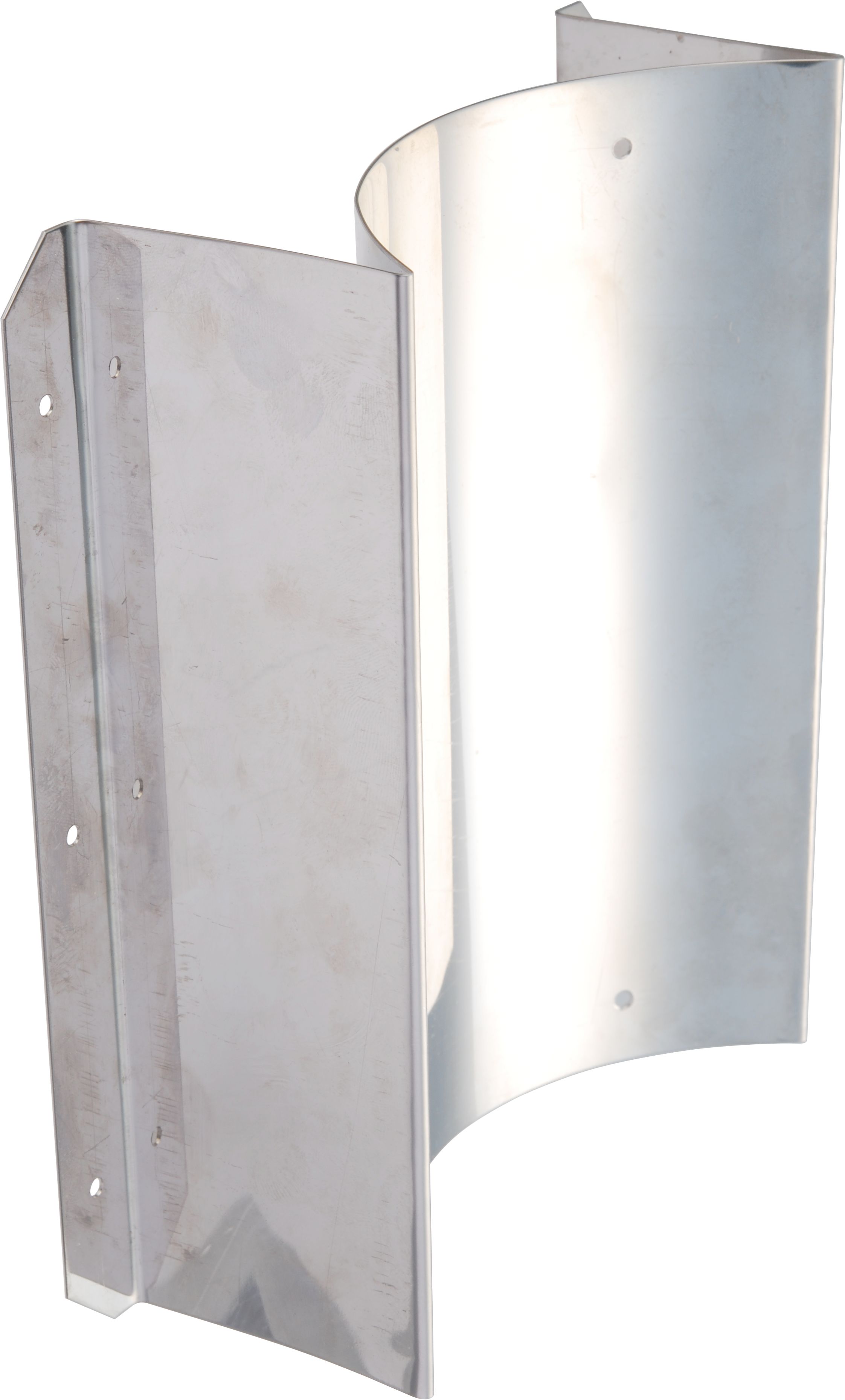

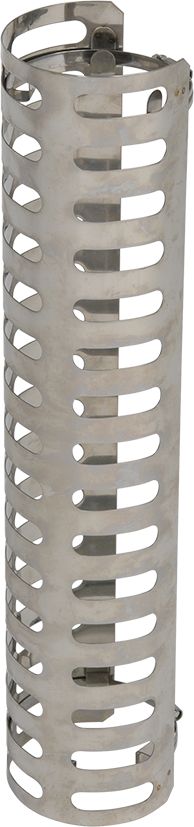

Flue guard REFLEKS

Guard for flue pipes that are installed in close quaters.Avaiable in stainless steel, brass or copper plate.The risk of contact burns is minimized, but the warmth of the pipe can still be enjoyed.Matches REFLEKS flue pipes of 70 mm or 90 mm.The flue guard is attached to the flue pipe and fixed with two stainless steel brackets, which are included in the package.Distance from flue pipe, 15 mm.

From €109.00 *

Details

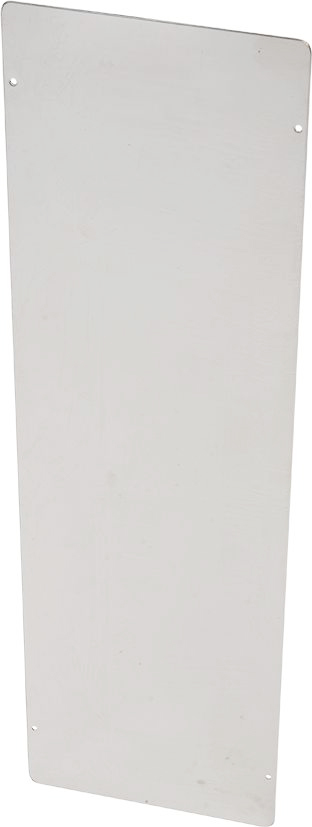

Wall shade inox

Small reflector plate for heat protection behind flue pipes.Plate stainless steel.Measurements:50cm high, 15cm wide.Available as flat or recessed version.The flat plate must be mounted with spacers or insulation behind, the recessed plate can be mounted directly on the wall.

From €35.90 *

Details

Wall mount for REFLEKS oil heaters 66 M/M-C

This wall mount from stainless steel was developed by REFLEKS specifically for their oil heaters 66 M/M-C.Simply mount the heater with screws to a bulkhead instead of on the floor.

€69.80 *

Details

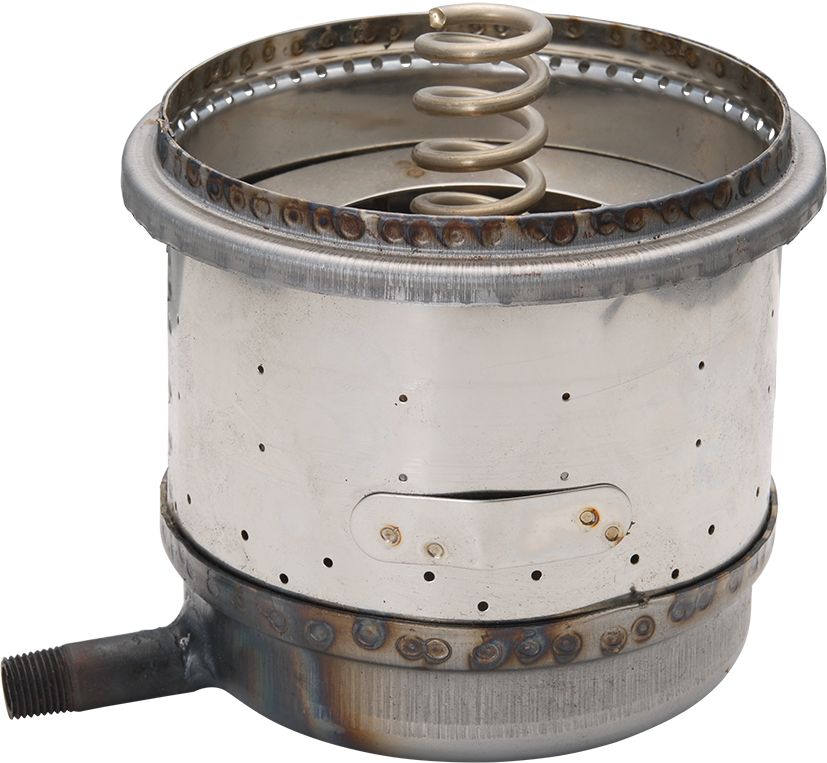

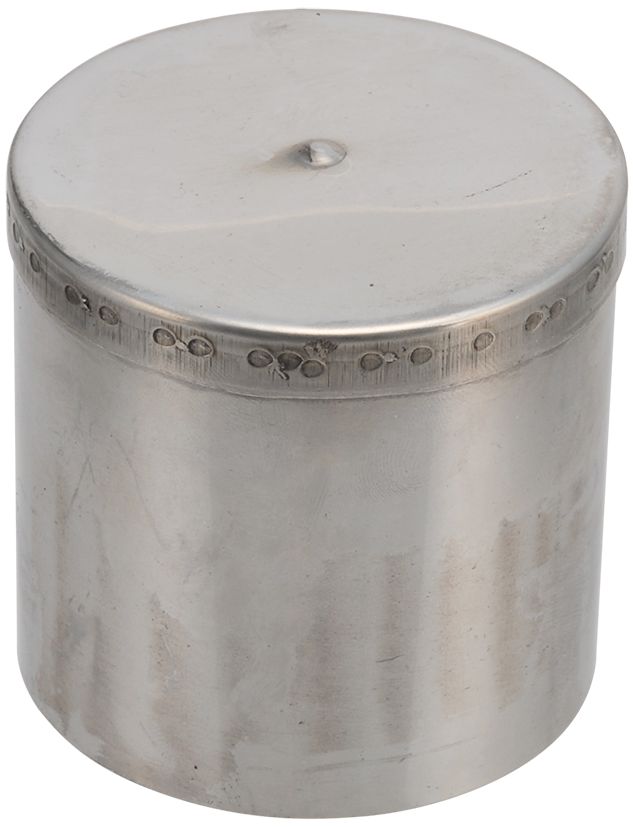

Spare burner pot REFLEKS

It is possible, that a replacement becomes necessary after years of usage, since the burner chambers in all REFLEKS oil heater are made from steel plate.The chambers are shipped complete with welded infeed tube, with a stainless steel ring to direct the flame and in case of the small burners 66M, 71M and 62M also with the heater coil (catalyst) made from innox.With the larger burners the heater coil has to be ordered separately.Additional spare parts for the REFLEKS oil heaters not mentioned here, like burner base, new burner or heating coil are available on request.

From €217.00 *

Details

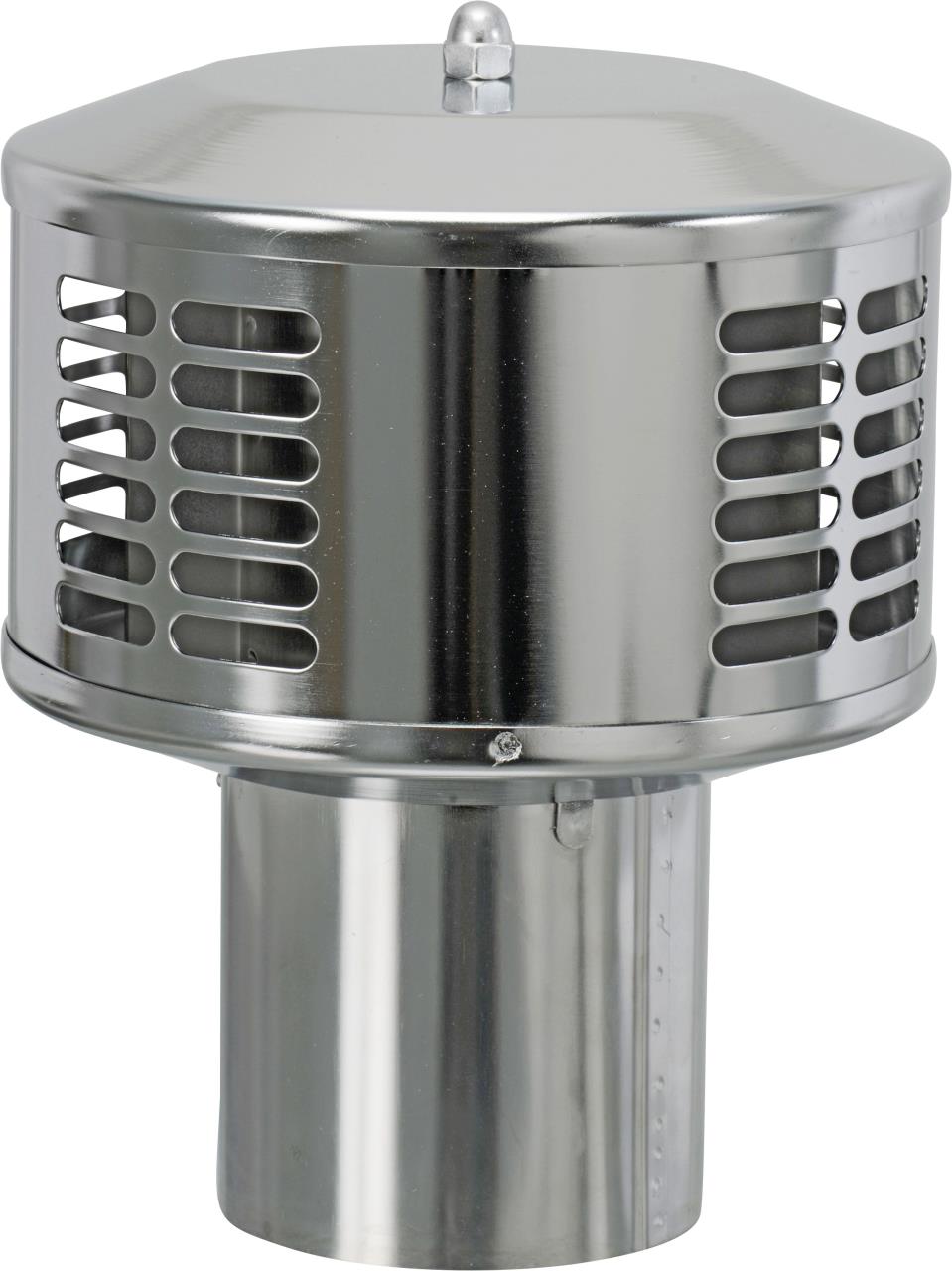

Exhaust hood REFLEKS

Standard exhaust hoods REFLEKS.

From €131.00 *

Details

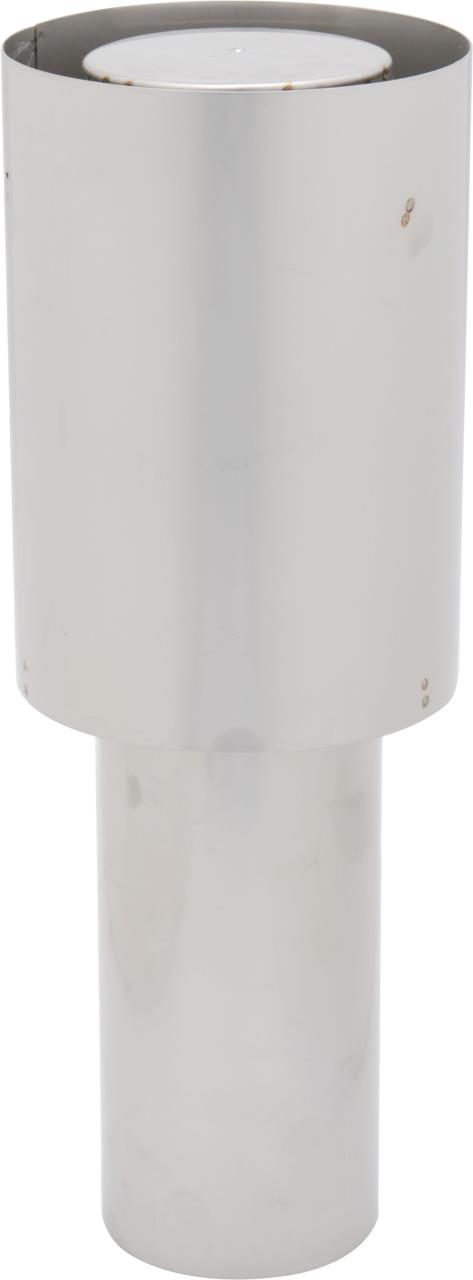

Exhaust hood Yacht REFLEKS

Thin flue cap, type YACHT.The design of this cap ensures a very secure fit and a good draft.Rain-proof and very compact.The rounded edges keep lines from hooking on it.

From €165.00 *

Details

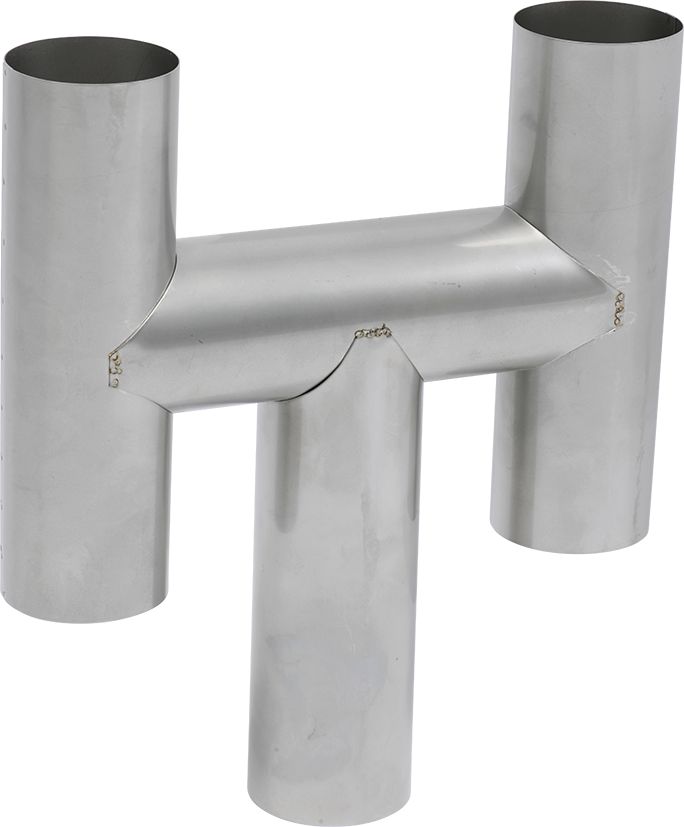

H-exhaust hood REFLEKS

The flue cap of the Danish fishermen.The cap offers the most safe adjustment and is exceptionally secure against down drafts.Fits the double-walled flue pipes.

From €209.00 *
