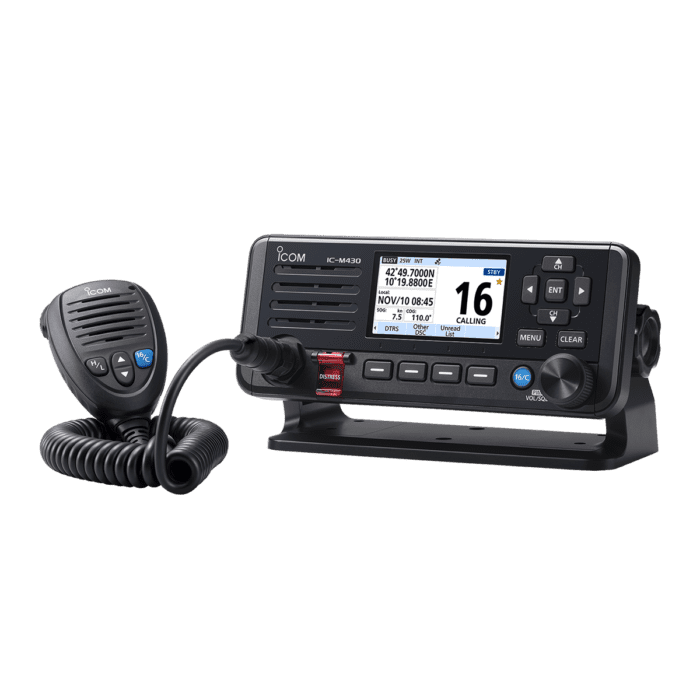

ICOM IC-M430E VHF marine radio, DSC Class D/ATIS/GPS

Inexpensive grey class D VHF built-in device: GPS, DSC and ATIS function.COBRA MR F77 with integrated 56-channel GPS receiver. Shows the ship's current position on the display and automatically transmits this position in the event of a distress call via the distress button. The GPS data can also be used by other navigation devices on board via the NMEA 0183 interface.The GPS antenna is integrated in the device. To ensure good GPS reception, the device must be installed in the open air with an unobstructed view of the satellites (preferably not below deck).The Rewind-Say-Again function enables a 20-second replay of the last radio message received. Radio Check automatically checks the on-board voltage and transmission power when transmitting.An external loudspeaker can be connected. Transmission power 1 W / 25 W. Waterproof according to IPX8.MMSI and ATIS identifier can be entered on board.For console or bulkhead mounting, supplied with mounting bracket and mounting frame. For 12 volt on-board voltage.Dimensions W x H x D: 159 x 72 x 175 mm.

The ICOM COMMANDMIC HM-195 is a 4th Generation remote-control microphone. A new look for total control of all communications and Class D DSC functions, as well as AIS and GPS functions (if the VHF system supports these features). It incorporates the new ICOM user interface. Features: - IPX7 Submersible rating, - Active Noise Canceller: Produces clear voice sound and supresses up to 90% of background sound when receiving or transmitting - Superior audio performance, - Complete control of all communications & Class D DSC functions (also AIS functions if the VHF system allows), AquaQuake Intercom function (with IC-M423 and IC-M506EURO). Size (W x H x D): 67.5 x 144.5 x 37 mm; Weight (without cables): 400 g. Comes complete with 1,50 m coiled cord and with 6,1 m connection cord. Connection may be extended to max. 18,3 m with two optional extension cords.The COMMANDMIC may be used with the ICOM VHF IC-M423, IC-M400BB and IC-M506EURO.Available in two designs: - HM-195B: amber coloured display; - HM-195GB: white display.

The entry-level model from ICOM with a full range of functions: marine radio, DSC and ATIS operation are possible. The IC-M330GE marine radio has an integrated GPS receiver in a very compact housing.The intuitive user interface allows easy operation.The version integrated GPS/GLONASS/SBAS receiver with external passive GPS antenna. Ship's position and speed / course are shown on the display, the ship's position is automatically transmitted when a DSC distress message is sent. Supplied including passive GPS antenna with connection cable.Features:DSC capability (class D)ATIS for inland radioNMEA interface for input and outputLarge dot matrix LCD display (38 x 73 mm)two- / three-channel monitoringchannel search functionsAIS destination call (only in conjunction with MA-500TR)Transmit power 25 W / 1 W2W audio output power for connecting an external loudspeakerClass D DSC built-inAquaQuake functionWaterproof according to IPX7 (30 minutes at a depth of 1 m)Compatible with the optional MA-500TR AIS transponder.Scope of delivery: Device with mounting bracket, HM235 hand-held microphone with channel switching buttons, DC voltage cable, external antenna with 5.0 m connection cable, manual.Optional accessories: ICOM installation kit MBF-5 (Article-No. 3938-335) for instrument panel installation.You can store your MMSI and, if applicable, the ATIS identifier (once) in the device yourself on board.Installation dimensions: 137 x 51 x 85 mm. Weight: 730 g. For 12 volt on-board voltage.You can find more technical details in the operating instructions (Bedienungsanleitung) as a pdf file further down on this page under "Downloads & Information".

The IC-M410BB is a black box marine VHF radio with a remotely mountable control unit as the sole call station.The waterproof (IPX7) HF unit IC-M410BB can be installed in a place where it will not interfere. All functions, including DSC operation, can be operated with the supplied COMMANDMIC HM-195B. Its cable length of 6.10 metres can be extended to a maximum of 18.30 metres. Two optional OPC-1541 extensions are required for this. You will find these (Article-No. 3938-154) further down on this page under "Accessories" at COMMANDMIC.Install up to two stations on board, VHF radio available at your desired positions Up to two COMMANDMIC remote controls can be connected to the IC-M410BB, providing access to the VHF radio and intercom functions. This makes it possible to transmit from two different positions on board. NMEA 2000 and NMEA 0183-HS enable data integration on board. The NMEA 2000 network provides plug-and-play data communication for connection to other marine devices, such as an MFD (multi-function display). The radio can send GNSS (GPS) position, DSC call and radio channel to other devices.Active noise cancellation - no need to shout into your microphoneActive Noise Cancellation digitally removes background noise from both transmit and receive audio for clear communication, even in noisy maritime environments.Built-in Class D DSC, "Distress" button can be a lifesaver in an emergency situationWith just one press of the "DISTRESS" button, the inbuilt DSC (Digital Selective Calling) system can digitally transmit distress information to the Coast Guard and/or other vessels. The DSC monitoring function continuously monitors the DSC channel (channel 70) for added safety and protection.Loud one-way receiver loudspeaker megaphone for radio watch on deck or tower A built-in 13-watt amplifier increases the audio output to an external call loudspeaker. The 1-way RX hailer function allows you to monitor radio traffic on deck via the loudspeaker megaphone. You can also play foghorn patterns via the loudspeaker megaphone. Built-in GPS receiver The built-in GPS receiver displays your current position, date/time and can be used for DSC calls. The GPS antenna supplied eliminates the need for time-consuming connection to other GPS data sources and allows you to flexibly select the location for a good reception signal.Features:NMEA-2000 and NMEA-0183-HS connectivityAquaQuake draining function (HM-195B)For 12 volt power supplyWaterproof according to IPX7 (30 minutes at a depth of 1 m)Dual/triple channel guard for simultaneous monitoring of channel 16 and/or call channelAnchor watch functionAs the user, you can enter your MMSI into the device yourself after switching on the transceiver (once, in accordance with the applicable regulations)Additional programming with an ATIS ID is possible after prior activation of this area by the dealer. Please ask us about this.Scope of delivery:HF unit IC-M410BBOne CommandMic HM-195GB with connection cable OPC-1540 (6.1 m)GPS antennaPower supply cable (DC cable 2 m)Microphone suspensionConnection capMounting bracketYou can find more technical details in the operating instructions (Bedienungsanleitung) as a pdf file further down on this page under "Downloads & Information".

Functional device with many additional functions. The compact and functional marine radio system meets the latest technical requirements and regulations, and the intuitive user interface developed by ICOM allows easy operation.Marine radio, DSC and ATIS operation are possible. A GPS receiver, including external passive GPS antenna with 5 m cable, is integrated. The ship's position is also transmitted during the DSC distress call.With background noise suppression (Active Noise Cancelling) and 10 watt AF amplifier for external loudspeakers (megaphone or foghorn function).Features:DSC capability (Class D), (complies with ITU-R M493-13 and EN 300 338-3)NMEA0183 interface for input and outputLarge dot matrix displayTwo/three-channel monitoringchannel scan functionsAIS destination call (only in conjunction with MA-500TR)for on-board voltage 12 voltsWaterproof according to IPX7 (30 minutes at a depth of 1 m)AquaQuakeT functionDimensions: 180 x 82 x 120 mm. Weight 1200 g.Scope of delivery: Device with mounting bracket, hand-held microphone, DC voltage cable, manual. Optional accessories: The installation bracket MB-132 (Article-No. 3938-132) for installation in the instrument panel and the external control unit COMMANDMIC HM-195B (Article-No. 3938-195) can be found further down on this page under "Accessories".You can enter the MMSI and, if applicable, the ATIS identifier (once) into the device yourself.You can find more technical details in the operating instructions (Bedienungsanleitung) as a pdf file further down on this page under "Downloads & Information".

The IC-M510BB is a black box VHF marine radio with a remotely mountable control unit as the sole call station.The waterproof (IPX7) HF unit IC-M510BB can be installed in a place where it will not interfere. All functions, including DSC operation, can be operated with the supplied COMMANDMIC HM-195GB. Its cable length of 6.10 metres can be extended to a maximum of 18.30 metres. Two optional OPC-1541 extensions are required for this. You will find these (Article-No. 3938-154) further down on this page under "Accessories" for the COMMANDMIC.Install up to three stations on board, VHF radio available at your desired positions Up to three COMMANDMIC control units can be connected to the IC-M410BB, providing access to the VHF radio and the intercom functions. When using the intercom function, you can choose between a single call or an all-call. It is possible to transmit from up to three different positions on board. NMEA 2000 and NMEA 0183-HS enable data integration on board. The NMEA 2000 network provides plug-and-play data communication for connection to other marine devices, such as an MFD (multi-function display). The radio can send GNSS (GPS) position, DSC call, AIS signals and radio channel to other devices.The integrated AIS receiver monitors the movements of other vesselsThe integrated AIS receiver shows you ships in the immediate vicinity. You can set an alarm for "too close" approaches to avoid collisions. As the MMSI is part of the AIS data received, you can address a selected vessel directly via an individual DSC call.DSC remote control interface for PC console software (EN 300 338-8 compliant) The IC-M510BB has a special DSC remote control port (compatible with EN 300 338-8) that enables connection to PC console software or an external device. This allows you to centralise the control of emergency communication.Two-minute voice recording function for replaying the last call The voice recording function for the last call automatically saves up to two minutes of an incoming call. So you won't miss any more messages.Active noise cancellation - no need to shout into your microphoneActive noise cancellation digitally removes background noise from both the transmit and receive audio, ensuring clear communication even in noisy, maritime environments.Built-in Class D DSC, "Distress" button can be a lifesaver in an emergency situation With just one press of the "DISTRESS" button, the inbuilt DSC (Digital Selective Calling) system can digitally transmit distress information to the coastguard and/or other vessels. The DSC monitoring function continuously monitors the DSC channel (channel 70) for added safety and protection.Loud one-way receiver loudspeaker megaphone for radio watch on deck or tower A built-in 13-watt amplifier increases the audio output to an external call loudspeaker. The 1-way RX hailer function allows you to monitor radio traffic on deck via the loudspeaker megaphone. You can also play foghorn patterns via the loudspeaker megaphone.Built-in GPS receiverThe built-in GPS receiver displays your current position, date/time and can be used for DSC calls. The GPS antenna supplied eliminates the need for time-consuming connection to other GPS data sources and allows you to flexibly select the location for a good reception signal.Features:NMEA-2000 and NMEA-0183-HS connectivityAquaQuake training function (HM-195B)For 12 volt power supplyWaterproof according to IPX7 (30 minutes at a depth of 1 m)Dual/triple channel guard for simultaneous monitoring of channel 16 and/or call channelAnchor watch functionAs the user, you can enter your MMSI into the device yourself after switching on the transceiver (once, in accordance with applicable regulations)Additional programming with an ATIS ID is possible after prior activation of this area by the dealer. Please ask us about this.Scope of deliveryHF unit IC-M510BB with integrated GPS and AIS receiverOne CommandMic HM-195GB with connection cable OPC-1540 (6.1 m)GPS antennaPower supply cable (DC cable 2 m)Microphone suspensionConnection capMounting bracketYou can find more technical details in the operating instructions (Bedienungsanleitung) as a pdf file further down on this page under "Downloads & Information".

VHF marine radio with class D DSC, remote control via smartphone operating technology, integrated NMEA 2000 interface and two megaphone/RX hailer function. Available with or without integrated AIS receiver.The device has a TFT-LC color display with a viewing angle of almost 180° and night vision mode. The built-in, waterproof 15 W loudspeaker amplifies the received sound and thus ensures a powerful, clear sound.The flat, award-winning design is equally suitable for installation in a dashboard (installation depth: 53.6 mm) or for swiveling use with the surface-mounted device bracket.Remote control & intercom via your smart deviceWith the RS-M500 app (for iOS/Android), some functions of the IC-M510E EVO can be controlled remotely via WLAN. Up to three smart devices can be used as a wireless microphone or remote control. The intercom function between smart device and radio is also possible. Integrated AIS receiverAIS vessel traffic information is shown on the display in real time. This can either come from the integrated AIS receiver (3938-516) or reach the IC-M510E EVO (3938-515) as an NMEA data set from an external AIS receiver or transponder. An individual DSC call to selected AIS targets can be made directly from the AIS screen. Simple navigationThe navigation function guides you to an entered waypoint or AIS target. Up to 100 destinations can be set as waypoints. Technical features:Integrated GNSS receiver (use the internal GNSS antenna or the optional UX-241 GNSS antenna)Waterproof according to IP68 (for 60 min in 1 m water depth)AquaQuake™ function removes water that has penetrated the speakerIncluded speaker microphone HM-205RB, can be connected to the front or rear as requiredConnection for external speakerThe HM-195 COMMANDMIC™ can be connected as an optionSupports four-digit channel numbersScope of delivery:IC-M510E EVO - optionally with or without integrated AIS receiverHM-205RB loudspeaker microphoneMicrophone mountDC power cableMounting bracketWaterproof installation seal for mounting in an instrument panelFurther technical details can be found in the operating instructions under "Downloads".

The ICOM M605EURO is the most modern VHF built-in radio from ICOM. It has a completely new design and many new functions, has a very clear 4.3 inch LC colour display and can also be controlled intuitively via the generous user interface with soft keys and function keys below the display.With GNSS receiver (location determination also via alternative satellite systems to GPS, e.g. GLONASS, GALILEO), AIS receiver, background noise cancellation (ANC) and 30 watt amplifier for use as an intercom system.Features:4.3" colour TFT displayIntegrated AIS receiverActive noise cancellationTwo- & three-channel monitoringSupport of the new 4-digit channelsLast call voice recording for up to two minutesIntegrated GPS receiver and external antenna30W megaphone with foghorn functionNMEA 2000 & NMEA 0183Waterproof to IP X8You can enter the MMSI and ATIS identifier yourself (once). Correction of the MMSI and/or ATIS number, e.g. after a change of owner, can only be carried out by a service technician (for a fee).The activation of additional VHF marine radio channels (e.g. channel 31 for use in the Netherlands) can be carried out for a fee.Up to three optional COMMANDMIC HM-229 (article no. 3938-229) can be connected. However, these cannot be used to make a DSC emergency call. The COMMANDMIC is not included in the scope of delivery.The VHF marine radio is also compatible with the ICOM navigation system (MarineCommander). Please ask us about this.You can find more technical details in the operating instructions (Bedienungsanleitung) as a pdf file further down on this page under "Downloads & Information".

An AIS transponder on your ship automatically receives information from other ships equipped with AIS or from coastal stations and transmits data about the movement and other information about your own ship. AIS-equipped vessels and buoys are displayed even if they are difficult to detect with a ship's radar. The MA-510TR can receive both Class A and Class B AIS signals, increasing your safety at sea.4.3-inch Color TFT LCDThe wide viewing, high resolution 4.3-inch color TFT display clearly shows your and other vessels’ positions. The day-mode display is readable in direct sunlight, and the night-mode display ensures good readability in the dark for further convenience.AIS Target List and Details The ‘Target’ list screen shows all detected AIS equipped vessels and targets. The ‘Danger’ list screen shows a list of vessels that are within six nautical miles of Closest Point of Approach (CPA) and sixty minutes of Time to Closest Point of Approach (TCPA) from your vessel. The ‘Friend’ list screen displays the detected AIS targets that you set as friends.Simplified Navigation Function The Navigation function guides you to a specified waypoint or AIS target. You can assign a maximum of 100 favorite fishing spots or destinations as waypoints. The Navigation function is simply started by just selecting a waypoint or an AIS target on the display. A navigation to a MOB-Waypoint is also possible.Individual DSC Call An individual DSC call can be sent by selecting an AIS target and voice channel on the MA-510TR. A compatible marine VHF radio is required for this function.USB ConnectivityAIS-Daten können über die USB-Schnittstelle auf der Rückseite des Transponders ausgegeben werden.Supplied GPS AntennaThe GPS receiver with SBAS function is integrated in the MA-510TR.NMEA 2000, NMEA 0183/-HS ConnectivityThrough the NMEA2000, NMEA0183 and USB interface, the AIS data can be passed to external chart plotters, marine radars, radios or other devices.. Collision Alarm FunctionWhen a vessel comes into the CPA or TCPA range, the vessel’s icon blinks on the plotter display and a beep sound is heard.Silent-ModeFor privacy and security, the transmission of the own ship's position data by the AIS transmitter can be temporarily switched off.Other FeaturesCompatible with both 12 V and 24 V power sourcesAnchor watch function sounds an alarm when your vessel is at anchor but has driftedIPX7 waterproof protection (up to 1 m depth of water for 30 minutes; except connectors)You can find more technical details in the operating instructions (Bedienungsanleitung) as a pdf file further down on this page under "Downloads & Information".

The ICOM MB-132 installation kit is required to install ICOM radios in the instrument panel.Suitable for:ICOM IC-M423GEICOM MA-510TRICOM IC-M605EURO
