BARKA fold down tap

4654-100 BARKA Wasserhan RR4100

4654-100 BARKA Wasserhan RR4100

4654-100 BARKA Wasserhan RR4100

4654-100 BARKA Wasserhan RR4100

4654-100 BARKA Wasserhan RR4100

4654-100 BARKA Wasserhan RR4100

BARKA fold down tap

€88.50*

€88.50*

Prices incl. VAT plus shipping costs

Available, delivery time: >10 Tage (rot)

In stock

version

brass chromed

Model

RR4100

thread size (inch)

3/8

Stk

Sturdy tap, model Sigma RR4100, made of chrome-plated brass with a swivel and fold-down spout. Water flow is controlled via a lever with a ceramic 1/4-turn valve. Connection is via a 3/8″ BSP male thread. The total length of the BSP threaded shank is 34 mm.

The tap is intended for connection to a single water line – suitable for cold or hot water, but not designed as a mixer. It is compatible with pressurized systems.
The position of the lever on the valve pivot can be adjusted to suit the chosen installation. The swivel and fold-down spout also allows mounting inside the sink.

Suitable hose tails for 10 mm or 13 mm hose, or Whale Quick-Connect fittings, are available under accessories.

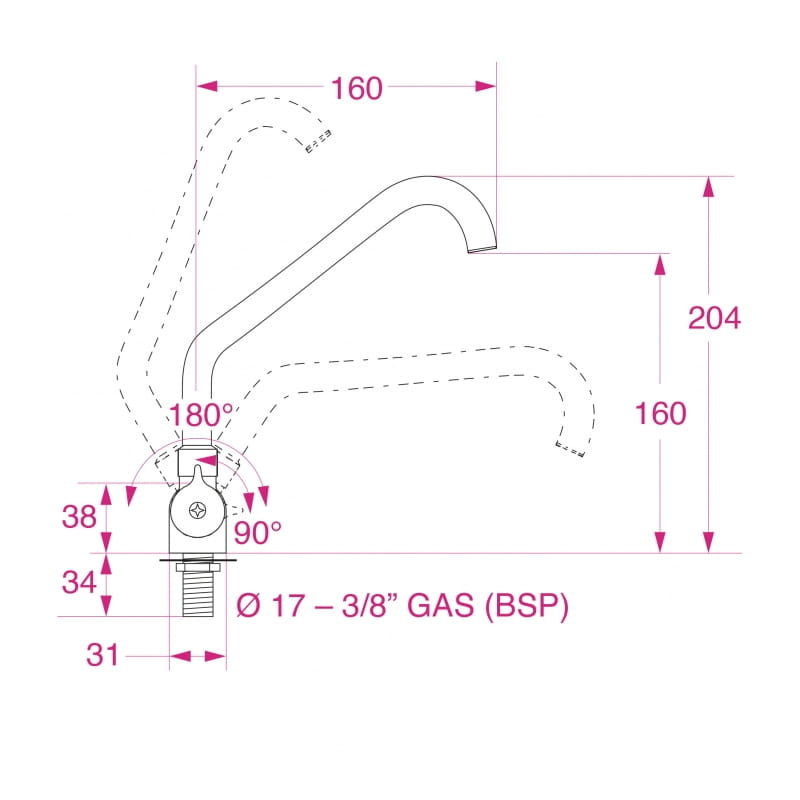

Technical specifications
· Material: chrome-plated brass
· Valve: ceramic, 1/4-turn
· Spout: swivel and fold-down
· Minimum folded height: 37 mm (ideal when the sink is to be covered)
· Connection: 3/8″ BSP male thread
· Threaded shank length: 34 mm
· Single-line installation – no mixing function
· Suitable for pressurized systems (approx. 3 bar)
· Weight: 527 g

more information

📖 View article in the TOPLICHT catalogue

Art. No.	version	Model	thread size (inch)	Price (unit)	Delivery time	Note list	Buy

Sturdy tap, model Sigma RR4100, made of chrome-plated brass with a swivel and fold-down spout. Water flow is controlled via a lever with a ceramic 1/4-turn valve. Connection is via a 3/8″ BSP male thread. The total length of the BSP threaded shank is 34 mm.

The tap is intended for connection to a single water line – suitable for cold or hot water, but not designed as a mixer. It is compatible with pressurized systems.
The position of the lever on the valve pivot can be adjusted to suit the chosen installation. The swivel and fold-down spout also allows mounting inside the sink.

Suitable hose tails for 10 mm or 13 mm hose, or Whale Quick-Connect fittings, are available under accessories.

Technical specifications
· Material: chrome-plated brass
· Valve: ceramic, 1/4-turn
· Spout: swivel and fold-down
· Minimum folded height: 37 mm (ideal when the sink is to be covered)
· Connection: 3/8″ BSP male thread
· Threaded shank length: 34 mm
· Single-line installation – no mixing function
· Suitable for pressurized systems (approx. 3 bar)
· Weight: 527 g

Description

Sturdy tap, model Sigma RR4100, made of chrome-plated brass with a swivel and fold-down spout. Water flow is controlled via a lever with a ceramic 1/4-turn valve. Connection is via a 3/8″ BSP male thread. The total length of the BSP threaded shank is 34 mm.

The tap is intended for connection to a single water line – suitable for cold or hot water, but not designed as a mixer. It is compatible with pressurized systems.
The position of the lever on the valve pivot can be adjusted to suit the chosen installation. The swivel and fold-down spout also allows mounting inside the sink.

Suitable hose tails for 10 mm or 13 mm hose, or Whale Quick-Connect fittings, are available under accessories.

Technical specifications
· Material: chrome-plated brass
· Valve: ceramic, 1/4-turn
· Spout: swivel and fold-down
· Minimum folded height: 37 mm (ideal when the sink is to be covered)
· Connection: 3/8″ BSP male thread
· Threaded shank length: 34 mm
· Single-line installation – no mixing function
· Suitable for pressurized systems (approx. 3 bar)
· Weight: 527 g
