HELLA NaviLED PRO Navigation Lights Black

Art. No.	description	colour	angle (°)	power (W)	range (nm)	Unit price	Delivery time	Note list	Buy

Description

Position lights with MED approval for vessels up to 50 meters in length (masthead light 3254-204 up to 20 meters).

The lens and black housing are fully sealed and meet protection class IP 67. The lens is made of high-strength Grilamid, and the housing is made of UV-resistant plastic.

The LED light module is multi-voltage compatible in the range of 9–33 volts and is therefore suitable for onboard power systems ranging from 12 to 24 volts. Additionally, the light module is protected against voltage spikes and reverse polarity. The navigation lights are delivered pre-wired with a 2.5-meter cable, ready for installation.

Certifications: Wheelmark (MED), BSH, IMO Col Reg 72, USCG, ABYC A-16, Maritime NZ

Technical Specifications

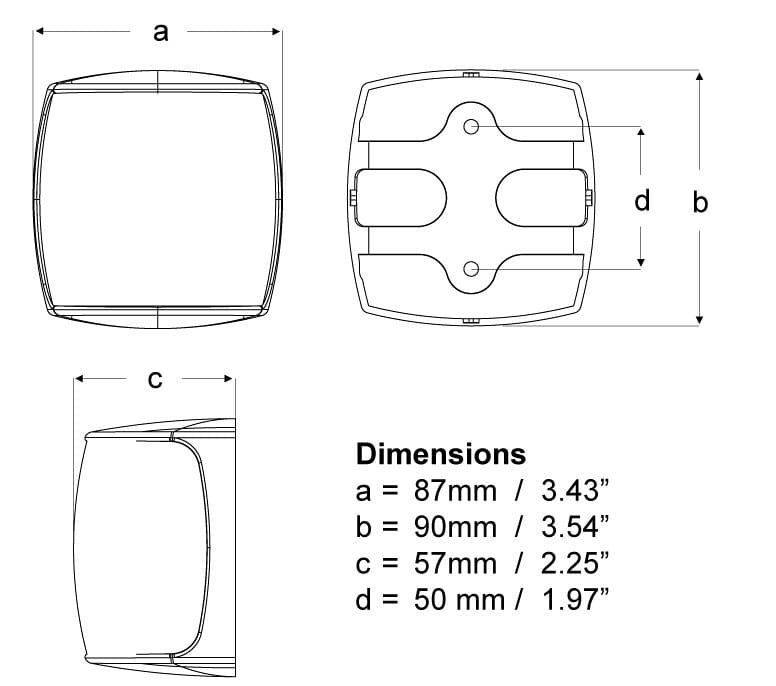

Dimensions (L x W x H): 57 x 87 x 90 mm
Weight: 150 g, including cable
Onboard power supply: 12–24 V

Downloads

Questions about the product?

Talk to craftsmen, boat builders and sailors. We understand your questions and provide the right answers.

Contact experts

3254-398/-399 HELLA NaviLED Pro Adapter für Decksmontage

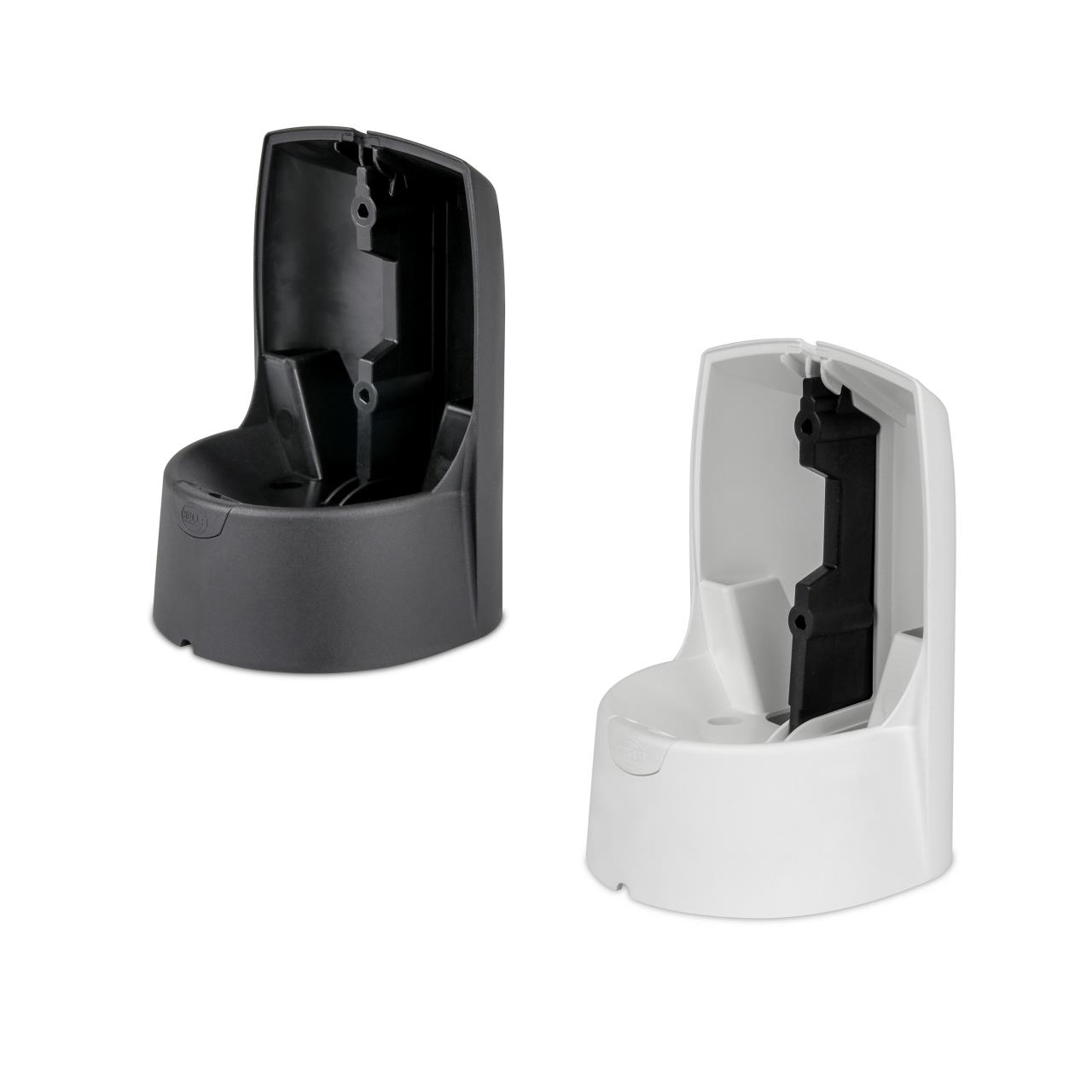

HELLA NaviLED PRO Deck Mounting Adapter

With the deck mount adapter, HELLA Pro series navigation lights can also be installed on horizontal surfaces. It allows for more mounting options, as well as raising the height of the navigation light by 50%.Suitable for the port, starboard, stern, and top version. Innovative design makes the mounting adapter invisible. The adapter is available in black or white to match the navigation lights.

From €27.00 *

Details

3254*09 HELLA NaviLED Pro Positionslichter Gehäuse weiß

HELLA NaviLED PRO navigation lights white

Position lights with MED approval for vessels up to 50 meters in length (masthead light 3254-304 up to 20 meters).The lens and white housing are fully sealed and meet protection class IP 67. The lens is made of high-strength Grilamid, and the housing is made of UV-resistant plastic.The LED light module is multi-voltage compatible in the range of 9–33 volts and is therefore suitable for on-board power systems ranging from 12 to 24 volts. Additionally, the light module is protected against voltage spikes and reverse polarity. The navigation lights are delivered pre-wired with a 2.5-meter cable, ready for connection.Certifications: Wheelmark (MED), BSH, IMO Col Reg 72, USCG, ABYC A-16, Maritime NZTechnical SpecificationsDimensions (L x W x H): 57 x 87 x 90 mmWeight: 150 g, including cableOnboard power supply: 12–24 V

From €189.00 *

Details

3254*10 HELLA NaviLED Compact Positionslichter Gehäuse weiß

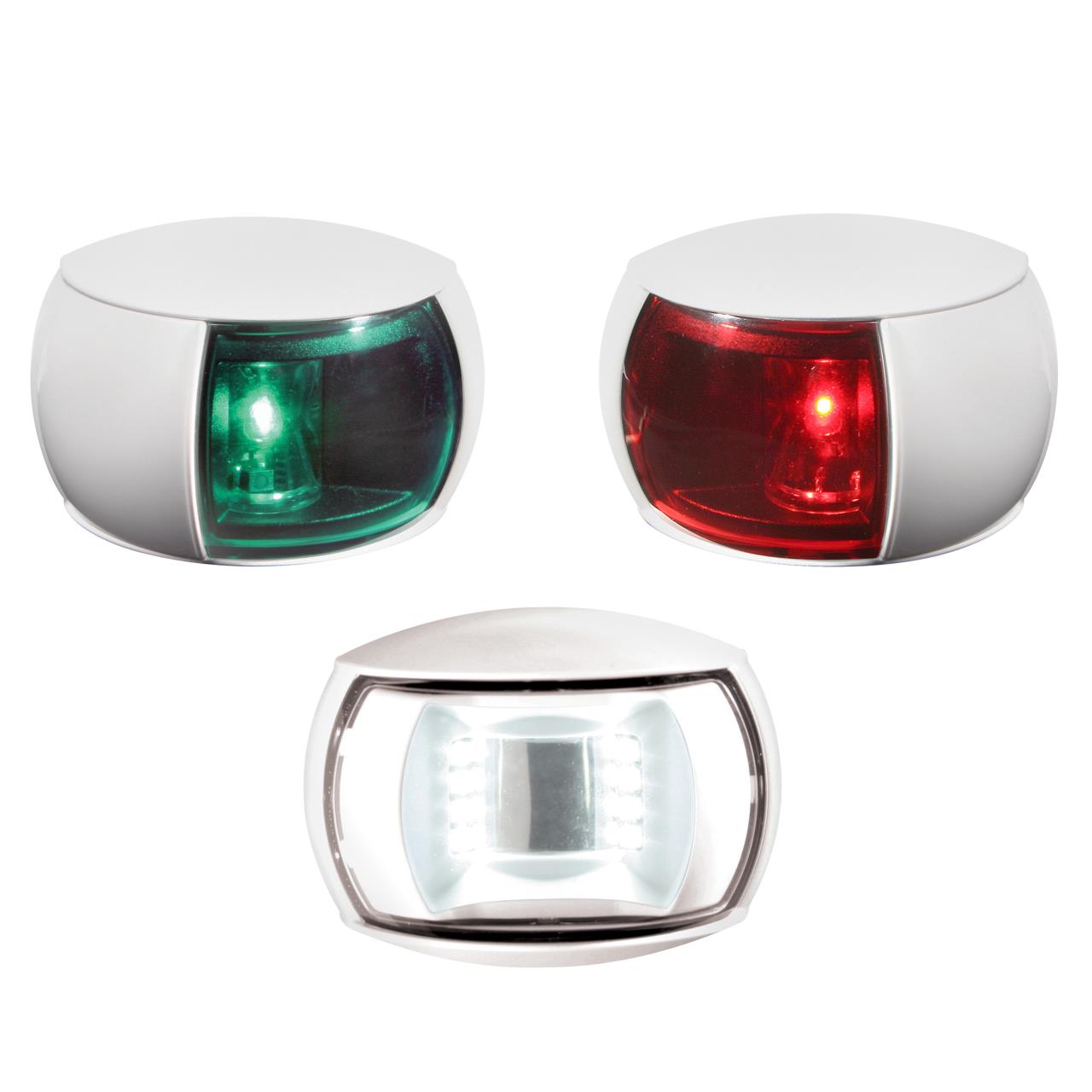

HELLA NaviLED Compact navigation lights white

The navigation lights from HELLA’s NaviLED Compact series save energy on board and are characterized by their compact design and exceptional durability.Thanks to their “Fit & Forget” design, the lights are completely maintenance-free; the lens and housing are fully sealed and dust- and waterproof to protection class IP 67. The lens is made of impact-resistant acrylic glass, and the housing is made of UV-resistant plastic.The internal LED light unit is shock- and vibration-resistant, making it perfectly suited for extreme conditions. The port and starboard lights together consume less than 2 watts—that’s less than 10% of the power consumed by conventional navigation lights.The LED light unit is multi-voltage compatible within a range of 9–33 volts. This allows for use with 12- and 24-volt onboard electrical systems; furthermore, the light module is protected against voltage spikes and reverse polarity. The navigation lights come pre-wired with a 2.5-meter cable, ready for connection.No BSH approval.Dimensions L x W x H: 33 mm x 77 mm x 53 mmWeight: 60 g, including cableOnboard electrical system: 12–24 V

From €109.00 *

Details

3254*11 HELLA NaviLED 360 Vollkreislaterne Aufbau schwarz

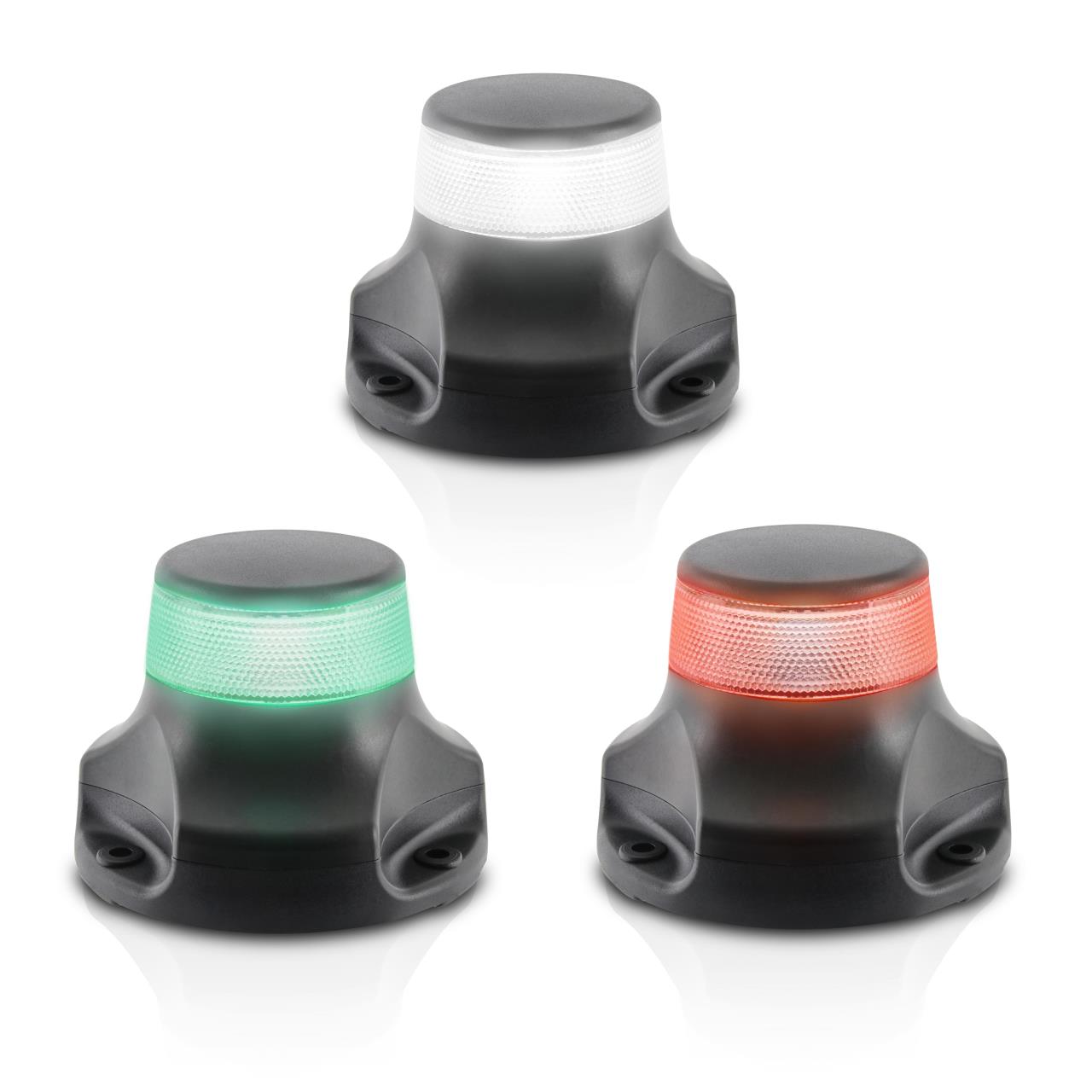

HELLA NaviLED 360 PRO All Round Navigation Lamp Black Base

MED approval for ships up to 50m in length. The HELLA 360 series LED full-circle lanterns are particularly suitable for use on merchant and commercial vessels due to their robust design and low power consumption.They are available in white, green and red. Due to the fully sealed design, the full-circle lanterns are dust and water protected according to IP6. The housing has a low-profile, compact design made of impact-resistant plastic, and the lens is made of impact-resistant Grilamid.The LED light module has a low power consumption of less than 1.5 watts. and is multi-voltage capable in a range of 9-33 volts. This makes it possible to use it for on-board power supply systems from 12 to 24 volts. In addition, the light module is protected against voltage spikes and reverse polarity. Ready for connection with 1.4m cable Dimensions Ø x H: 90mm x 68mm Drilling distances: L1: 66mm, L2: 57mmWeight: 150g incl. cableOn-board power supply: 12-24 V

From €129.00 *

Details

3254*07 HELLA NaviLED Compact Positionslichter schwarz

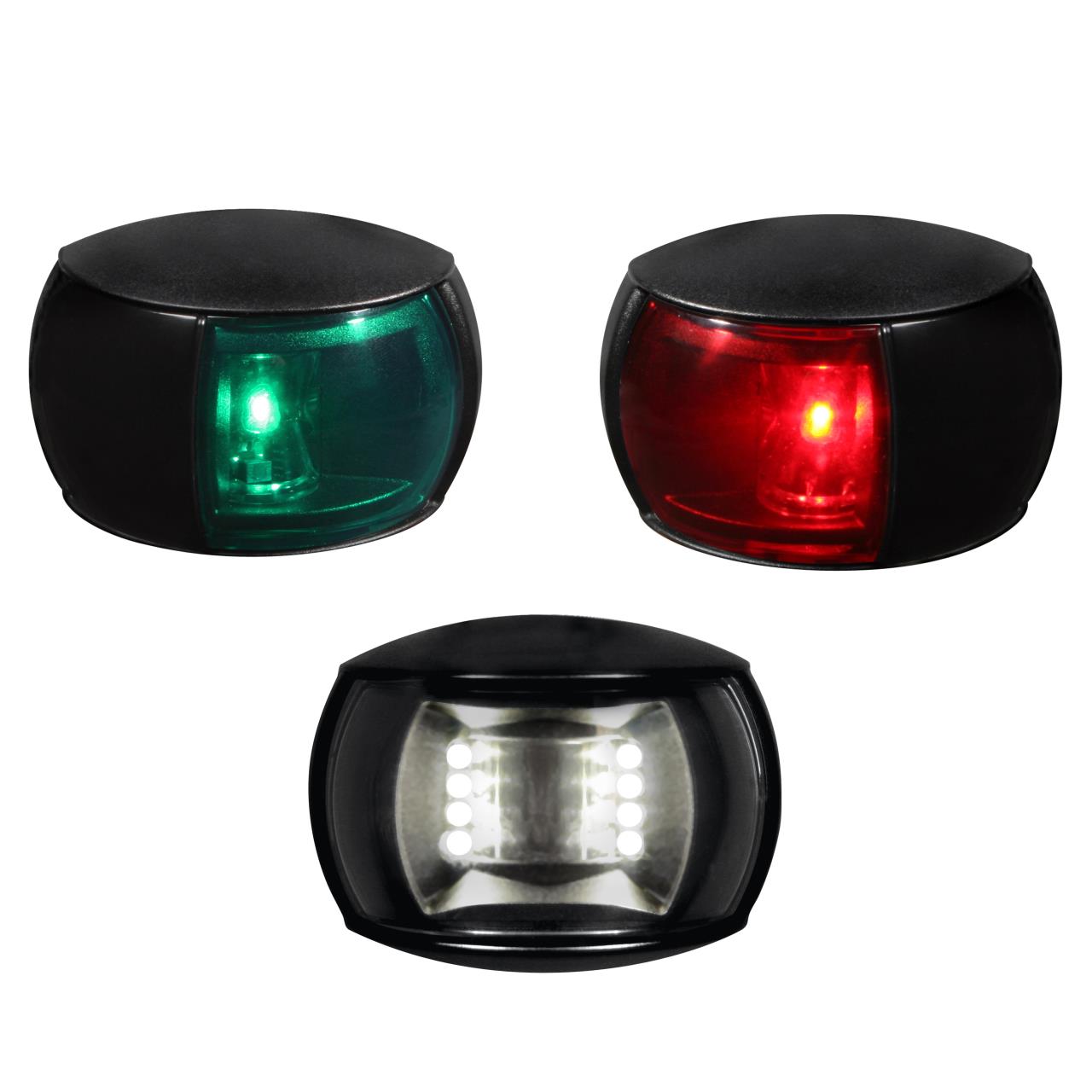

HELLA NaviLED Compact navigation lights black

The navigation lights from HELLA’s NaviLED Compact series save energy on board and are characterized by their compact design and exceptional durability.Thanks to their “Fit & Forget” design, the lights are completely maintenance-free; the lens and housing are fully sealed and dust- and waterproof in accordance with protection class IP 67. The lens is made of impact-resistant acrylic glass, and the housing is made of UV-resistant plastic. The internal LED light unit is shock- and vibration-resistant, making it perfectly suited for extreme conditions.The port and starboard lights together consume less than 2 watts—that’s less than 10% of the power consumed by conventional navigation lights. The LED light unit is multi-voltage compatible within a range of 9–33 volts. This allows for use with on-board power systems ranging from 12 to 24 volts; furthermore, the light module is protected against voltage spikes and reverse polarity. The navigation lights are delivered pre-wired with a 2.5-meter cable, ready for connection.No BSH approval. Dimensions L x W x H: 33 mm x 77 mm x 53 mmWeight: 60 g, including cableOnboard electrical system: 12–24 V

From €109.00 *

Details

3254*12 HELLA NaviLED 360 Vollkreislaterne Aufbau weiß

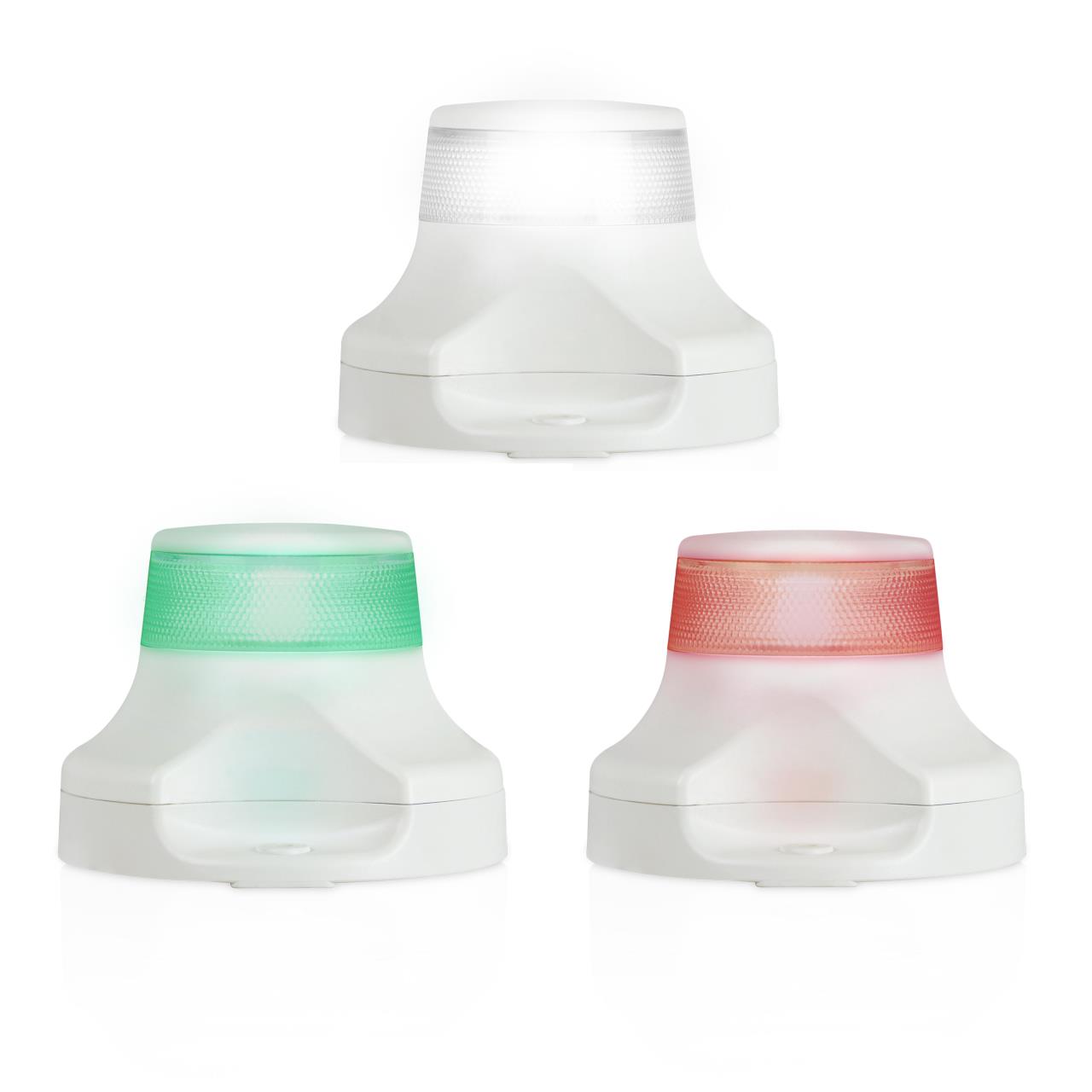

HELLA NaviLED 360 PRO All Round Navigation Lamp White Base

The HELLA 360 series LED full-circle lanterns are particularly suitable for use on merchant and commercial vessels due to their robust design and low power consumption.They are available in white, green and red. Due to the fully sealed design, the full-circle lanterns are dust and water protected according to IP6. The housing has a low-profile, compact design made of impact-resistant plastic, and the lens is made of impact-resistant Grilamid.The LED light module has a low power consumption of less than 1.5 watts. and is multi-voltage capable in a range of 9-33 volts. This makes it possible to use it for on-board power supply systems from 12 to 24 volts. In addition, the light module is protected against voltage spikes and reverse polarity. They come with a 1.4 m cable preinstalled.MED approval for ships up to 50m in length. Dimensions Ø x H: 90mm x 68mm Drilling distances: L1: 66mm, L2: 57mmWeight: 150g incl. cableOn-board power supply: 12-24 V

From €129.00 *

Details

More Products from Category HELLA

3254-231 HELLA NaviLED 360 Compact Ankerlicht

HELLA NaviLED 360 Compact anchor light

Compact all-round light from the NaviLED series by HELLA MARINE. Due to the fit-and-forget construction, the light unit is completely sealed, making it dust- and water-proof according to IP6. The housing is made of impact-resistant plastic with a grilamid lens.For easy installation on board, the base can simply be twisted off and mounted from the inside with screws. The lamp can then be screwed back together. The continuous cable is insulated to be waterproof.The LED light module has a low power consumption of less than 1 watt and a minimum burn time of 10,000 hours. The lamp is multi-voltage capable, making it suitable for use on on-board power systems from 12 to 24 volts; in addition, the light module is protected from voltage spikes and reverse polarity. Available with black or white housing.Ready for connection with 0.5m two-wire cable. MED approval for ships up to 20m in length. Dimensions ∅ x H: 60 mm x 56 mm Weight: 90g incl. cable. Suitable for on-board power supply 12-24V

From €102.90 *

Details

HELLA NaviLED 360 PRO All Round Navigation Lamp Black Base

From €129.00 *

Details

HELLA NaviLED 360 PRO All Round Navigation Lamp White Base

From €129.00 *

Details

HELLA NaviLED Compact navigation lights black

The navigation lights from HELLA’s NaviLED Compact series save energy on board and are characterized by their compact design and exceptional durability.Thanks to their “Fit & Forget” design, the lights are completely maintenance-free; the lens and housing are fully sealed and dust- and waterproof in accordance with protection class IP 67. The lens is made of impact-resistant acrylic glass, and the housing is made of UV-resistant plastic. The internal LED light unit is shock- and vibration-resistant, making it perfectly suited for extreme conditions.The port and starboard lights together consume less than 2 watts—that’s less than 10% of the power consumed by conventional navigation lights. The LED light unit is multi-voltage compatible within a range of 9–33 volts. This allows for use with on-board power systems ranging from 12 to 24 volts; furthermore, the light module is protected against voltage spikes and reverse polarity. The navigation lights are delivered pre-wired with a 2.5-meter cable, ready for connection.No BSH approval. Dimensions L x W x H: 33 mm x 77 mm x 53 mmWeight: 60 g, including cableOnboard electrical system: 12–24 V

From €109.00 *

Details

HELLA NaviLED Compact navigation lights white

From €109.00 *

Details

HELLA NaviLED PRO navigation lights white

From €189.00 *

Details
