HELLA NaviLED 360 Compact anchor light

Compact all-round light from the NaviLED series by HELLA MARINE. Due to the fit-and-forget construction, the light unit is completely sealed, making it dust- and water-proof according to IP6. The housing is made of impact-resistant plastic with a grilamid lens.

For easy installation on board, the base can simply be twisted off and mounted from the inside with screws. The lamp can then be screwed back together. The continuous cable is insulated to be waterproof.

The LED light module has a low power consumption of less than 1 watt and a minimum burn time of 10,000 hours. The lamp is multi-voltage capable, making it suitable for use on on-board power systems from 12 to 24 volts; in addition, the light module is protected from voltage spikes and reverse polarity. Available with black or white housing.

Ready for connection with 0.5m two-wire cable.

MED approval for ships up to 20m in length.

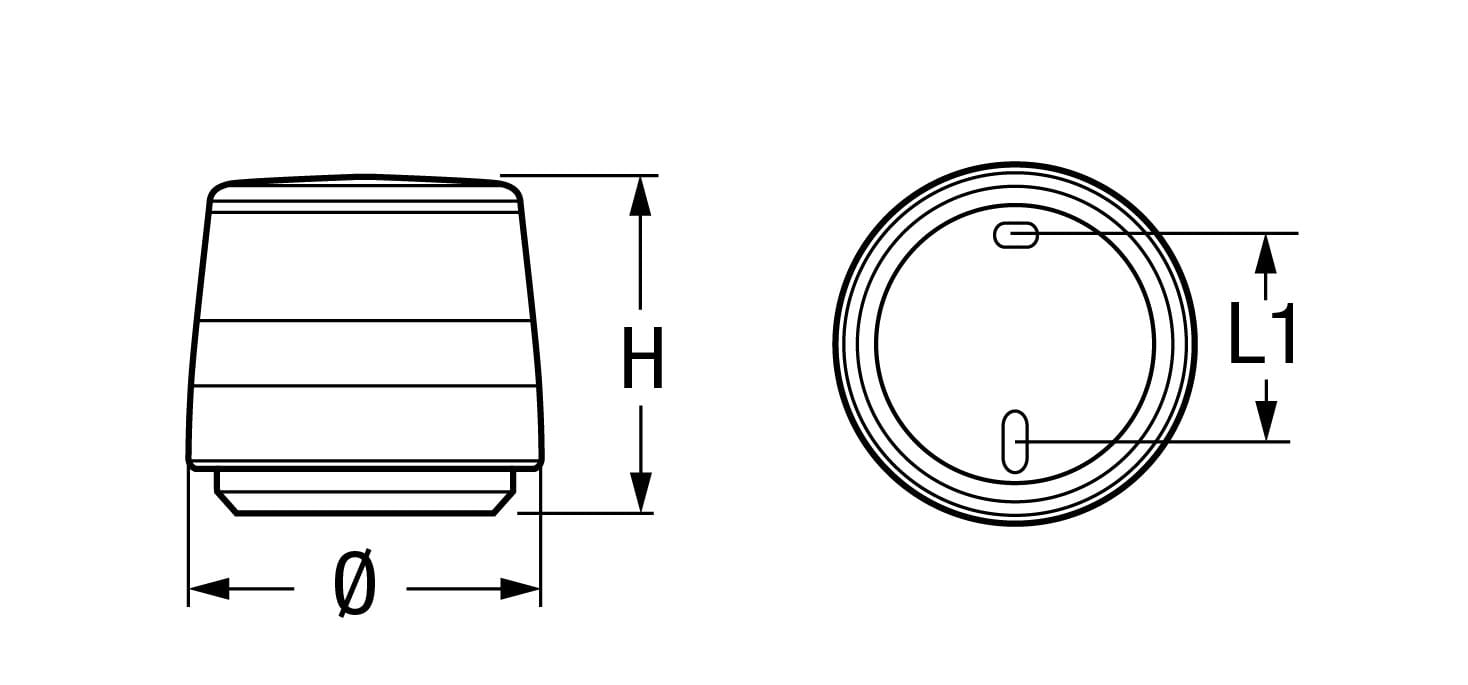

Dimensions ∅ x H: 60 mm x 56 mm
Weight: 90g incl. cable.
Suitable for on-board power supply 12-24V

more information

from €102.90*

€102.90*

Prices incl. VAT plus shipping costs

model

ancor

body

black

white

angle (°)

360

range (nm)

2

Stk

Art. No.	model	body	angle (°)	range (nm)	Price (unit)	Delivery time	Note list	Buy

Description

Compact all-round light from the NaviLED series by HELLA MARINE. Due to the fit-and-forget construction, the light unit is completely sealed, making it dust- and water-proof according to IP6. The housing is made of impact-resistant plastic with a grilamid lens.

For easy installation on board, the base can simply be twisted off and mounted from the inside with screws. The lamp can then be screwed back together. The continuous cable is insulated to be waterproof.

The LED light module has a low power consumption of less than 1 watt and a minimum burn time of 10,000 hours. The lamp is multi-voltage capable, making it suitable for use on on-board power systems from 12 to 24 volts; in addition, the light module is protected from voltage spikes and reverse polarity. Available with black or white housing.

Ready for connection with 0.5m two-wire cable.

MED approval for ships up to 20m in length.

Dimensions ∅ x H: 60 mm x 56 mm
Weight: 90g incl. cable.
Suitable for on-board power supply 12-24V
