Accessories for diesel fuel filter SEPAR 2000

Zubehör für SEPAR 2000 Dieselfilter
Dichtungssatz
Einschraubverschraubung zum Anschluss von Rohren
Rohr-Schlauchnippel gerade
Rohr-Schlauchnippel 90°
Bowle aus Kunststoff transparent oder Aluminium
Deckel für SEPAR-Filter
Entlüftungsschrauben
SEPAR 2000 Dieselfilter - Anschlussmöglichkeit

from €4.90*

€4.90*

Prices incl. VAT plus shipping costs

description
for strainer
for tube-ø (mm)
Stk

Connection fittings and matching hose nipples are available for the SEPAR 2000 diesel filters.
The SEPAR 2000 filters are adapted to the pipework system using the straight fittings with cutting ring. Sealing is provided by a pre-assembled O-ring.
As an alternative to fixed pipework, the hose nipples listed in the table (straight or 90°) can also be connected to the screw fitting.

The following parts are available as spare parts:

  • Gasket set
    (1x lid gasket, 1x bleed valve gaskt, 2x blind screw gasket, 1x bowl gasket, 1x drain valve gasket) - 2 gasket sets must be ordered for double filter systems.
  • Filter lid
  • M6 bleed valve
  • Bowl (transparent plastic or aluminium).
    The transparent plastic bowl has the advantage that the water level and the degree of contamination of the collection area can be assessed even without sensors.
    The metal bowl is suitable for heavier use and is more resistant to temperature and chemicals.
more information
Show 18 articles

Connection fittings and matching hose nipples are available for the SEPAR 2000 diesel filters.
The SEPAR 2000 filters are adapted to the pipework system using the straight fittings with cutting ring. Sealing is provided by a pre-assembled O-ring.
As an alternative to fixed pipework, the hose nipples listed in the table (straight or 90°) can also be connected to the screw fitting.

The following parts are available as spare parts:

  • Gasket set
    (1x lid gasket, 1x bleed valve gaskt, 2x blind screw gasket, 1x bowl gasket, 1x drain valve gasket) - 2 gasket sets must be ordered for double filter systems.
  • Filter lid
  • M6 bleed valve
  • Bowl (transparent plastic or aluminium).
    The transparent plastic bowl has the advantage that the water level and the degree of contamination of the collection area can be assessed even without sensors.
    The metal bowl is suitable for heavier use and is more resistant to temperature and chemicals.

Description

Connection fittings and matching hose nipples are available for the SEPAR 2000 diesel filters.
The SEPAR 2000 filters are adapted to the pipework system using the straight fittings with cutting ring. Sealing is provided by a pre-assembled O-ring.
As an alternative to fixed pipework, the hose nipples listed in the table (straight or 90°) can also be connected to the screw fitting.

The following parts are available as spare parts:

  • Gasket set
    (1x lid gasket, 1x bleed valve gaskt, 2x blind screw gasket, 1x bowl gasket, 1x drain valve gasket) - 2 gasket sets must be ordered for double filter systems.
  • Filter lid
  • M6 bleed valve
  • Bowl (transparent plastic or aluminium).
    The transparent plastic bowl has the advantage that the water level and the degree of contamination of the collection area can be assessed even without sensors.
    The metal bowl is suitable for heavier use and is more resistant to temperature and chemicals.

Questions about the product?

Similar products

Diesel fuel filter SEPAR 2000
Diesel fuel filter SEPAR 2000
The SEPAR 2000 is a tried and tested water separator and filter for diesel fuels, made in Germany.A patented, multiple centrifugal system effectively separates and filters out water and dirt particles.The filters are compact and easy to maintain, as filter changes are carried out from above. There is no need to remove the plastic sight glass and its diesel contents. Tested by TÜV, GL, BV, RINA and others.Construction: Filter housing made of coated aluminum, clear plastic bowl with drain tap for separated water.The backwashing process extends the service life of the filter element. The SEPAR 2000 is supplied with a 30 µm filter element as standard , but finer 10 µm filters are also available.Available as a single filter or as a fully assembled double filter system with changeover tap.To connect the filter, the appropriate screw connections with O-ring seals and possibly hose nipples should also be ordered (see matching articles).

From €245.00 *
Details
Filter elements for SEPAR 2000

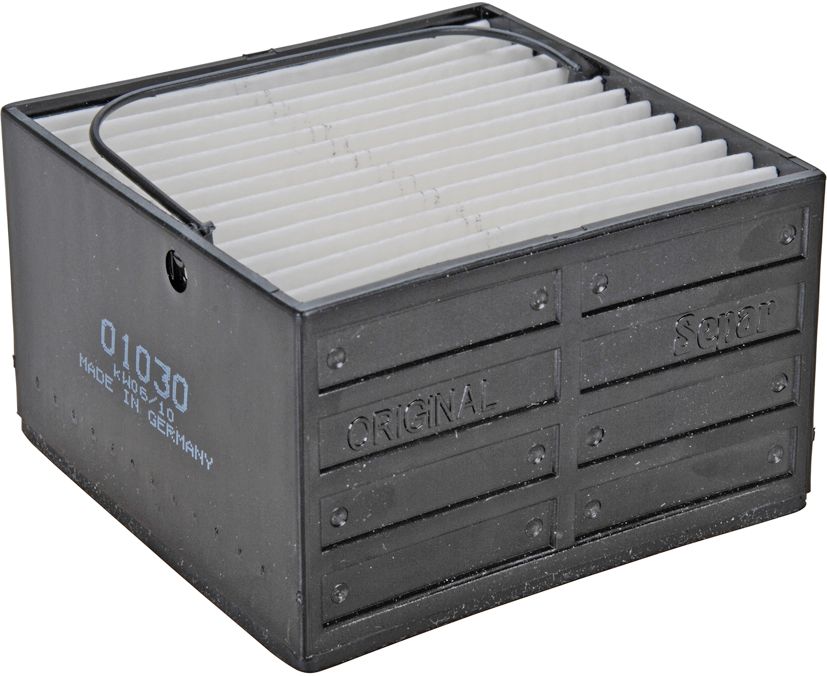

Filter elements for SEPAR 2000
Replacement filter inserts are available for all diesel filters in the SEPAR 2000 series. The type 00530 is fitted as standard in the widely used SWK-2000/5 filter and is supplied with new purchases. The cellulose filter separates particles up to 30 µm from the fuel. If you want to use the SWK 2000 as a finer main filter, for example because there is no second filter directly attached to the machine, filter elements down to 10 µm are also available.

From €27.91 *
Details
Fuel hose

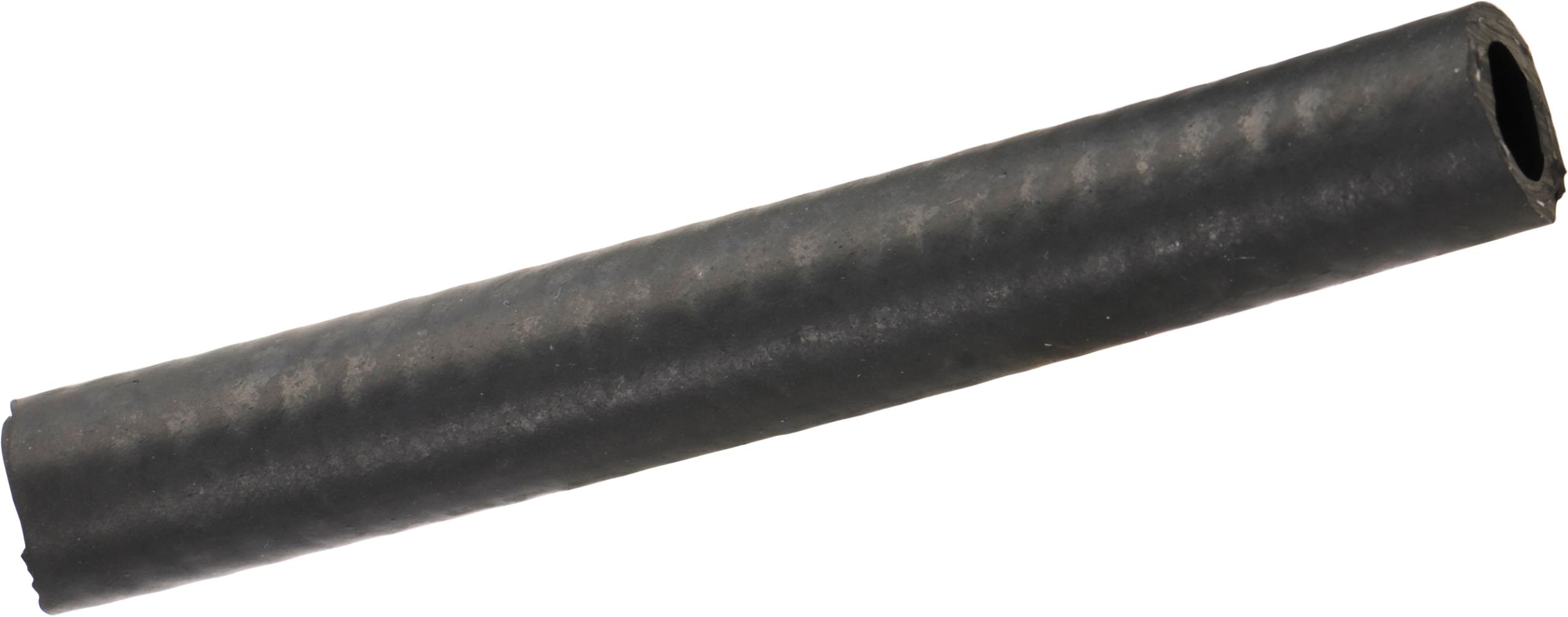

Fuel hose
Nitrile rubber fuel hose for use with diesel or petrol, with outer textile covering.Applicable as pressure or suction hose.

From €7.90 *
Details
Fuel hose clamp stainless steel

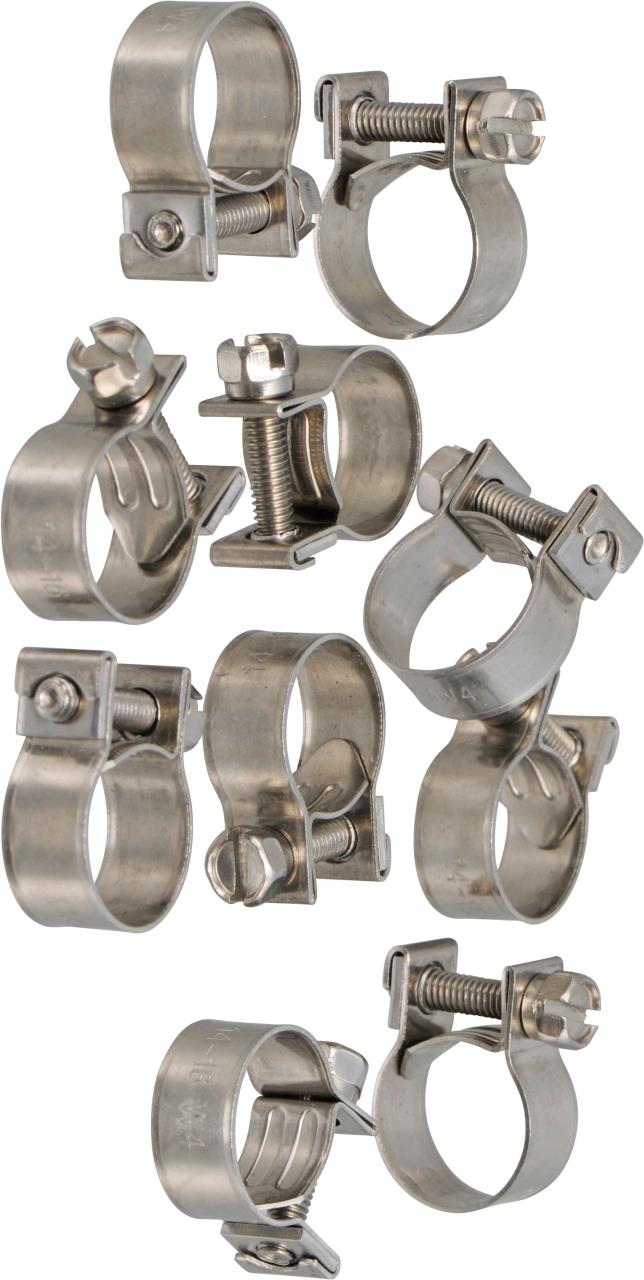

Fuel hose clamp stainless steel
Special hose clamps for fuel hoses.Made entirely of A2-stainless steel.10 pieces per pack.

From €18.69 *
Details

More products from the category Fuel filter

Accessories for diesel fuel filter SEPAR 2000
Accessories for diesel fuel filter SEPAR 2000
Connection fittings and matching hose nipples are available for the SEPAR 2000 diesel filters.The SEPAR 2000 filters are adapted to the pipework system using the straight fittings with cutting ring. Sealing is provided by a pre-assembled O-ring.As an alternative to fixed pipework, the hose nipples listed in the table (straight or 90°) can also be connected to the screw fitting.The following parts are available as spare parts:Gasket set(1x lid gasket, 1x bleed valve gaskt, 2x blind screw gasket, 1x bowl gasket, 1x drain valve gasket) - 2 gasket sets must be ordered for double filter systems.Filter lidM6 bleed valveBowl (transparent plastic or aluminium).The transparent plastic bowl has the advantage that the water level and the degree of contamination of the collection area can be assessed even without sensors.The metal bowl is suitable for heavier use and is more resistant to temperature and chemicals.

From €4.90 *
Details
Diesel fuel filter SEPAR 2000
Diesel fuel filter SEPAR 2000
The SEPAR 2000 is a tried and tested water separator and filter for diesel fuels, made in Germany.A patented, multiple centrifugal system effectively separates and filters out water and dirt particles.The filters are compact and easy to maintain, as filter changes are carried out from above. There is no need to remove the plastic sight glass and its diesel contents. Tested by TÜV, GL, BV, RINA and others.Construction: Filter housing made of coated aluminum, clear plastic bowl with drain tap for separated water.The backwashing process extends the service life of the filter element. The SEPAR 2000 is supplied with a 30 µm filter element as standard , but finer 10 µm filters are also available.Available as a single filter or as a fully assembled double filter system with changeover tap.To connect the filter, the appropriate screw connections with O-ring seals and possibly hose nipples should also be ordered (see matching articles).

From €245.00 *
Details
Filter elements for SEPAR 2000
Filter elements for SEPAR 2000
Replacement filter inserts are available for all diesel filters in the SEPAR 2000 series. The type 00530 is fitted as standard in the widely used SWK-2000/5 filter and is supplied with new purchases. The cellulose filter separates particles up to 30 µm from the fuel. If you want to use the SWK 2000 as a finer main filter, for example because there is no second filter directly attached to the machine, filter elements down to 10 µm are also available.

From €27.91 *
Details
Fuel filter MARFILT
Fuel filter MARFILT
Small fuel filter MARFILT. Body made from aluminium with a tightly screwable sight glass. Available with filter different filter cartridges:- element made from stainless steel (can be cleaned, filters coarse dirt particles above 200 µ) or with- filter from paper (has to be changed, filters smallest particles above 12µ). Internal thread M14 x 1,5 mm. Dimentions 80 x 120 x 60 mm. Shipped without connection nipple.

From €59.50 *
Details
Fuel filter MARFILT with demister
Fuel filter MARFILT with demister
Fuel filter with aluminum housing, suitable as pre-filter or main filter.Glass bowl with drain plug and replaceable aluminum cartridge with 12my paper filter.Flow rate max 65 l/h.The housing has an integrated wall mounting bracket and two inlet and two outlet screw connections with M 14 x 1.5 internal thread - two of which are sealed with blanking plugs.A bleed screw is provided for venting the filter.The glass bowl makes it possible to check the water separator at any time, and the drain plug can be used to drain accumulated water from the bowl. Filter type: MARFILT CAV/PRF 8420/V. Dimensions: 100 x 160 x 95 mm, weight 690 g.Available as an accessory (see "Matching items"): - Connection nipples or hose nozzles for 8 mm or 10 mm fuel hose, - Replacement filter cartridge 12my, type FN881.

€79.80 *
Details
SEPAR HFP Manual Bleed Pump Diesel Line
SEPAR HFP Manual Bleed Pump Diesel Line
If there is air in the fuel system, this can cause damage to the injection pump.The manual bleed pump HFP was developed to bleed the fuel system after a filter change or repairs to the fuel system. It is used in the fuel circuit to bleed the fuel filter or the complete fuel circuit.The bleed pump is installed in the direction of flow after the fuel filter. It is suitable for diesel, biodiesel and heating oil.Technical data can be found in the data sheet further down the page under "Downloads & Information".

€129.00 *
Details
