1748-008 Eingang-Handankerwinde Stahl
1748-213 Zweigang-Handankerwinde aus Stahl - Maßzeichnung
1748-008 Eingang-Handankerwinde Stahl
1748-008 Eingang-Handankerwinde Stahl

Traditional, compact and heavy-duty hand anchor windlass.

Robust, open steel construction with heavily dimensioned steel axles in industrial roller bearings, large handwheel with curved spokes, forged capstan head and foot brake with powerful brake band.

The main axle of the winch can be disengaged so that the anchor can be lowered quickly and easily.

The cast steel chain wheel is suitable for a DIN 766 chain.

All parts are primed twice with rust protection and painted black with industrial paint.

For an extra charge, the winch can also be spray-galvanized for corrosion protection before painting. Liquid zinc is applied to the sandblasted steel using a spray gun. This thermal process coats the steel with a particularly durable zinc layer and ensures a smooth surface. Please ask us about it.

An aluminum ball-bearing rotary handle is available as an accessory, as is the crank wheel.

more information

from €2,080.00*

€2,080.00*

Prices incl. VAT plus shipping costs

chain size (mm)
L (mm)
B (mm)
H (mm)
weight (kg)
D (mm)
E (mm)
G (mm)
K (mm)
Stk
View article in the TOPLICHT catalogue

Description

Traditional, compact and heavy-duty hand anchor windlass.

Robust, open steel construction with heavily dimensioned steel axles in industrial roller bearings, large handwheel with curved spokes, forged capstan head and foot brake with powerful brake band.

The main axle of the winch can be disengaged so that the anchor can be lowered quickly and easily.

The cast steel chain wheel is suitable for a DIN 766 chain.

All parts are primed twice with rust protection and painted black with industrial paint.

For an extra charge, the winch can also be spray-galvanized for corrosion protection before painting. Liquid zinc is applied to the sandblasted steel using a spray gun. This thermal process coats the steel with a particularly durable zinc layer and ensures a smooth surface. Please ask us about it.

An aluminum ball-bearing rotary handle is available as an accessory, as is the crank wheel.

Downloads

Questions about the product?
Questions about the product?
Talk to craftsmen, boat builders and sailors. We understand your questions and provide the right answers.
Contact experts

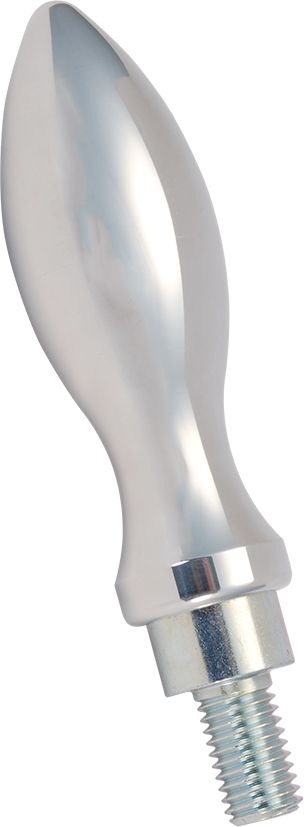

Turning handle for hand windlass
Turning handle for hand windlass
Ball bearing handle for windlass hand wheels or cranks. The handle is made of polished aluminum, the axle is made of galvanized steel. The M12 thread is 20 mm long.

€64.00 *
Details

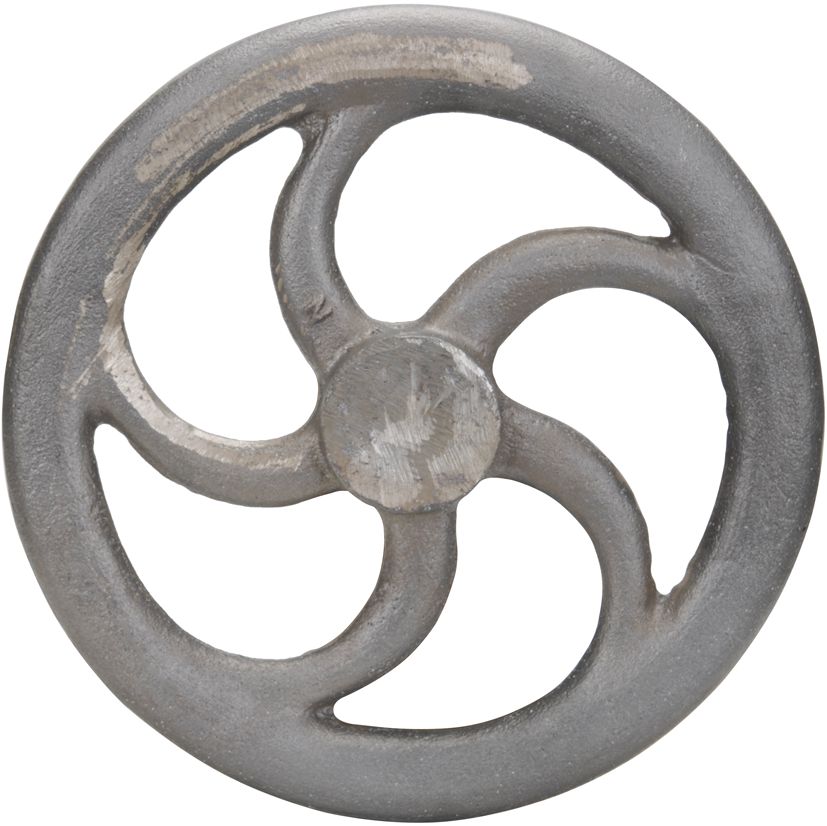

Crank wheel
Crank wheel
Heavy crank wheel with curved spokes, as found on the windlasses of many flat-bottomed ships.The crank wheel is made of untreated cast iron, undrilled and cast-grey. It must therefore be reworked according to your own requirements.We can also supply the crank wheel with a larger diameter (45 cm / 60 cm). Please ask us about this.

From €130.00 *
Details

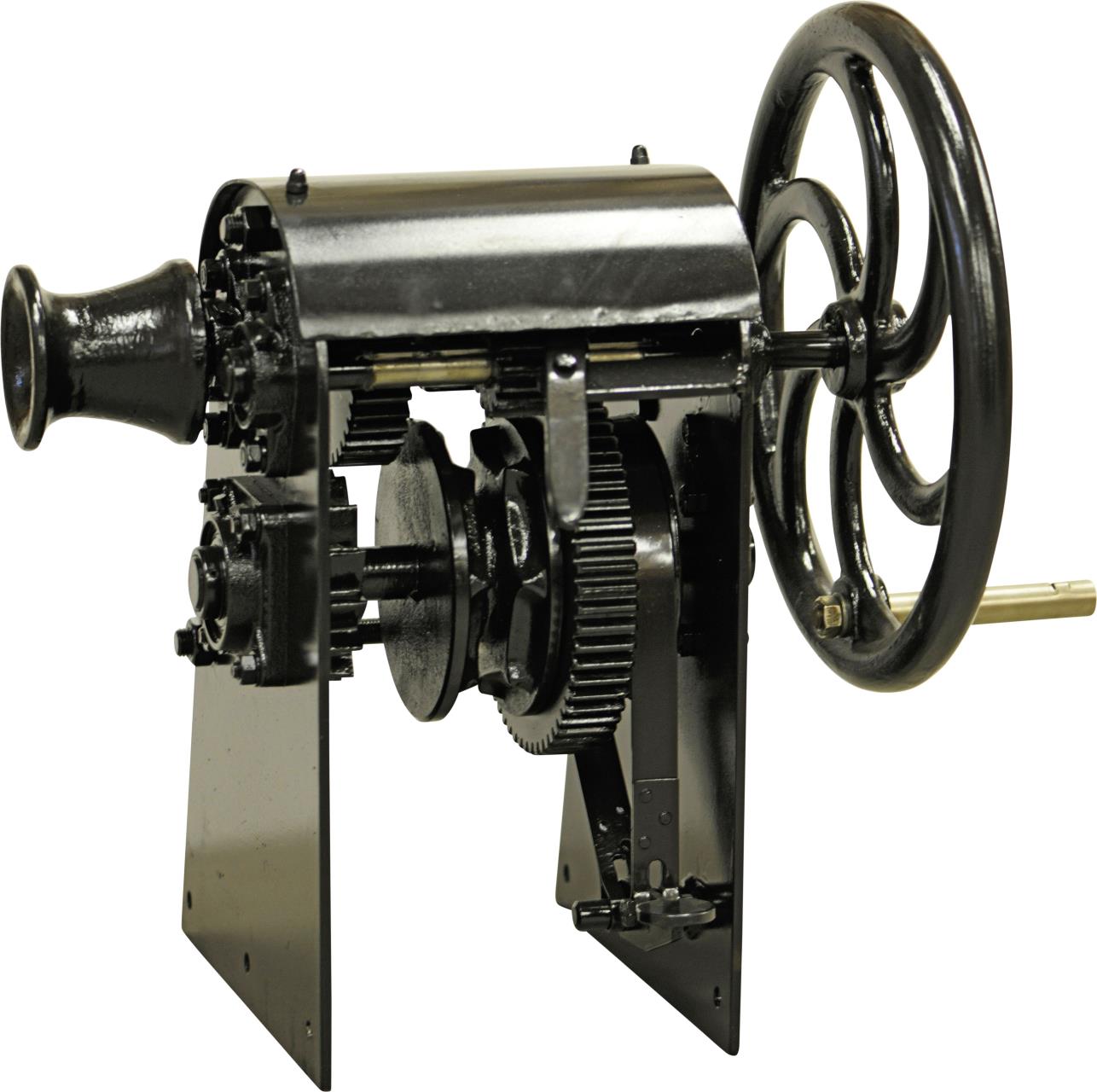

Double-speed anchor windlass made of steel
