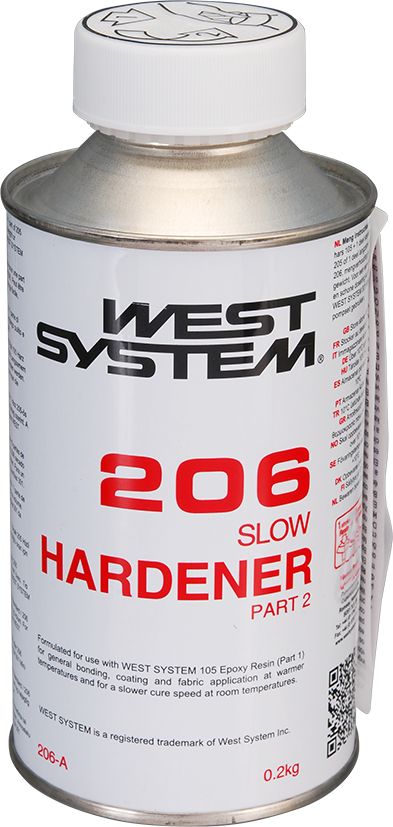

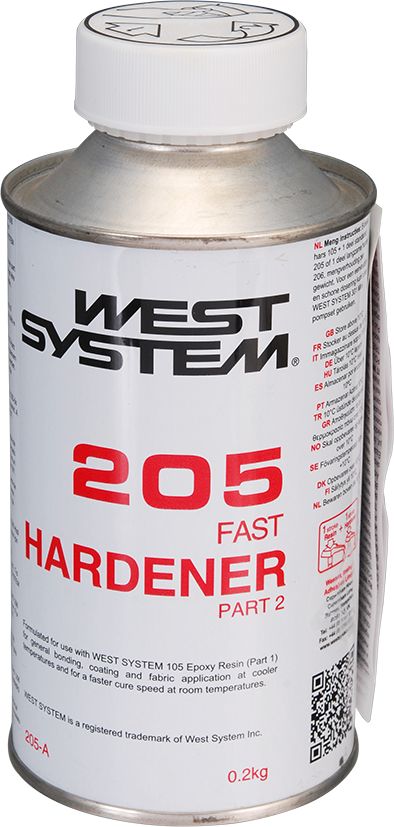

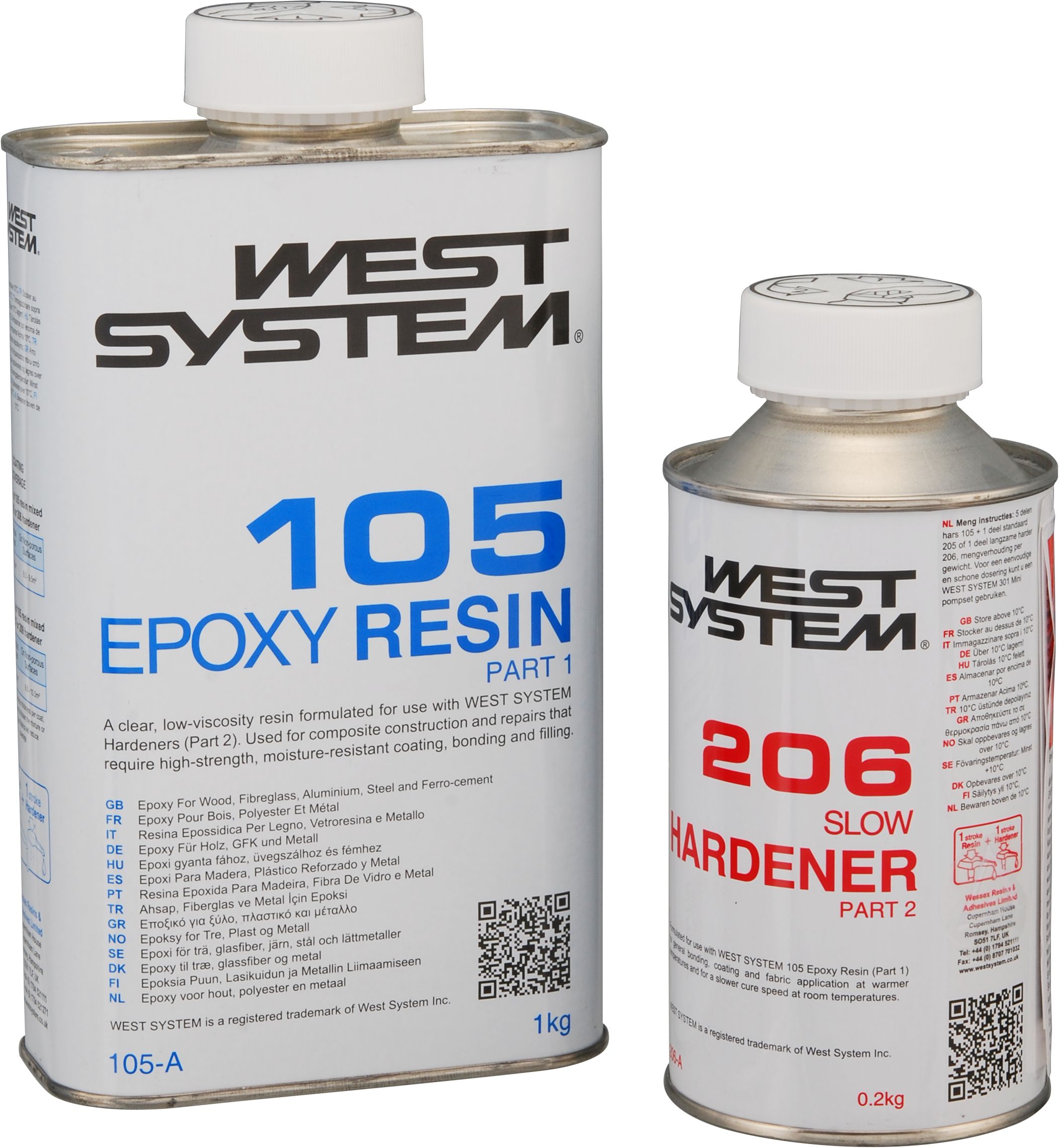

WEST-SYSTEM universal resin (type 105) is used as the base material for all applications. This is a slightly amber-colored, low-viscosity, liquid epoxy resin that is mixed with various hardeners. In the majority of cases, hardener type 205 is used for fast curing (pot life 10-15 min. at 25 °C). For large-area work, the slow hardener type 206 (pot life 20-30 min. at 25 °C) is recommended.For further product information, please download the detailed processing instructions under "Downloads & Information". Complete containers with resin and hardener as well as individual components are available. When using the product for the first time, it is essential to order the appropriate dosing pumps, as epoxy work requires a high degree of mixing accuracy.The mixing ratio by volume for the standard hardeners (type 205 and 206) is 5:1.

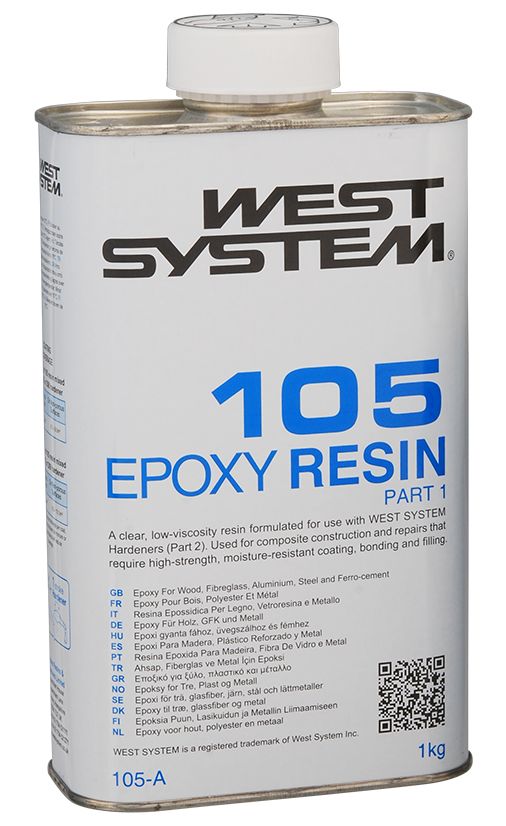

The resin type 105 is a clear, low-viscosity liquid epoxy resin. Formulated for use with West System hardeners, it can be cured in a wide temperature range to form a high-strength solid with excellent moisture resistance. A superb adhesive, WEST SYSTEM epoxy will fill gaps and bridge voids when modified with WEST SYSTEM fillers and can be sanded afterwards. With roller applications, it has excellent thin-film characteristics to flow out and self-level without "fisheyeing." Multiple coats create a superior moisture barrier and a tough, stable base for paints and varnishes. The resin is formulated without volatile solvents and does not shrink after curing. It has a relatively high flash point and no strong solvent odor, making it safer to work with than polyester or vinylester resins. For each container size of resin, there is a corresponding sized container of hardener and mini pump size. When purchasing resin, hardener and mini pumps ensure thal all items are labelled with the same pack size (A, B,C).
Special hardener for use with WEST-SYSTEM universal resin type 105 (reformulated).The WEST coating hardener (type 207) was specially developed to achieve particularly clear and moisture-resistant surfaces on natural wood (20-30 min. pot life at 25 °C).By using the special hardener 207, the epoxy mixture tends to become less cloudy in a damp environment and prevents the formation of amine red, which simplifies the reworking of coated surfaces. Attention: Mixing ratio resin/hardener 3:1 by volume.Please only use the appropriate pumps! Detailed processing instructions under "Downloads & Information".
Comprehensive instructions for repair of wooden boats with epoxy materials.With many instructive drawings, pictures and color photos. German edition, translated from the American.

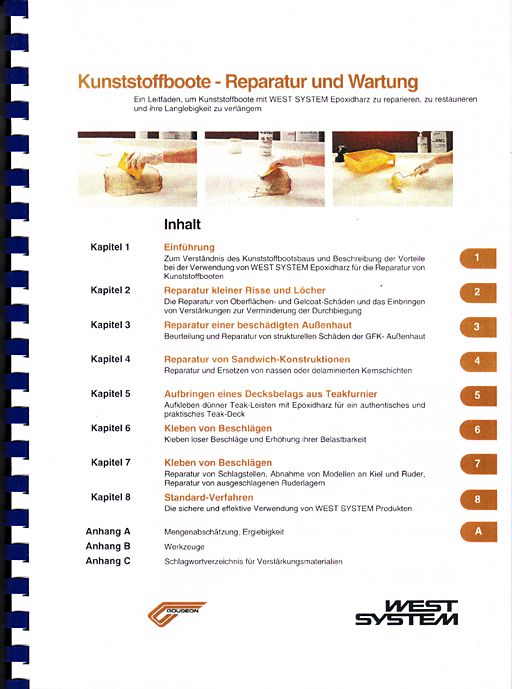

Comprehensive instructions for repair of plastic boats with epoxy materials.With many instructive drawings, pictures and color photos. German edition, translated from the American. Format 29 x 21cm, spiral bound brochure, 76 pages.German edition.
Indispensable handbook for professional boatbuilding work with WEST Epoxy.This handbook can be downloaded free as a PDF under "Downloads & Information".On request we can also send you the print version of this handbook free with any epoxy order.German edition.
Special hardener, which is used together with WEST epoxy resin (type 105) especially for bonding and coating under extremely warm and humid processing conditions, or when particularly long pot lives (pot life 50-70 min. at 25°C) are required.Attention: Mixing ratio resin/hardener 3:1 by volume. Please only use the appropriate pumps! Detailed processing instructions under "Downloads & Information".

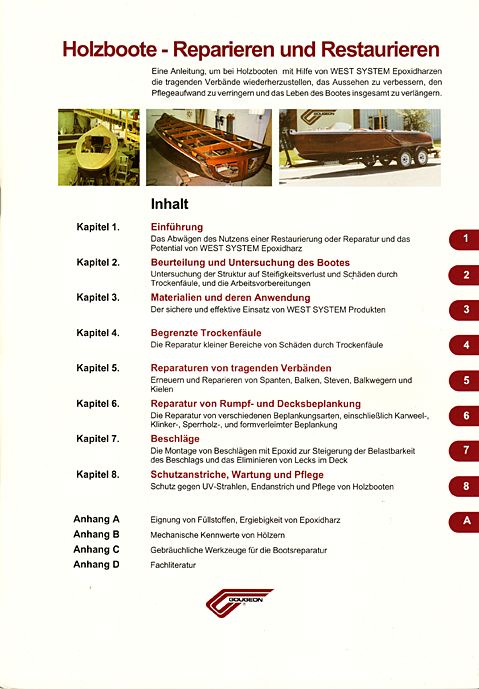

Practical tips and application examples for repair and restoration with WEST epoxy resins.Focus on the repair of wooden boats. Workbook with numerous drawings and color photos.The book is out of print and cannot be ordered. For our customers, however, the book is available as a PDF download (see Downloads & Information below) for free download.
The CLR system (clear laminating resin) is a clear epoxy resin system. It was specially developed for water-clear, UV-stabilized coatings.It is particularly suitable for applications that require an epoxy resin with low color and low yellowing, such as transparent laminates. This system has fast deaeration and excellent UV resistance. Several hardeners are available for CLR to meet many requirements. It has the ideal viscosity for a wide range of applications using manual lamination techniques at room temperature.One third of the resin is bio-based, resulting in a 33% greenhouse gas saving compared to 100% crude oil based epoxy resins.
Entropy hardener CLS & CLF - for the CLR laminating resin, UV stable, sustainable and crystal clearCLS with short pot life (20 min.) for simple projects (tack-free in 4 hours)CLF with longer pot life (40 min.) for complex work and warm conditions (tack-free in 8 hours)
ONE is the slightly amber coloured universal adhesive, laminating and coating resin made by ENTROPY RESINS with a large percentage of bio-based raw materials.Highly elongation claimable with low viscosity and fast de-airing characteristics. Mixing ratio by volume: 2:1. Resin and hardener must be ordered separately ENTROPY RESINS resin and hardeners are compatible with all WEST-SYSTEM fillers, additives and glass fabrics. The new epoxy system ENTROPY RESINS, matched to the WEST-SYSTEM products, employs more than 30% of renewable raw materials, whereby the exceptional physical characteristics of the conventional epoxy are absolutely retained.This reduces the absolute CO² foot print of this product and saves 33% of greenhouse gases compared to the solely crude oil based epoxy resins. The bio-based raw materials are not specially agriculturally cultivated to produce plastics, but are purposeful reused waste products of other industrial processes.

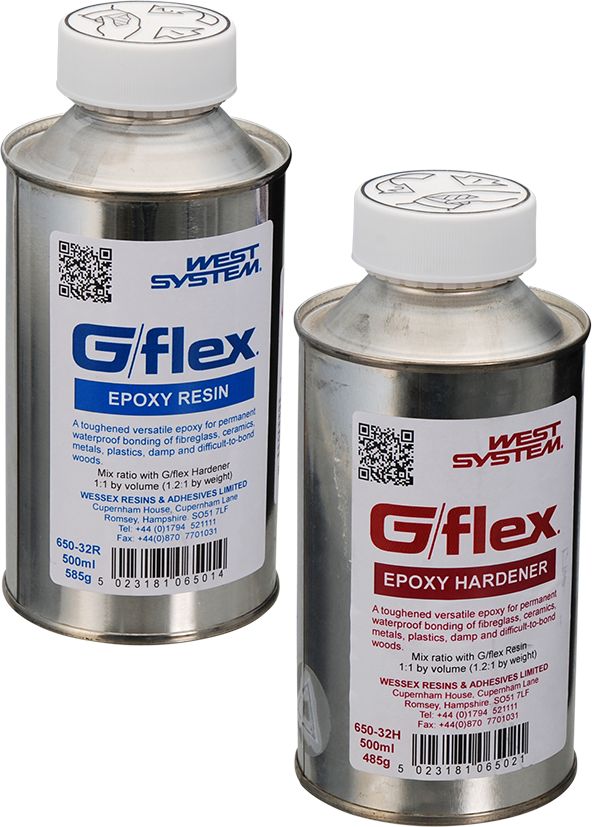

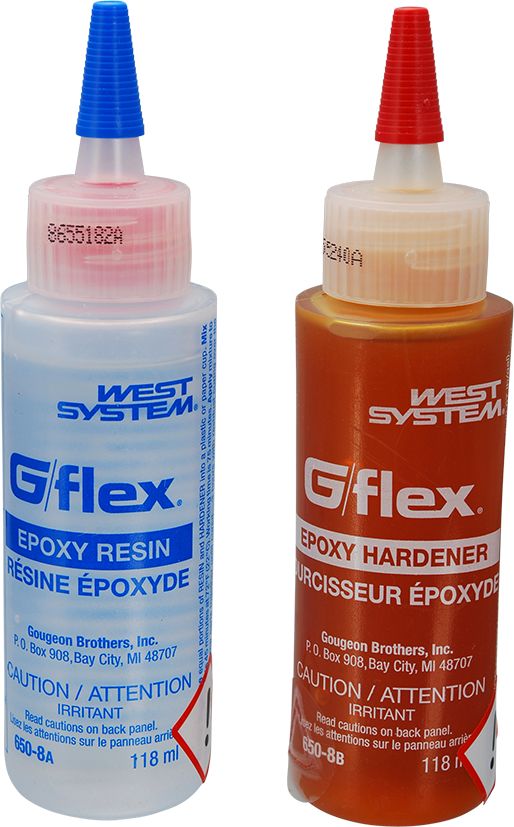

G/flex 650 is a multi-purpose, fluid epoxy resin, which can be modified with the standard fillers.This high-tensile and absolute water-proof epoxy is seen as a supplement to the existing WEST SYTEM epoxy products, which carries on where the standard system reaches its limits.In addition to the known good properties of WEST epoxy resins G/flex offers a especially high permanent flexibility (approx.30% ultimate elongation), a high peeling strength and a high tolerance towards moist surfaces. Especially well suited for all structural bonded joints where strong stresses of expansion, contraction, shock and vibration have to be absorbed, for instance at the joining of wood and metal or of types of timber that expand differently, as well as when bonding fittings to wood and other materials. Very well applicable for problematic timber that by itself can absorb little resin like teak and oak. G/flex has a user-friendly mixture ratio of 1:1 and can even be employed on wet surfaces with restrictions. It is also suited for GRP repairs as well as for the adhesion of problematic plastics like Polyethylene (PE) and PVC. Additional package sizes are available upon request.

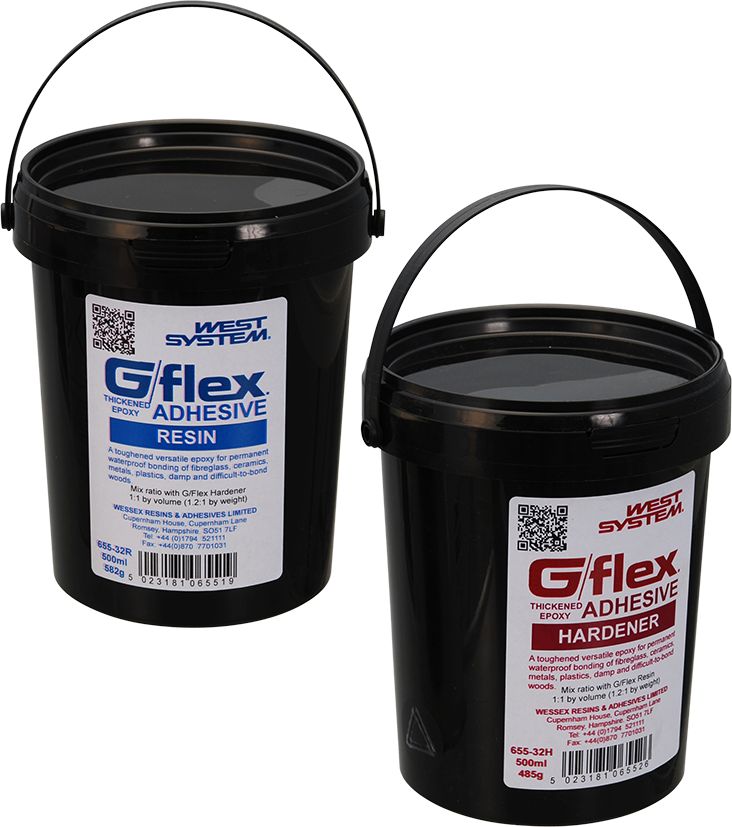

G/flex 655 is a thyrotrope, already thickened for use, non dripping epoxy compound.This high-tensile and absolute water-proof epoxy is seen as a supplement to the existing WEST SYTEM epoxy products, which carries on where the standard system reaches its limits.In addition to the known good properties of WEST epoxy resins G/flex offers a especially high permanent flexibility (approx.30% ultimate elongation), a high peeling strength and a high tolerance towards moist surfaces. Especially well suited for all structural bonded joints where strong stresses of expansion, contraction, shock and vibration have to be absorbed, for instance at the joining of wood and metal or of types of timber that expand differently, as well as when bonding fittings to wood and other materials. Very well applicable for problematic timber that by itself can absorb little resin like teak and oak. G/flex has a user-friendly mixture ratio of 1:1 and can even be employed on wet surfaces with restrictions. It is also suited for GRP repairs as well as for the adhesion of problematic plastics like Polyethylene (PE) and PVC. Additional package sizes are available upon request.

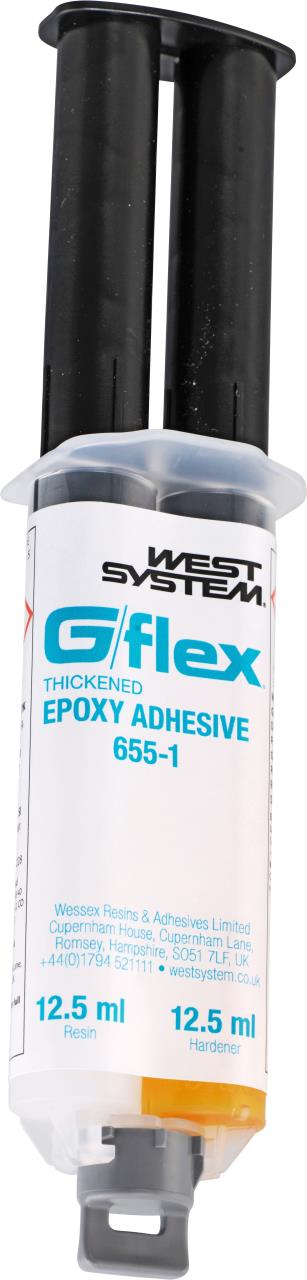

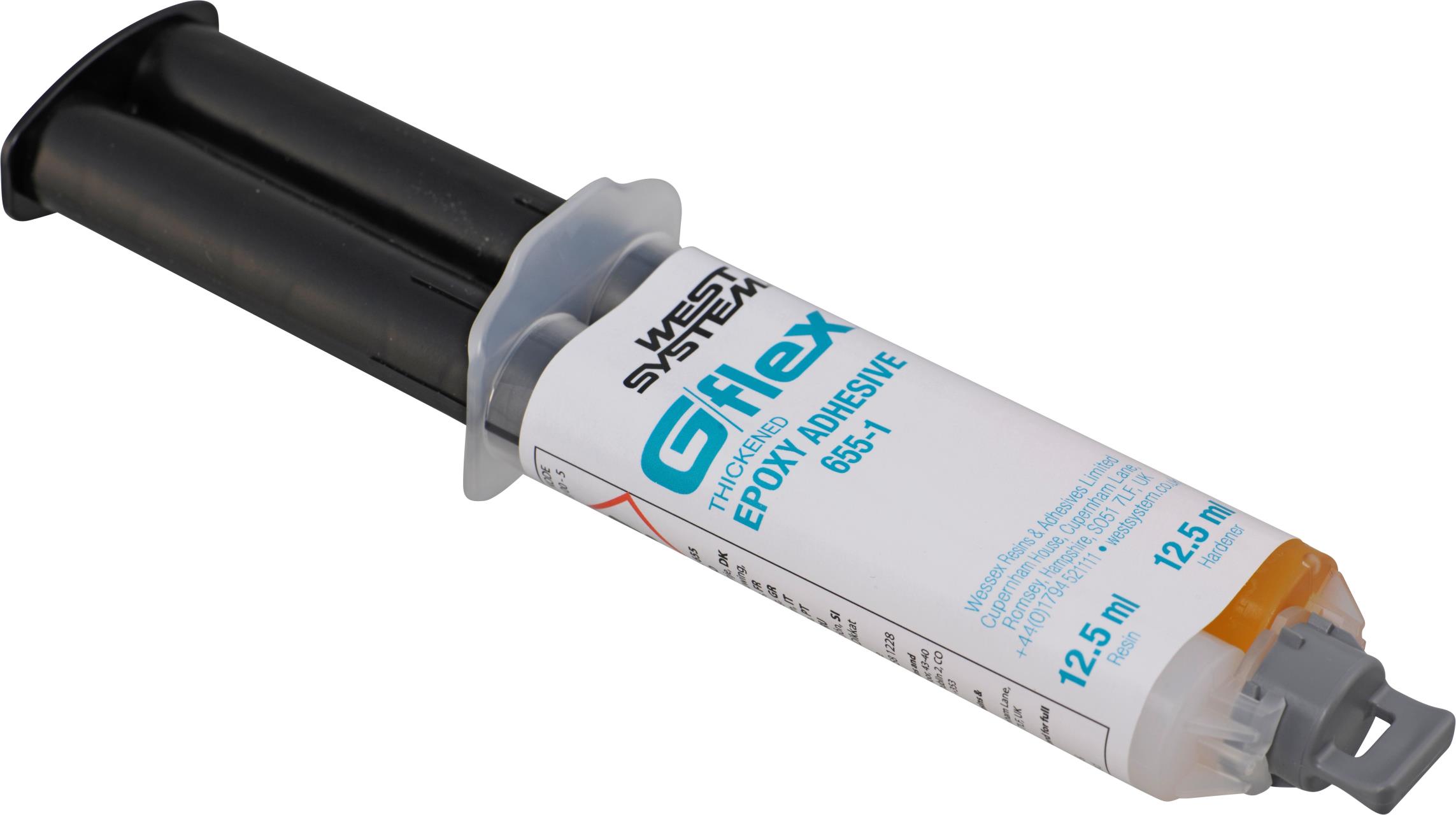

G/flex 655-1 is a thyrotrope, already thickened for use, non dripping epoxy compound. This high-tensile and absolute water-proof epoxy is seen as a supplement to the existing WEST SYTEM epoxy products, which carries on where the standard system reaches its limits.In addition to the known good properties of WEST epoxy resins G/flex offers a especially high permanent flexibility (approx. 30% ultimate elongation), a high peeling strength and a high tolerance towards moist surfaces.Especially well suited for all structural bonded joints where strong stresses of expansion, contraction, shock and vibration have to be absorbed, for instance at the joining of wood and metal or of types of timber that expand differently, as well as when bonding fittings to wood and other materials. Very well applicable for problematic timber that by itself can absorb little resin like teak and oak. G/flex can even be employed on wet surfaces with restrictions. It is also suited for GRP repairs as well as for the adhesion of problematic plastics like Polyethylene (PE) and PVC.G/flex 611-1 is supplied in a user-friendly double cartridge, resin and hardener can be squeezed out directly in the correct mixing ratio 1:1.
G/flex 655 is a thyrotrope, already thickened for use, non dripping epoxy compound.This high-tensile and absolute water-proof epoxy is seen as a supplement to the existing WEST SYTEM epoxy products, which carries on where the standard system reaches its limits.In addition to the known good properties of WEST epoxy resins G/flex offers a especially high permanent flexibility (approx.30% ultimate elongation), a high peeling strength and a high tolerance towards moist surfaces. Especially well suited for all structural bonded joints where strong stresses of expansion, contraction, shock and vibration have to be absorbed, for instance at the joining of wood and metal or of types of timber that expand differently, as well as when bonding fittings to wood and other materials. Very well applicable for problematic timber that by itself can absorb little resin like teak and oak. G/flex has a user-friendly mixture ratio of 1:1 and can even be employed on wet surfaces with restrictions. It is also suited for GRP repairs as well as for the adhesion of problematic plastics like Polyethylene (PE) and PVC. This kit contains: 125 ml G/flex 655 resin, 125 ml G/flex 655 hardener, 2 reusable mixing stick/applicators, 5 mixing palettes,1 pair disposable neoprene gloves, and complete handling and repair instructions.
G/flex 650 is a multi-purpose, fluid epoxy resin, which can be modified with the standard fillers.This high-tensile and absolute water-proof epoxy is seen as a supplement to the existing WEST SYTEM epoxy products, which carries on where the standard system reaches its limits.In addition to the known good properties of WEST epoxy resins G/flex offers a especially high permanent flexibility (approx.30% ultimate elongation), a high peeling strength and a high tolerance towards moist surfaces. Especially well suited for all structural bonded joints where strong stresses of expansion, contraction, shock and vibration have to be absorbed, for instance at the joining of wood and metal or of types of timber that expand differently, as well as when bonding fittings to wood and other materials. Very well applicable for problematic timber that by itself can absorb little resin like teak and oak. G/flex has a user-friendly mixture ratio of 1:1 and can even be employed on wet surfaces with restrictions. It is also suited for GRP repairs as well as for the adhesion of problematic plastics like Polyethylene (PE) and PVC. This kit contains: 118 ml G/flex 655 resin, 118 ml G/flex 655 hardener, 2 reusable mixing stick/applicators,2 pieces of 12 cm² syringes,4g glue filler TYP 406,2 pair disposable gloves, complete handling and repairinstructions.

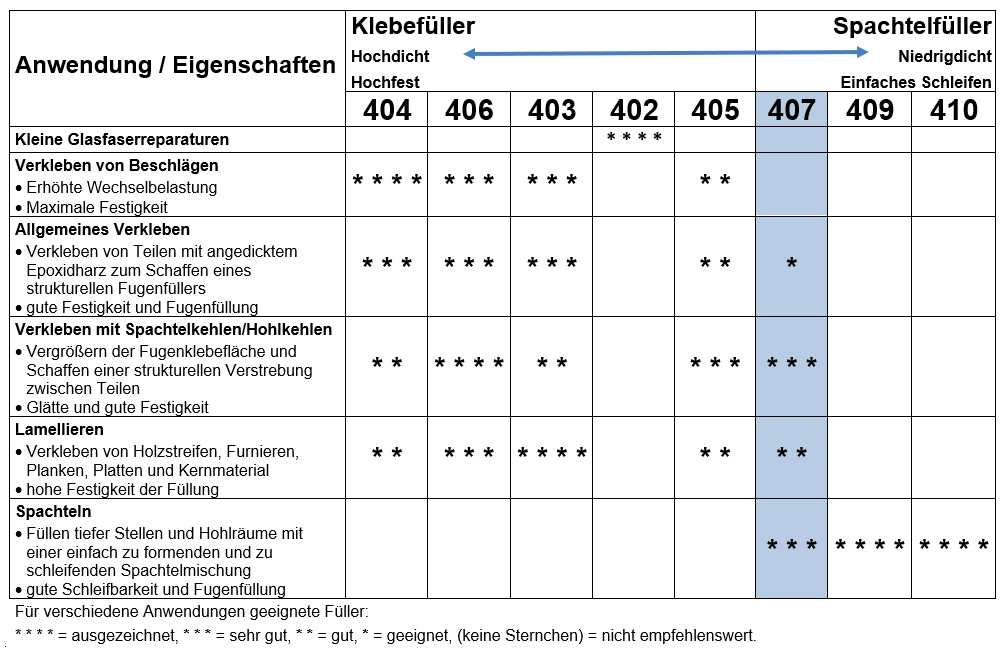

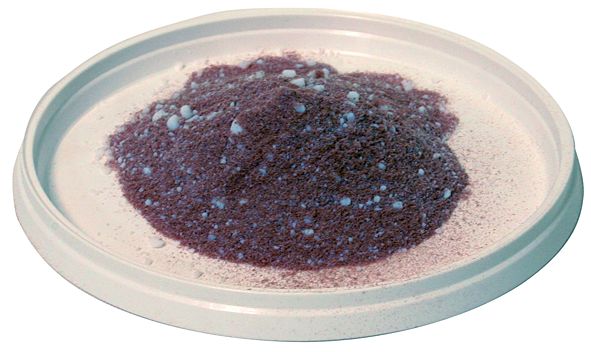

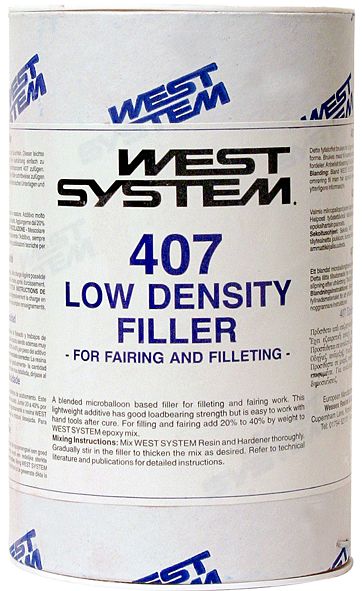

A blended microballoon-based filler used to make fairing putties which are easy to sand but remain strong on a strength-to-weight basis. Add 20% to 40% by weight to mixed WEST SYSTEM epoxy. Cures to a dark reddish-brown colour.
A filler developed to maximise bond strength in hardware bonding where high cyclic loads are anticipated.With this, rather heavy filler, epoxy of highest compressive and tensile strength can be produced.It can also be used for filleting and gap-filling applications, but it is difficult to grind.May be added to the resin/hardener at a rate of 35% to 60% by weight, depending on the viscosity needed. Colour: off-white.

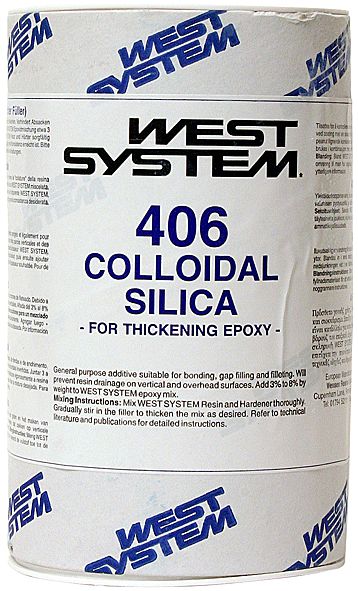

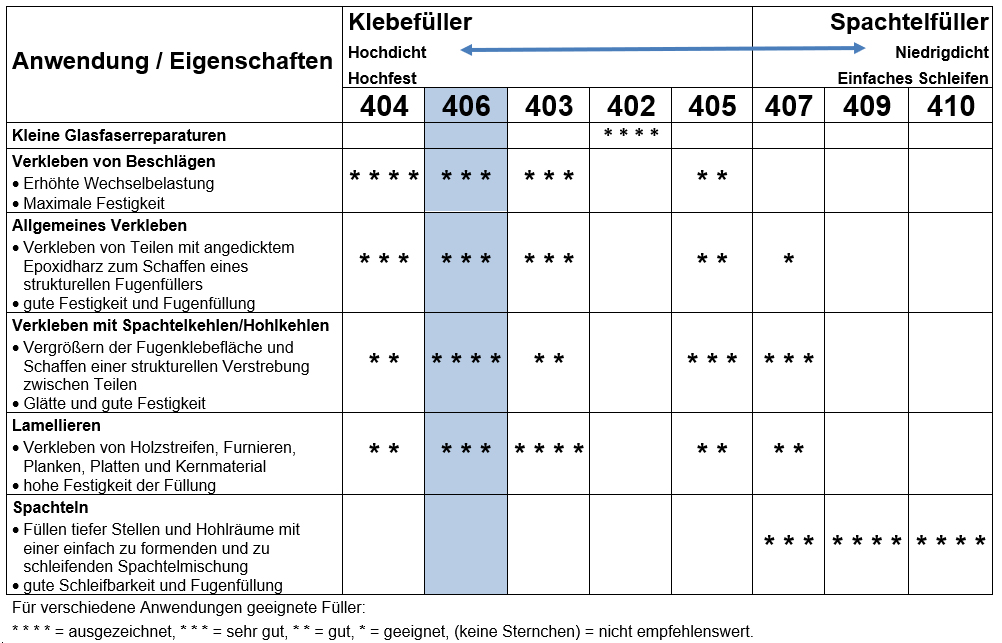

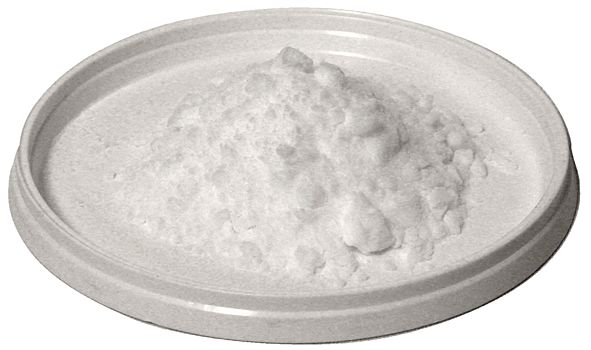

General purpose thickening additive suitable for bonding, gap-filling and filleting. It can be used to prevent resin flow on vertical and overhead surfaces and to control the viscosity of the epoxy. It is often used in combination with other fillers to control the working characteristics of an epoxy mix, e.g. improve the consistency of fairing compounds. Add 3% to 8% by weight to the resin/hardener mix. Colour: off-white.

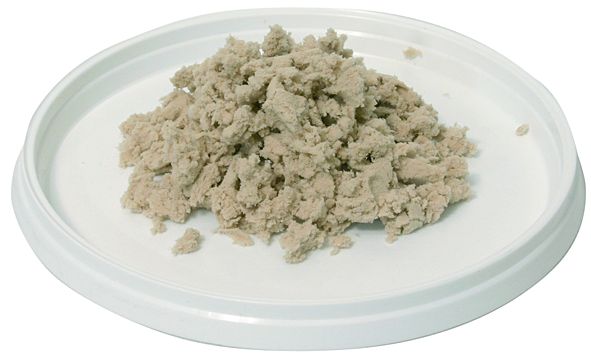

Consists of a mix of cellulose fibres and other fillers for use in filleting applications when a naturally finished interior is intended. Alchohol or waterbased stains may be added to adjust the colour. Add 15% to 25% by weight to the epoxy mix.Colour: tan.

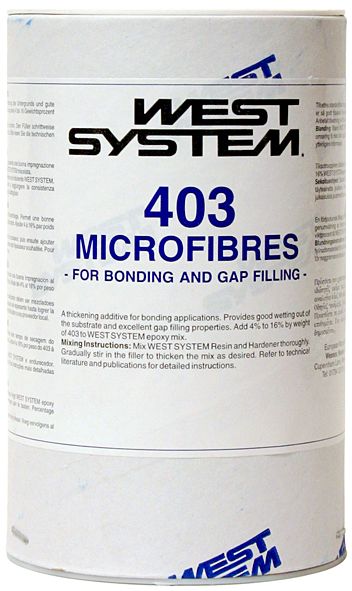

A blend of fine cotton fibers, used as a thickening additive for bonding applications.Epoxy thickened with 403 fibres provides good wetting out of the substrate and excellent gap-filling properties. They give the resin a better viscoplasticity and absorb tensile forces.Add 4% to 16% by weight of 403 to WEST SYSTEM epoxy mix. Colour: off-white.
A high density blended filler consisting of loose chopped glass and other fillers, intended for small semi structural repairs, filling voids, or small scale impact damage to glass fibre laminates.The finished repairs are incredibly strong, tough and resilient. When mixed with WEST SYSTEM epoxy at a ratio of approximately 25% by weight, the result is a thick paste that can be carefully stippled into place with a brush and can be held in place with PVC tape or peel ply to give a smooth finish to the repair.Typical uses include deep void repair due to osmotic damage; damage to dinghy rudder and centre boards and hard edge impact damage on small sailboats.

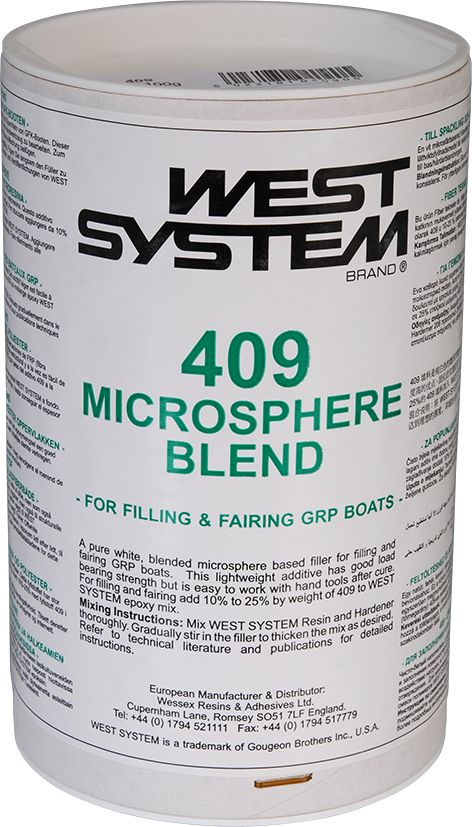

A pure white, hollow glass bubble based, low density filler designed for filling and fairing of fibreglass. When the filler is mixed with WEST SYSTEM epoxy at a ratio of 10% to 25% by weight, it creates a smooth creamy paste for filling and fairing over glass fibre repairs. The cured epoxy/filler is very easy to sand. Being white in colour the cured epoxy filler mix will be hidden easily behind paint or polyester gelcoat but must be protected by further coats of epoxy if used below the waterline.

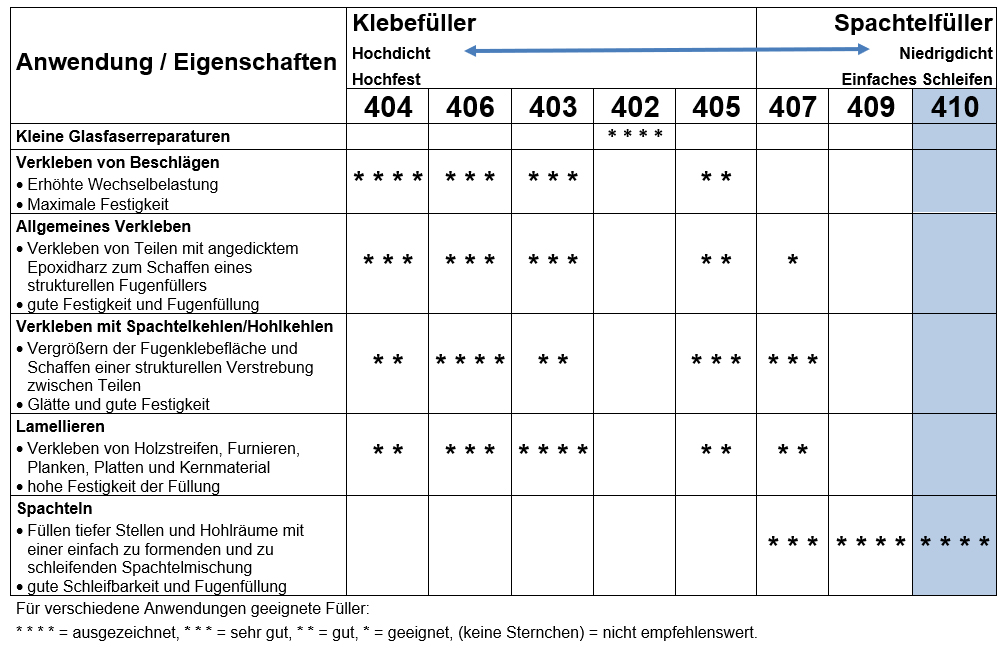

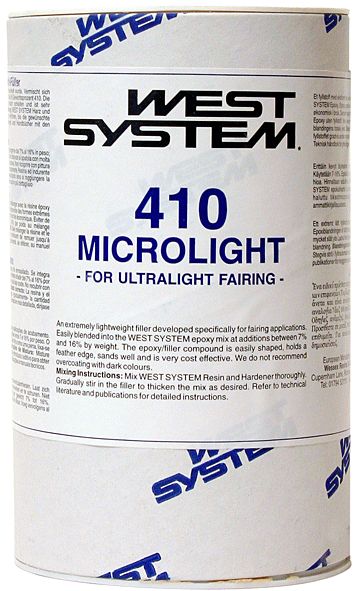

410 MicrolightT is the ideal low-density filler for creating a lightweight, easily worked fairing compound especially suited for large areas. Microlight is easily blended into the epoxy mix at additions between 7% to 16% by weight and when cured is easier to sand than any other filled system. Holds a feather edge and is more cost effective than other fillers. Not recommended for high temperature applications and should not be coated with dark colours. Cures to a tan colour.
A proprietary blend designed to improve the moisture-exclusion effectiveness of WEST SYSTEM epoxy and to combat osmosis. It is an excellent additive for providing a barrier coating to overcome gelcoat blistering and also increases the abrasion resistance. Add 20% to 25% by weight of 422 to the mixed epoxy. Additives are mixed with the epoxy to alter the physical properties when used as a coating. Additives can be used to alter the colour, abrasion resistance or moisture resistance of cured epoxy.
A fine black powder added to WEST SYSTEM epoxy (10% by volume) to produce a low-friction exterior coating with increased scuff resistance, durability and mar-resistance. Epoxy/graphite is commonly used as a coating on rudders and centreboards or on the bottoms of racing craft that are dry sailed. The epoxy/ graphite mix can also be used in teak deck construction to simulate traditional seams in appearance and to protect the resin from sunlight. Additives are mixed with the epoxy to alter the physical properties when used as a coating. Additives can be used to alter the colour, abrasion resistance or moisture resistance of cured epoxy.
Add between 5% to 10% by volume to provide protection from ultraviolet light in areas which will not be protected with other coatings and as a base for subsequent painting. Will substantially increase the hardness of the coated surface. Additives are mixed with the epoxy to alter the physical properties when used as a coating. Additives can be used to alter the colour, abrasion resistance or moisture resistance of cured epoxy.
Can be added to the epoxy to provide a base colour for a final finish system. The coloured surfaces also tend to highlight flaws and imperfections. Pigments should be added at a rate of approximately 3%-5% by weight and should only be added to the final coat of epoxy because the increased viscosity of the mix will impair the ability of the epoxy to penetrate and seal surfaces. Available in white (501), black (502), grey (503) and blue (505). Additives are mixed with the epoxy to alter the physical properties when used as a coating. Additives can be used to alter the colour, abrasion resistance or moisture resistance of cured epoxy.

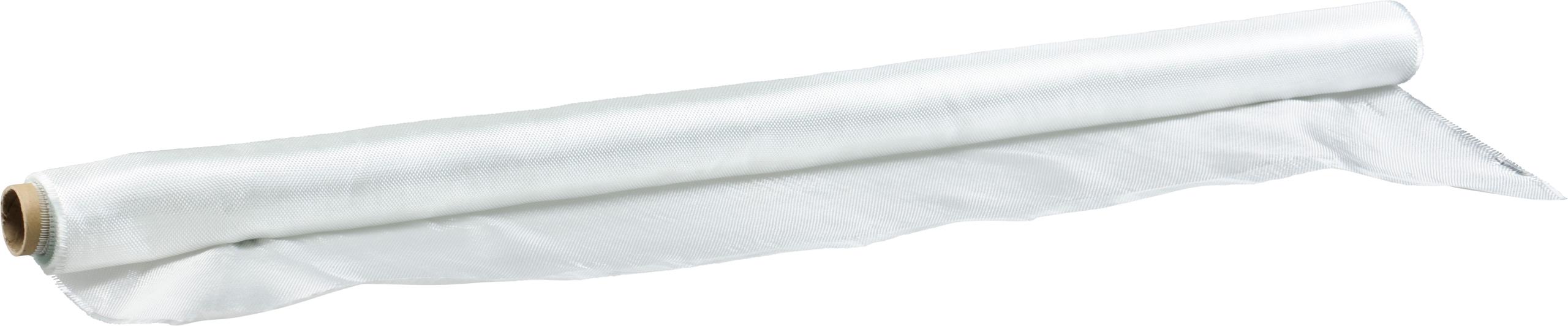

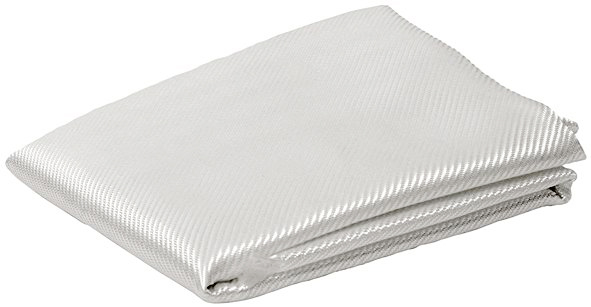

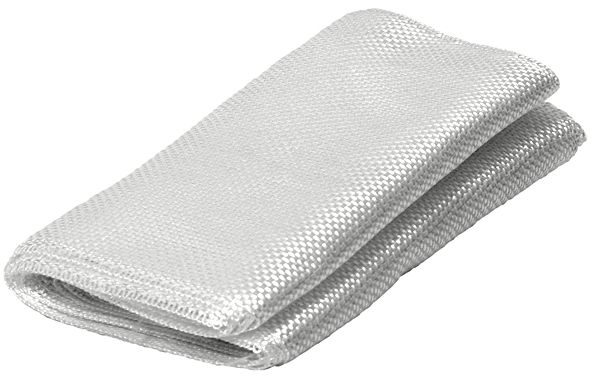

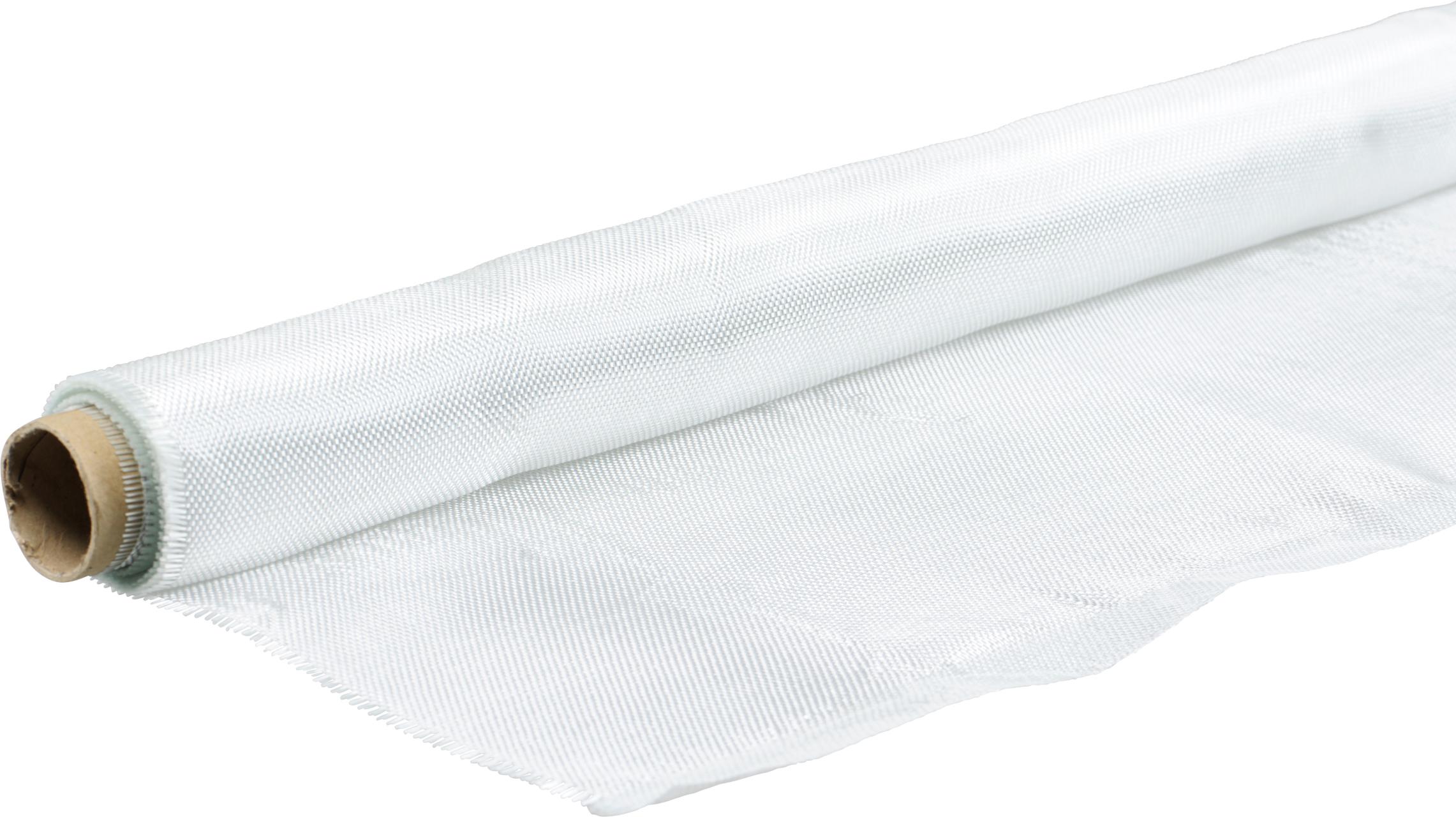

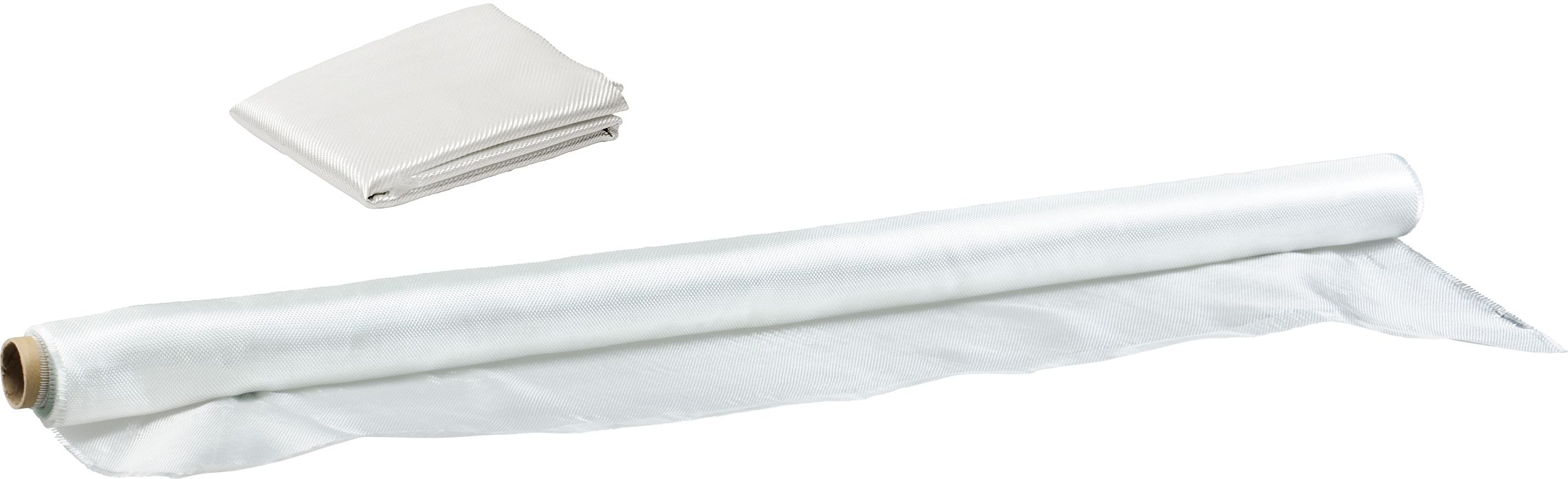

These glass fabrics are used for fiber composite laminates with WEST SYSTEM epoxy resins.They are also well suited for the repair of GRP boats or as an abrasion-resistant outer skin on wooden boats, whereby the lightweight fabrics dry completely transparent and can therefore also be used under clear varnish.The twill weave enables excellent drapability of the fabrics and the lamination of complicated three-dimensional shapes.Supplied as a square meter pack or as a roll.

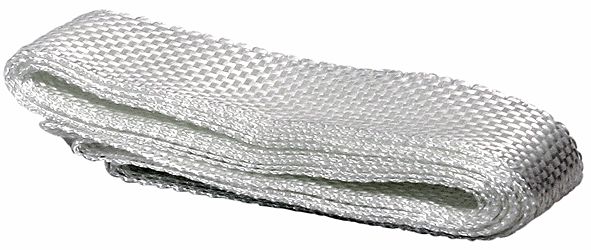

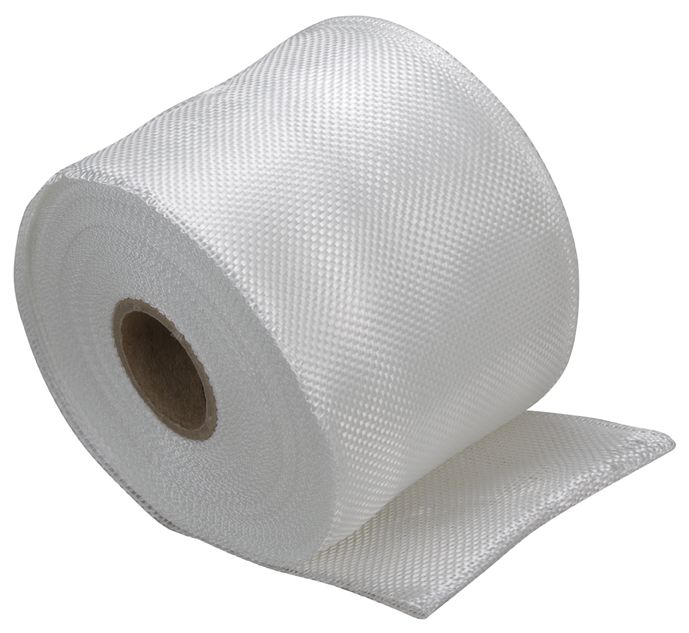

Versatile woven fabric tapes are ideal for reinforcing chines, hull/deck corners and similar structural applications.When bonded with WEST SYSTEM epoxy, they provide additional tensile strength to resist hairline crack development and abrasion.Available in 10 m pieces and 50 m rolls.

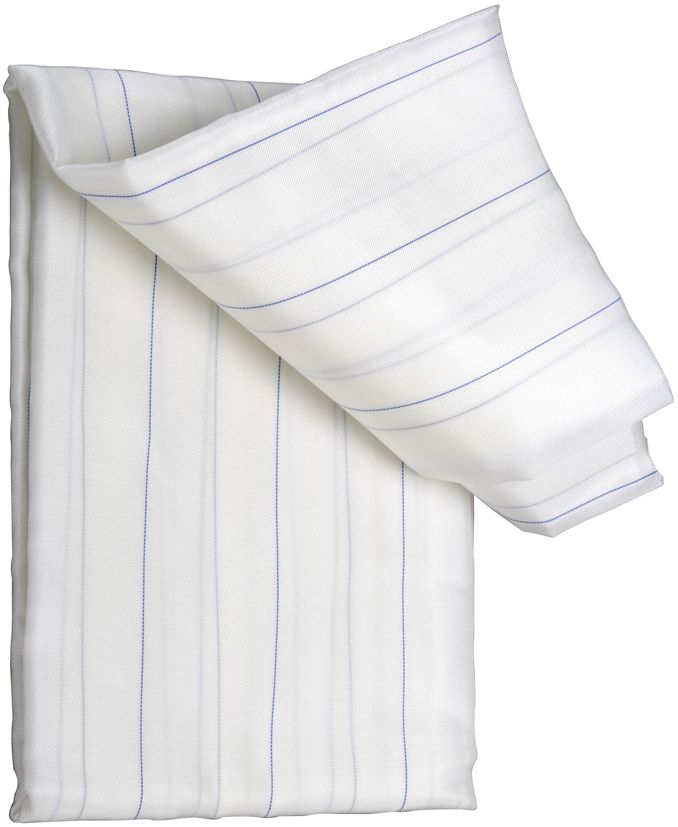

Ensures a clean and even structured epoxy resin surface that can be further coated without sanding.Doesn't stick to the epoxy and must be stripped off after the resin is hardened, no enforcement!Supplied in packs.
Ensures a clean and even structured epoxy resin surface that can be further coated without sanding.Doesn't stick to the epoxy and must be stripped off after the resin is hardened, no enforcement!Supplied per meter.
